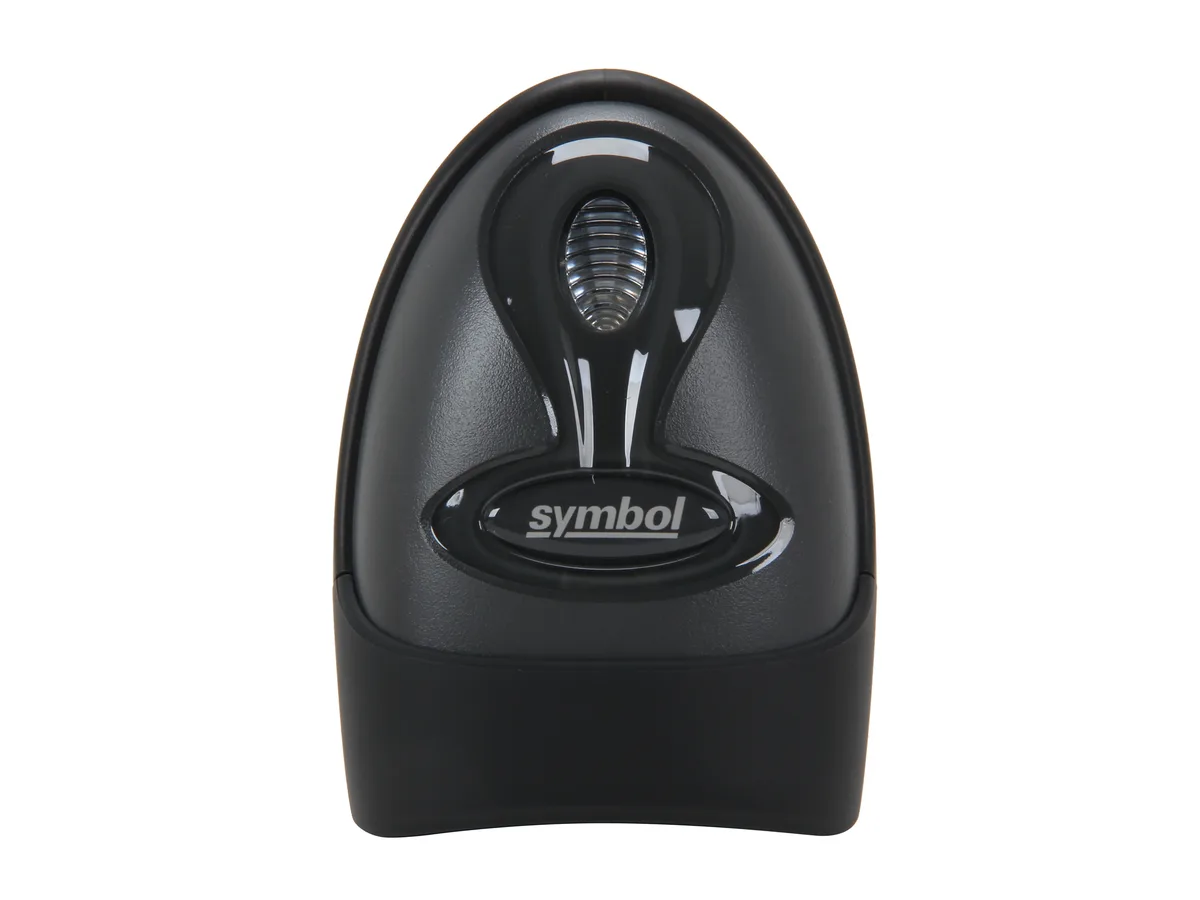

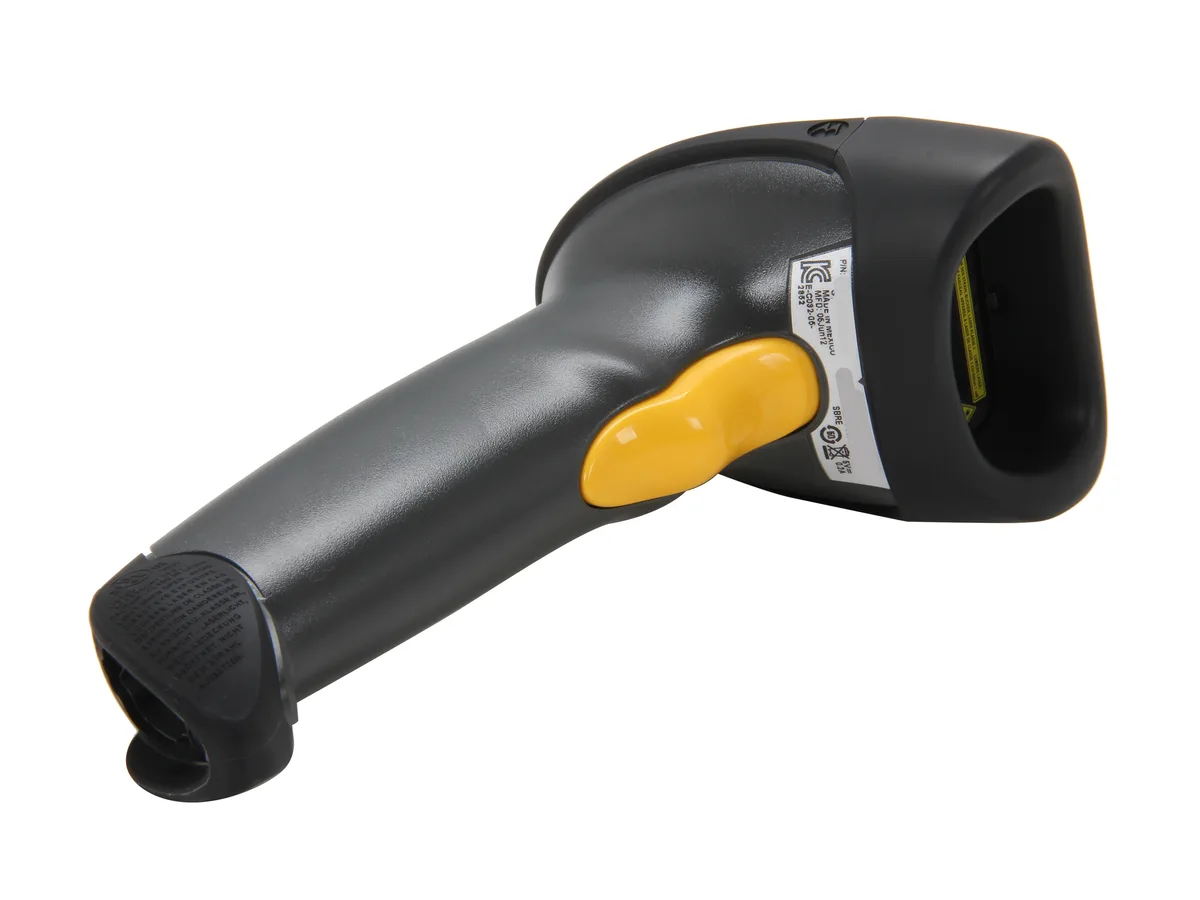

Black handheld laser barcode scanner with coiled cable, ergonomic grip and tempered glass window

symbol

Symbol LS2208-SR20007R barcode scanner, corded laser, IBM 468x/9x cable, 17 in range

SKU CH-82PP-C1X31 MPN LS2208-SR20007R

Corded laser handheld scanner reads 1D barcodes from contact to 17 inches with IBM 468x/9x cable and multiple on-board interfaces

  • Form FactorHandheld
  • ConnectivityCorded
  • Scan EngineLaser
  • Included CablesIBM 468x/9x Port 9B Cable Included
  • Interfaces SupportedUSB, RS-232, Keyboard Wedge, IBM 468x/469x, Wand Emulation,
  • Cordless TypeBarcode Scanner
  • Fast, reliable 1D scanning from contact to 17 inches
  • Ergonomic 5.2 oz design reduces fatigue during long shifts
  • Durable single-board construction withstands 5 ft drops
  • Multiple on-board interfaces including USB, RS-232 and IBM 468x/9x
  • Scratch-resistant tempered glass window protects the 650 nm laser exit

Corded Laser Scanner for Retail and Service Counters

The Symbol LS2208-SR20007R is a handheld barcode scanner built for general-purpose use. It reads 1D symbols from near-contact up to 17 inches using a 650 nm visible laser diode. The decoder supports UPC/EAN, Code 39, Code 128, Interleaved 2 of 5 and many other common symbologies. Weighing 5.2 oz, the black enclosure is rated for 5 ft drop resistance.

Verify Host Port and Cable Compatibility Before

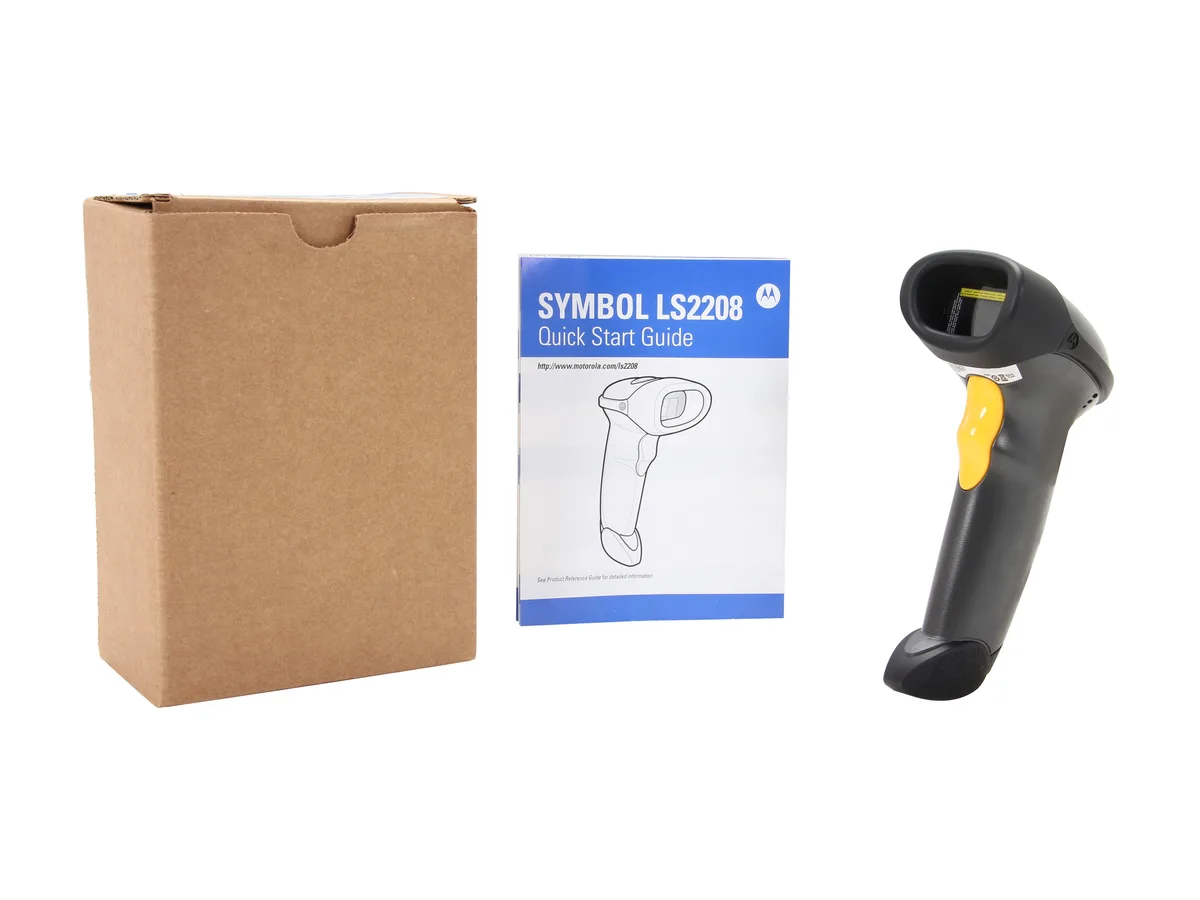

This unit ships as the scanner only; no cable or stand is included in the box. Confirm that your host system accepts an IBM 468x/9x Port 9B connection or one of the other on-board interfaces such as USB, RS-232 or Keyboard Wedge. The correct cable must be sourced separately to match the chosen interface.

Replaces Older Single-Line Scanners Needing Wider

The 17 in working range (43 cm) upgrades devices limited to short contact reads, reducing rescans at busy check-outs. Multi-interface firmware lets the same hardware move between legacy IBM 468x/469x terminals and modern USB hosts without replacement. Buyers who need 2D imaging, cordless freedom or a built-in presentation stand should select a different model.

Highlights

  • Fast, reliable 1D scanning from contact to 17 inches
  • Ergonomic 5.2 oz design reduces fatigue during long shifts
  • Durable single-board construction withstands 5 ft drops
  • Multiple on-board interfaces including USB, RS-232 and IBM 468x/9x
  • Scratch-resistant tempered glass window protects the 650 nm laser exit

Specifications

BrandMotorola Symbol
ModelLS2208-SR20007R
Form FactorHandheld
ConnectivityCorded
Scan EngineLaser
Included CablesIBM 468x/9x Port 9B Cable Included
Interfaces SupportedUSB, RS-232, Keyboard Wedge, IBM 468x/469x, Wand Emulation, Synaps
Cordless TypeBarcode Scanner
Light Source650 nm visible laser diode
Pitch2 +/-65 degrees
Roll1 +/-30 degrees
Yaw3 +/-60 degrees
Decoding CapabilityUPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5
ColorBlack
Dimensions6'' x 2.5'' x 3.4''
Weight5.2 oz.
FeaturesLS2208 DECODED SCANNER ONLY, REQUIRES CABLE, BLACK
RuggednessGeneral Purpose
Shipping weight0.91 kg
Package size203 × 127 × 76 mm

Questions about this item

Does the LS2208-SR20007R come with a cable and stand, or must I buy them separately?

The scanner includes an IBM 468x/9x Port 9B cable. No stand is included; a separate Intellistand is required for hands-free presentation scanning.

Which interface version should I choose for my host system?

The on-board interfaces are USB, RS-232, Keyboard Wedge, IBM 468x/469x, Wand Emulation and Synaps. Select the cable that matches your host port; the scanner auto-detects the interface.

What does the 17-inch working range mean at the checkout?

It reads 1D bar codes from near-contact out to 17 in (43 cm), so items can be scanned on the counter or in the hand without repositioning the scanner.
