Syba
Syba SY-KVM20075 2-Port DVI USB Audio KVM Switch
A compact 2-port KVM switch shares one 1920 x 1080 DVI monitor, keyboard, mouse and audio between two computers with push-button or hot-key switching and detachable cables
- TypeDVI, USB
- PC Connectors1 x DVI 1 x USB 2 x 3.5mm Audio
- Console Connectors1 x DVI 2 x USB
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution1920 x 1080
- Switch two computers with one DVI display at 1920 x 1080
- USB keyboard and mouse control both systems without extra hardware
- Audio switching routes speakers and microphone between PCs
- Push-button or hot-key selection changes sources instantly
- Detachable 4 ft cables keep the desk tidy and portable
Two-port DVI KVM switch
The Syba SY-KVM20075 lets one DVI monitor, USB keyboard, USB mouse and analogue speakers share two computers. Detachable 4-foot cables carry DVI, USB and 3.5 mm audio for each system. Front push buttons and hot-key sequences switch the active computer. LEDs show which port is selected and whether audio is routed.
Desktop users needing basic dual-system control
Suits home or office desks where two PCs share a single 1920 x 1080 DVI display and wired USB peripherals. Not suited for DisplayPort, HDMI or higher-resolution monitors. Not suited for setups that require more than two computer ports or dedicated keyboard/mouse emulation beyond the built-in boot support.
1920 x 1080 DVI video limit
Maximum supported resolution is 1920 x 1080 over DVI 1.1. If your monitor or source outputs a higher resolution, the switch will not pass the signal correctly. Verify that both computers and the display operate at or below this resolution before purchasing.
Highlights
- Switch two computers with one DVI display at 1920 x 1080
- USB keyboard and mouse control both systems without extra hardware
- Audio switching routes speakers and microphone between PCs
- Push-button or hot-key selection changes sources instantly
- Detachable 4 ft cables keep the desk tidy and portable
Specifications
| Brand | SYBA |
|---|---|
| Series | 134364 |
| Model | SY-KVM20075 |
| Type | DVI, USB |
| PC Connectors | 1 x DVI 1 x USB 2 x 3.5mm Audio |
| Console Connectors | 1 x DVI 2 x USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1080 |
| PC Selection | Push Buttons/Hot Keys |
| LED Indicators | LED Indicators for PC and Audio Status |
| Features | Supports Speaker and Microphone Emulates a keyboard on each PC to allow computers to boot normally without a keyboard error Detachable Cables Connect and Play, Out of Box Ready to Work Compliant with DVI 1.1 Standards Supports Hot-Swap. All Devices Connected to the KVM can be Added or Removed at Any Time Without Power Off Supports Auto-Scan Function to Alternate Video Between Both Computers Self Powered Through USB Connection Supports Independent Switching of Audio Inputs |
| Weight | 1 |

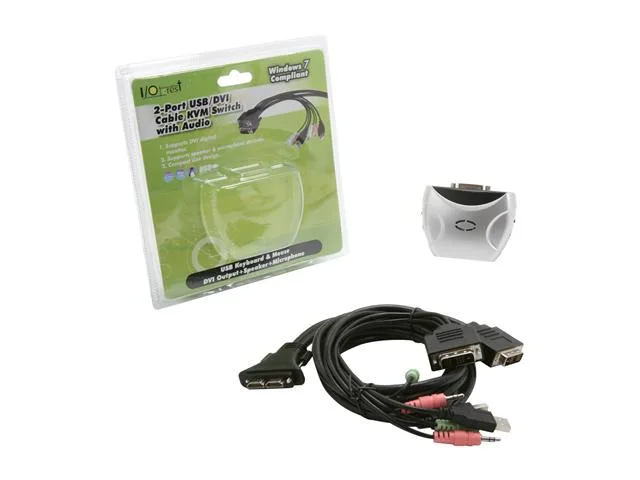

| Package Contents | 2-port DVI/USB KVM Switch with Audio & Cables Detachable Cable Set (4FT.) User Manual |
| Shipping weight | 0.54 kg |
| Package size | 211 × 202 × 70 mm |
Questions about this item
Does the SY-KVM20075 generate noticeable heat or noise when switching between two computers all day?
The SY-KVM20075 is a passive switch with no fans or active cooling, so it runs silently and produces no measurable heat during continuous operation.
What cables must I already own to connect two computers to the SY-KVM20075?
The package includes a detachable 4 ft cable set with DVI, USB and 3.5 mm audio connectors for each computer, so no extra cables are required for a standard two-PC setup.
Will the SY-KVM20075 correctly pass 1920 x 1080 video from a legacy DVI source to a modern DVI monitor?
Yes, the switch complies with DVI 1.1 and supports up to 1920 x 1080 resolution, so a legacy DVI source at that resolution will display without degradation.
