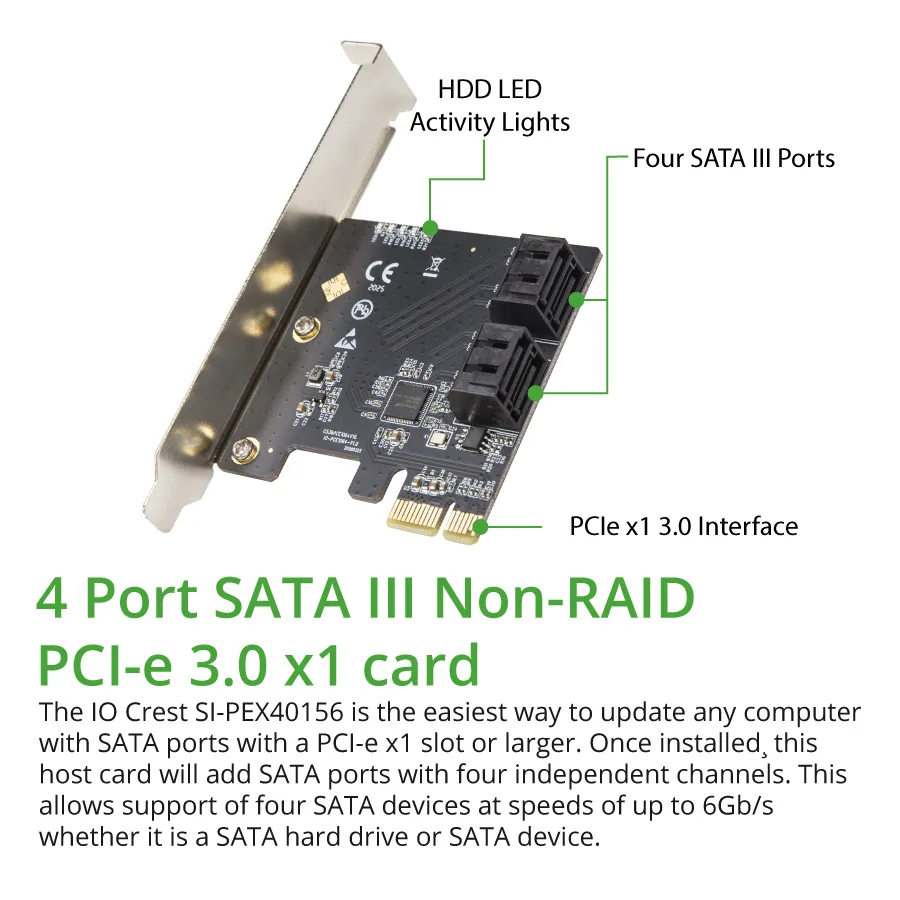

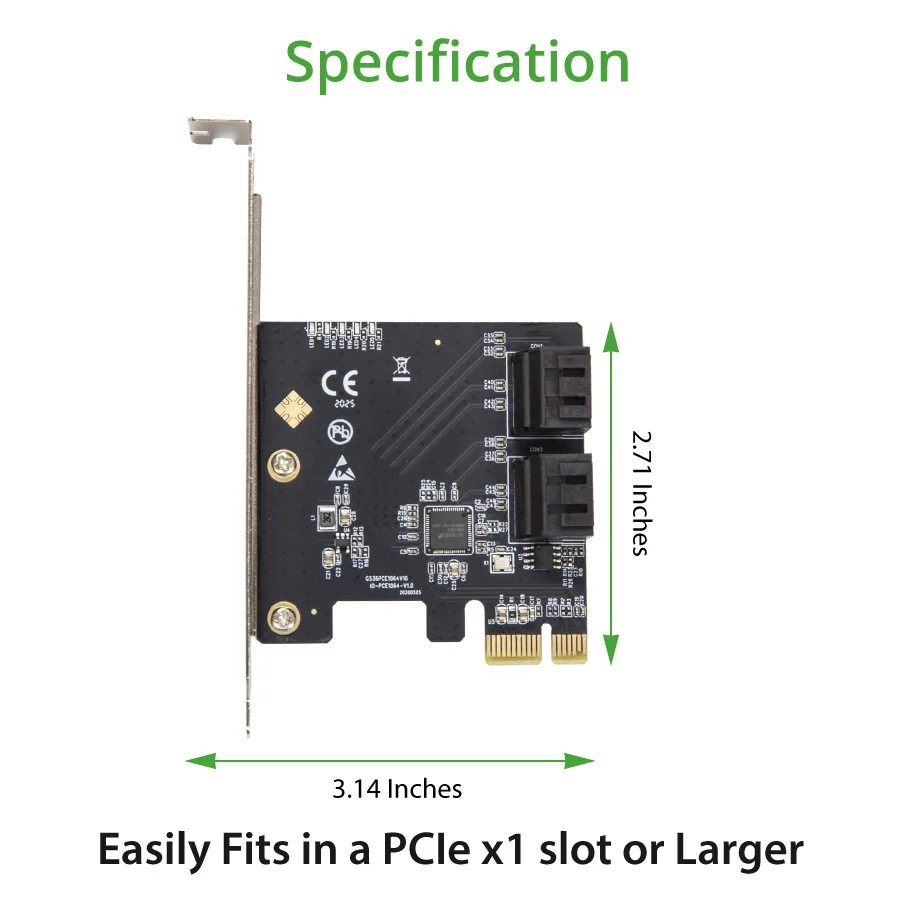

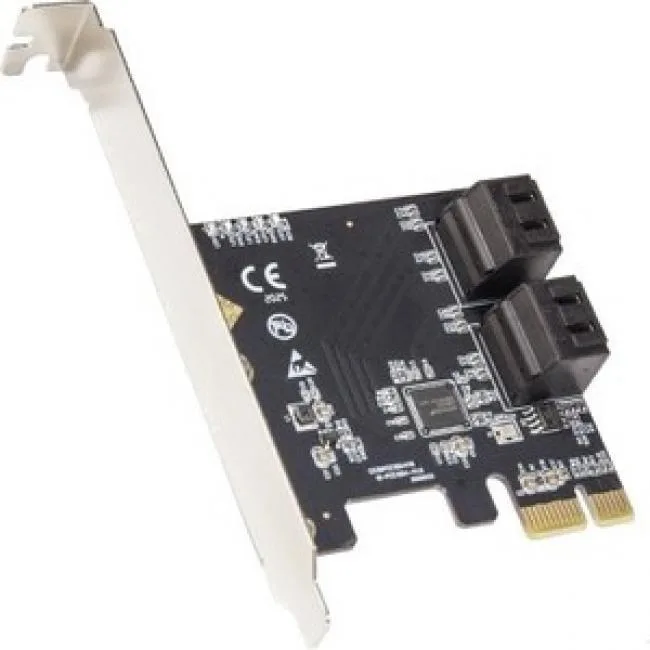

Syba SI-PEX40156 4-Port SATA 6.0Gb/s PCIe 3.0 x1 Non-RAID Controller
Adds four bootable SATA 6.0Gb/s ports through a PCIe 3.0 x1 slot using the ASMedia 1064 chipset
- TypePCI-Express
- Internal Connectors4 x SATA 6.0Gb/s
- InterfacePCI-Express 3.0 x1
- FeaturesThe SI-PEX40156 4 port SATA III PCI-e 3.0 x1 controller card
- Package Contents(1) SATA III 4-port PCI-e 3.0 x1 Slot Controller Card (1) Dr
- Adds four 6.0Gb/s SATA ports via PCIe 3.0 x1

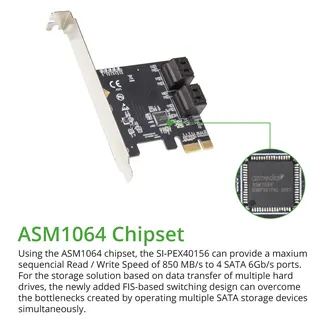

- ASMedia 1064 chipset provides native SATA 6.0Gb/s connectivity
- Bootable SATA ports support OS installation directly
- Hot-plug and hot-swap capable for drive changes without shutdown
- Includes standard and low-profile brackets for flexible fit
Four SATA 6.0Gb/s ports for internal storage
The Syba SI-PEX40156 adds four SATA III connections through a PCIe 3.0 x1 slot using an ASMedia 1064 chipset. It is a non-RAID controller intended for builders who need more internal drive ports without hardware RAID functionality. The card supports bootable SATA ports and Native Command Queueing for improved drive responsiveness.

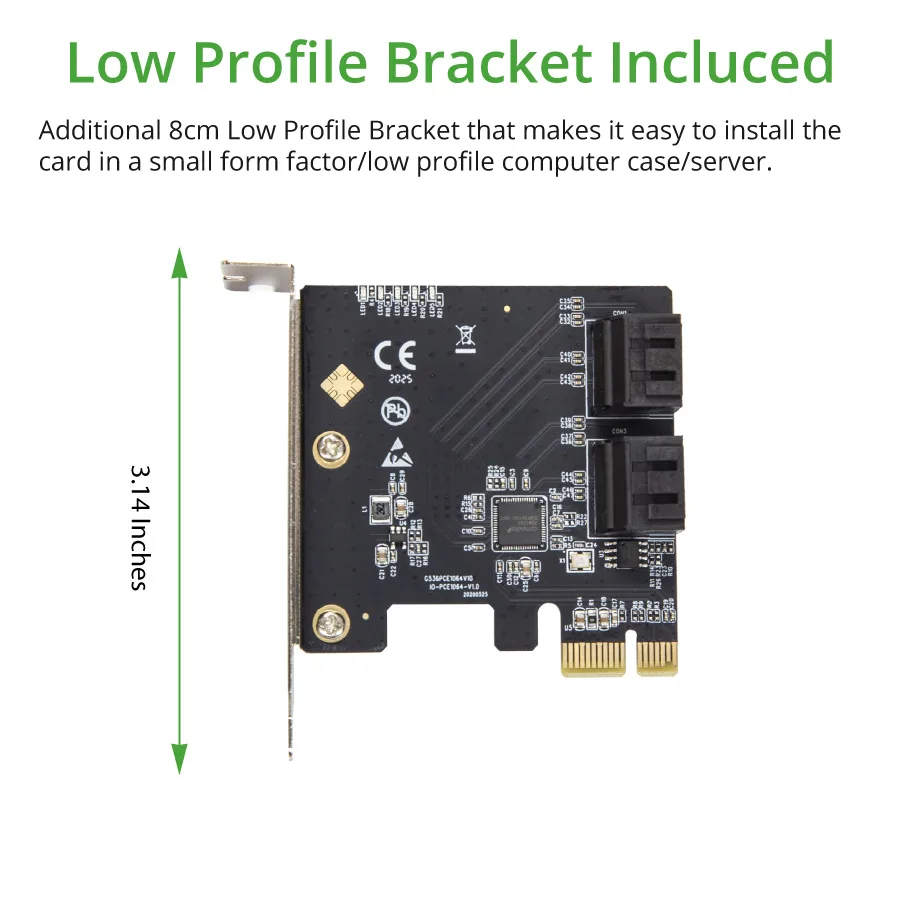

Low-profile bracket and hot-swap support
A standard bracket and a low-profile bracket are included so the card fits full-height or slim chassis. The 19-inch SATA cables supplied reach typical motherboard-to-drive distances. Hot plug and hot swap capability means drives can be exchanged without powering down, while Port Multiplier support allows additional drives per port.
Check slot and firmware compatibility
Verify the system has a free PCIe x1 or larger slot running at version 1.0 or 3.0. UEFI firmware is required for boot support; legacy BIOS-only boards may not recognise drives attached to this card. No RAID arrays can be created, so users needing redundancy must rely on software solutions.
Highlights
- Adds four 6.0Gb/s SATA ports via PCIe 3.0 x1
- ASMedia 1064 chipset provides native SATA 6.0Gb/s connectivity
- Bootable SATA ports support OS installation directly
- Hot-plug and hot-swap capable for drive changes without shutdown
- Includes standard and low-profile brackets for flexible fit
Specifications
| Brand | SYBA |
|---|---|
| Model | SI-PEX40156 |
| Type | PCI-Express |
| Internal Connectors | 4 x SATA 6.0Gb/s |
| Interface | PCI-Express 3.0 x1 |
| Features | The SI-PEX40156 4 port SATA III PCI-e 3.0 x1 controller card ASMedia 1064 chipset adds four SATA III ports to a computer through a PCI-e 3.0 x1 slot, delivering multiple internal 6Gbps connections for SATA III hard drives and SSDs. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gaps, the controller card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for SATA 600 MB/s storage needs. |
| Package Contents | (1) SATA III 4-port PCI-e 3.0 x1 Slot Controller Card (1) Driver CD (2) 19" SATA Cable (1) Standard and Low Profile Brackets (1) User Manual |
| Shipping weight | 0.05 kg |
| Package size | 137 × 102 × 27 mm |
Questions about this item
What bandwidth does the PCIe 3.0 x1 interface cap the four SATA 6.0Gb/s ports to in practice?
The PCIe 3.0 x1 lane provides roughly 8 Gb/s usable throughput, so the four 6.0Gb/s ports share that ceiling and cannot all run at full speed simultaneously.
Which brackets are supplied so the card fits both full-height and low-profile cases?
The box includes a standard bracket and a low-profile bracket; swap the metal bracket on the card to match your chassis height.
How is the ASMedia 1064 driver installed, and what step do people often miss?
Run the setup from the included driver CD before connecting drives; many users plug the drives in first and then find the ports invisible to the OS.
