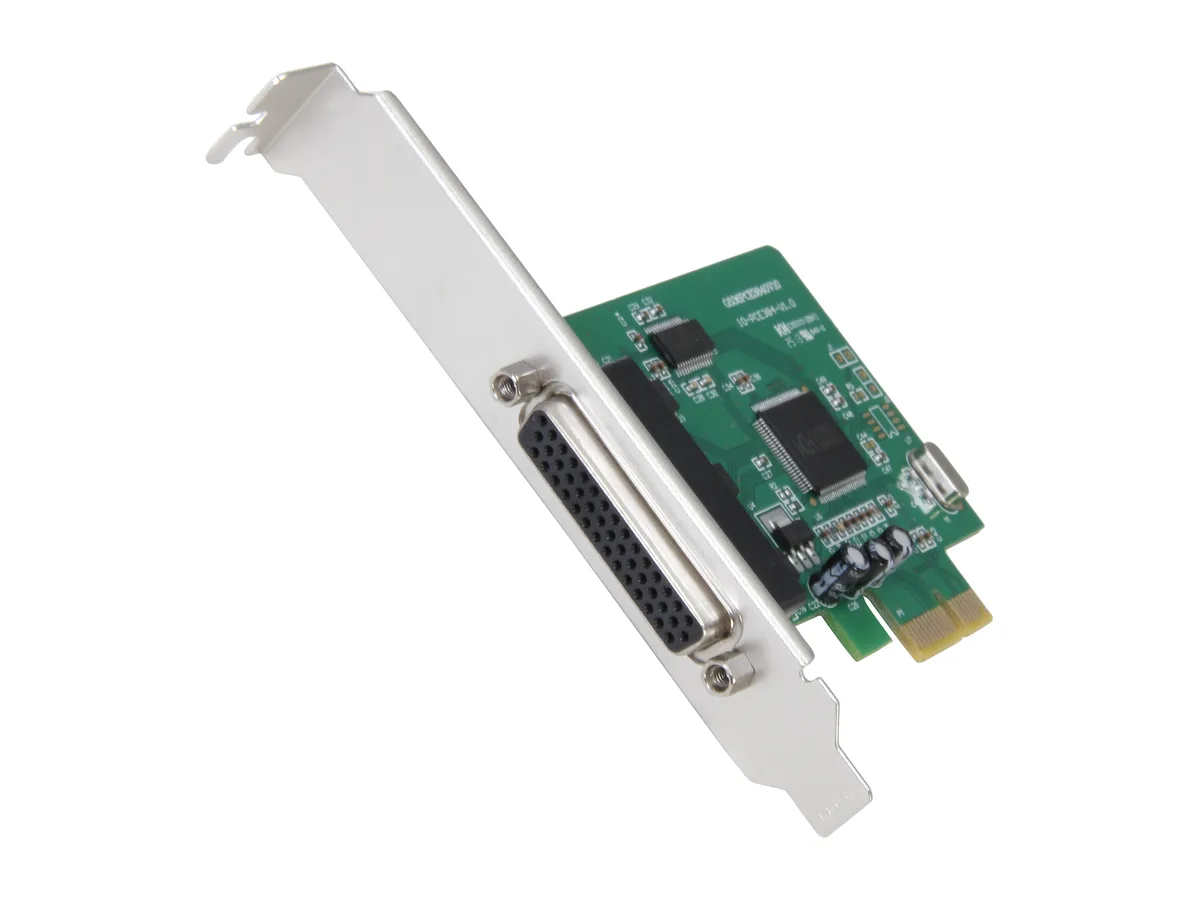

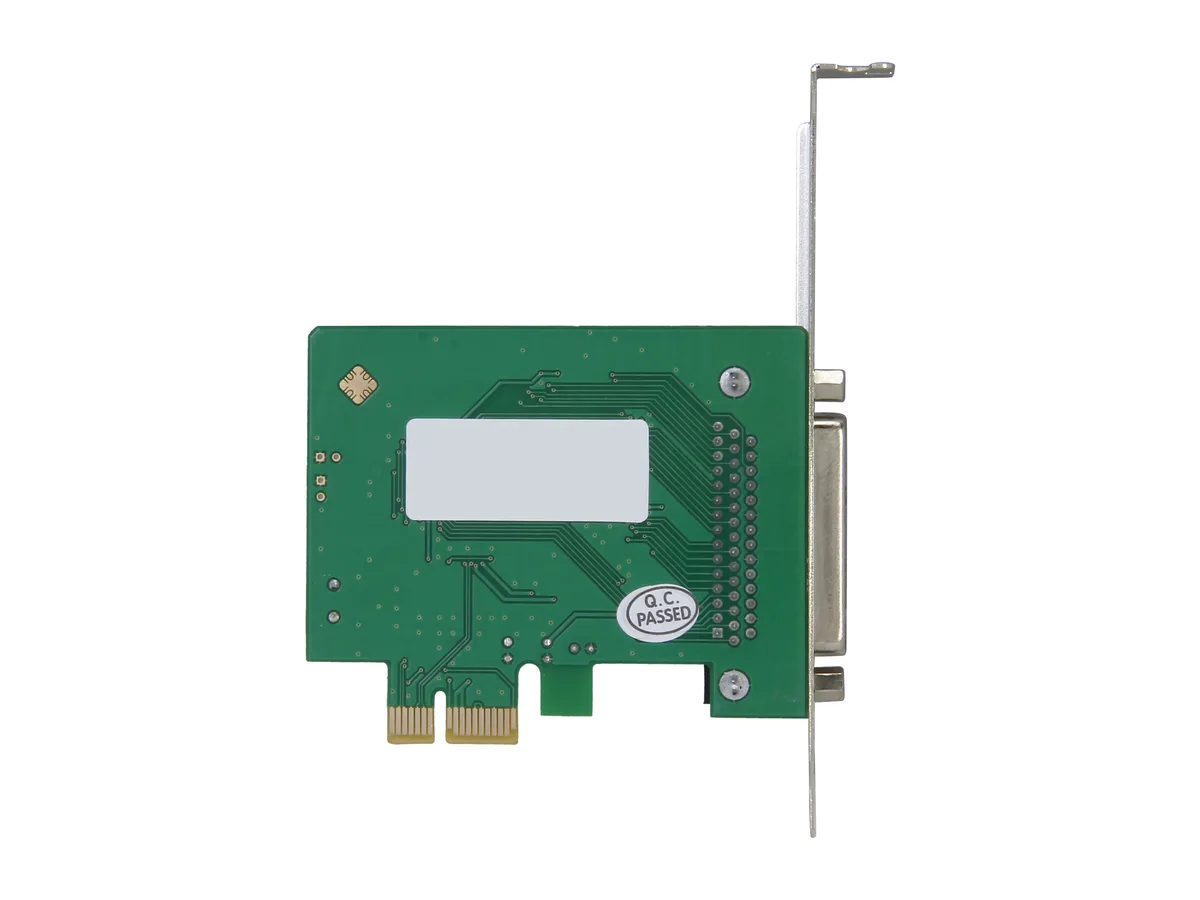

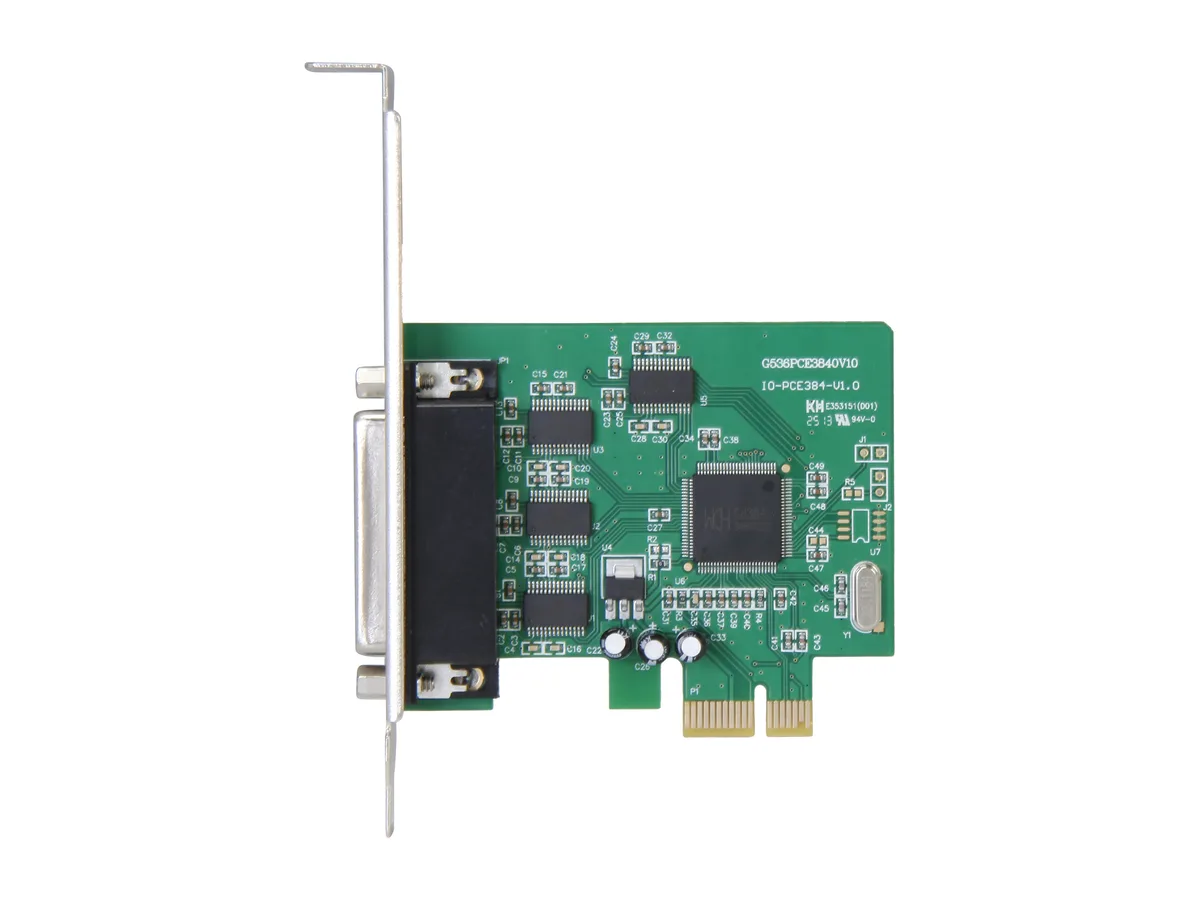

Green PCIe x1 card with DB44 connector and 10 inch fan-out cable to four DB9 ports

Syba

Syba SI-PEX15038 4 Port PCIe Serial Expansion Card

SKU CH-Z9MG-RZ2S7 MPN SI-PEX15038

Adds four RS-232 serial ports via a PCIe x1 slot with a 10" fan-out cable and low-profile bracket

  • TypePCI Express to Serial Port Card
  • External Ports1 x Serial Port
  • Operating Systems SupportedWindows 8 Windows 7 Vista Windows XP Windows ME Windows 98/9
  • SpecificationsPCI Express: Fully Compliant with PCI Express Base Specifica
  • Package Contents4 Serial Ports PCI-e x1 Controller Card Fan-out Cable (DB44
  • Connect legacy serial devices via four DB9 ports
  • PCI Express x1 interface fits modern motherboards
  • Low-profile bracket included for small-form-factor builds
  • Ten-inch fan-out cable keeps ports accessible
  • Driver disc supports Windows, Linux and Mac

Four serial ports via PCIe

The Syba SI-PEX15038 adds four RS-232 DB-9 ports to a desktop through a single PCI Express x1 slot using a WCH384L controller. It targets users who still operate legacy industrial equipment, point-of-sale hardware or older modems that require native serial connections.

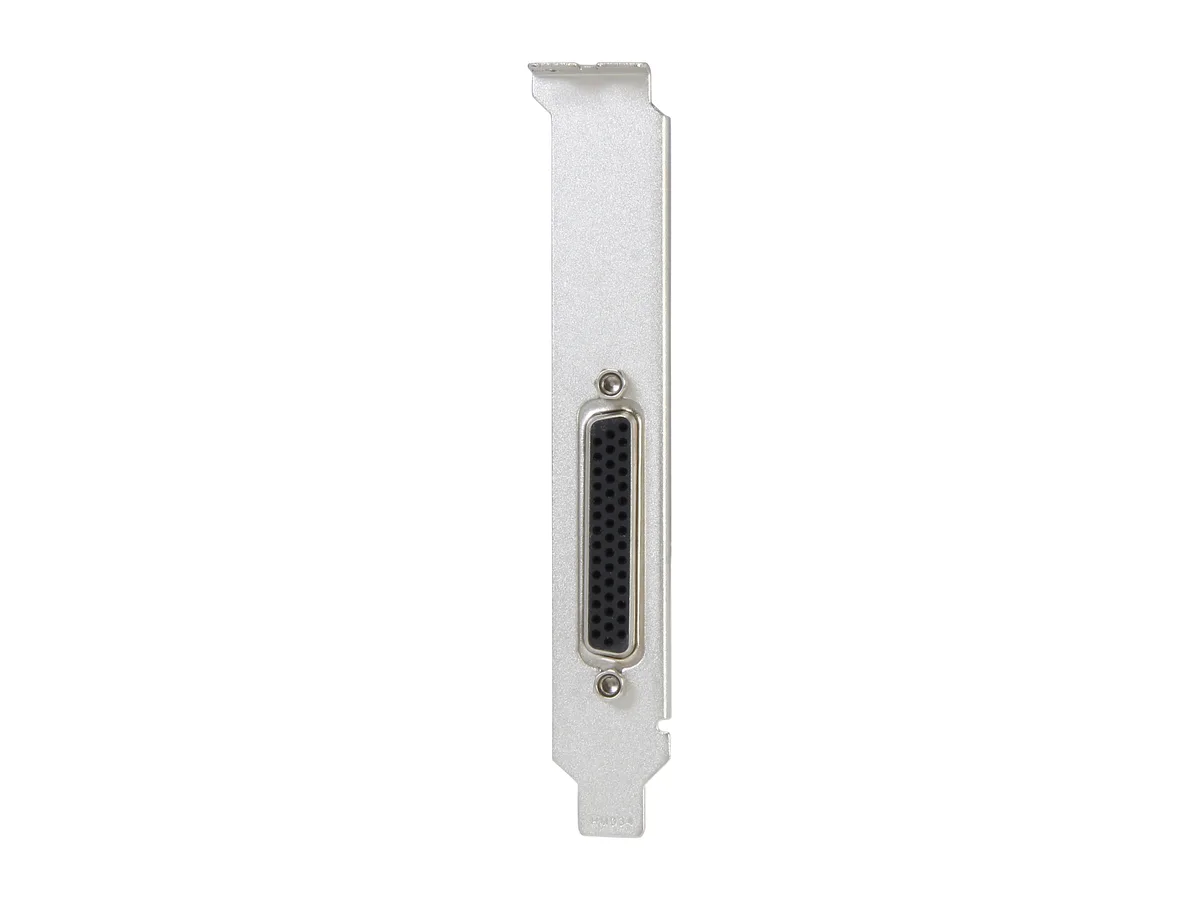

Fan-out cable and low-profile bracket

A 10-inch DB44-to-4-DB9 fan-out cable breaks the single card connector into four separate ports for easy routing. The included low-profile bracket lets the card fit in slim chassis, while a driver CD and manual cover Windows 98 through Windows 8, Linux kernels 2.4 and 2.6, and Mac OS 10.4 or later.

Plug-in card with 16 Mbps throughput

The card conforms to the PCI Express 1.0a specification with a x1 lane interface and supports D1, D2, D3 hot and D3 cold power states. Data moves at up to 16 Mbps per port. Buyers who need more than four serial ports or a different host interface such as USB or PCI will need another solution.

Highlights

  • Connect legacy serial devices via four DB9 ports
  • PCI Express x1 interface fits modern motherboards
  • Low-profile bracket included for small-form-factor builds
  • Ten-inch fan-out cable keeps ports accessible
  • Driver disc supports Windows, Linux and Mac

Specifications

BrandSYBA
ModelSI-PEX15038
TypePCI Express to Serial Port Card
External Ports1 x Serial Port
Operating Systems SupportedWindows 8
Windows 7
Vista
Windows XP
Windows ME
Windows 98/98SE/98ME
Server 2003
Server 2000(32bit Only)
Linux Kernal 2.4 & 2.6
Mac 10.4 & Above
SpecificationsPCI Express:
Fully Compliant with PCI Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 lane Interface
Support for D1, D2, D3 Hot and D3 Cold
Utilizes 100-MHz Differential PCI Express Common Reference Clock
Support PCIe Power Management
Serial Port:
Four 16c450/550/Extended 550 Compatible UARTs
Supports RS232 Modes
Bi-directional Speeds from 50 bps to 16 Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Support
Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS

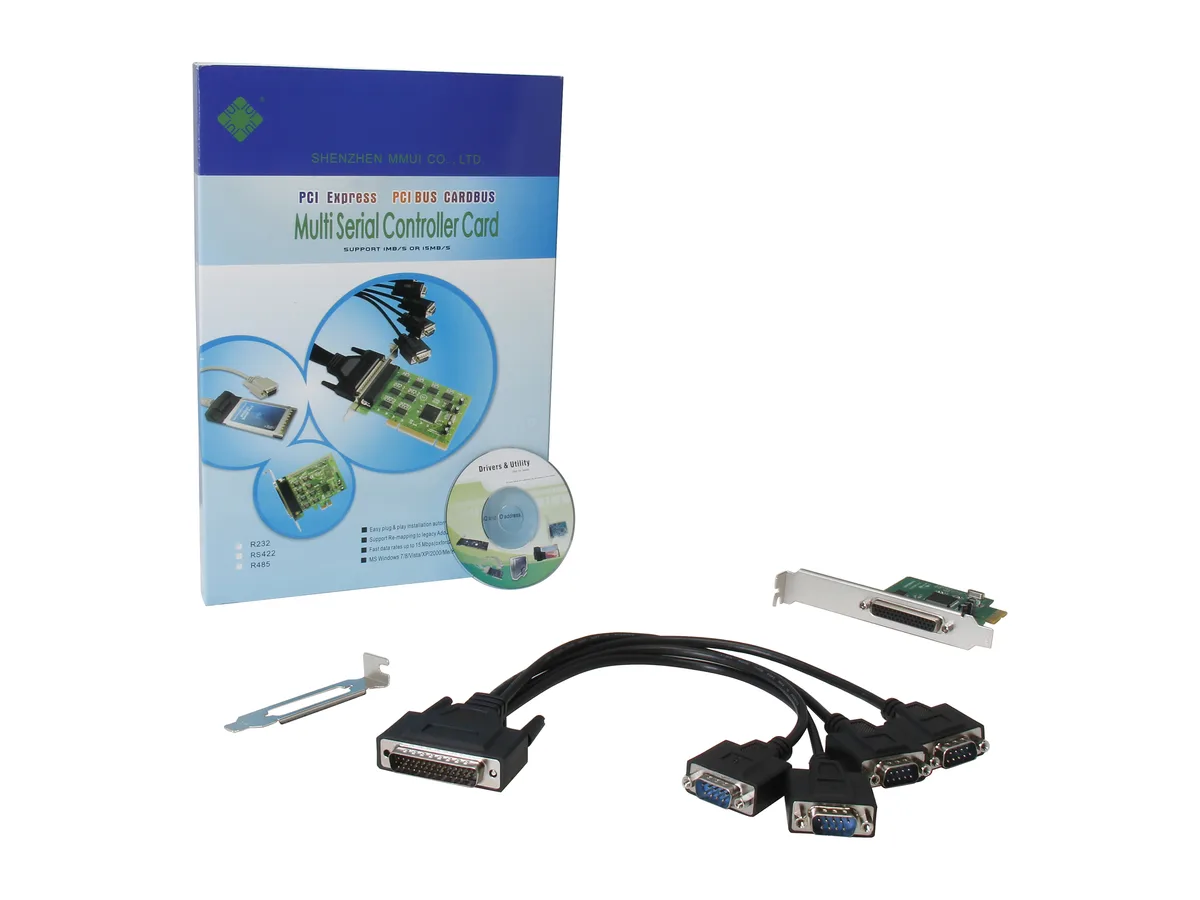

Package Contents4 Serial Ports PCI-e x1 Controller Card
Fan-out Cable (DB44 to 4 DB9, 10")
Driver CD
User Manual
Low Profile Bracket
Shipping weight0.43 kg
Package size274 × 196 × 58 mm

Questions about this item

Will the 10-inch fan-out cable need replacing if I reroute it?

The 10-inch DB44-to-4-DB9 cable is included; if a longer run is needed you would source a replacement cable with the same DB44 connector.

What throughput ceiling appears first when all four ports run continuously?

The PCI Express 1.0a x1 link and the 16 Mbps per-port rate set the sustained-data ceiling.

How much extra heat or fan noise does the card add during all-day operation?

The card draws power from the PCIe x1 slot with no onboard fan, so it adds negligible heat and no audible noise.
