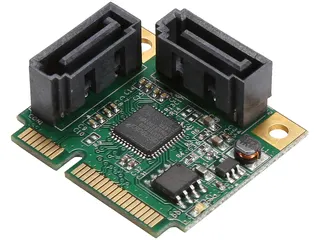

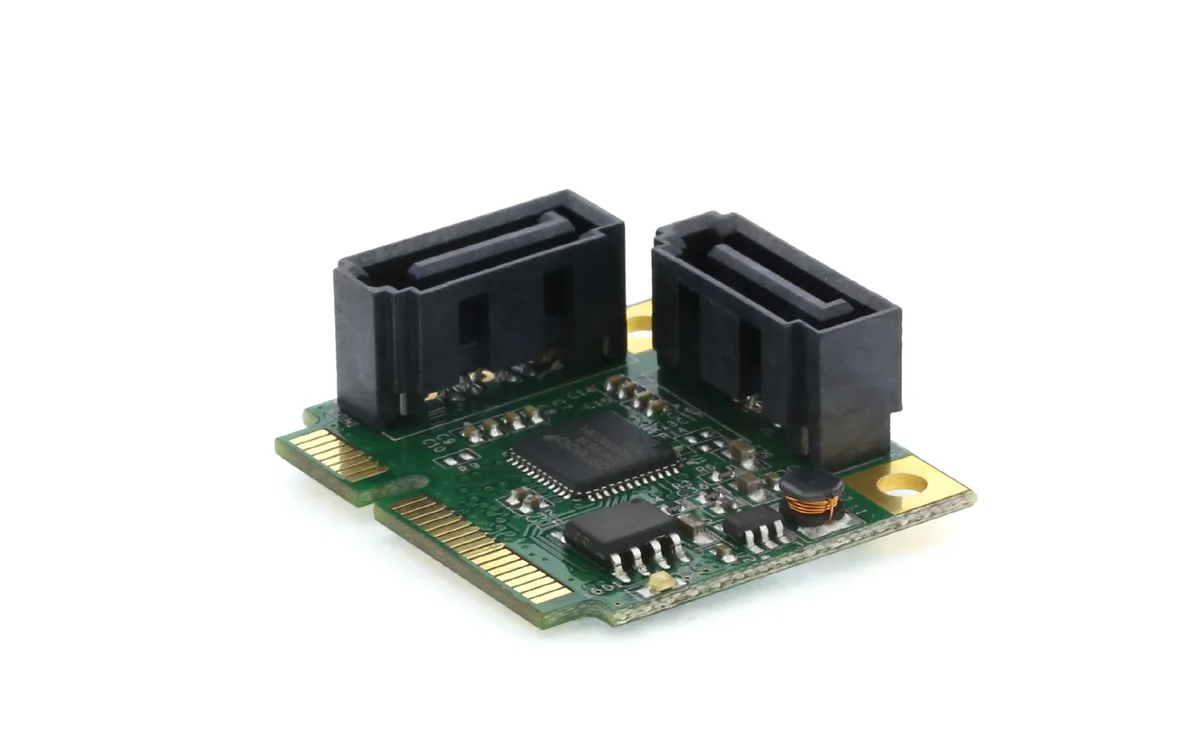

Syba SI-MPE40095 Low Profile Half Size 2 Port SATA III RAID Controller
Adds two SATA III ports with RAID 0/1 to Mini PCIe systems using ASMedia 1061R chipset
- Form FactorLow Profile Ready
- TypeSATA
- Transfer RateUp to 6Gb/s
- RAIDRAID 0/1
- Operating Systems SupportedWin 8, 7, Vista, Server 2012/2008
- Dimensions1.60" x 4.00" x 5.50" (H x W x L)
- Adds two SATA III ports to compact systems via Mini PCI-Express 1.2
- Hardware RAID 0 and 1 protects data or boosts speed with ASMedia 1061R
- 0 Gb/s transfer rate supports 1.5, 3.0 and 6.0 Gb/s drives
- Low-profile half-size card fits small chassis and includes full-size bracket
- AHCI 1.3 and IDE modes plus Native Command Queue optimise drive performance
Add two SATA III ports to a Mini PCIe slot

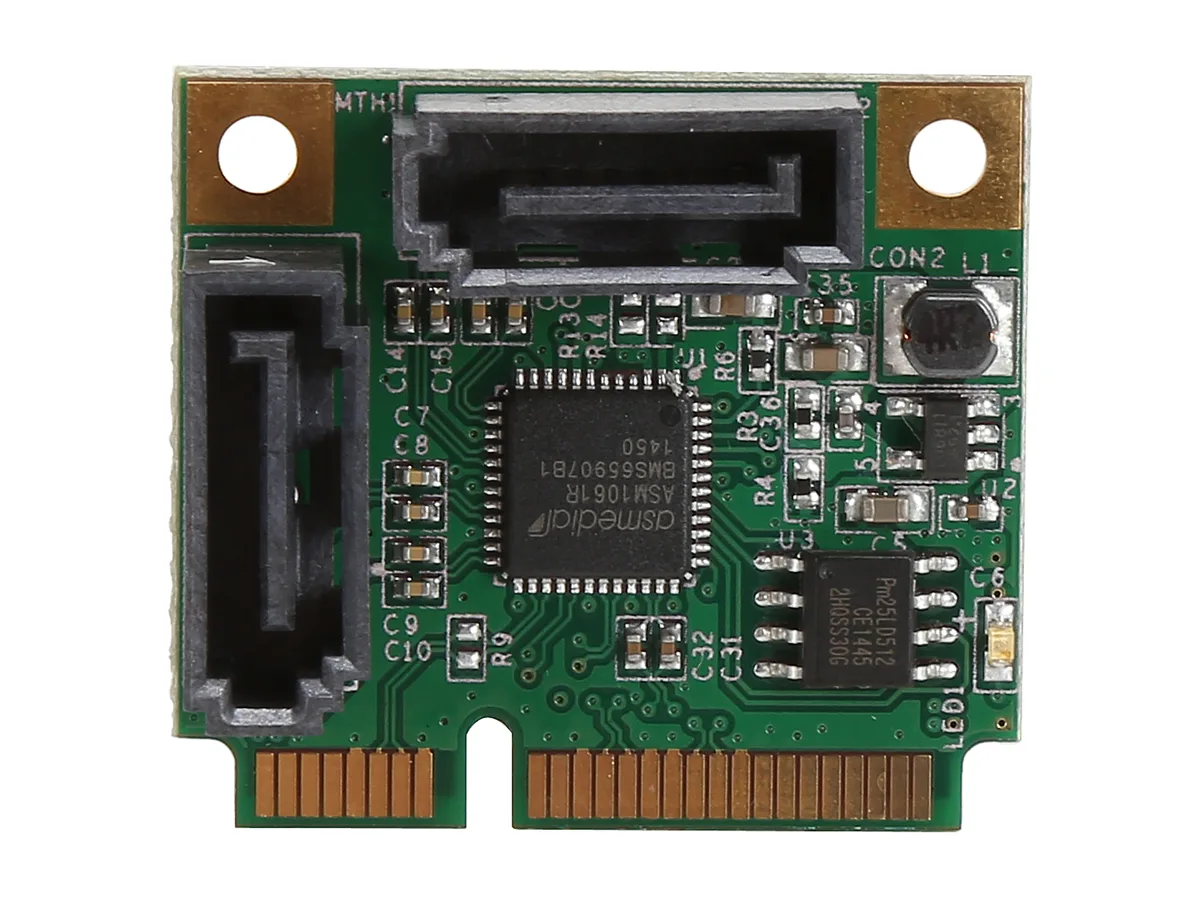

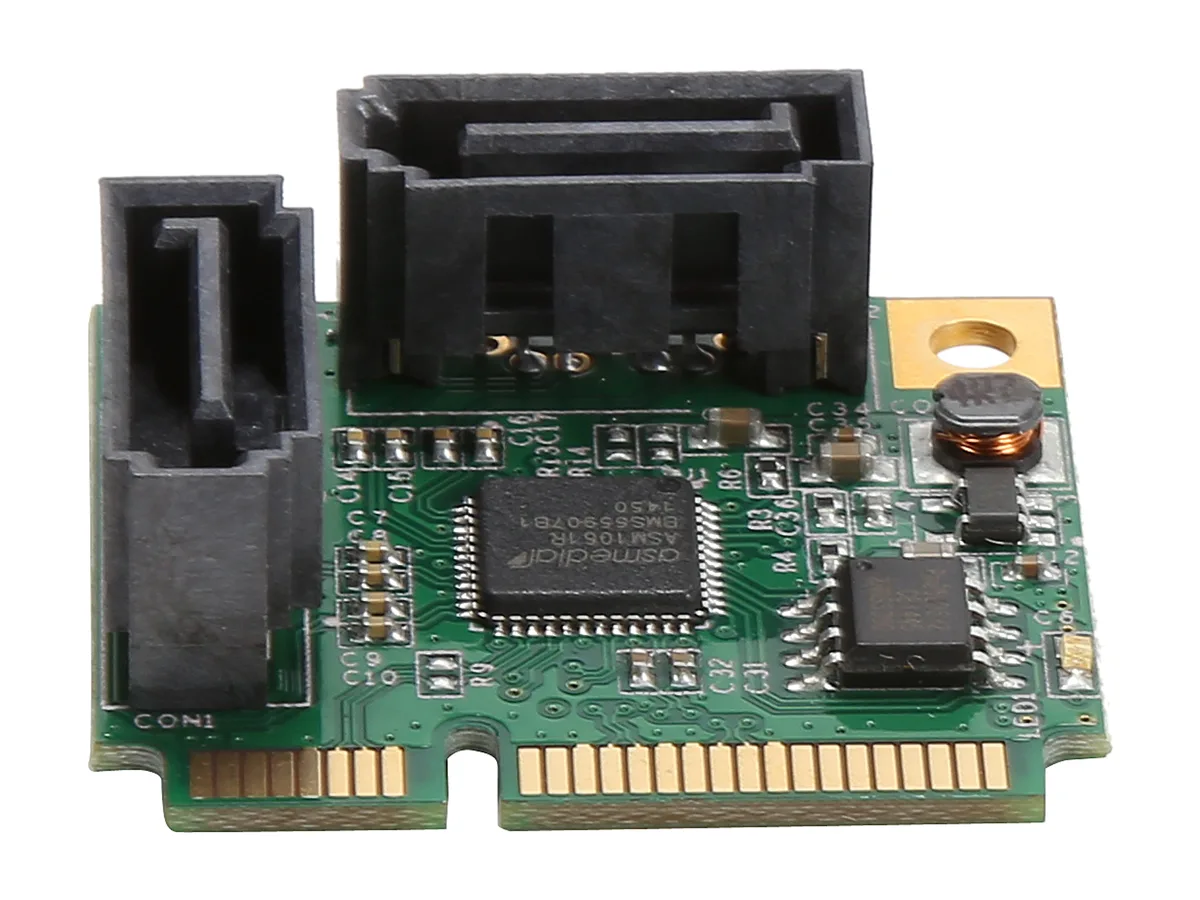

This half size controller uses the ASMedia 1061R chipset to provide two internal SATA connections running at up to 6.0 Gbps. It supports RAID 0, 1 and Span modes for redundancy or performance. The card fits low profile and small form factor systems with a Mini PCI Express 1.2 slot.
Verify your board has a free Mini PCIe 1.2 slot
The controller requires an available half size Mini PCI Express slot compliant with revision 1.2. Your system must run Windows 7, 8, Vista, Server 2008 or Server 2012 for driver support. Attached drives need their own SATA power connections from the power supply.
Passive design draws minimal power and runs silent
With no active cooling the card adds negligible heat and zero noise inside the chassis. Power consumption stays low because the ASMedia 1061R chipset operates without a fan. The included full size bracket kit lets you secure the card in standard height brackets if required.
Highlights
- Adds two SATA III ports to compact systems via Mini PCI-Express 1.2
- Hardware RAID 0 and 1 protects data or boosts speed with ASMedia 1061R
- 0 Gb/s transfer rate supports 1.5, 3.0 and 6.0 Gb/s drives
- Low-profile half-size card fits small chassis and includes full-size bracket
- AHCI 1.3 and IDE modes plus Native Command Queue optimise drive performance
Specifications
| Brand | SYBA |
|---|---|
| Model | SI-MPE40095 |
| Form Factor | Low Profile Ready |
| Type | SATA |
| Transfer Rate | Up to 6Gb/s |
| RAID | RAID 0/1 |
| Operating Systems Supported | Win 8, 7, Vista, Server 2012/2008 |
| Dimensions | 1.60" x 4.00" x 5.50" (H x W x L) |
| Features | Compatible with Mini PCI-E specification revision 1.2 Compatible with Serial ATA AHCI Spec. Rev. 1.3 Supports 1.5Gbps, 3.0Gbps, and 6.0Gbps Supports AHCI and IDE programming interface Supports Native Command Queue Supports Port Multiplier command based switching Supports RAID0, RAID1, Span Supports S.M.A.R.T. |

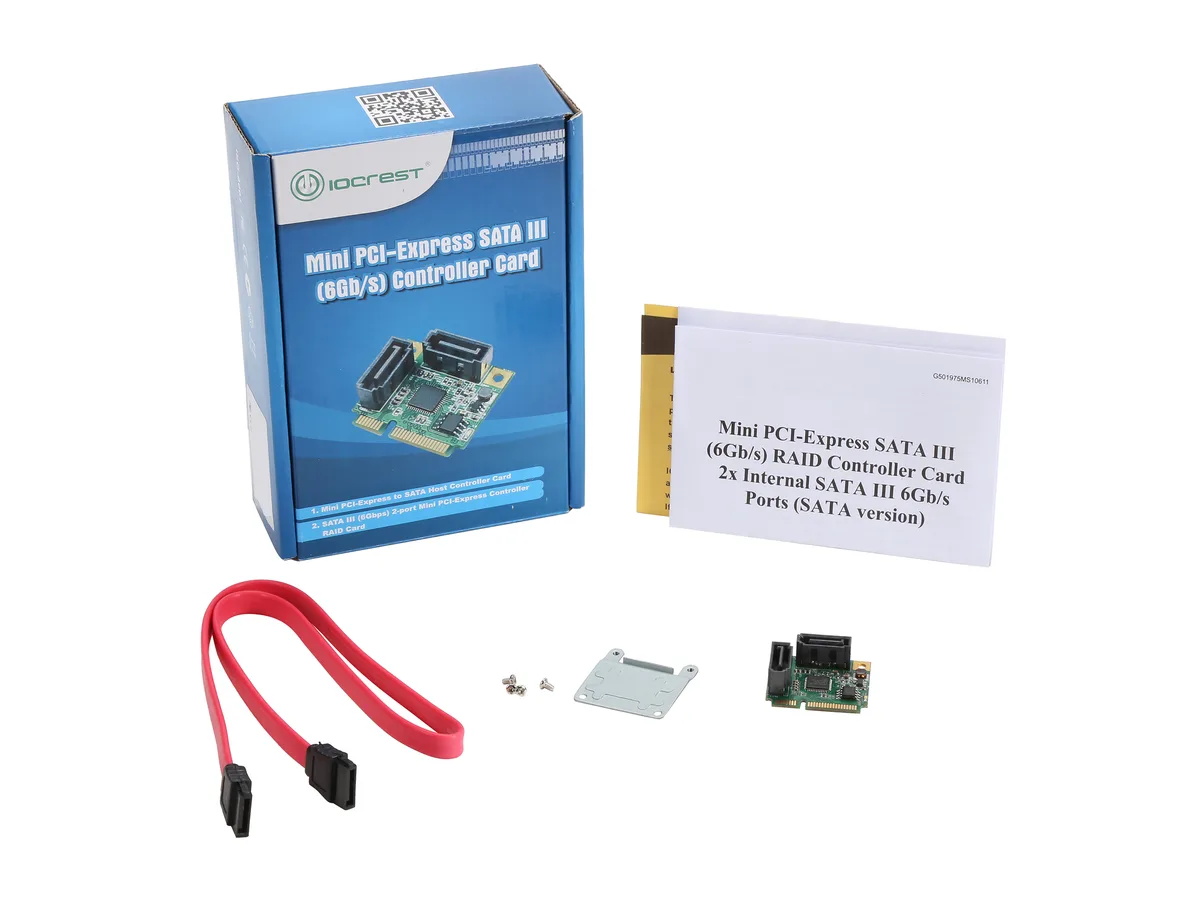

| Package Contents | 1 x mPCI-E Controller 1 x SATA Cable 1 x Full Size Plate Kit 1 x User Manual |
| Shipping weight | 0.07 kg |
| Package size | 142 × 99 × 43 mm |
Questions about this item
What comes in the box with the SI-MPE40095 and what must I buy separately?
The package includes the mPCI-E controller, one SATA cable, a full-size plate kit and a user manual. Additional SATA cables or drives are not included.
Should I choose this card for RAID 0 or RAID 1 with two drives?
The ASMedia 1061R chipset supports RAID 0, RAID 1 and Span modes across the two SATA III ports, so either configuration works.
What does the 6 Gb/s transfer rate mean when the card is installed in a Mini PCI-E 1.2 slot?
The controller supports 1.5, 3.0 and 6.0 Gb/s SATA speeds and is compatible with Mini PCI-E revision 1.2, so connected drives can run at up to 6 Gb/s.
