Green mini PCIe card with two black SATA ports

Syba

Syba SD-MPE40056 2-Port SATA 6.0 Gbps Expansion Card

SKU CH-T8FK-PH11V MPN SD-MPE40056

Adds two internal SATA 3.0 ports at 6.0 Gbps via a Mini PCI-Express 2.0 slot using the ASM1061 controller

  • TypePCI Express to SATA Card
  • Internal Ports2 x SATA 3.0
  • Data Transfer Rate6.0 Gbps
  • Operating Systems SupportedWindows 7 32/64-bit Vista 32/64-bit Windows XP 32/64-bit Ser
  • FeaturesBased on ASMedia ASM1061 PCI-Express 2.0 SATA 6Gbps Controll
  • Package ContentsMini PCI-Express SATA Controller Card Driver CD User Manual
  • Adds two internal SATA 3.0 ports running at 6.0 Gbps
  • Mini PCI-Express 2.0 single-lane interface supports 2.5 Gbps and 5.0 Gbps link speeds
  • ASMedia ASM1061 controller provides native SATA 6.0 Gbps connectivity
  • Compatible with Windows XP, Vista, 7 and Server 2003-2008 in 32 and 64-bit editions
  • Includes driver CD and user manual for quick setup

Two SATA 6.0 Gbps ports on Mini PCI-Express

The Syba SD-MPE40056 adds two internal SATA 3.0 ports through a single-lane Mini PCI-Express 2.0 slot. It uses the ASMedia ASM1061 controller to deliver 6.0 Gbps data transfer rates per port. The card fits systems with an available Mini PCI-Express 2.0 connector. A driver CD and manual are included.

Suits older Windows PCs needing extra SATA ports

This card works with Windows XP, Vista, 7 and Server 2003 through 2008 in both 32-bit and 64-bit editions. It is not for machines that lack a Mini PCI-Express 2.0 slot or that run newer operating systems without confirmed driver support. Builders who need RAID functionality or more than two ports should look at other solutions.

Check for a free Mini PCI-Express 2.0 slot

Verify that the motherboard or chassis provides an open Mini PCI-Express 2.0 lane with 2.5 or 5.0 Gbps link speed. Confirm the installed operating system matches the supported Windows or Server releases listed. Ensure two internal SATA power and data cables are available for the drives you plan to connect.

Highlights

  • Adds two internal SATA 3.0 ports running at 6.0 Gbps
  • Mini PCI-Express 2.0 single-lane interface supports 2.5 Gbps and 5.0 Gbps link speeds
  • ASMedia ASM1061 controller provides native SATA 6.0 Gbps connectivity
  • Compatible with Windows XP, Vista, 7 and Server 2003-2008 in 32 and 64-bit editions
  • Includes driver CD and user manual for quick setup

Specifications

BrandSYBA
ModelSD-MPE40056
TypePCI Express to SATA Card
Internal Ports2 x SATA 3.0
Data Transfer Rate6.0 Gbps
Operating Systems SupportedWindows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Server 2003-2008 32/64-bit
FeaturesBased on ASMedia ASM1061 PCI-Express 2.0 SATA 6Gbps Controller
1-Lane Mini PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
Compliant with PCI-Express 2.0 Base Specification
Hard Drive Activity LED Indicator. (LED Blinks for Read/Write Activities)
Serial-ATA (SATA) Interface:
2 SATA 6.0Gbps Ports
Compliant with Serial-ATA Specification 3.0
Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Compatible with SATA-III (6Gbps), SATA-II (3Gbps), SATA-1 (1.5Gbps) Hard Drives and SSD's
Supports Gen 1m and Gen 2m SATA PHY
Supports Native Command Queue (

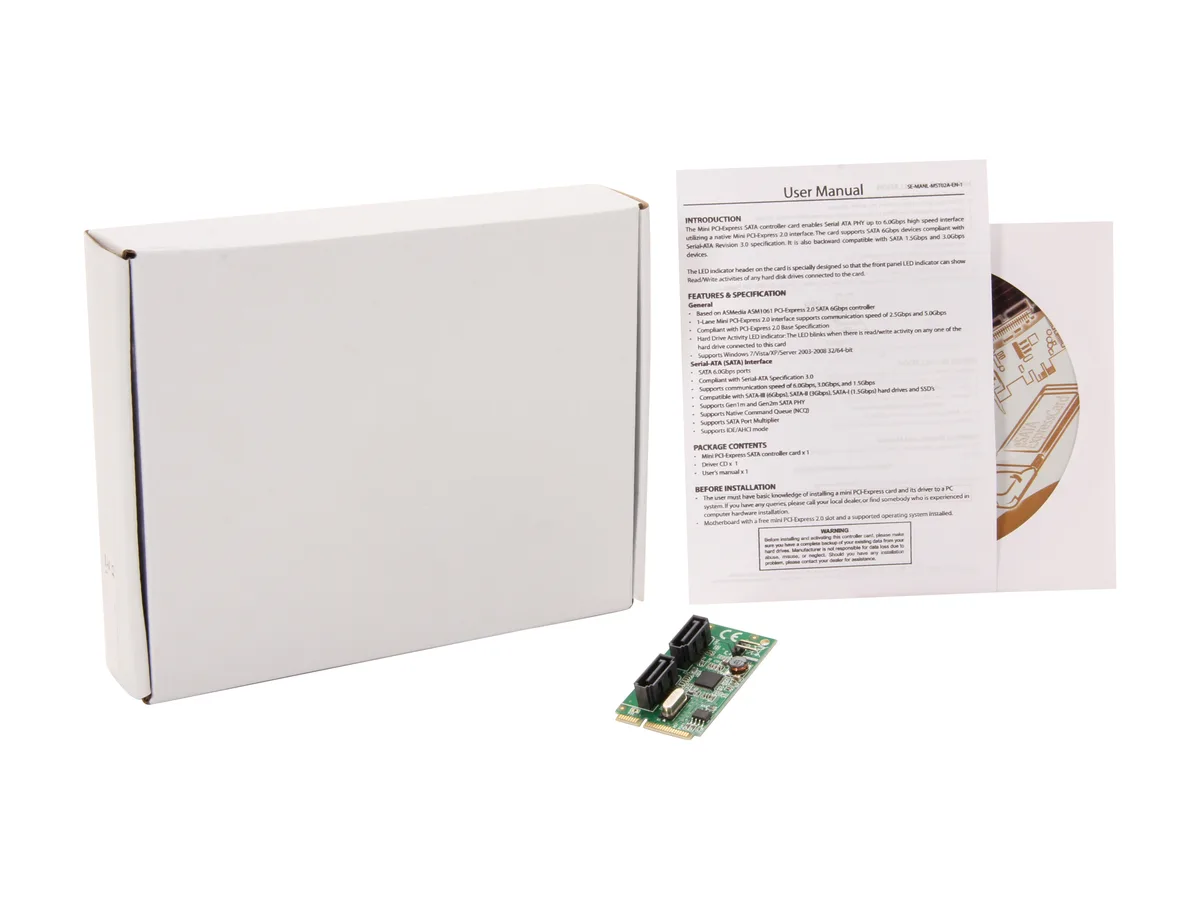

Package ContentsMini PCI-Express SATA Controller Card
Driver CD
User Manual
Shipping weight0.08 kg
Package size173 × 135 × 36 mm

Questions about this item

Does my motherboard need a free Mini PCI-Express 2.0 slot for this SD-MPE40056 card?

Yes, the card uses a 1-lane Mini PCI-Express 2.0 interface that runs at 2.5 or 5.0 Gbps, so an available slot of that type is required.

Will the ASM1061 controller on this card work with SATA 3.0 drives I already own?

The ASM1061 chipset supports SATA 3.0 at 6.0 Gbps and is backward compatible with older SATA drives, so existing drives will function at their rated speeds.

How can I confirm the card is running at the full 6.0 Gbps link speed after installation?

Check the negotiated link speed in Device Manager or the BIOS; it should report 6.0 Gbps for each connected SATA 3.0 drive when the ASM1061 controller is operating correctly.
