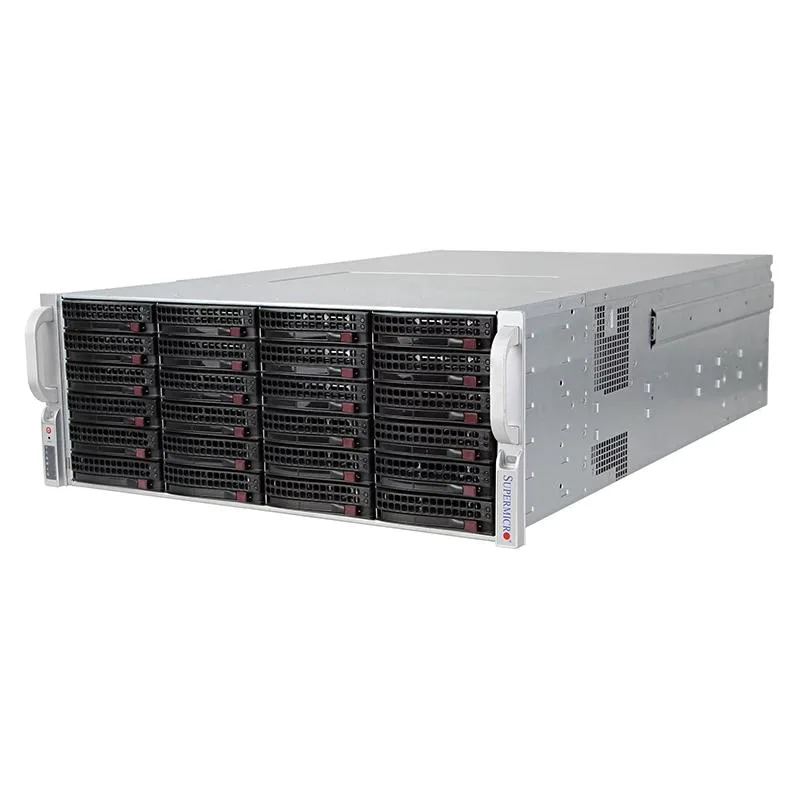

Supermicro SYS-6048R-E1CR36N 4U rack server 2x Xeon E5-2695 v4 2.1GHz 18-core 768GB DDR4 36x 3.5" bays
4U rack server with dual 18-core Xeon CPUs at 2.1 GHz, 768 GB DDR4, LSI 9361-8i RAID controller, 36 hot-swap 3.5″ drive bays, quad 10GBase-T LAN and IPMI 2.0
- Rack Height1U
- Redundant Hot-swap PowerYes
- CPU TypeIntel Xeon
- CPU Speed2.10 GHz
- CPU SocketLGA 2011-3
- Number of CPU Cores18-Core Processor
- Dual 18-core Xeon processors at 2.1 GHz with 3.3 GHz turbo for heavy workloads
- 768 GB DDR4 2400 MHz registered ECC memory across 24 DIMM slots
- MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache
- 36 hot-swap 3.5-inch SAS/SATA drive bays for massive storage density
- Quad 10GBase-T LAN ports via Intel X540 plus IPMI 2.0 dedicated management
High-density 4U storage server
The Supermicro SYS-6048R-E1CR36N is a 4U rackmount server built for massive storage capacity. Dual Intel Xeon E5-2695 v4 processors deliver 36 total cores at 2.1GHz with 3.3GHz turbo. 768GB of DDR4 2400MHz registered ECC memory supports memory-intensive workloads. Thirty-six hot-swap 3.5-inch SAS/SATA drive bays provide the platform's defining density.
Suited for archival and throughput workloads
This system fits enterprises needing high-capacity shared storage, backup targets or software-defined storage nodes. Quad 10GBase-T ports and the MegaRAID 9361-8i controller with RAID 0/1/5/6/10/50/60 handle demanding I/O. Buyers who require more than eight internal RAID ports or faster per-core frequency should evaluate alternative platforms.
Eight-port RAID controller limits internal arrays
The installed LSI MegaRAID 9361-8i provides eight 12Gb/s SAS lanes with 1GB cache and battery backup. It manages RAID 0, 1, 5, 6, 10, 50 and 60 across the 36 bays. Expanding beyond eight direct device connections requires additional HBAs or expander backplanes not included with this unit.
Highlights
- Dual 18-core Xeon processors at 2.1 GHz with 3.3 GHz turbo for heavy workloads
- 768 GB DDR4 2400 MHz registered ECC memory across 24 DIMM slots
- MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache
- 36 hot-swap 3.5-inch SAS/SATA drive bays for massive storage density
- Quad 10GBase-T LAN ports via Intel X540 plus IPMI 2.0 dedicated management
Specifications
| Brand | SUPERMICRO |
|---|---|
| Series | CSE-847BE1C-R1K28LPB-X10DRi-T4+ |
| Model | SYS-6048R-E1CR36N |
| Rack Height | 1U |
| Redundant Hot-swap Power | Yes |
| CPU Type | Intel Xeon |
| CPU Speed | 2.10 GHz |
| CPU Socket | LGA 2011-3 |
| Number of CPU Cores | 18-Core Processor |
| # of Processors Installed | E5-2695 V4 |
| Installed Memory Size | 768GB |
| Storage Controller | LSI MegaRAID 9361-8i Controller |
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/6/10/50/60 |
| GPU Type | Matrox G200 |
| Video Memory | 8MB |
| Ethernet Controller | 4x 10GBase-T LAN with Intel X540 Ethernet Controller |
| Management Port | RJ 45 |
| Features | 36 x 3.5" SATA/SAS Hot-Plug Drive Bays |
Questions about this item
What SAS speed does the MegaRAID 9361-8i controller support for the 36 drive bays?
The MegaRAID 9361-8i is an 8-port SAS 12Gb/s RAID controller with 1GB cache and battery backup, managing the 36 hot-swap 3.5" SATA/SAS bays.
What rackmount hardware is missing from the 4U chassis?
The front bezel and rack mount rails are not included with the server system.
How are the dual Xeon E5-2695 v4 processors and 768GB DDR4 memory installed?
Two 18-core Xeon E5-2695 v4 CPUs at 2.1GHz are pre-installed in LGA 2011-3 sockets; 768GB DDR4-2400 ECC registered memory (24x 32GB) fills all 24 DIMM slots.
