Supermicro
Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Gold 6130 2.1GHz 16-core 64GB DDR4 12x 3.5" bays
A 2U rack server with dual 16-core Xeon Gold 6130 CPUs, 64 GB DDR4, 12 hot-swap 3.5" bays and quad 10GBase-T networking
- Rack Height1U
- Redundant Hot-swap PowerYes
- CPU TypeIntel Xeon
- CPU Speed2.10 GHz
- CPU SocketLGA 3647
- Number of CPU Cores16-Core Processor
- Dual Xeon Gold 6130 CPUs provide 16 cores each for parallel workloads
- 64 GB DDR4-2666 ECC registered memory protects data integrity
- MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
- Twelve 3.5" hot-swap bays accept SAS and SATA drives
- Four 10GBase-T ports plus dedicated IPMI 2.0 LAN enable fast remote management
Dual Xeon Gold 6130 server

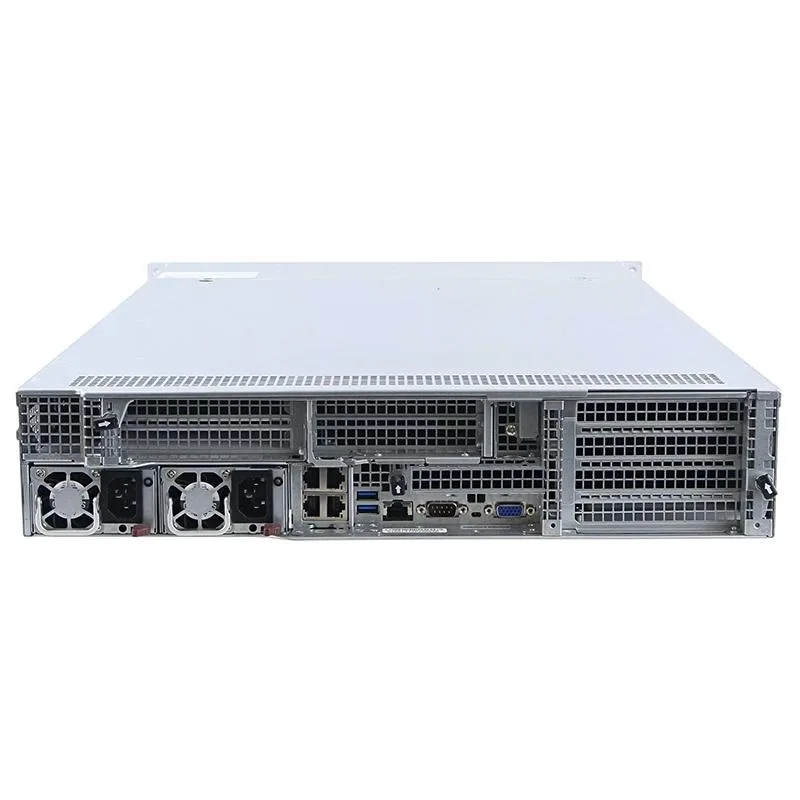

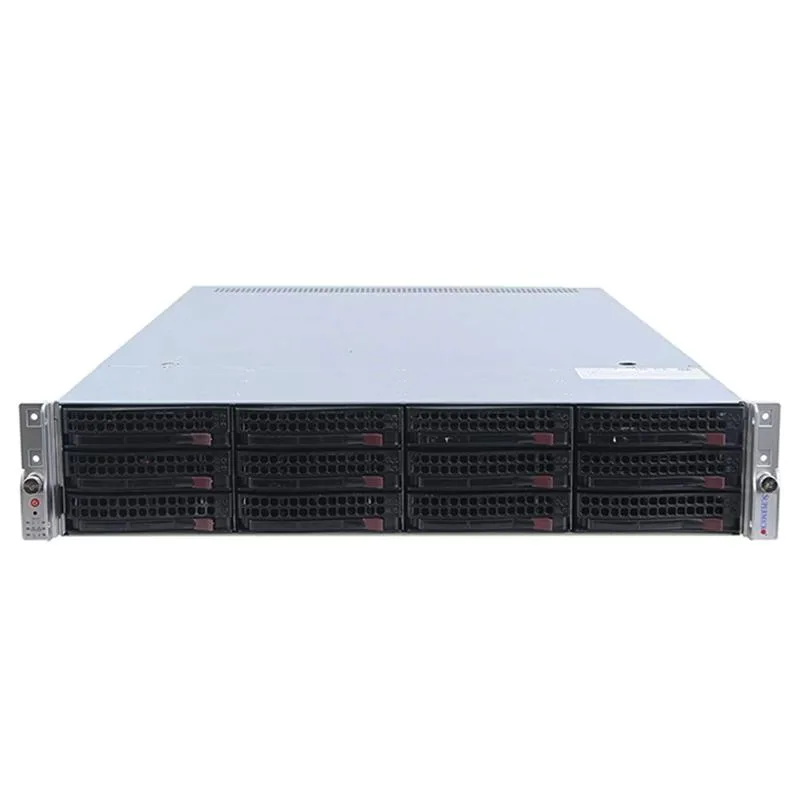

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount server built for enterprise virtualization and storage workloads. It ships with two Intel Xeon Gold 6130 processors running at 2.1 GHz with 16 cores each. The system includes 64 GB of DDR4-2666 ECC registered memory across four modules. Dual 1000 W titanium power supplies provide redundant hot-swap power.
LSI MegaRAID 9361-8i controller
Storage is managed by an LSI MegaRAID 9361-8i 8-port SAS 12 Gb/s PCIe controller with 1 GB cache and battery backup. It supports RAID levels 0, 1, 5, 6, 10, 50 and 60 for flexible data protection. The chassis provides twelve hot-plug 3.5-inch drive bays accepting SATA or SAS drives. Drive trays are included but no hard drives are installed.
64 GB DDR4 with 24 DIMM slots
The installed 64 GB suits moderate virtualization clusters and database instances with room to grow. Memory capacity can scale to 6 TB using 3DS ECC DDR4 RDIMM or LRDIMM modules across twenty-four slots. Builders needing higher initial memory or NVMe hybrid bays must add storage cards and populate additional DIMM slots.
Highlights
- Dual Xeon Gold 6130 CPUs provide 16 cores each for parallel workloads
- 64 GB DDR4-2666 ECC registered memory protects data integrity
- MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
- Twelve 3.5" hot-swap bays accept SAS and SATA drives
- Four 10GBase-T ports plus dedicated IPMI 2.0 LAN enable fast remote management
Specifications
| Brand | SUPERMICRO |
|---|---|
| Series | CSE-829U2E1C4-R1K02-T-X11DPU |
| Model | SYS-6029U-E1CR4T |
| Rack Height | 1U |
| Redundant Hot-swap Power | Yes |
| CPU Type | Intel Xeon |
| CPU Speed | 2.10 GHz |
| CPU Socket | LGA 3647 |
| Number of CPU Cores | 16-Core Processor |
| # of Processors Installed | Gold 6130 |
| Installed Memory Size | 64GB |
| Storage Controller | LSI MegaRAID 9361-8i Controller |
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/6/10/50/60 |
| GPU Type | Matrox G200 |
| Video Memory | 8MB |
| Ethernet Controller | 4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF) |
| Management Port | RJ 45 |
| Features | 12 x 3.5" SATA/SAS Hot-Plug Drive Bays |
Questions about this item
What does the 2.1 GHz base clock mean for throughput on dual Xeon Gold 6130 CPUs?
The two installed Gold 6130 processors each run at 2.1 GHz base with a 3.7 GHz turbo frequency, providing 16 cores per socket for multi-threaded workloads.
What does the PCIe 3.0 x8 interface cap for the MegaRAID 9361-8i controller?
The 9361-8i connects over PCIe 3.0 x8 and supports SAS 12 Gb/s per port, so the bus can saturate the controller's eight lanes under heavy I/O.
What rack depth and rails are needed to mount the 2U chassis?
The CSE-829U2E1C4-R1K02-T-X11DPU chassis is a 2U unit; rack mount rails and front bezel are not included and must be sourced separately.
