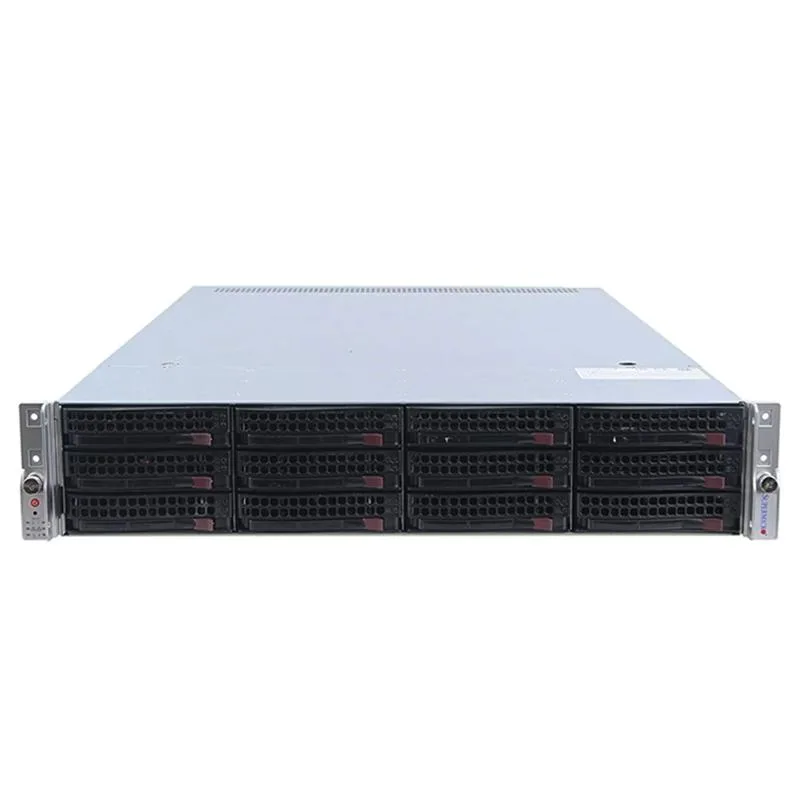

Silver 2U rack server front with twelve 3.5-inch drive bays and power button

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Gold 5118 2.3GHz 128GB DDR4 12x 3.5" bays

SKU CH-AHM4-M95KK

A 2U rack server with dual Xeon Gold 5118 processors, 128GB DDR4 ECC memory, 12 hot-swap 3.5" drive bays, MegaRAID 9361-8i controller, and quad 10GBase-T networking

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores12-Core Processor
  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz base
  • 128 GB DDR4 2400 MHz ECC memory supports large virtualisation workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve 3.5" hot-swap bays accept SAS and SATA drives for high capacity storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Dual Xeon 12-core server for virtualization

The SYS-6029U-E1CR4T delivers two Xeon Gold 5118 processors at 2.3 GHz with 12 cores each and 128 GB of DDR4 ECC memory in a 2U rackmount chassis. It targets IT teams building virtualization clusters, hyper-converged storage nodes or cloud compute tiers that need strong multi-thread throughput and hardware RAID.

Twelve hot-swap 3.5-inch bays with MegaRAID 9361-8i

The front cage accepts twelve SATA or SAS drives served by an eight-port 12 Gb/s RAID controller with 1 GB cache and battery backup supporting levels 0, 1, 5, 6, 10, 50 and 60. Four 10GBase-T ports from an Intel X710 adapter and a dedicated IPMI 2.0 management port handle data and out-of-band access without extra cards. Two 1000 W titanium redundant supplies power the chassis.

Sustained multi-thread performance

Dual 12-core CPUs maintain 2.3 GHz base clocks and can turbo to 3.2 GHz under load while the redundant hot-swap power supplies and 2U airflow design keep thermals stable during continuous VM or storage workloads. The MegaRAID battery protects cached writes during unexpected power loss. Buyers needing GPU compute density or NVMe-only bays should evaluate other platforms.

Highlights

  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz base
  • 128 GB DDR4 2400 MHz ECC memory supports large virtualisation workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve 3.5" hot-swap bays accept SAS and SATA drives for high capacity storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors InstalledGold 5118
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What is the maximum TDP per CPU that the SYS-6029U-E1CR4T cooling can sustain?

The chassis supports processors up to 205 W TDP each, so the thermal ceiling under sustained load is set by that 205 W per socket limit.

How loud and hot do the dual 1000 W titanium PSUs run during continuous operation?

Two 1000 W titanium-efficiency supplies share the load, reducing per-unit heat and fan speed; the redundant hot-swap design keeps temperatures stable during all-day use.

Which drives must I supply to populate the 12 front bays?

The server ships with 12 empty 3.5" SAS/SATA hot-plug trays; you provide the SAS or SATA hard drives or SSDs to fill them.
