1U silver rack server with four front 3.5 inch drive bays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server dual Xeon E5-2699 v4 22-core 128GB DDR4 4x 3.5" bays

SKU CH-TMW9-P2EQE

1U rack server with dual 22-core Xeon E5-2699 v4 CPUs, 128GB DDR4 ECC, MegaRAID 9361-8i, four 3.5" hot-swap bays, quad 10GbE and IPMI 2.0

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores22-Core Processor
  • Dual Xeon E5-2699 v4 CPUs provide 22 cores each at 2.2 GHz with 3.6 GHz turbo
  • 128 GB DDR4 2400 MHz registered ECC memory installed across 8 DIMM slots
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-plug drive bays accept SATA and SAS drives for flexible storage
  • Quad 10GBase-T RJ45 ports plus dedicated IPMI 2.0 LAN enable high-speed networking and remote KVM management

Dual Xeon 22-core 1U server

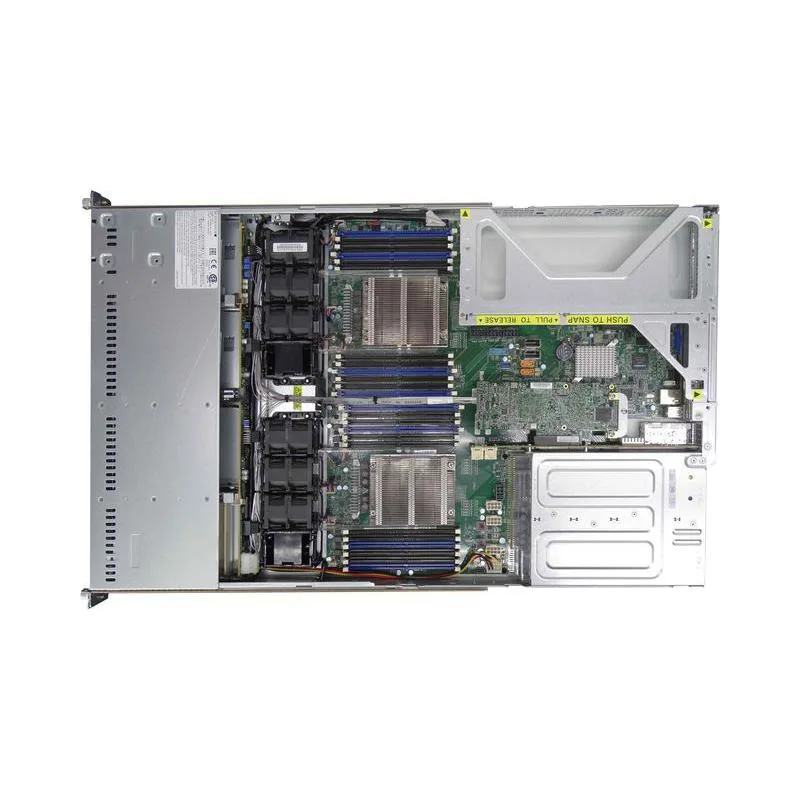

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server fitted with two Intel Xeon E5-2699 v4 processors. Each CPU provides 22 cores running at 2.2 GHz with a 3.6 GHz turbo frequency. The system ships with 128 GB of DDR4 2400 MHz registered ECC memory across 24 DIMM slots. It is built for virtualization, high-performance computing and cloud workloads that demand dense parallel processing.

Sustained load behaviour

Redundant 750 W platinum power supplies and advanced thermal management keep the chassis stable during extended heavy workloads. Hot-swap drive bays and redundant power allow drive or PSU replacement without downtime. The MegaRAID 9361-8i controller with 1 GB battery-backed cache maintains write performance and data integrity under continuous I/O pressure. IPMI 2.0 with KVM-over-LAN gives remote operators full console access for monitoring and recovery.

Interface practical limits

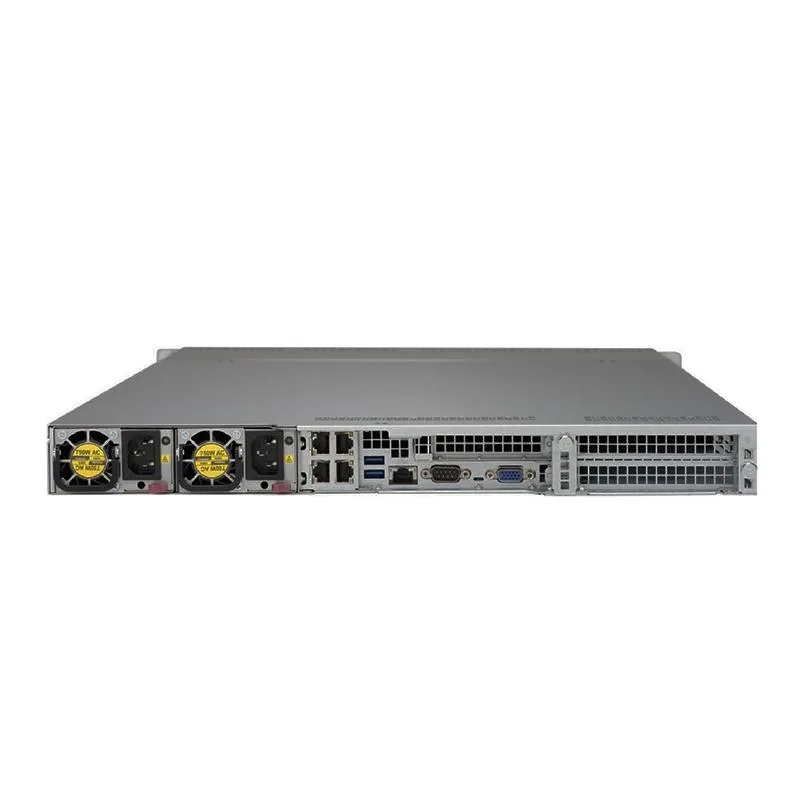

Four 10GBase-T RJ45 ports from the Intel X540 controller provide 10 Gb/s Ethernet over copper cabling. The storage controller supports SAS 12 Gb/s and SATA across eight internal ports with RAID 0, 1, 5, 6, 10, 50 and 60. Four 3.5-inch hot-plug trays accept SAS or SATA drives; no drives are included. The platform supports up to 1.5 TB of DDR4 ECC registered memory across 24 slots. Matrox G200 graphics with 8 MB video memory handles basic display output only.

Highlights

  • Dual Xeon E5-2699 v4 CPUs provide 22 cores each at 2.2 GHz with 3.6 GHz turbo
  • 128 GB DDR4 2400 MHz registered ECC memory installed across 8 DIMM slots
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-plug drive bays accept SATA and SAS drives for flexible storage
  • Quad 10GBase-T RJ45 ports plus dedicated IPMI 2.0 LAN enable high-speed networking and remote KVM management

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors InstalledE5-2699 V4
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How loud and hot does the 1U server run with dual Xeon E5-2699 v4 CPUs and 750 Watt PSUs?

The 1U chassis uses redundant 750 Watt Platinum supplies and server-grade fans; expect data-centre noise levels and significant heat output under sustained load.

What drives and rails must I supply to use the four 3.5-inch hot-plug bays?

You must provide your own 3.5-inch SATA or SAS drives and rack-mount rails; the server ships with trays but no drives, bezel or rails.

Will the onboard Matrox G200 graphics and IPMI 2.0 work with my older KVM switch and monitoring tools?

The Matrox G200 provides 8 MB video memory for basic VGA output, and the dedicated RJ45 IPMI 2.0 port supports KVM-over-LAN and virtual media for legacy management.
