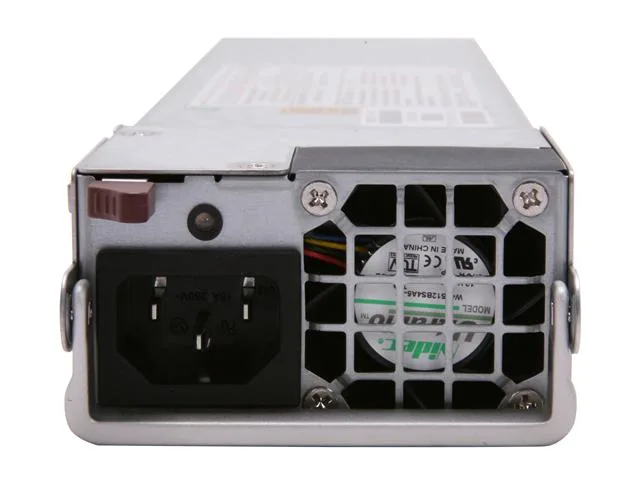

Rectangular silver redundant PSU with gold finger connector and rear fan grille

Supermicro

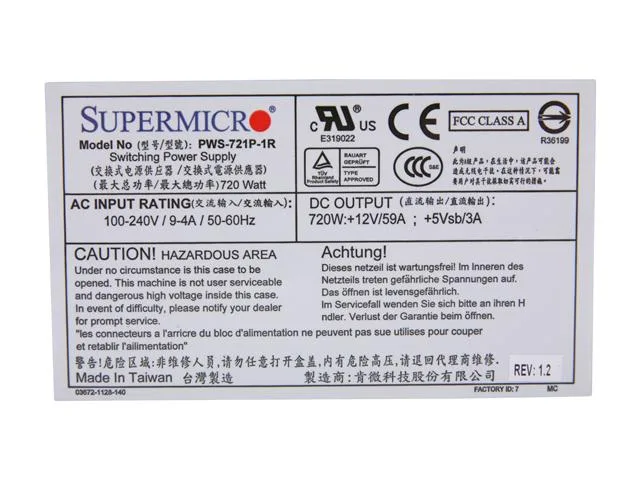

Supermicro PWS-721P-1R 720W server power supply

SKU CH-1NCG-EHXG8 MPN PWS-721P-1R

Redundant 720 W server power supply with gold finger connector, 100–240 V input and >90 % efficiency

  • TypeRedundant Power Supply
  • Maximum Power720W
  • Main ConnectorGold Finger Connector
  • Output Current+12V@59A, +5VSB@4A
  • Output720W
  • Input Voltage100 - 240 V
  • 720 W redundant output keeps servers running during a module failure
  • 80 PLUS Gold efficiency above 90 % cuts energy waste and heat
  • 12 V rail delivers 59 A for high-density CPU and GPU loads
  • 100–240 V auto-ranging input works on global mains without manual switching
  • Compact 13.58″ × 2.99″ × 1.58″ form factor fits standard 1U redundant bays

Redundant 720W server power supply

This hot-plug redundant unit delivers 720W to Supermicro chassis that accept a gold-finger form factor. It targets administrators building or expanding 1U and 2U systems where an N+1 power architecture is required.

Tool-less hot-plug installation

The module slides into a compatible bay and locks with a thumb-screw latch; no cables are routed inside the chassis. The only common issue is attempting to fit it into a non-redundant backplane or a vendor-specific cage that uses a different keying.

100–240 V AC input with 80 PLUS Gold efficiency

The supply auto-ranges across 50/60 Hz mains and maintains better than 90% efficiency at typical loads. It cannot operate from DC sources, and the gold-finger connector limits use to Supermicro platforms that implement the matching power bus.

Highlights

  • 720 W redundant output keeps servers running during a module failure
  • 80 PLUS Gold efficiency above 90 % cuts energy waste and heat
  • 12 V rail delivers 59 A for high-density CPU and GPU loads
  • 100–240 V auto-ranging input works on global mains without manual switching
  • Compact 13.58″ × 2.99″ × 1.58″ form factor fits standard 1U redundant bays

Specifications

BrandSuperMicro
ModelPWS-721P-1R
TypeRedundant Power Supply
Maximum Power720W
Main ConnectorGold Finger Connector
Output Current+12V@59A, +5VSB@4A
Output720W
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Efficiency> 90%
Features80PLUS gold
Dimensions13.58" x 2.99" x 1.58"
Shipping weight2.01 kg
Package size437 × 183 × 117 mm

Questions about this item

How do I confirm the PWS-721P-1R is delivering 720W after installation?

Check the server management interface for +12V rail readings near 59A and +5VSB near 4A, and verify the unit reports > 90% efficiency under load.

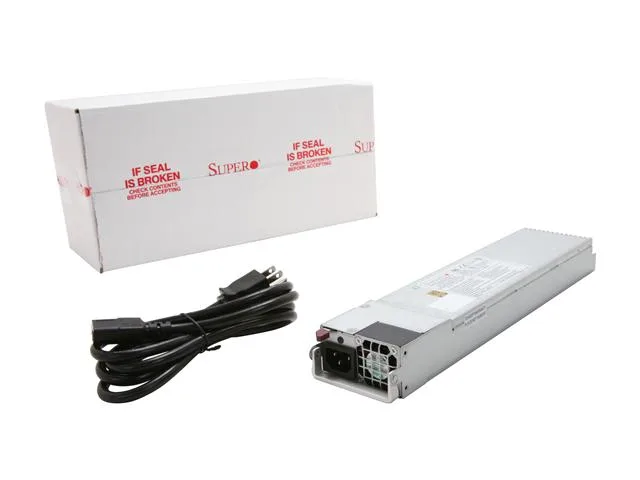

What ships with the PWS-721P-1R and what must I source separately?

The unit includes the redundant 720W module with its Gold Finger Connector; a C13 power cord for 100-240V input and the compatible server chassis backplane are not included.

Which PWS-721P-1R version suits a 2U chassis needing 80PLUS Gold efficiency?

This single model provides 720W, 80PLUS Gold certification, and the 13.58" x 2.99" x 1.58" form factor designed for redundant bays in supported Supermicro chassis.
