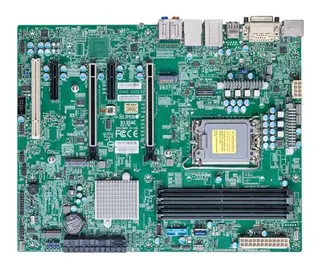

Green ATX server motherboard LGA1700 socket four DDR5 slots eight SATA ports single LAN

Supermicro

Supermicro MBD-X13SAE-B W680 LGA1700 ATX server motherboard

SKU CH-67G1-0E9QA MPN MBD-X13SAE-B

ATX server board with W680 chipset, LGA1700 socket, four DDR5 slots up to 128 GB, eight SATA3 ports and dual Intel LAN

  • Supports 12th Gen Intel Core processors up to 16 cores via LGA1700 socket
  • 128 GB DDR5-4400 ECC or non-ECC memory across four DIMM slots
  • Intel W680 chipset provides eight SATA3 ports with RAID 0, 1, 5, 10
  • Dual Intel LAN controllers: I219LM and i225V for redundant networking
  • ATX form factor fits standard server chassis with 125 W CPU TDP support

Socket and chipset

This Supermicro ATX server motherboard uses the Intel W680 chipset and a single LGA-1700 socket. It supports 12th Generation Intel Core i3, i5, i7 and i9 processors with a TDP up to 125W and up to 16 cores. The board is sold new without memory installed.

Builders needing DDR5 ECC capacity

The four DIMM slots accept DDR5-4400 UDIMMs at 1.1V, scaling to 128GB total with 8GB, 16GB or 32GB modules in ECC or non-ECC flavours. Eight SATA3 ports from the W680 controller provide RAID 0, 1, 5 and 10 for local storage arrays. Buyers who need more than four memory slots or a different memory type should look elsewhere.

Four DDR5 slots define the memory ceiling

Maximum system memory is 128GB across the four UDIMM slots running at 4400MHz. This capacity limit is the deciding factor for workloads that require larger in-memory datasets.

Highlights

  • Supports 12th Gen Intel Core processors up to 16 cores via LGA1700 socket
  • 128 GB DDR5-4400 ECC or non-ECC memory across four DIMM slots
  • Intel W680 chipset provides eight SATA3 ports with RAID 0, 1, 5, 10
  • Dual Intel LAN controllers: I219LM and i225V for redundant networking
  • ATX form factor fits standard server chassis with 125 W CPU TDP support

Specifications

No published specifications for this item yet.

Questions about this item

What ATX case clearance does the MBD-X13SAE-B require?

The board follows the standard ATX form factor, so any chassis that accepts ATX motherboards will fit.

Which power connectors must be seated for the LGA1700 socket on this board?

Connect both the 24-pin ATX and the 8-pin EPS cables; the CPU will not initialise if the EPS connector is loose.

How long does the DDR5 memory installed in the four DIMM slots typically last?

DDR5 UDIMMs generally run for many years; replace a module only if memory diagnostics report errors.
