Supcline S1401 TV Mount 14-80" 0.3" Gap
An ultra-slim wall mount holding 14 to 80 inch flat TVs with a 0.3 inch gap and 100 lb capacity
- Name14-80 inch
- Mount StyleWall Mount
- ColorBlack
- TV Size Capacity14-80 inch
- Weight1.03 kilograms
- TV sits almost flush with 0.3" micro gap design
- Fits 14–80" flat TVs with VESA 75×75 to unlimited dual-panel patterns
- Solid steel construction holds up to 100 lbs with N52 magnets
- Installs in under 30 minutes on concrete, brick or wood studs
- 70% thinner than standard 1" mounts at just 1.03 kg
Ultra-Slim Profile for Flat TVs

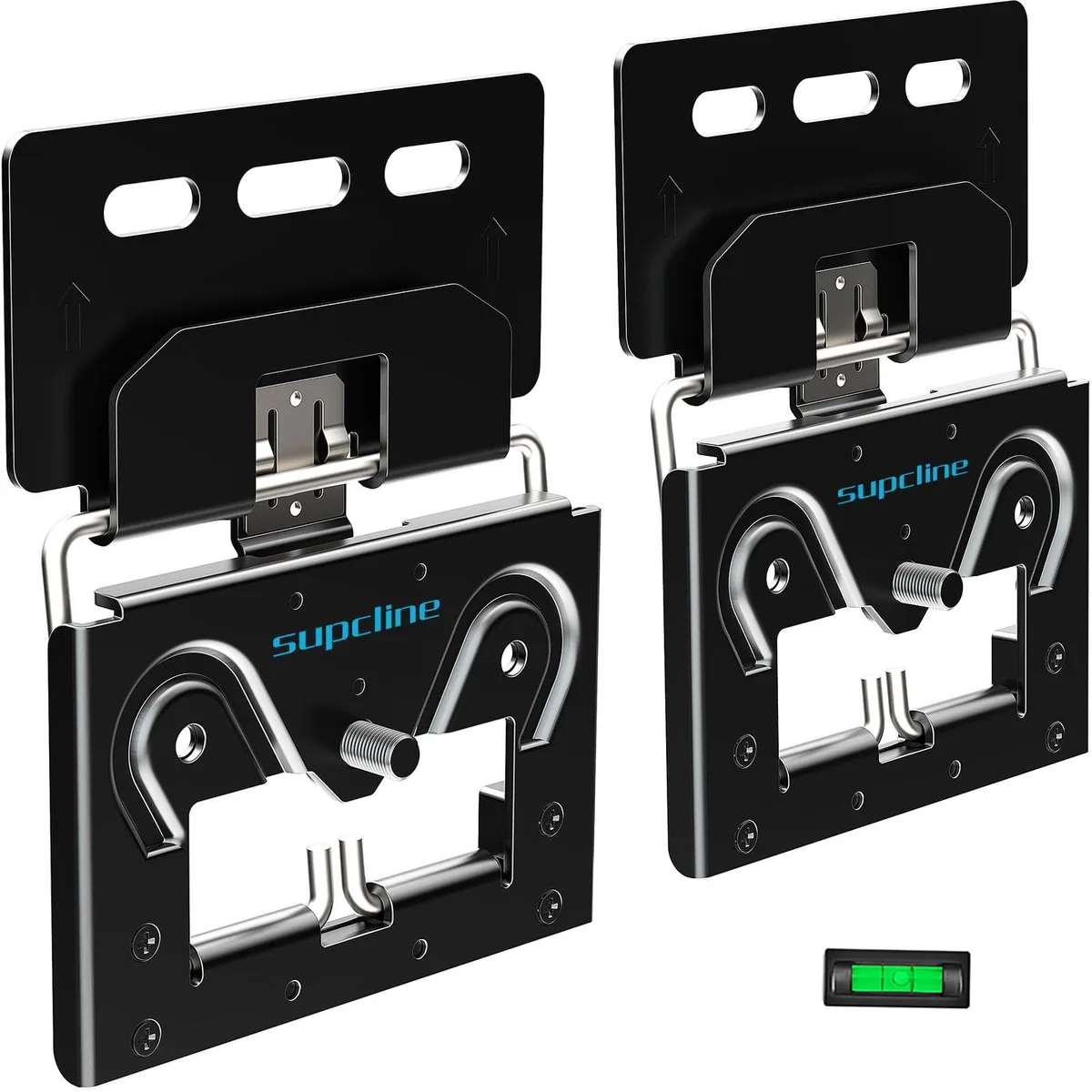

The Supcline S1401 mounts 14 to 80 inch flat-screen TVs just 0.3 inches from the wall. Its dual-panel design fits 75x75 mm single and 200x100 mm up to unlimited VESA patterns. Solid steel construction holds up to 100 lbs while N52 magnets keep the display firmly secured. Installation on concrete, brick or wood studs takes under 30 minutes with the included bubble level.
Flat-Panel Owners Only

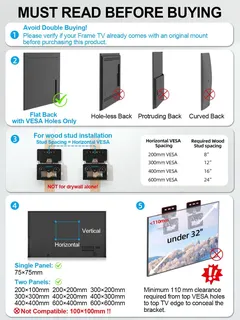

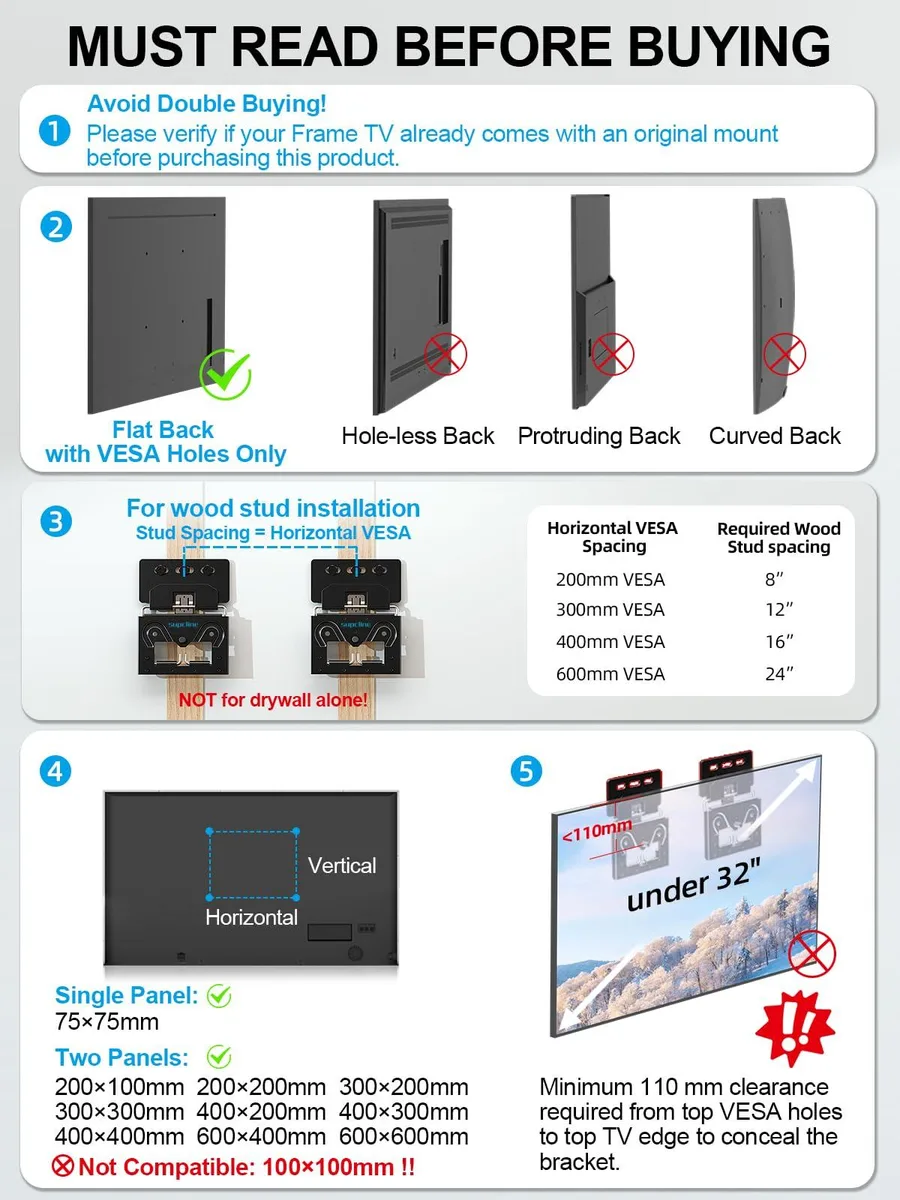

This mount suits owners of flat-back LED, LCD, OLED or Frame TVs who want a near-flush, picture-like appearance. It cannot accommodate curved screens or sets with uneven rear surfaces. Buyers with 100x100 mm VESA hole spacing must choose a different bracket. Sets whose top VESA holes sit less than 110 mm from the top edge will leave the mount partially visible.
0.3 Inch Wall Gap
The defining specification is the 0.3 inch micro gap that lets the TV sit almost flush against the wall. This ultra-low profile is roughly 70 percent thinner than standard 1 inch mounts and creates a minimalist, picture-frame aesthetic. It is only achieved when the display has a completely flat back and compatible VESA spacing.
Highlights
- TV sits almost flush with 0.3" micro gap design
- Fits 14–80" flat TVs with VESA 75×75 to unlimited dual-panel patterns
- Solid steel construction holds up to 100 lbs with N52 magnets
- Installs in under 30 minutes on concrete, brick or wood studs
- 70% thinner than standard 1" mounts at just 1.03 kg
Specifications
| Brand | Supcline |
|---|---|
| Model | S1401 |
| Name | 14-80 inch |
| Mount Style | Wall Mount |
| Color | Black |
| TV Size Capacity | 14-80 inch |
| Weight | 1.03 kilograms |
Questions about this item
Should I choose the single-panel or dual-panel VESA option for my TV?
Use the 75x75mm single-panel pattern if your TV matches it; otherwise the dual-panel design covers 200x100mm up to unlimited VESA spacing, but 100x100mm is not supported.
What does the 0.3 inch gap look like once the TV is mounted?
The screen sits just 0.3 inches from the wall — about 70 percent thinner than a standard 1 inch mount — creating a nearly flush, picture-frame appearance on flat-back TVs only.
Which VESA standard does this mount use and what spacing does it limit?
It supports 75x75mm single-panel and 200x100mm-to-unlimited dual-panel VESA; 100x100mm is excluded, and the top VESA holes must sit at least 110mm (4.3 inches) below the TV's top edge.
