Compact rectangular programmer unit with ZIF socket and multiple adapter boards, light grey finish

Sunfounder

Sunfounder Xgecu T48 Programmer 19 Adapter Socket engineering development tool

SKU CH-JFRB-47QVM

Programs flash, EEPROM and microcontroller chips with 56-channel high-voltage I/O, adjustable VCC and VPP, and 19 included adapter sockets

  • 32-bit MCU at 120 MHz drives fast programming
  • 56-channel ISP with high-voltage insulation handles diverse chips
  • VCC 1.8–6.5 V and VPP 9–25 V cover wide voltage needs
  • 40-pin ZIF socket plus 19 adapters fit many packages
  • USB 2.0 HS 480 MHz enables up to four simultaneous units

Sunfounder Xgecu T48 Programmer

The Sunfounder Xgecu T48 programmer is an engineering development tool designed for developers and maintenance personnel. It replaces the TL866II Plus with a 32-bit MCU at 120 MHz and a 4-layer PCB. The unit supports high-capacity NAND and eMMC up to 256 GB. It handles small batch production and allows four programmers to run on one computer.

Compatibility checklist before ordering

Before purchase, verify your specific chip model against the manufacturer support list. The programmer operates on Windows XP through Windows 11. It connects via USB 2.0 High Speed at 480 MHz. The package includes a 40-pin ZIF socket and 19 adapter sockets covering SOP, PLCC, TSOP, QFP and WSON footprints.

Sustained operation behaviour

The hardware provides 56 total channels with 16-channel ISP and dedicated 56-channel high-speed high-voltage insulation. VCC voltage adjusts across 64 levels from 1.8 V to 6.5 V. VPP voltage adjusts across 64 levels from 9 V to 25 V. These specifications support stable programming during extended production runs.

Highlights

  • 32-bit MCU at 120 MHz drives fast programming
  • 56-channel ISP with high-voltage insulation handles diverse chips
  • VCC 1.8–6.5 V and VPP 9–25 V cover wide voltage needs
  • 40-pin ZIF socket plus 19 adapters fit many packages
  • USB 2.0 HS 480 MHz enables up to four simultaneous units

Specifications

No published specifications for this item yet.

Questions about this item

What does the 19 adapter socket set include for the Xgecu T48 programmer?

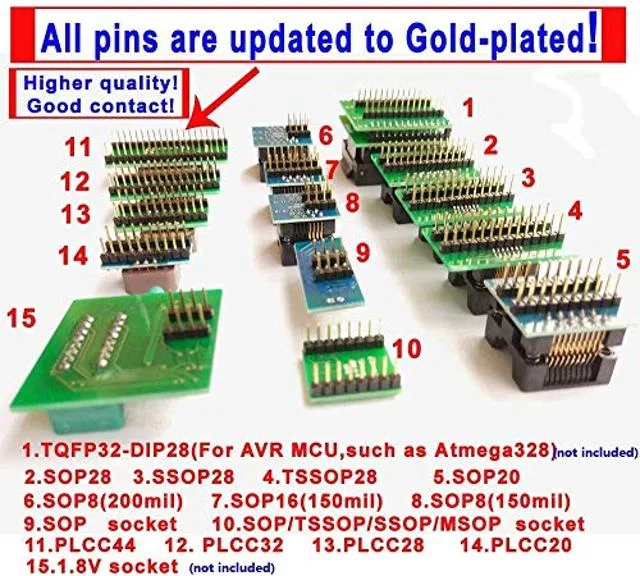

The package ships with 19 adapters covering SOP8, SOP16, SOP20, SOP28, PLCC20, PLCC28, PLCC32, PLCC44, QFP32, WSON8, TSOP48 NAND, TSOP48 NOR and SOP44 footprints, plus a USB cable, SOP8 clip, PLCC extractor and two pin headers.

How do I decide between the TL866II Plus and the newer Xgecu T48?

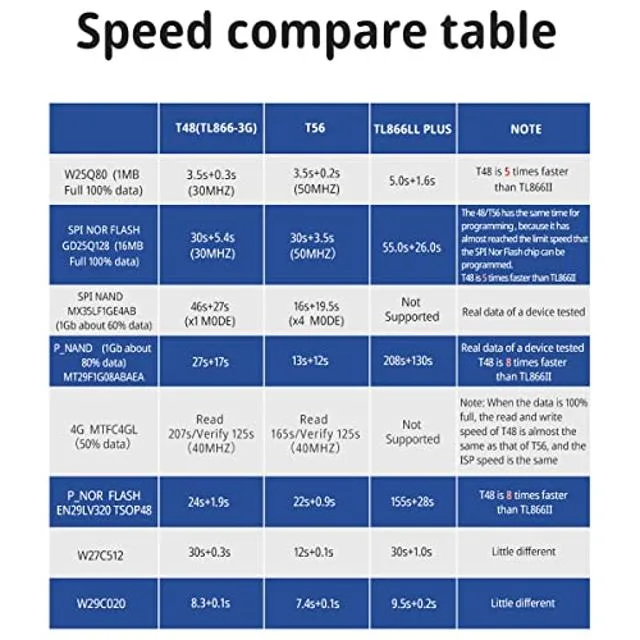

The T48 replaces the TL866II Plus with a 120 MHz 32-bit MCU, four-layer PCB, USB 2.0 HS at 480 MHz, 56 high-voltage I/O channels and adjustable VCC from 1.8 V to 6.5 V plus VPP up to 25 V in 64 steps.

What does the 256 GB NAND support mean when I use the programmer?

The 40-pin ZIF socket and 56-channel architecture let you program high-capacity NAND and eMMC devices up to 256 GB directly, suitable for small-batch production with up to four units on one PC.
