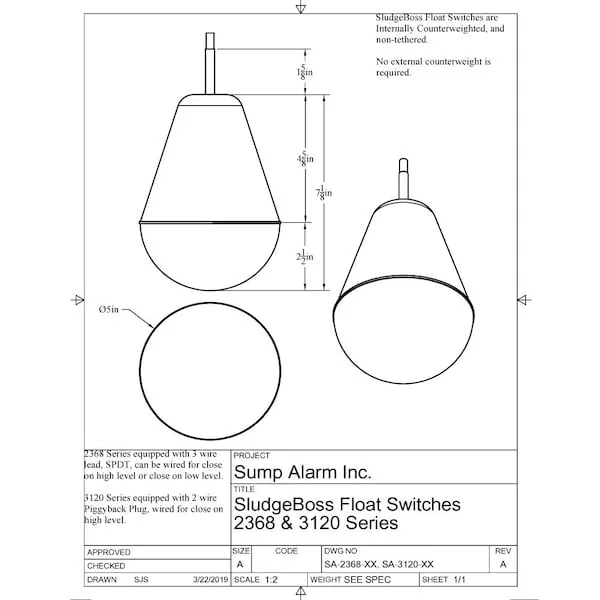

Yellow float switch with 100 ft cable and counterweight

Sump Alarm Inc.

Sump Alarm Inc. SA-2368-33 Float Switch 100 Ft

SKU CH-KGCH-WABXN

Heavy-duty non-tethered float switch with 100 ft cable, integrated counterweight, SPDT contacts and direct pump control up to 12 A continuous at 120 or 220 V

  • Heavy-duty design handles sewage and suspended solids

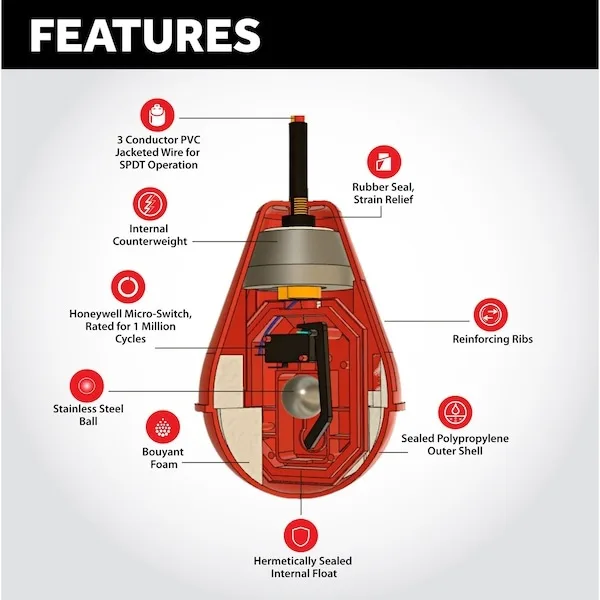

  • Integrated counterweight keeps orientation in viscous liquids
  • SPDT switch supports both emptying and filling operations
  • Directly controls pumps up to 1/2 HP at 120 or 220 volts
  • 100 ft cable provides extended reach for deep installations

Sump Alarm 100 Ft Float Switch

The Sump Alarm SA-2368-33 is a heavy duty float switch supplied with a 100 Ft cable for remote liquid level monitoring. It is built as a non tethered unit with an integrated counterweight that keeps the switch properly oriented in viscous liquids such as sewage and suspended solids. The SPDT mechanism allows the same device to control both emptying and filling operations. It is suited for installers who need reliable level control in difficult waste water environments.

Direct Pump Control Up To Half Horsepower

This switch directly controls pumps up to 1/2 HP at either 120 Volts or 220 Volts, handling up to 12 Amperes continuous or 13.3 Non continuous AC Amperage and 12 VDC motor loads up to 13.3 Amps. It fits applications where a single device must manage pump activation and deactivation without an external contactor. Buyers who need to switch larger motors or higher voltage systems should look at alternative control methods because the electrical ratings are fixed at the values stated.

No Extra Accessories Included

The product ships as the float switch and cable assembly only with no additional brackets, control panels or alarm modules in the package. Installers must provide their own mounting hardware and wiring enclosures to complete the installation. There is no software or configuration utility because the device operates purely through mechanical float movement and electrical contacts.

Highlights

  • Heavy-duty design handles sewage and suspended solids
  • Integrated counterweight keeps orientation in viscous liquids
  • SPDT switch supports both emptying and filling operations
  • Directly controls pumps up to 1/2 HP at 120 or 220 volts
  • 100 ft cable provides extended reach for deep installations

Specifications

BrandSUMP ALARM

Questions about this item

What pump size and voltage must I already have for the SA-2368-33 to control it directly?

The switch directly controls pumps up to 1/2 HP at 120 Volts or 220 Volts, up to 12 Amperes continuous or 13.3 Non continuous AC Amperage, and 12 VDC motor loads up to 13.3 Amps.

Will the 100 Ft cable reach my existing control panel if the tank is far away?

The 100 Ft cable length allows the float switch to be positioned in the tank while the wire lead connects to a control panel or pump up to that distance away.

How do I know the integrated counterweight is keeping the switch oriented correctly in sewage?

The integrated counterweight ensures the float maintains its orientation in viscous liquids; you can verify operation by observing the pump start and stop at the desired liquid levels during a test cycle.
