Black rectangular HDMI switcher with four input ports and front toggle button

STARTECH

STARTECH VS421HD20 4-Port HDMI Production Switcher 4K 60Hz

SKU CH-VFFY-CY4MJ MPN VS421HD20

Switches four HDMI sources to one display at 4K 60Hz with 7.1 surround sound, IR remote and automatic switching included

  • Resolution SupportMaximum Digital Resolutions: 4K @ 60Hz Supported Resolutions
  • Audio Sampling7.1 Surround sound
  • HDMI4 x HDMI (19-pin) Female Input 1 x HDMI (19-pin) Female Outp
  • LED Indicator4 x input LEDs 1 x power LED
  • Power SupplyInput Current: 0.4A Input Voltage: 100 ~ 240 AC Output Curre
  • SpecificationPerformance: Wide Screen Supported: Yes Environmental: Humid
  • Switch four HDMI sources to one display at 4K 60Hz
  • Automatic port switching plus IR remote for hands-free control
  • 1 surround sound passes through for immersive audio
  • Compact 0.80" x 4.80" x 2.00" design fits tight racks
  • Universal 100-240 V AC adapter included for worldwide power

Four-port HDMI production switcher

The StarTech VS421HD20 routes four HDMI sources to one display, making it suited for presentation rooms, home-theatre racks or streaming desks where a single screen must show multiple 4K devices. It accepts sources up to 3840x2160 at 60Hz and passes 7.1 surround audio through the same cable.

4K 60Hz resolution ceiling

The switch tops out at 3840x2160 at 60Hz with support for 2560x1600, 1920x1200, 1920x1080 and 1280x720 at the same refresh rate. Buyers needing 4K at 120Hz, 8K at any refresh rate or HDR metadata pass-through will need a different class of switcher.

Fanless desktop operation

With no moving parts the unit runs silently on the included 100-240 V AC adapter that delivers 5 V at 2 A. The chassis stays cool enough for continuous use in ambient temperatures from 0 to 40 °C at 10-85 % relative humidity.

Highlights

  • Switch four HDMI sources to one display at 4K 60Hz
  • Automatic port switching plus IR remote for hands-free control
  • 1 surround sound passes through for immersive audio
  • Compact 0.80" x 4.80" x 2.00" design fits tight racks
  • Universal 100-240 V AC adapter included for worldwide power

Specifications

BrandStarTech.com
ModelVS421HD20
Resolution SupportMaximum Digital Resolutions: 4K @ 60Hz
Supported Resolutions:
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
Audio Sampling7.1 Surround sound

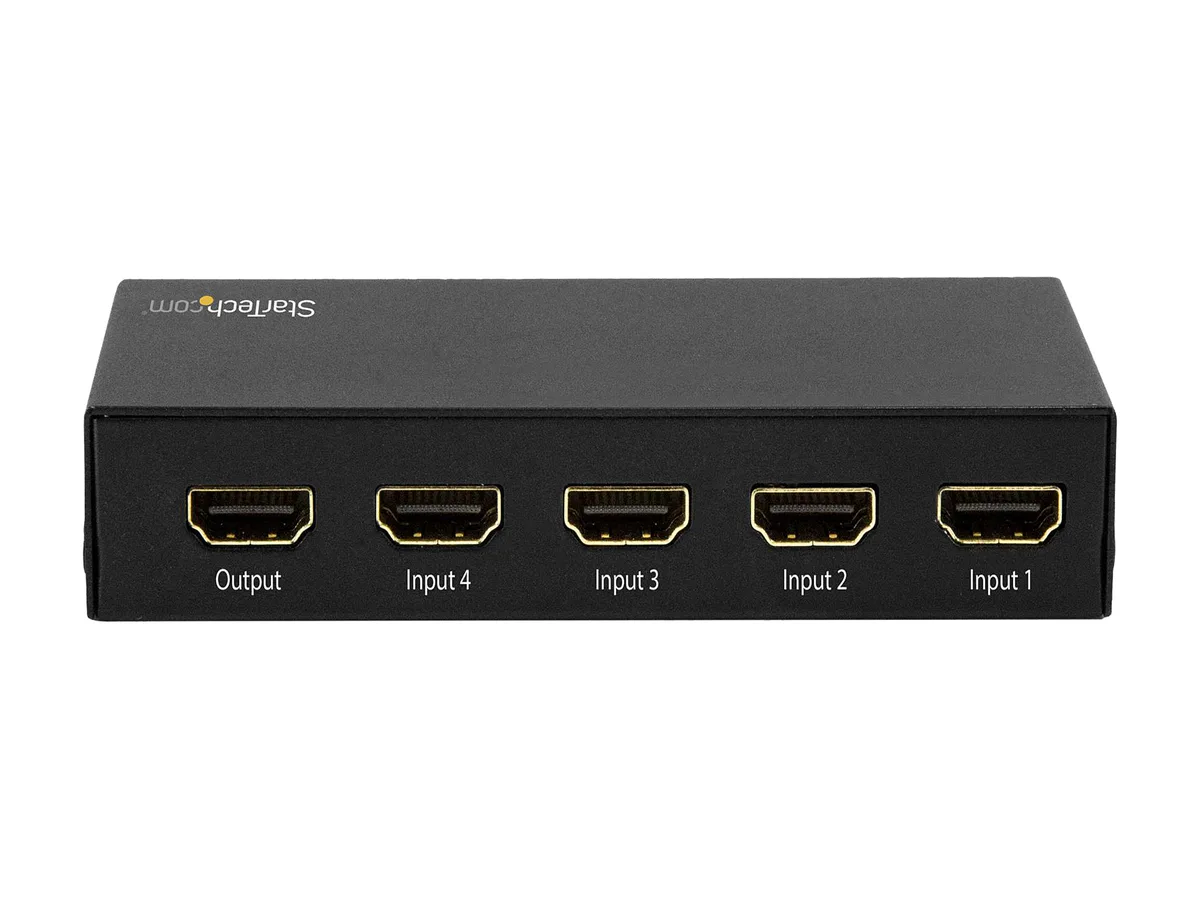

HDMI4 x HDMI (19-pin) Female Input
1 x HDMI (19-pin) Female Output
LED Indicator4 x input LEDs
1 x power LED
Power SupplyInput Current: 0.4A
Input Voltage: 100 ~ 240 AC
Output Current: 2000 mA

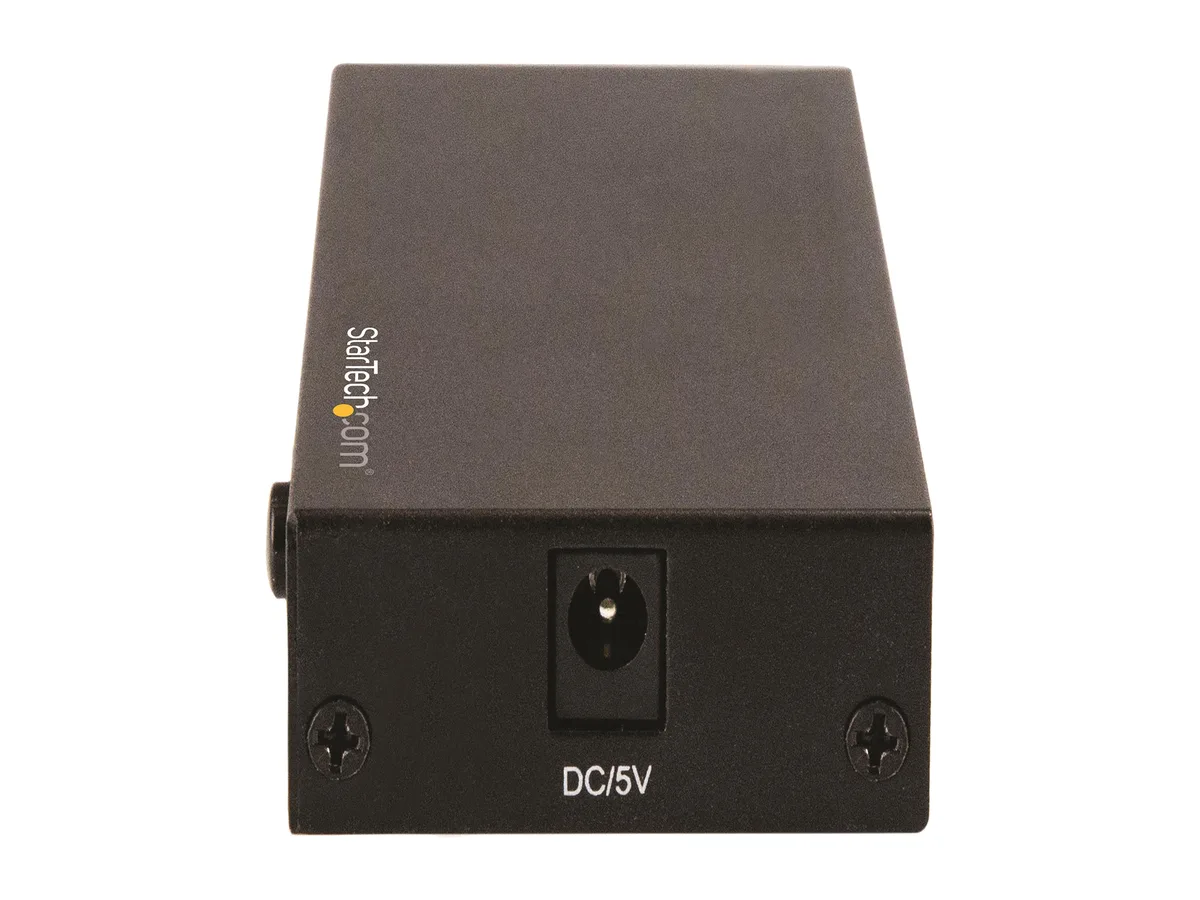

Output Voltage: 5 DC
Plug Type: H
Power Source: AC Adapter Included
SpecificationPerformance:
Wide Screen Supported: Yes
Environmental:
Humidity: 10% to 85% RH
Operating Temperature: 0 to 40 celsius degree
Storage Temperature: -10 to 80 celsius degree
Physical Characteristics:
Color: Black
FeatureAstonishing picture quality with support for 4K 60Hz
Hassle-free operation with automatic 4-port switching and an IR remote control included
7.1 surround sound

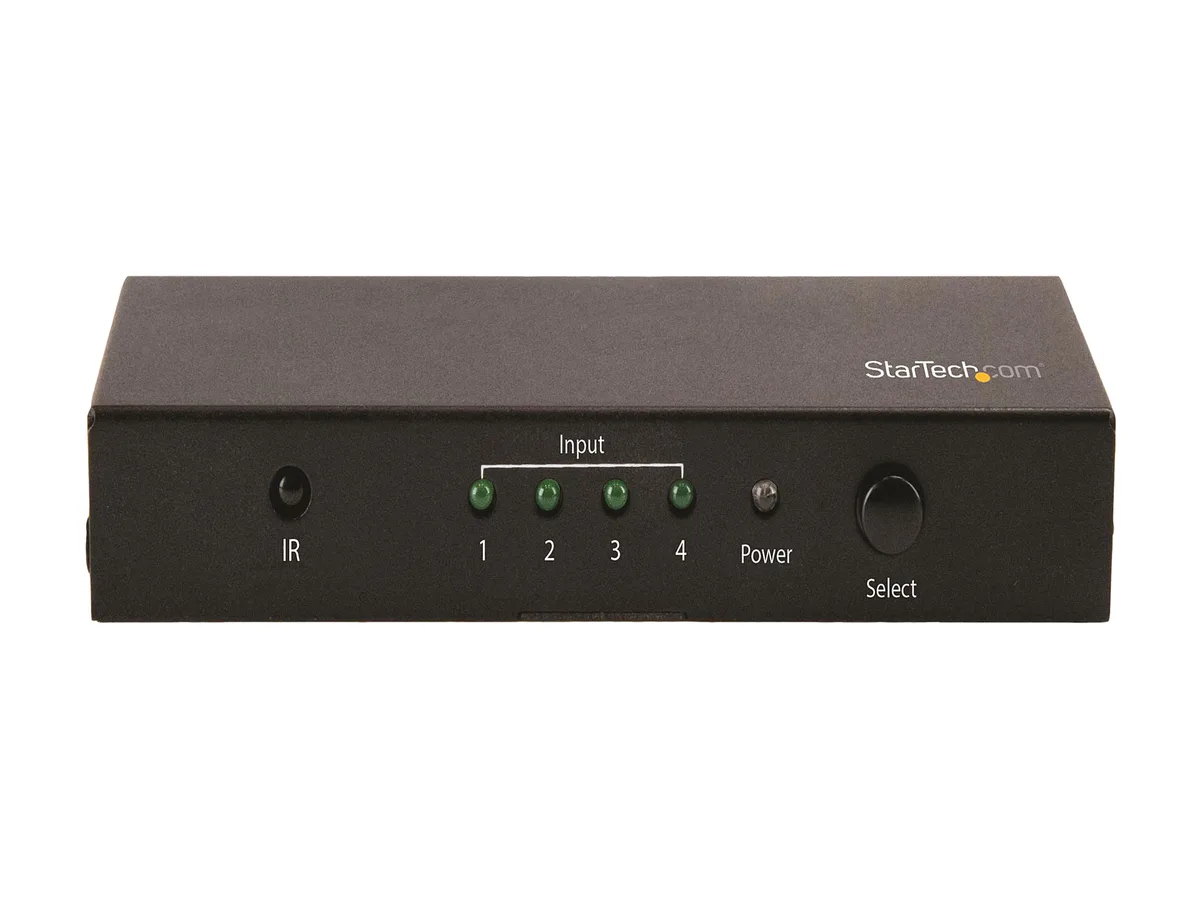

Front-panel toggle-switch button
Dimensions0.80" x 4.80" x 2.00"
Weight0.34 lb.
Package Content1 x HDMI video switch
1 x IR remote control (with CR2025 battery)
1 x universal power adapter (NA, EU, UK, ANZ)
Shipping weight0.91 kg
Package size305 × 254 × 203 mm

Questions about this item

What does 4K 60Hz mean for my sources and display?

The switch passes 3840x2160 at 60Hz from any connected source to the display without downscaling or frame-rate loss.

Which HDMI version does the VS421HD20 implement and what bandwidth limit applies?

It uses HDMI 2.0 ports, capping throughput at the 2.0 specification for 4K 60Hz 4:4:4 signals.

How much desk space and clearance does the unit need?

The chassis measures .80 by 4.80 by 2.00 inches and weighs .34 lb, so it fits on a shelf or rack shelf with minimal depth.
