Compact black metal box with four HDMI ports and LED indicators

STARTECH

STARTECH VS222HDQ 2x2 HDMI matrix production switcher 1080p

SKU CH-NSFY-T1K0F MPN VS222HDQ

A 2x2 HDMI matrix switcher routes two sources to two displays at up to 1080p with seamless switching, EDID copy, automatic and priority modes, 7.1 audio.

  • Resolution SupportMaximum Digital Resolutions: 1920x1200 / 1080p Supported Res
  • Audio7.1 surround sound
  • HDMI2 x HDMI (19-pin) Female Input 2 x HDMI (19-pin) Female Outp
  • LED Indicator1 x Display #1 - source #1 activated 1 x Display #1 - source
  • Power Consumption18W
  • Power SupplyInput Current: 0.6A Input Voltage: 100 ~ 240 AC Output Curre
  • Switch two sources across two displays with 2×2 HDMI matrix routing
  • Automatic priority and manual switching modes give flexible source selection
  • EDID copy and connection emulation preserve native resolution up to 1080p
  • Compact 0.80″ × 6.20″ × 2.60″ unit runs on 12 V DC at 1.5 A
  • Includes remote control universal power adapter mounting kit and foot pads

2x2 HDMI matrix switcher

The StarTech VS222HDQ routes two HDMI sources to two independent displays, letting operators show different sources on each screen or mirror one source across both. It suits live-production desks, small studios and presentation rooms that need reliable manual or automatic switching without a full video mixer.

1080p resolution ceiling

The unit accepts and outputs up to 1920x1200 or 1080p at 60 Hz, with 7.1 surround-sound pass-through. EDID copy and connection emulation keep each source locked to its native timing during transitions, so displays never renegotiate or flicker when you switch.

33-foot cable reach and 18 W draw

Each HDMI run can extend 33 ft before signal quality degrades, and the switcher draws 18 W from the included 12 V DC adapter (100-240 V AC input). Automatic, priority and manual selection modes cover unattended failover and hands-on cueing, but the two-input limit means larger multi-camera shows need a bigger matrix.

Highlights

  • Switch two sources across two displays with 2×2 HDMI matrix routing
  • Automatic priority and manual switching modes give flexible source selection
  • EDID copy and connection emulation preserve native resolution up to 1080p
  • Compact 0.80″ × 6.20″ × 2.60″ unit runs on 12 V DC at 1.5 A
  • Includes remote control universal power adapter mounting kit and foot pads

Specifications

BrandStarTech.com
ModelVS222HDQ
Resolution SupportMaximum Digital Resolutions: 1920x1200 / 1080p
Supported Resolutions:
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Audio7.1 surround sound
HDMI2 x HDMI (19-pin) Female Input
2 x HDMI (19-pin) Female Output
LED Indicator1 x Display #1 - source #1 activated
1 x Display #1 - source #2 activated
1 x Display #2 - source #1 activated
1 x Display #2 - source #2 activated
Power Consumption18W
Power SupplyInput Current: 0.6A
Input Voltage: 100 ~ 240 AC
Output Current: 1.5A
Output Voltage: 12 DC
Plug Type: M
Power Source: AC Adapter Included
SpecificationPerformance:
Max Distance: 33 ft.
Wide Screen Supported: Yes
Environmental:
Humidity: 0%~80%
Operating Temperature: 0 to 40 celsius degree
Storage Temperature: -20 to 60 celsius degree
Physical Characteristics:
Color: Black
Enclosure Type: Aluminum and Plastic
FeatureSeamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four dif
Dimensions0.80" x 6.20" x 2.60"
Weight0.64 lb.

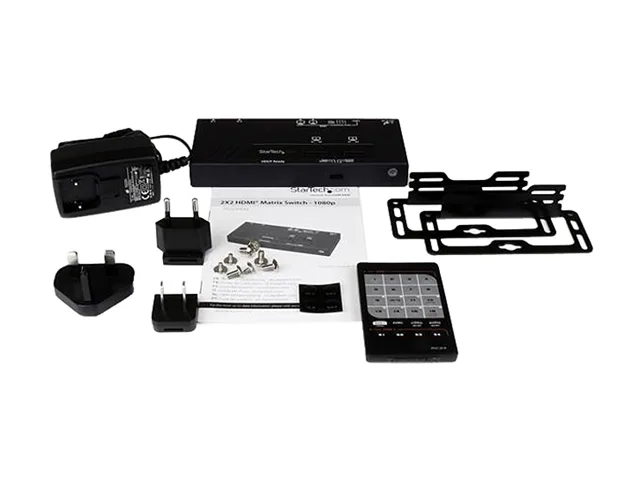

Package Content1 x HDMI Matrix Switch
1 x Remote control
1 x Universal Power Adapter (NA, EU, UK, AU)
1 x Instruction manual
1 x Foot pad set
1 x Mounting kit
Shipping weight1.36 kg
Package size305 × 254 × 203 mm

Questions about this item

How does the 1080p resolution limit affect what I see on my monitors?

The switcher passes up to 1920x1200 or 1080p to each display, so higher-resolution sources will be downscaled to that ceiling while 720p and 1080p content appears at native quality.

What does the HDMI 19-pin interface cap in real use?

Each of the four 19-pin HDMI ports handles video up to 1080p and 7.1 surround audio, with reliable cable runs up to 33 ft before signal degradation becomes noticeable.

What physical space and mounting options does the unit need?

The chassis measures .80 x 6.20 x 2.60 in and weighs .64 lb; it ships with a foot-pad set and a mounting kit for desktop or rack installation.
