STARTECH

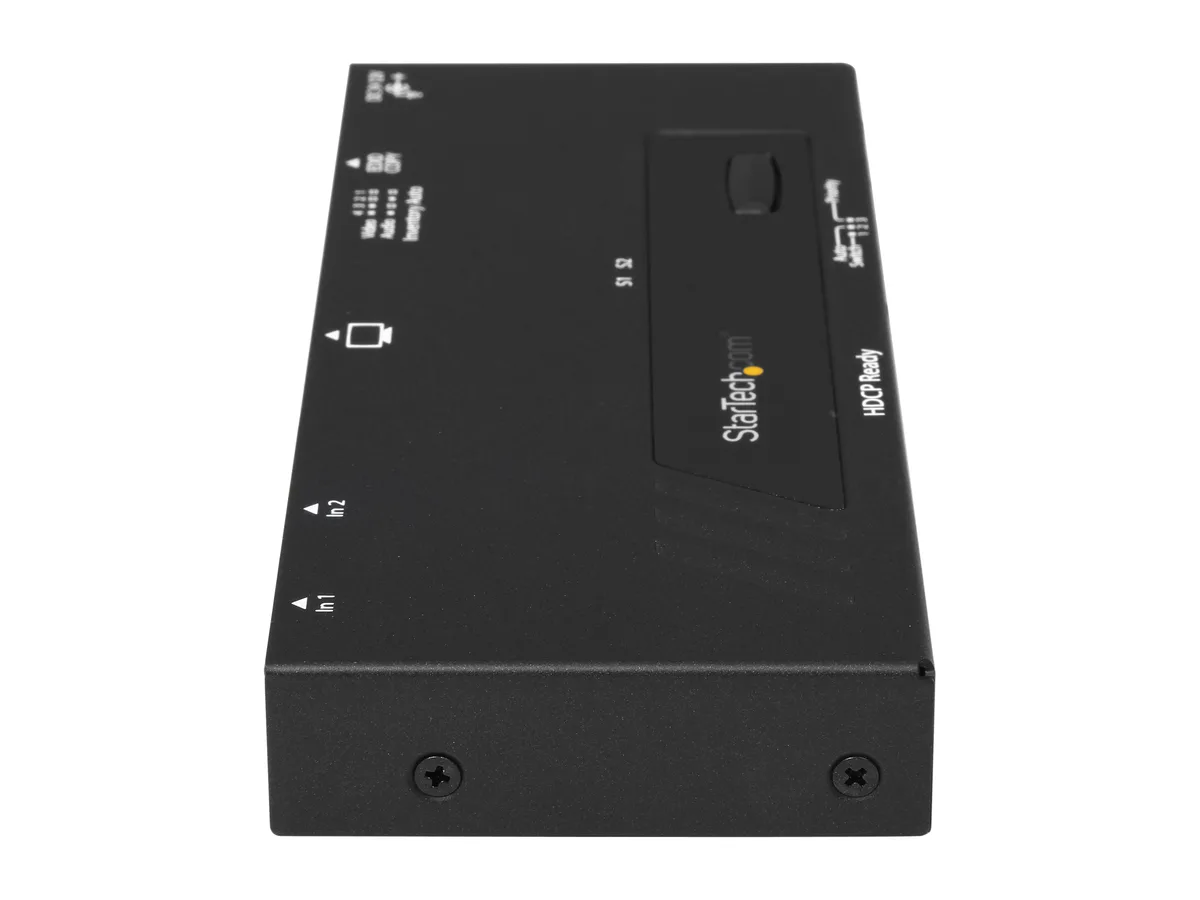

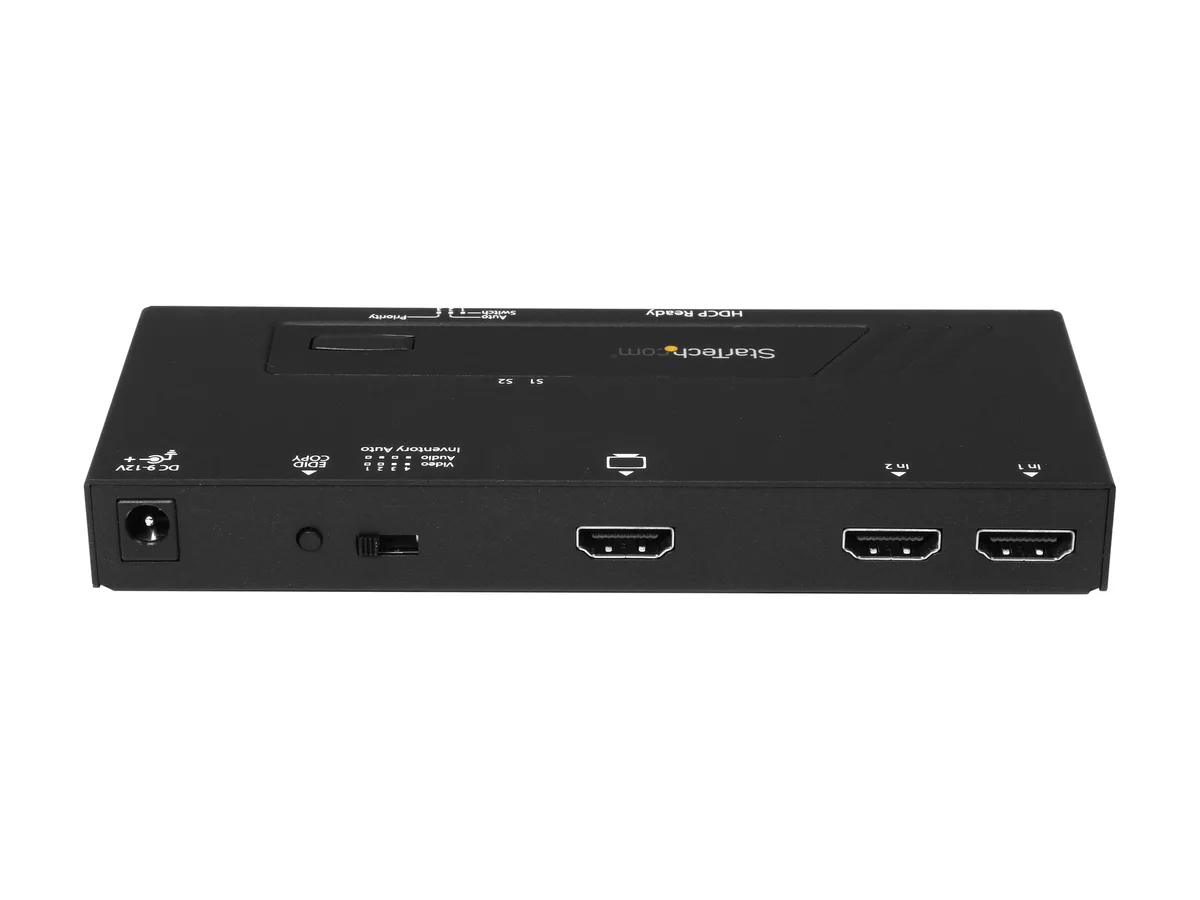

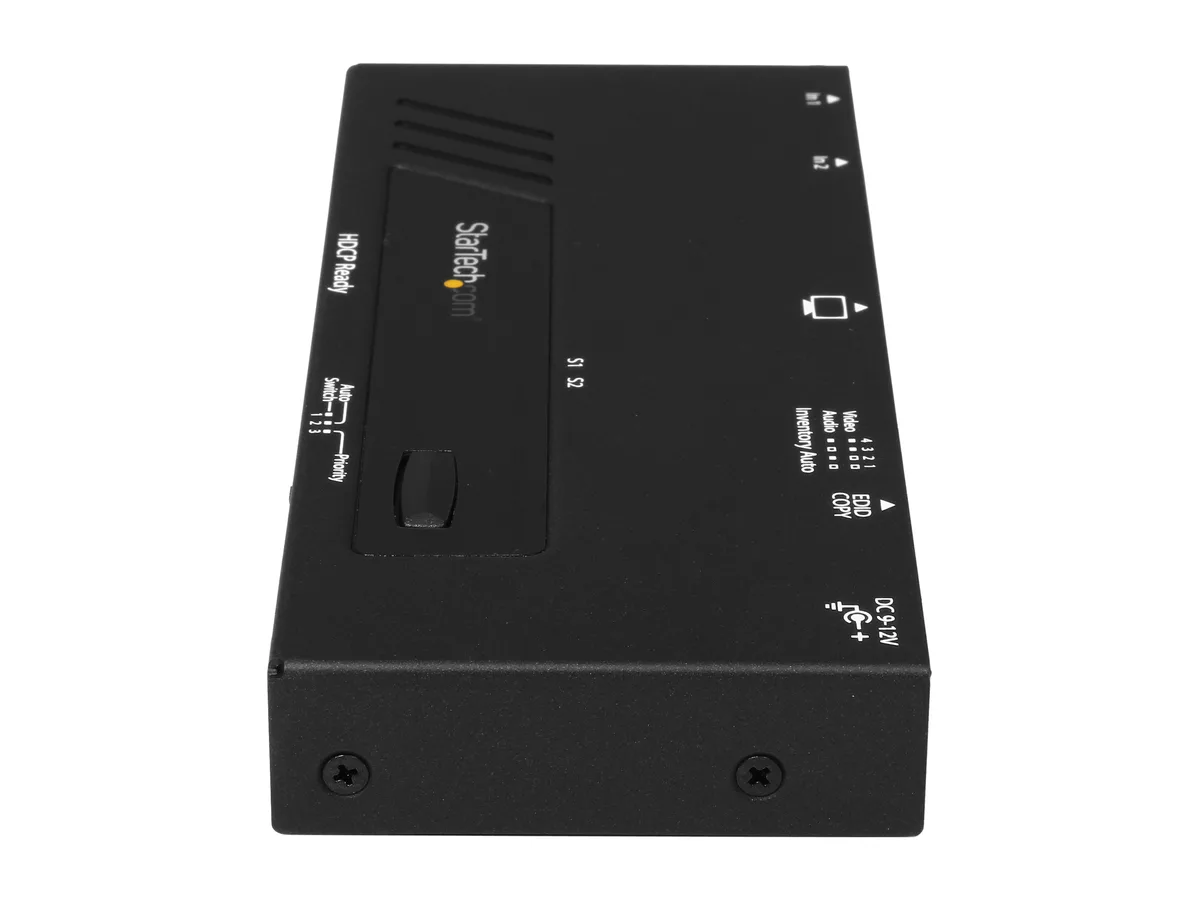

STARTECH VS221HDQ 2-Port HDMI Production Switcher 1080p
Switches between two HDMI sources on one display with automatic priority and seamless 1080p transitions
- Resolution SupportMaximum Digital Resolutions: 1920x1200 / 1080p Supported Res
- Audio7.1 surround sound
- HDMI2 x HDMI (19-pin) Female Input 1 x HDMI (19-pin) Female Outp
- LED Indicator1 x Source #1 activated 1 x Source #2 activated
- Power Consumption18W
- Power SupplyInput Current: 0.6A Input Voltage: 100 ~ 240 AC Output Curre
- Seamless transitions between sources with EDID copy maintaining native 1080p resolution
- Automatic priority switching and signal-loss failover keep the display active
- Two HDMI inputs feed one display or projector from a compact aluminium enclosure
- Universal 100–240 V AC adapter and remote control included for flexible placement
- Operates reliably from 0 to 40 °C with humidity up to 80 %
Two-Source HDMI Switcher
The STARTECH VS221HDQ connects two HDMI video sources to a single display or projector. It supports resolutions up to 1920x1200 and 1080p with 7.1 surround sound pass-through. Automatic priority switching and EDID emulation maintain native resolution during transitions. The unit includes a remote control, universal power adapter and mounting hardware for fixed installations.
Plug-and-Play Setup
Connect the two source devices and the display using standard HDMI cables, then attach the included 12 V DC adapter. Front-panel LEDs indicate which input is active, and the remote provides instant manual selection. The aluminium enclosure measures 0.80 by 6.10 by 2.60 inches and weighs .64 lb, fitting on a desk or in a rack shelf. No drivers or software configuration are required for basic operation.
1080p Signal Capacity
The switcher handles 1080p and 1920x1200 signals over cable runs up to 33 ft without degradation. It draws 18 W from a 100 to 240 V AC supply and operates between 0 and 40 °C. Only two HDMI inputs are available, so installations requiring three or more sources need a larger matrix. Audio is limited to 7.1 channels; higher-format bitstreams are not supported.
Highlights
- Seamless transitions between sources with EDID copy maintaining native 1080p resolution
- Automatic priority switching and signal-loss failover keep the display active
- Two HDMI inputs feed one display or projector from a compact aluminium enclosure
- Universal 100–240 V AC adapter and remote control included for flexible placement
- Operates reliably from 0 to 40 °C with humidity up to 80 %
Specifications
| Brand | StarTech.com |
|---|---|
| Model | VS221HDQ |
| Resolution Support | Maximum Digital Resolutions: 1920x1200 / 1080p Supported Resolutions: 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Audio | 7.1 surround sound |
| HDMI | 2 x HDMI (19-pin) Female Input 1 x HDMI (19-pin) Female Output |
| LED Indicator | 1 x Source #1 activated 1 x Source #2 activated |
| Power Consumption | 18W |
| Power Supply | Input Current: 0.6A Input Voltage: 100 ~ 240 AC Output Current: 1.5A Output Voltage: 12 DC Plug Type: M Power Source: AC Adapter Included |
| Specification | Performance Max Distance: 33 ft. Environmental Humidity: 0%~80% Operating Temperature: 0 to 40 celsius degree Storage Temperature: -20 to 60 celsius degree Physical Characteristics Color: Black Enclosure Type: Aluminum and Plastic |
| Feature | Seamless Signal Selection Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source. Effortless Control Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation. Versatile Switching Options Enjoy hassle-free operation with three different swit |
| Dimensions | 0.80" x 6.10" x 2.60" |
| Weight | 0.64 lb. |

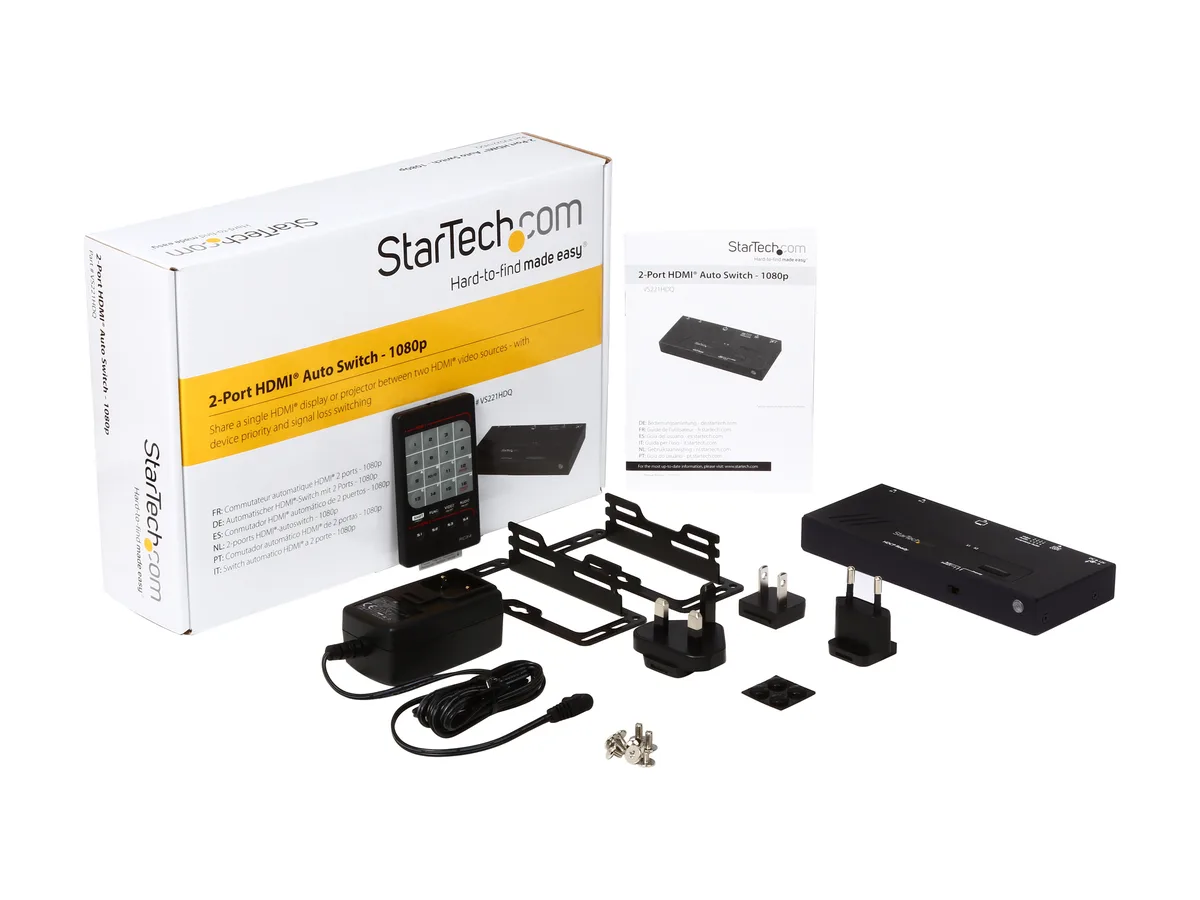

| Package Content | 1 x HDMI auto switch 1 x universal power adapter (NA, EU, UK, AU) 1 x remote control 1 x foot pad set 1 x mounting kit 1 x instruction Manual |
| Shipping weight | 0.84 kg |
| Package size | 292 × 196 × 74 mm |
Questions about this item
How do I confirm the VS221HDQ is switching sources correctly after connecting two devices?
The front panel shows two LED indicators labelled Source #1 and Source #2; the lit LED tells you which input is currently active on the display.
What accessories come with the VS221HDQ and is anything else required for basic operation?
The package includes the switch, a universal power adapter with NA, EU, UK and AU plugs, a remote control, a foot pad set, a mounting kit and an instruction manual; no extra cables or parts are needed to start.
Which version of the VS221HDQ should I choose if I need 1080p and 7.1 surround sound support?
The VS221HDQ is a single model that already handles 1920x1080 (1080p) resolution and 7.1 surround sound, so there are no alternative versions or capacities to select.
