Black steel video wall mount for 45 to 70 inch displays with pop-out arm and micro-adjustment brackets

STARTECH

STARTECH VIDWALLMNT Video Wall Mount 45-70in Pop-Out Micro-Adjust Steel

SKU CH-Z9NV-DJZVZ

Pop-out steel mount holds 45-70in displays up to 154 lb with 12in extension and six-point micro-adjustment for precise video-wall alignment

  • Mount Style45in-70in Displays - Heavy Duty - Anti Theft
  • ColorBlack
  • TV Size Capacity45" - 70"
  • VESA CompatibleVESA Hole Pattern(s) 200x200 mm 300x300 mm 400x200 mm 400x40
  • Tilt Range+3 degree / -5 degree
  • FeaturePop-out design extends easily (up to 12"/306 mm) to provide

Mount Style 45in-70in Displays - Heavy Duty - Anti Theft

Color Black

  • Pop-out design extends 12 in for rear-screen access
  • Micro-adjustment at 6 points ensures precise display alignment
  • Supports VESA patterns 200, 300, 400 and 600 mm
  • Holds 45 to 70 in displays up to 154 lb
  • Steel construction with anti-theft padlock points

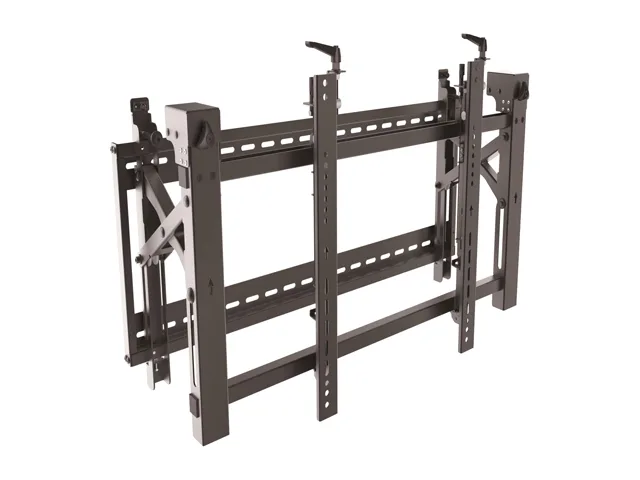

Video Wall Mount 45–70 inch

The StarTech.com VIDWALLMNT is a steel mounting system built for 45 to 70 inch commercial displays weighing up to 154 lb. It supports VESA patterns from 200x200 mm through 600x400 mm and includes anti-theft hardware compatibility for secure public installations. Lateral shift brackets allow horizontal positioning of each screen.

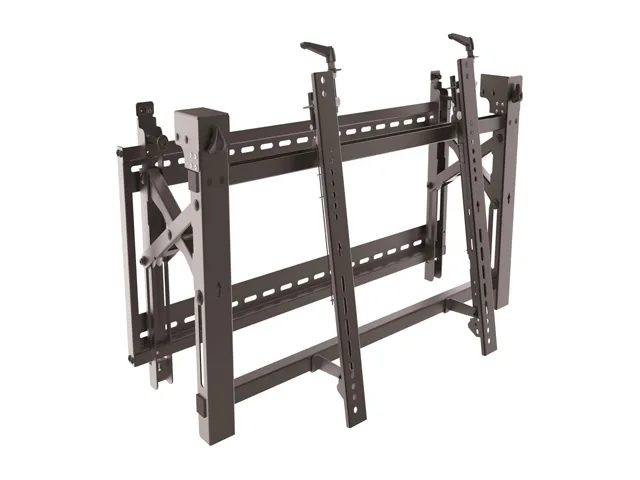

Pop-Out Access and Micro-Adjustment

A pop-out mechanism extends each display up to 12 inches (306 mm) from the wall, giving technicians clear rear access for cabling and service without removing the panel. Six points of micro-adjustment cover vertical height, tilt from +3 to -5 degrees, and swivel for precise bezel alignment across the entire array. The mount measures 19.00 inches high, 12.00 inches wide and 36.80 inches deep.

Fixed Direct-Mount Alternative

This system replaces static direct-mount brackets that lock displays flat against the wall and offer no service clearance or fine alignment. The jump is worth it when the installation demands ongoing rear access, millimetre-level bezel matching across multiple screens, or anti-theft security in public spaces. It is not suited for single-screen home use where a low-profile fixed mount would be simpler.

Highlights

  • Pop-out design extends 12 in for rear-screen access
  • Micro-adjustment at 6 points ensures precise display alignment
  • Supports VESA patterns 200, 300, 400 and 600 mm
  • Holds 45 to 70 in displays up to 154 lb
  • Steel construction with anti-theft padlock points

Specifications

BrandStarTech.com
ModelVIDWALLMNT
Mount Style45in-70in Displays - Heavy Duty - Anti Theft
ColorBlack
TV Size Capacity45" - 70"
VESA CompatibleVESA Hole Pattern(s)
200x200 mm
300x300 mm
400x200 mm
400x400 mm
600x400 mm
Tilt Range+3 degree / -5 degree
FeaturePop-out design extends easily (up to 12"/306 mm) to provide rear-screen access, for display alignment and adjustment
6 points of micro-adjustment (vertical, tilt and swivel) for exacting display alignment and optimum viewing
Supports 45" to 70" display with weight capacity of 154 lb. (70 kg)
Low-profile design, minimum 5.6" (142 mm) from the wall
Heavy-duty steel construction
Lateral shift brackets make it easy to adjust the position of monitors, left or right
Lock/unlock switch helps to lock or release display out of the wall plate
Swivel angle of +1.2 degree / - 1.2 degree for prec
Height19.00"
Width12.00"
Depth36.80"
Weight34.70 lbs.
Shipping weight15.42 kg
Package size1016 × 508 × 203 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which VESA pattern on the VIDWALLMNT matches my display size between 45 and 70 inches?

The mount supports 200x200 mm, 300x300 mm, 400x200 mm, 400x400 mm and 600x400 mm hole patterns, covering the full 45 to 70 inch range.

How far does the pop-out mechanism extend when I need to service a mounted screen?

The pop-out design extends up to 12 inches (306 mm) from the wall, giving clear rear access for cabling and alignment.

What does the six-point micro-adjustment actually control during installation?

It provides vertical, tilt and swivel micro-adjustments so each display can be aligned precisely within the video wall.
