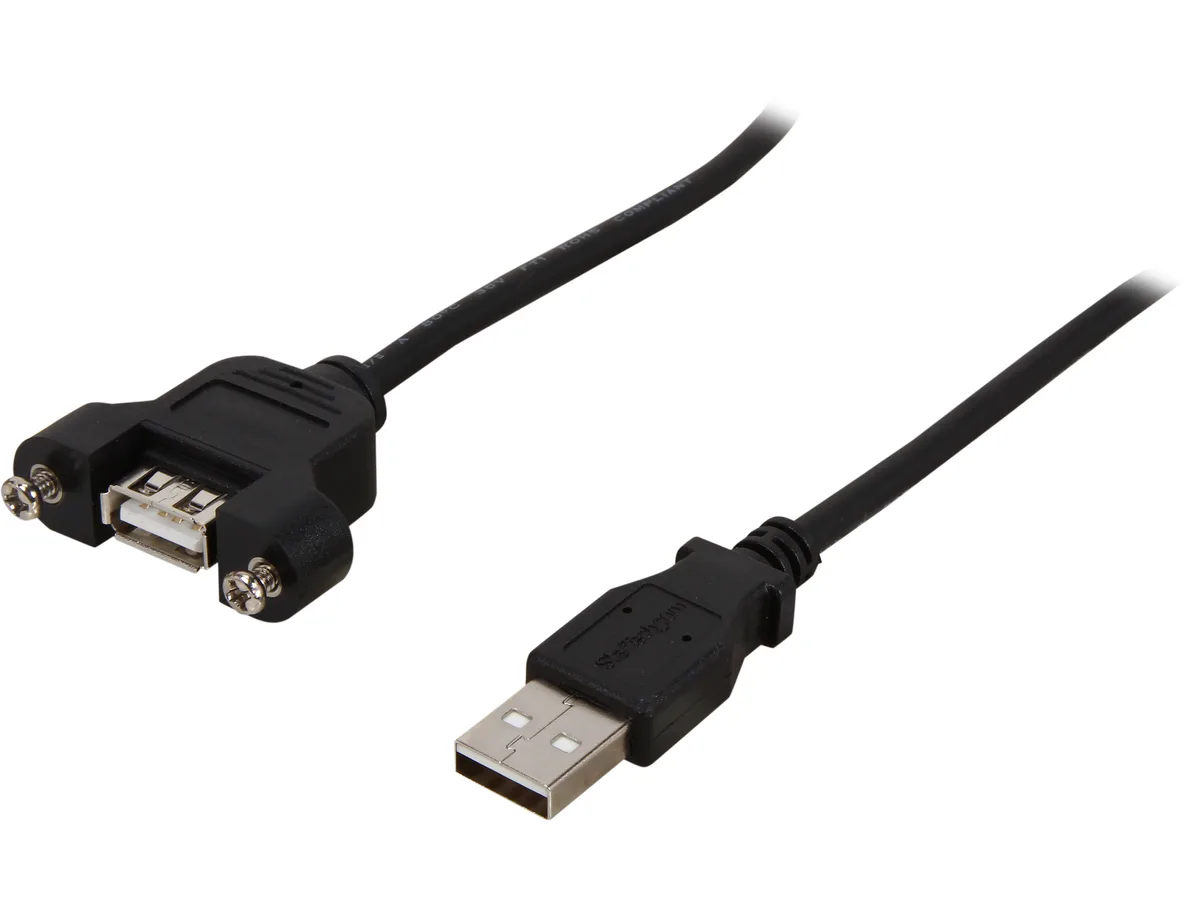

Black 3 ft panel-mount USB A male to A female cable with nickel-plated connectors

STARTECH

STARTECH USBPNLAFAM3 USB A to A Panel Mount Cable 3 ft

SKU CH-P1W2-XQQK1 MPN USBPNLAFAM3

Adds a secure, front-access USB 2.0 Type-A port to a PC or faceplate with a 3 ft panel-mount extension cable

  • TypeUSB
  • Connector TypeUSB A to USB A
  • ColorBlack
  • Connector Number2
  • Connector DetailUSB A (4 pin) to USB A (4 pin)
  • Terminal GenderFemale to Male

Cable Length 3 Feet

  • Panel-mount design secures a USB-A port to your chassis
  • 3 ft length reaches internal headers without strain
  • Nickel-plated connectors resist corrosion for reliable contact
  • Aluminium-Mylar foil with braid shields against interference
  • RoHS, REACH and WEEE certified for environmental compliance

Panel-mount USB-A extension cable

The StarTech USBPNLAFAM3 adds a fixed USB-A female port to a chassis or faceplate using a three-foot cable with a male USB-A plug on the other end. Nickel-plated connectors and aluminium-Mylar foil with braid shielding protect signal integrity. The PVC jacket and 24/28 AWG conductors meet RoHS, REACH and WEEE environmental standards.

Suited for kiosks, podiums and custom enclosures

Installers who need a secure, front-accessible USB-A connection for peripherals such as keyboards, mice or flash drives will find the panel-mount flange convenient. Builders requiring USB-C, USB 3.x speeds or internal header connections should look at other cable types because this model is limited to USB 2.0 Type-A signalling.

Behaviour under sustained load

Shielded construction and nickel plating maintain reliable data transfer during continuous use in fixed installations. The 24/28 AWG conductors handle standard USB 2.0 current without excessive voltage drop over the three-foot length. Lifetime warranty coverage reflects confidence in long-term durability.

Highlights

  • Panel-mount design secures a USB-A port to your chassis
  • 3 ft length reaches internal headers without strain
  • Nickel-plated connectors resist corrosion for reliable contact
  • Aluminium-Mylar foil with braid shields against interference
  • RoHS, REACH and WEEE certified for environmental compliance

Specifications

BrandStarTech.com
ModelUSBPNLAFAM3
TypeUSB
Connector TypeUSB A to USB A
ColorBlack
Connector Number2
Connector DetailUSB A (4 pin) to USB A (4 pin)
Terminal GenderFemale to Male
SpecificationsCable Jacket Type PVC - Polyvinyl Chloride
Connector Plating Nickel
Wire Gauge 24/28 AWG
ShieldingAluminum-Mylar Foil with Braid
FeaturesThe USBPNLAFAM3 3ft Panel Mount USB Cable provides a well-secured, easy to access USB-A port on your PC or on a faceplate, allowing you to customize your systems to suit your needs. Perfect for podiums, kiosks and other solutions where added access to USB devices is required.
The adapter features one male USB-A connector and one female panel mount USB-A port and gives you an extension of 3ft, enabling you to place the cable as needed within the system case.
Electrical Outlet Plug TypePlug Type “A” (USA, Canada, Mexico, Japan)
Shipping weight0.05 kg
Package size131 × 119 × 19 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 3 ft panel-mount cable need a USB 2.0 Type-A male header on the motherboard or front-panel connector to work?

Yes, the male Type-A end plugs into a standard USB 2.0 4-pin header or port, while the female panel-mount end provides the external port.

Can the USB 2.0 4-pin female panel port run older USB 1.1 devices such as a legacy keyboard or mouse?

The cable is fully backward-compatible, so USB 1.1 peripherals will operate at their native speed through the female Type-A connector.

How can I verify the panel-mount connection is live after installing the cable in a kiosk faceplate?

Plug in a known-good USB device; if the host enumerates it and the device powers up, the cable and panel port are functioning correctly.
