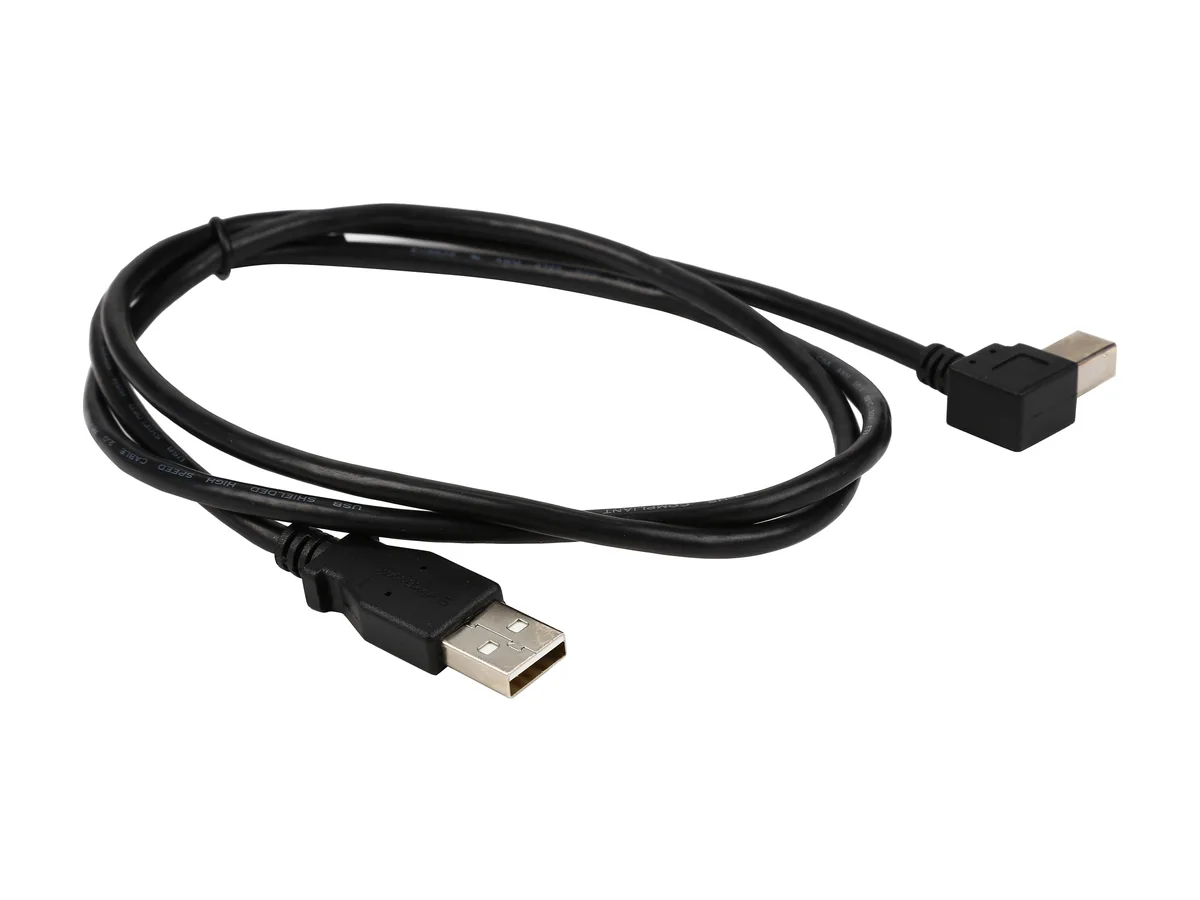

Black USB 2.0 cable with straight Type-A and left-angled Type-B connectors

STARTECH

STARTECH USBAB1ML USB 2.0 A to Left Angle B Cable 1m

SKU CH-RRAX-PQ4AJ MPN USBAB1ML

Connects USB 2.0 devices in tight spaces with a left-angled B connector, supporting 480 Mbps data rates

  • TypeUSB 2.0
  • Connector TypeUSB A to USB B
  • ColorBlack
  • Connector Number2
  • Connector DetailConnector A: 1 x USB A (4 pin) Male Connector B: 1 x USB B (
  • Terminal GenderMale to Male

Cable Length 3 Feet

Style Left Angle

  • Left-angle USB-B connector fits tight spaces
  • USB 2.0 data rates up to 480 Mbps
  • Nickel-plated connectors resist corrosion
  • Foil-and-braid shielding blocks interference
  • PVC jacket protects 24/28 AWG conductors

Left-Angle USB-B Connector

The left-angled USB-B male connector on this cable allows connection to USB 2.0 peripherals where rear clearance is limited. It is suited for builders and technicians routing cables in tight enclosures or against walls. The straight USB-A male end plugs into standard host ports. Nickel-plated contacts and aluminum-Mylar foil with braided shielding protect signal integrity.

USB 2.0 Data Rate and Length

The cable supports USB 2.0 data transfer rates up to 480 Mbps over its 1m length. This bandwidth handles printers, scanners, external hard-drive enclosures and audio interfaces that operate within the USB 2.0 specification. It does not carry USB 3.x or higher signalling, so devices requiring SuperSpeed throughput will fall back to 480 Mbps or require a different cable.

PVC Jacket and Shielding

A PVC jacket encases 24/28 AWG conductors wrapped in aluminum-Mylar foil and braided shielding for EMI resistance. The construction balances flexibility for routing with durability for repeated insertion cycles. At 37 g the assembly adds minimal strain on panel-mounted USB-B receptacles. No active electronics or power-delivery circuitry are present; the cable is passive and bus-powered.

Highlights

  • Left-angle USB-B connector fits tight spaces
  • USB 2.0 data rates up to 480 Mbps
  • Nickel-plated connectors resist corrosion
  • Foil-and-braid shielding blocks interference
  • PVC jacket protects 24/28 AWG conductors

Specifications

BrandStarTech.com
ModelUSBAB1ML
TypeUSB 2.0
Connector TypeUSB A to USB B
ColorBlack
Connector Number2
Connector DetailConnector A: 1 x USB A (4 pin) Male
Connector B: 1 x USB B (4 pin) Male
Connector Plating: Nickel
Connector Style: Straight to Left Angle
Terminal GenderMale to Male
SpecificationsCable Jacket Type: PVC - Polyvinyl Chloride
Product Weight: 1.3 oz. [37 g]
Wire Gauge: 24/28 AWG

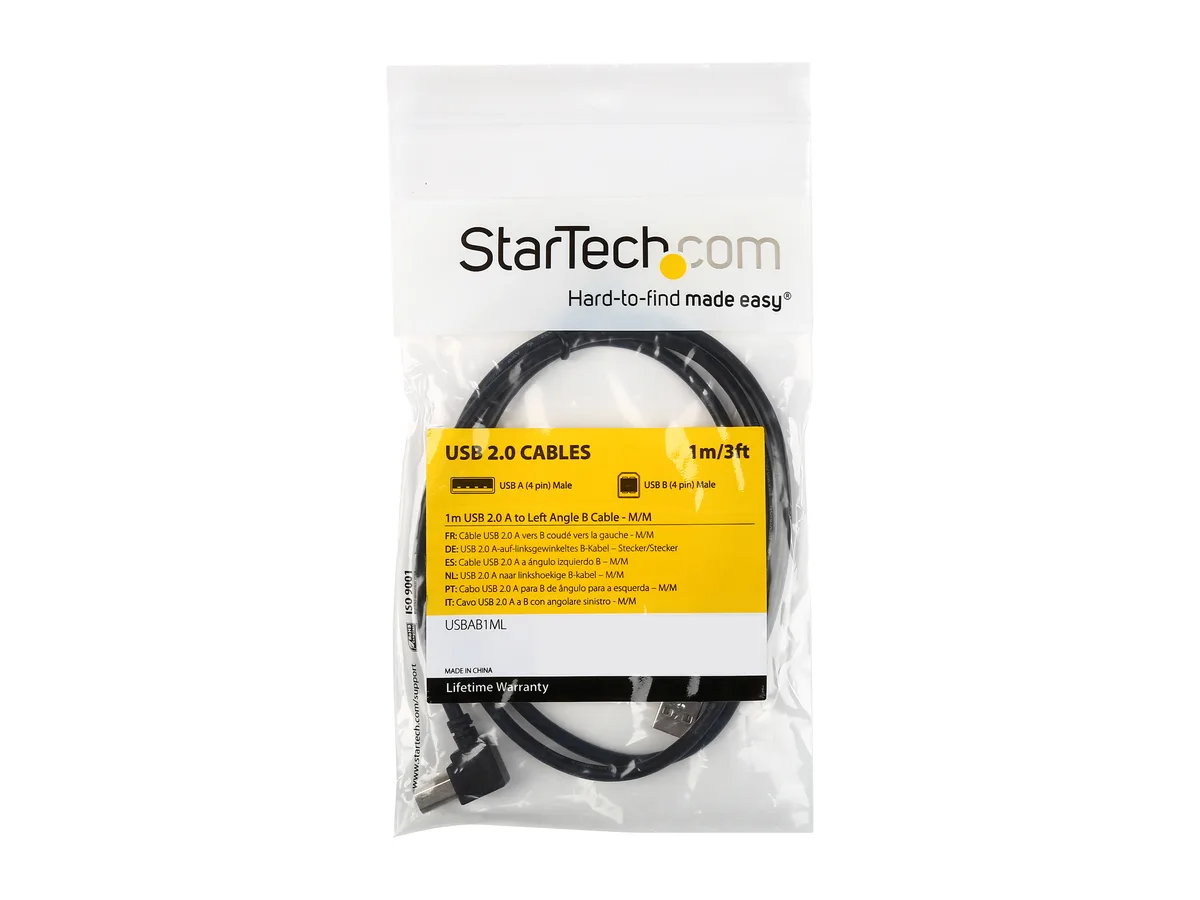

Included in Package: 1 x 1m USB 2.0 A to Left Angle B Cable - M/M
ShieldingAluminum-Mylar Foil with Braid
Features1x USB-A male connector
1x Left-angled USB-B male connector
Aluminum-Mylar Foil with Braided Shielding
Supports USB 2.0 data transfer rates up to 480 Mbps
Electrical Outlet Plug TypePlug Type “A” (USA, Canada, Mexico, Japan)
Shipping weight0.05 kg
Package size133 × 119 × 24 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the left-angled USB-B connector fit behind my desk-mounted printer?

The left-angled USB-B male connector directs the cable sideways, letting it sit flush against equipment in tight spaces.

How can I confirm the cable is delivering full USB 2.0 performance after connecting it?

Your host should report a high-speed connection at 480 Mbps in its USB controller details.

Does the 1 m cable include both the USB-A and left-angled USB-B connectors already attached?

Yes, the package contains one 1 m cable with a straight USB-A male plug on one end and a left-angled USB-B male plug on the other.
