STARTECH
STARTECH USB3SMDOCKHV docking station HDMI VGA USB 3.0
A portable USB 3.0 dock adds HDMI or VGA video, Gigabit Ethernet and an extra USB port to a laptop through a single cable
- ColorBlack
- Ports SpecConnector Type(s): 1 x USB 3.0 A (9 pin; SuperSpeed) Male 1
- Dimension0.70" x 2.20" x 4.90"
- Weight0.18 lb.
- FeaturesCreate a mobile workstation using your Ultrabook or laptop U
- Create a mobile workstation from a single USB 3.0 port
- Connect HDMI or VGA displays with 19-pin or 15-pin outputs
- Wired network access via built-in RJ-45 port
- Add a USB 3.0 peripheral through the extra 9-pin SuperSpeed port
- Ultra-compact at 0.70 x 2.20 x 4.90 inches and 0.18 lb
Portable USB 3.0 dock for laptops

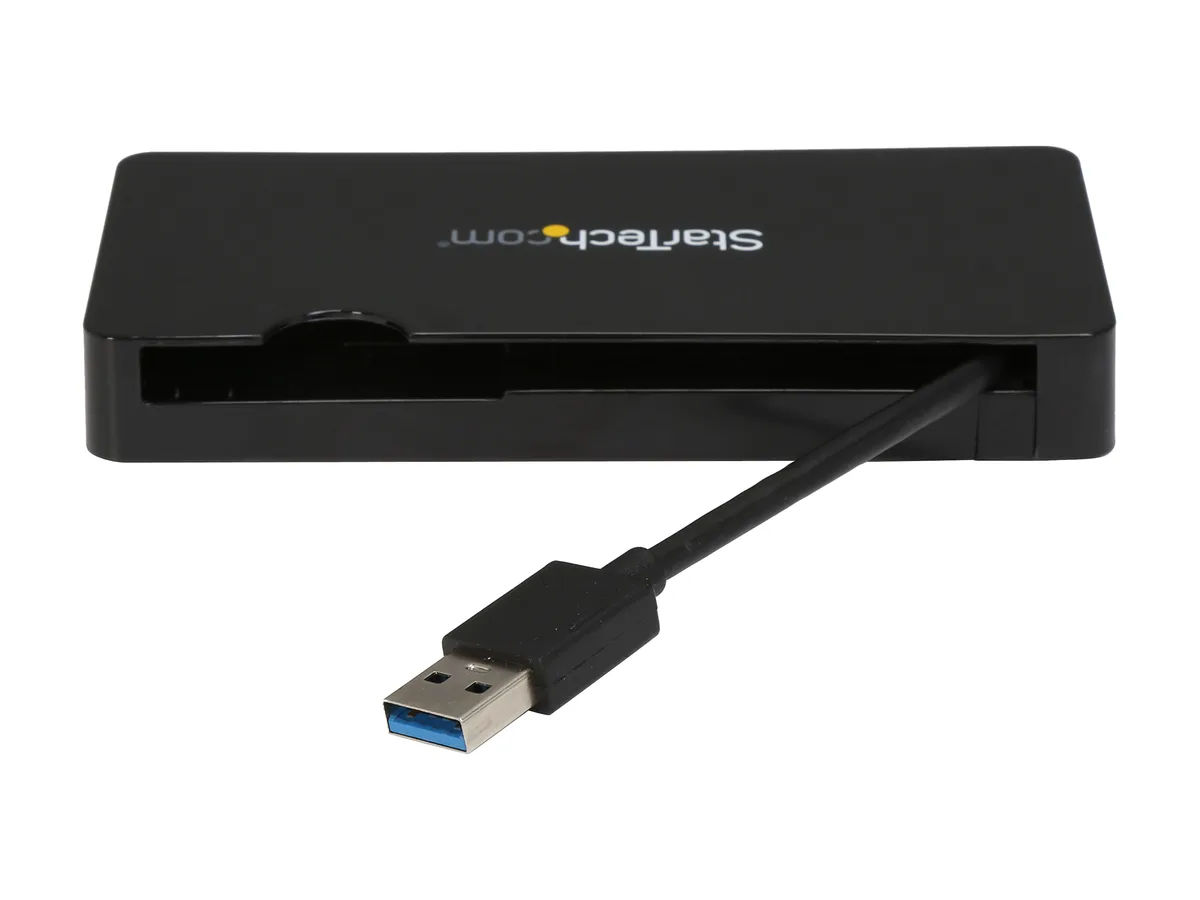

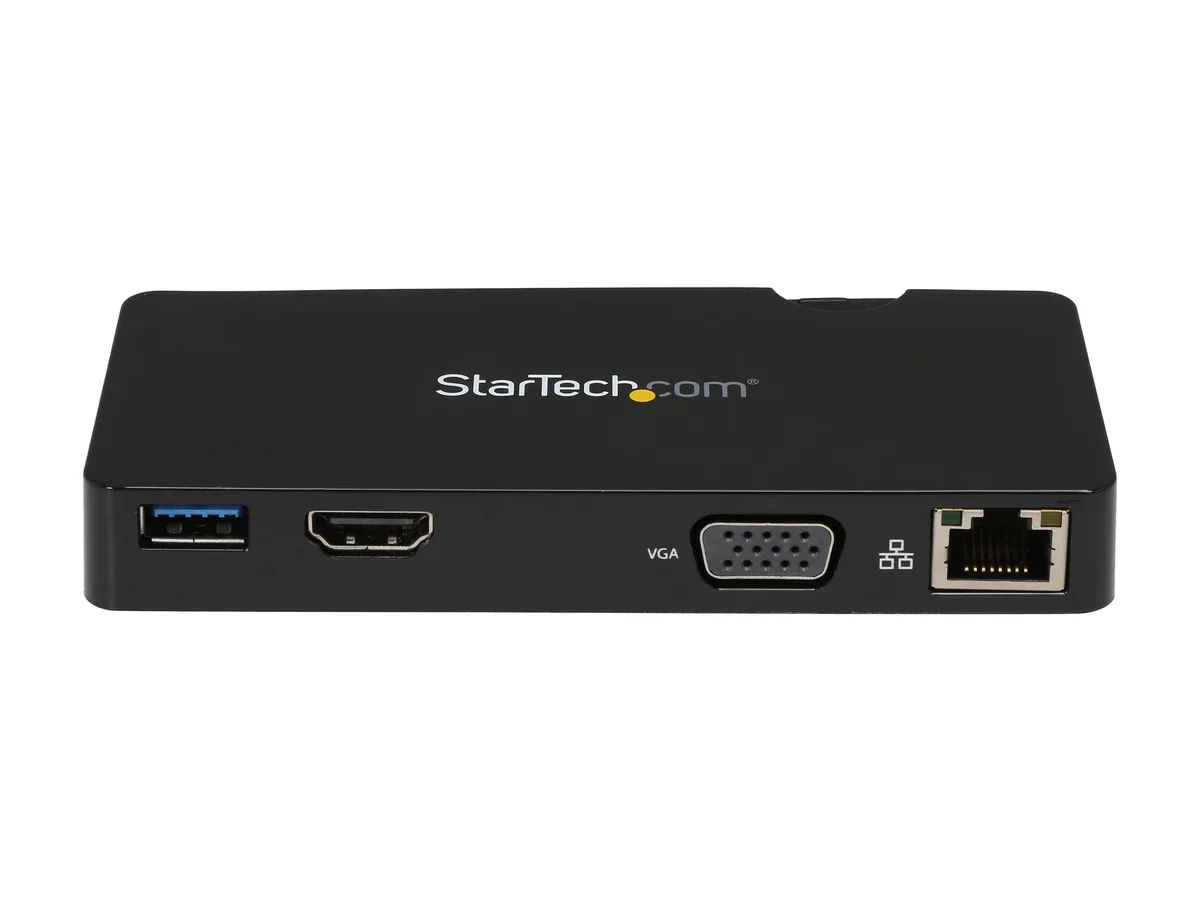

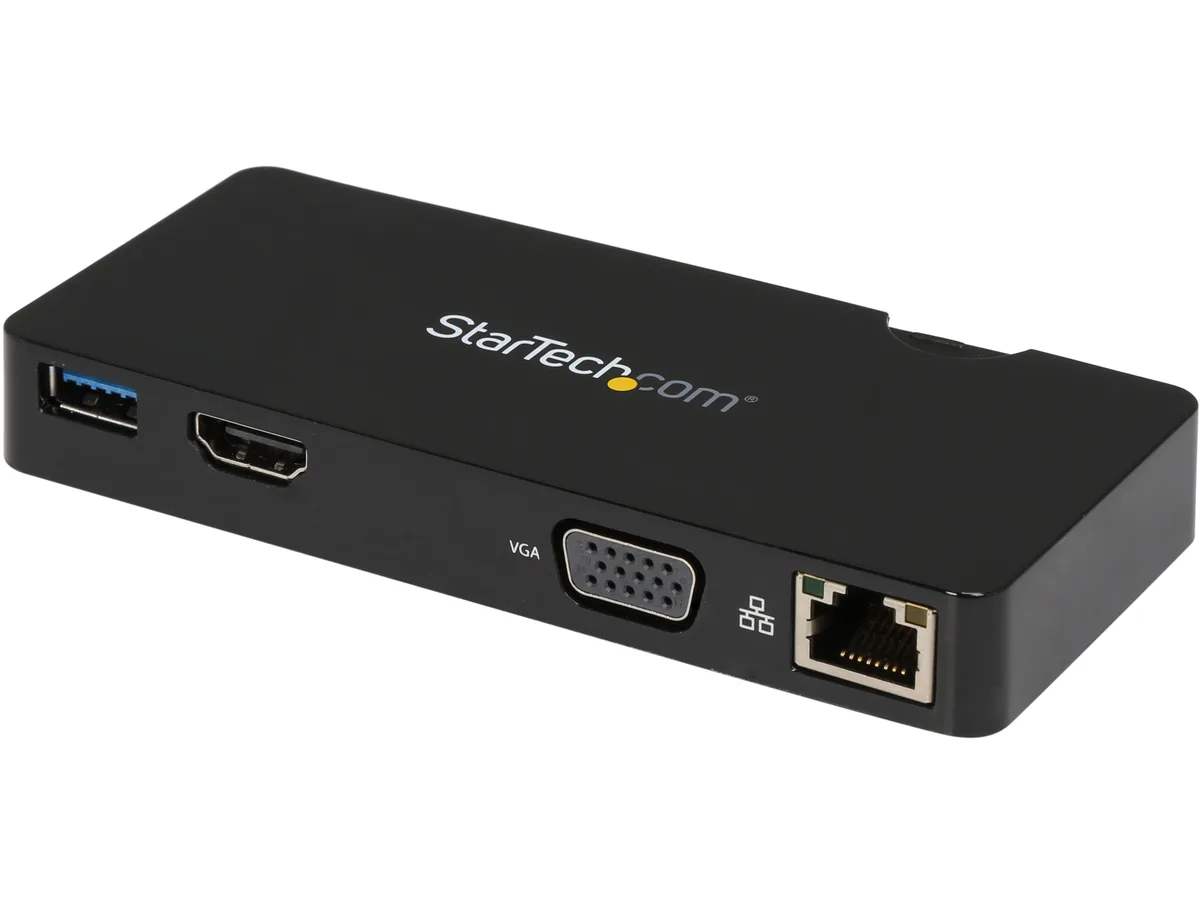

The StarTech USB3SMDOCKHV is a compact travel docking station that connects to a laptop USB 3.0 port. It adds one HDMI port, one VGA port, a Gigabit RJ-45 network jack and an extra USB 3.0 Type-A socket. The unit measures 0.70" x 2.20" x 4.90" and weighs 0.18 lb. It is designed for mobile professionals who need video and wired networking on the move.
Suits single-display setups and wired networking
This dock serves users who want one external monitor via HDMI or VGA and a stable Ethernet connection while travelling. It does not suit buyers who require two simultaneous external displays or additional video outputs beyond the single HDMI and VGA provided. Power users needing more than one downstream USB 3.0 port should also consider other options.
One video output at a time
The HDMI and VGA ports share the video pathway so only one monitor can be active at once. Choose this dock if your workflow needs just a single external screen; look elsewhere if you must drive two monitors simultaneously.
Highlights
- Create a mobile workstation from a single USB 3.0 port
- Connect HDMI or VGA displays with 19-pin or 15-pin outputs
- Wired network access via built-in RJ-45 port
- Add a USB 3.0 peripheral through the extra 9-pin SuperSpeed port
- Ultra-compact at 0.70 x 2.20 x 4.90 inches and 0.18 lb
Specifications
| Brand | StarTech.com |
|---|---|
| Model | USB3SMDOCKHV |
| Color | Black |
| Ports Spec | Connector Type(s): 1 x USB 3.0 A (9 pin; SuperSpeed) Male 1 x HDMI (19 pin) Female 1 x VGA (15 pin; High Density D-Sub) Female 1 x RJ-45 Female 1 x USB 3.0 A (9 pin; SuperSpeed) Female Maximum Data Transfer Rate: 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) Maximum Analog Resolutions: 2048x1152 (VGA) Maximum Digital Resolutions: 2048x1152 (HDMI) Type and Rate: USB 3.0 - 5 Gbit/s UASP Support: Yes Compatible Networks: 10/100/1000 Mbps Auto MDIX: Yes Full Duplex Support: Yes |
| Dimension | 0.70" x 2.20" x 4.90" |
| Weight | 0.18 lb. |
| Features | Create a mobile workstation using your Ultrabook or laptop USB 3.0 port Travel Docking Station for Laptops HDMI or VGA USB 3.0 Compact Mobile Universal Laptop Mini Dock Compatible with HP EliteBook Folio / Lenovo X1 Carbon / Microsoft Surface Pro 4 / Surface Pro 3 / Surface 3 / Surface Book Portable Laptop Docking Station / Travel Adapter for Laptops / Notebook Mini Docking Station USB 3.0 Laptop Dock w/ built-in cable Compact and lightweight laptop accessory BYOD Workstation |
| Shipping weight | 0.20 kg |
| Package size | 168 × 137 × 43 mm |
Questions about this item
Which ports should I use for video — HDMI or VGA?
Connect one external display using either the HDMI or VGA port; both cannot run simultaneously.
What does the 5 Gbps USB 3.0 rating mean for file transfers?
The USB 3.0 host port and downstream port share a 5 Gbps SuperSpeed link, so real-world throughput will be lower than the theoretical maximum.
Does the built-in USB 3.0 cable work with USB 2.0 ports?
Yes, the captive USB 3.0 Type-A plug is backward compatible with USB 2.0 hosts, but the dock will then operate at USB 2.0 speeds.
