Black rectangular USB 3.0 docking station with HDMI, DVI and VGA video outputs plus Ethernet and audio jacks

STARTECH

STARTECH USB3SDOCKHDV USB 3.0 docking station, dual display HDMI DVI VGA

SKU CH-3RNN-9JSXA MPN USB3SDOCKHDV

Adds dual HDMI/DVI or HDMI/VGA video, Gigabit Ethernet, audio and three USB 3.0 ports to a laptop through one USB 3.0 connection

  • ColorBlack
  • CompatibilityWindows 8 (32/64-bit), 7 (32/64), Vista (32/64), XP SP3 (32/
  • Ports Spec1 x DVI-D (25 pin) Female 1 x HDMI (19 pin) Female 1 x RJ-45
  • Dimension12.00" x 7.00" x 1.70" (L x W x H)
  • Weight0.64 lb.
  • FeaturesAdd HDMI and DVI-D or HDMI and VGA dual video as well as aud

Color Black

Option HDMI / DVI / VGA - Dual Monitor

  • Dual monitor setup via HDMI plus DVI or VGA
  • TAA compliant for government procurement requirements
  • Gigabit Ethernet port provides wired network access
  • Three USB 3.0 ports expand peripheral connectivity
  • Works with USB 3.0 laptops across Windows and macOS

Universal USB 3.0 Docking Station

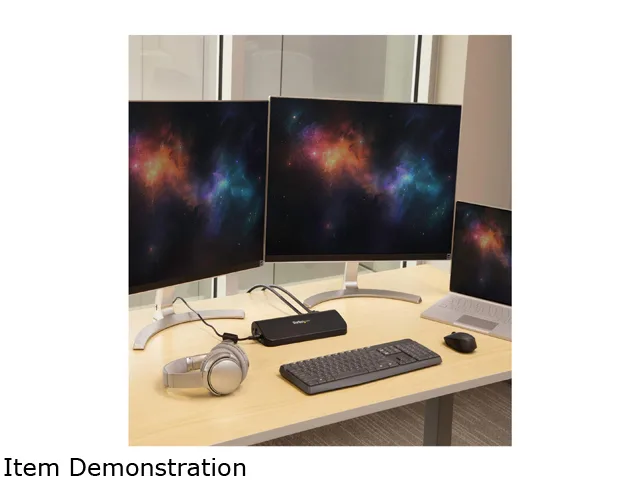

The STARTECH USB3SDOCKHDV adds dual external displays, Gigabit Ethernet, three USB 3.0 ports and stereo audio to a laptop through a single USB 3.0 connection. It targets professionals who need a permanent desk setup with two monitors and wired networking.

USB 3.0 bandwidth limits simultaneous

The host link tops out at 5 Gbps, so driving two external panels plus Ethernet and USB peripherals shares that throughput. Display combinations are restricted to HDMI plus DVI-D or HDMI plus VGA; three digital video streams are not supported.

Compact black chassis with fixed cable

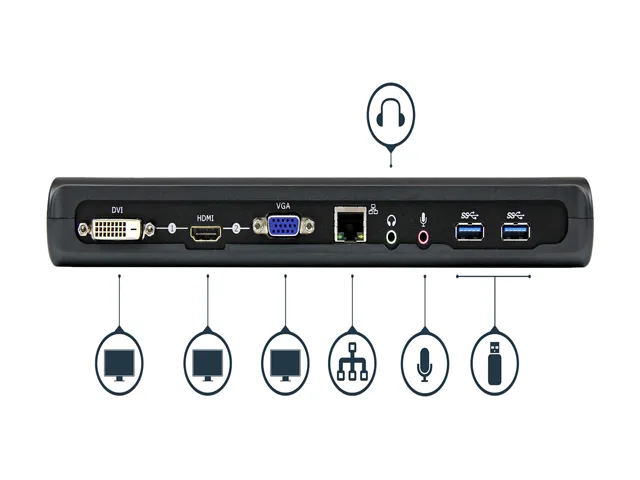

The unit measures 12.00 x 7.00 x 1.70 inches and weighs .64 lb, sitting unobtrusively on a desk. A tethered USB 3.0 Type-B cable connects to the host, while rear-mounted HDMI, DVI-D, VGA, RJ-45, three Type-A ports and 3.5 mm jacks keep cables routed away from the workspace.

Highlights

  • Dual monitor setup via HDMI plus DVI or VGA
  • TAA compliant for government procurement requirements
  • Gigabit Ethernet port provides wired network access
  • Three USB 3.0 ports expand peripheral connectivity
  • Works with USB 3.0 laptops across Windows and macOS

Specifications

BrandStarTech.com
ModelUSB3SDOCKHDV
ColorBlack
CompatibilityWindows 8 (32/64-bit), 7 (32/64), Vista (32/64), XP SP3 (32/64), Windows Server 2008 R2, 2003 (32/64)
Ports Spec1 x DVI-D (25 pin) Female
1 x HDMI (19 pin) Female
1 x RJ-45 Female
1 x USB 3.0 B (9 pin; SuperSpeed) Female
1 x VGA (15 pin; High Density D-Sub) Female
2 x 3.5 mm Mini-Jack (3 Position) Female
3 x USB 3.0 A (9 pin; SuperSpeed) Female
Dimension12.00" x 7.00" x 1.70" (L x W x H)
Weight0.64 lb.
FeaturesAdd HDMI and DVI-D or HDMI and VGA dual video as well as audio and Gigabit Ethernet connections to your laptop through USB 3.0 - Compatible with USB 3.0 equipped laptops such as HP ProBook 450 - Comparable to ASUS USB3.0_HZ-1 - USB 3.0 Laptop Docking Station / Universal Docking Station / USB Docking Station / Notebook Dock / Laptop Dock - Dual monitor w/ HDMI + DVI-D or HDMI + VGA combinations - Supports resolutions up to 2048x1156 - 3x USB 3.0 Ports - BYOD Workstation / Hot Desking Workspace
Shipping weight0.86 kg
Package size300 × 196 × 66 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I connect my monitors using HDMI plus DVI or HDMI plus VGA?

Both combinations work; pick the pair that matches your monitor inputs — HDMI plus DVI-D or HDMI plus VGA are the supported dual-display options.

What does the 5 Gbps USB 3.0 rating mean for everyday file transfers?

The dock's USB 3.0 link tops out at 5 Gbps, so large file copies will be limited by that bus speed rather than the drive itself.

Will the RJ-45 port deliver full gigabit speeds on my network?

The built-in RJ-45 port supports 10 / 100 / 1000 Mbps, so it will negotiate gigabit Ethernet when your switch and cabling allow it.
