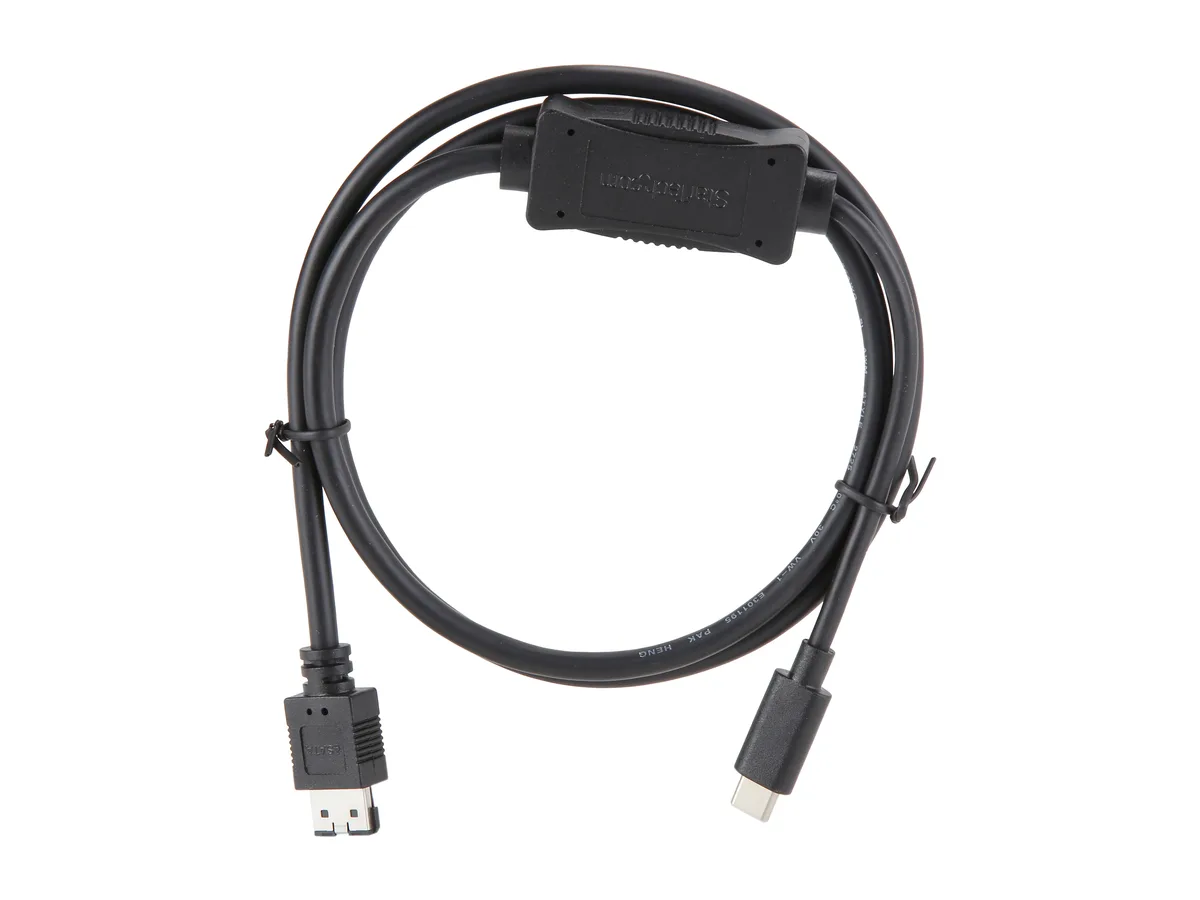

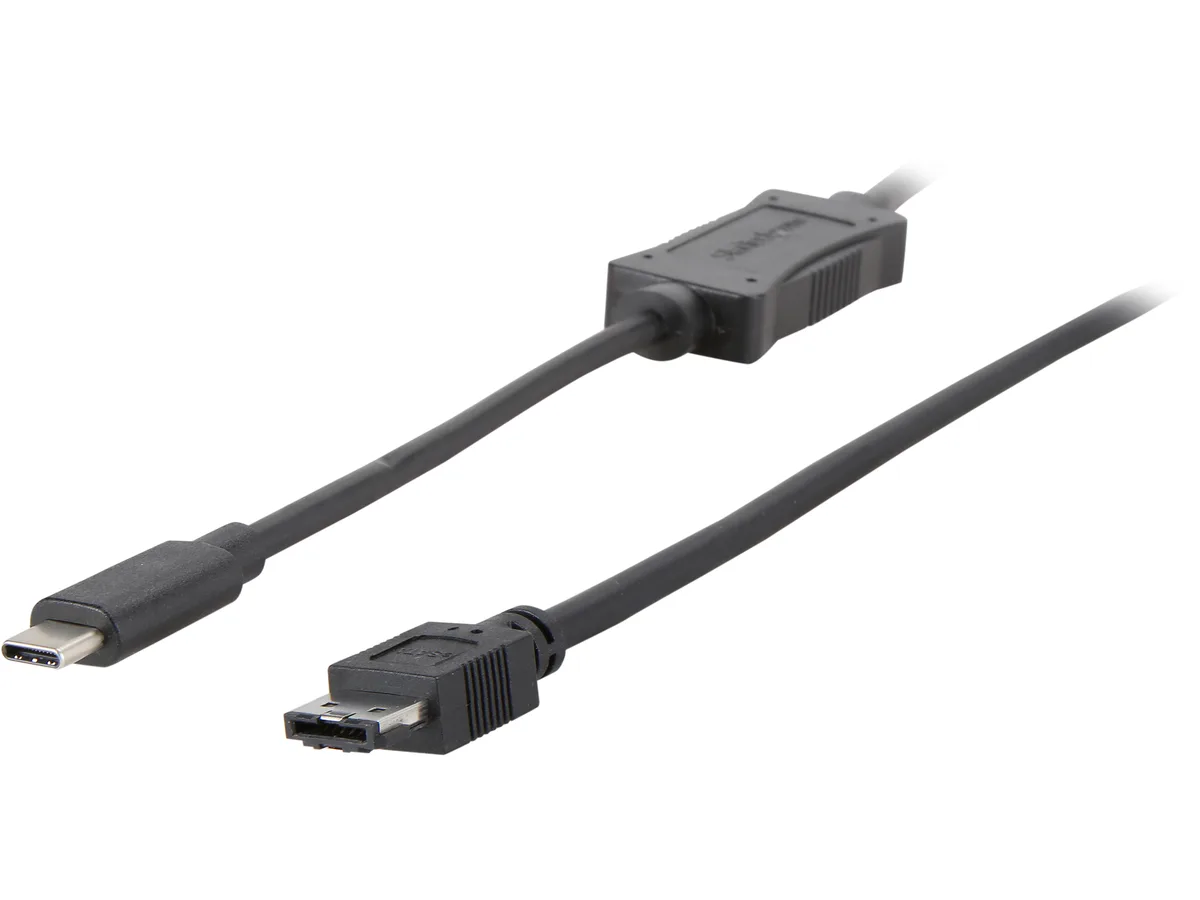

Black USB-C to eSATA cable with male connectors on both ends

STARTECH

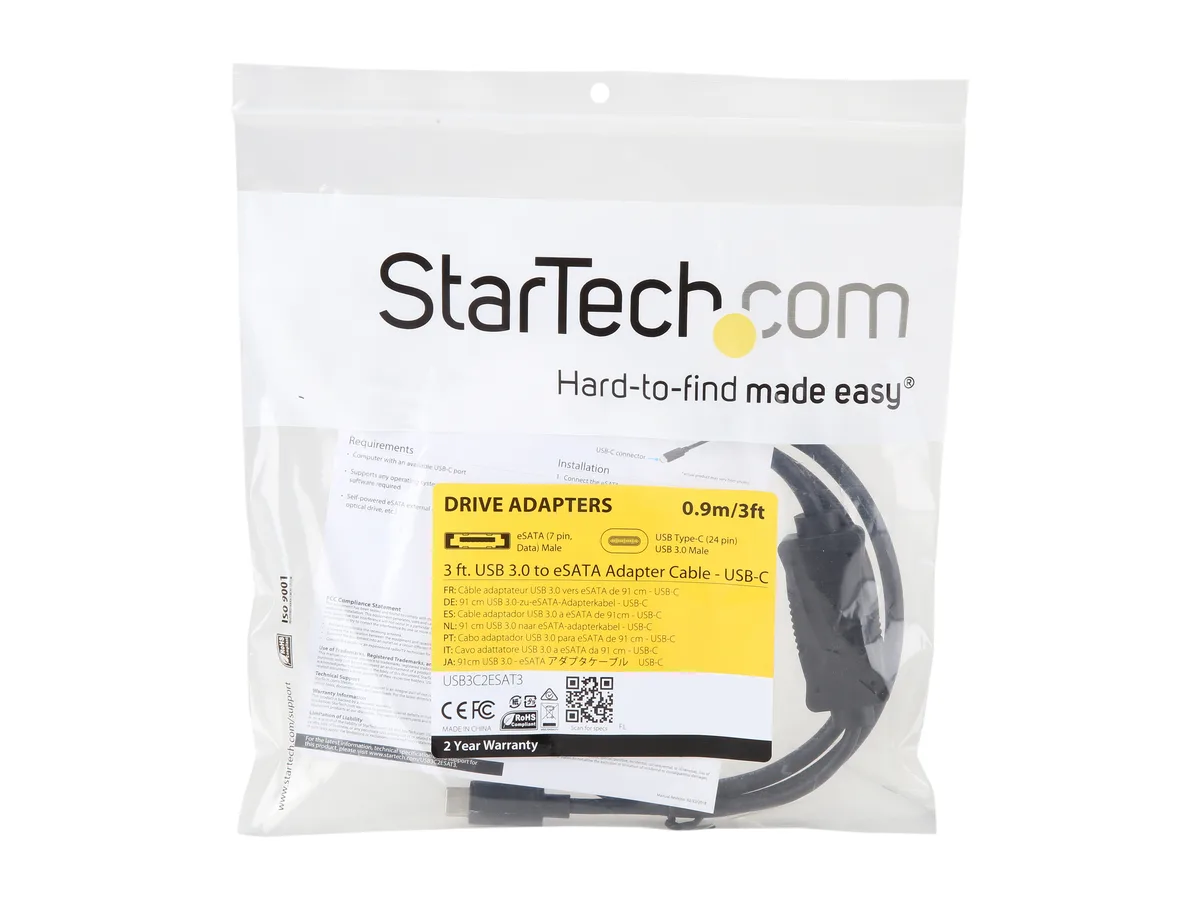

STARTECH USB3C2ESAT3 USB-C to eSATA cable

SKU CH-1F3P-6M0P7 MPN USB3C2ESAT3

Connect eSATA storage drives to a USB-C computer for data recovery, diagnostics or backups at 5Gbps

  • TypeUSB-C to eSATA Cable
  • ColorBlack
  • Connector Number2
  • Connector DetailDrive Connectors: 1 x eSATA (7 pin, Data) Male Host Connecto
  • Terminal GenderMale to Male
  • SpecificationsBus Type: USB 3.0 Chipset ID: ASMedia - ASM1153E Compatible
  • Connect eSATA drives to USB-C laptops for data recovery
  • Plug-and-play setup saves time in lab or field use
  • ASMedia ASM1153E chipset enables 5 Gbps USB 3.0 speeds
  • Supports SATA III drives up to 10 TB capacity
  • 1 metre cable with 24-pin USB-C and 7-pin eSATA connectors

USB-C to eSATA Cable for External Drives

This 3 ft cable connects a single eSATA storage device to a USB-C or Thunderbolt 3 computer. It supports SATA HDDs, SSDs and optical drives up to a tested 10 TB capacity. The ASMedia ASM1153E chipset provides USB 3.0 data rates with plug-and-play operation.

Suitable for technicians

It suits labs, desks or field work where data recovery, drive imaging, diagnostics or backup of eSATA drives is required. It is not for users whose external storage uses USB or any interface other than eSATA, nor for setups that require more than one drive on the same cable.

USB 3.0 host interface with ASMedia ASM1153E chipset

The cable presents a USB 3.0 male connector to the host and a 7-pin eSATA male connector to the drive. The ASM1153E bridge enables 4Kn sector support, ATAPI for optical drives and hot-swap capability for quick drive changes.

Highlights

  • Connect eSATA drives to USB-C laptops for data recovery
  • Plug-and-play setup saves time in lab or field use
  • ASMedia ASM1153E chipset enables 5 Gbps USB 3.0 speeds
  • Supports SATA III drives up to 10 TB capacity
  • 1 metre cable with 24-pin USB-C and 7-pin eSATA connectors

Specifications

BrandStarTech.com
ModelUSB3C2ESAT3
TypeUSB-C to eSATA Cable
ColorBlack
Connector Number2
Connector DetailDrive Connectors: 1 x eSATA (7 pin, Data) Male
Host Connectors: 1 x USB Type-C (24 pin) USB 3.0 Male
Terminal GenderMale to Male
SpecificationsBus Type: USB 3.0
Chipset ID: ASMedia - ASM1153E
Compatible Drive Types: SATA
Number of Drives: 1
4Kn Support Yes
ATAPI Support Yes
Hot Swap Capability Yes
Max Drive Capacity: Currently tested with up to 10TB drives
Maximum Data Transfer Rate: 5Gbps
Port Multiplier No
S.M.A.R.T. Support: Yes
TRIM Support: No
Type and Rate USB 3.0 - 5 Gbit/s, eSATA (6 Gbps)
UASP Support: No
OS Compatibility: OS independent; No software or drivers required
Power Source: USB-Powered
FeaturesQuickly access eSATA external storage devices with an SSD, HDD or ODD drive from a USB-C computer
Perform drive management tasks
Set up in a lab, at a desk or out in the field
Save setup time with plug-and-play installation
Compatible with SATA I, II and III which supports data transfer rates up to 6Gbps
Backward compatible with USB 2.0
Shipping weight0.08 kg
Package size226 × 191 × 25 mm

Questions about this item

What connectors and cable length come with the STARTECH USB3C2ESAT3?

The cable has a USB Type-C male connector with 24 pins on the host side and an eSATA 7-pin male connector on the drive side. It is 3 ft (1 m) long.

Which drive types and maximum capacity does this cable support?

It works with SATA HDDs, SSDs and optical drives, and has been tested with drives up to 10 TB. 4Kn sector drives and ATAPI devices are also supported.

What does the 5 Gbps USB 3.0 rating mean for real-world eSATA drive performance?

The ASMedia ASM1153E chipset bridges USB 3.0 to SATA III, so the cable can deliver up to 5 Gbps bandwidth to a connected eSATA drive, limited by the drive’s own speed.
