Black and grey USB-C cable with side screw-lock connectors

STARTECH

STARTECH USB31CCSLKV1M USB cable 1m 10Gbps 100W screw lock

SKU CH-P7AA-ZGQBQ MPN USB31CCSLKV1M

A 1 m USB‑C to USB‑C cable with screw‑lock connectors, 10 Gbps data, 100 W power delivery and Thunderbolt 3 compatibility

  • TypeUSB
  • Connector TypeUSB C to USB C
  • ColorBlack & Grey
  • Cable Length3 ft.
  • Thunderbolt 3Yes
  • Connector Number2
  • 10 Gbps data transfer with USB 3.2 Gen 2 speed
  • 100 W Power Delivery 3.0 charging for laptops
  • DisplayPort 1.4 Alt Mode supports 8K 30 Hz video
  • Side screw-lock connectors prevent accidental disconnection
  • Durable TPE jacket rated for 10000 insertions and 4000 bends

USB-C cable with side screw locking

The STARTECH USB31CCSLKV1M is a USB 3.1 Gen 2 Type-C to Type-C cable rated for 10 Gbps data and 100 W power delivery. It suits users who need a secure connection on docks or enclosures that feature side-locking USB-C ports. The 1 m length keeps signal integrity while the screw lock prevents accidental disconnection.

Screw lock and DisplayPort Alt Mode

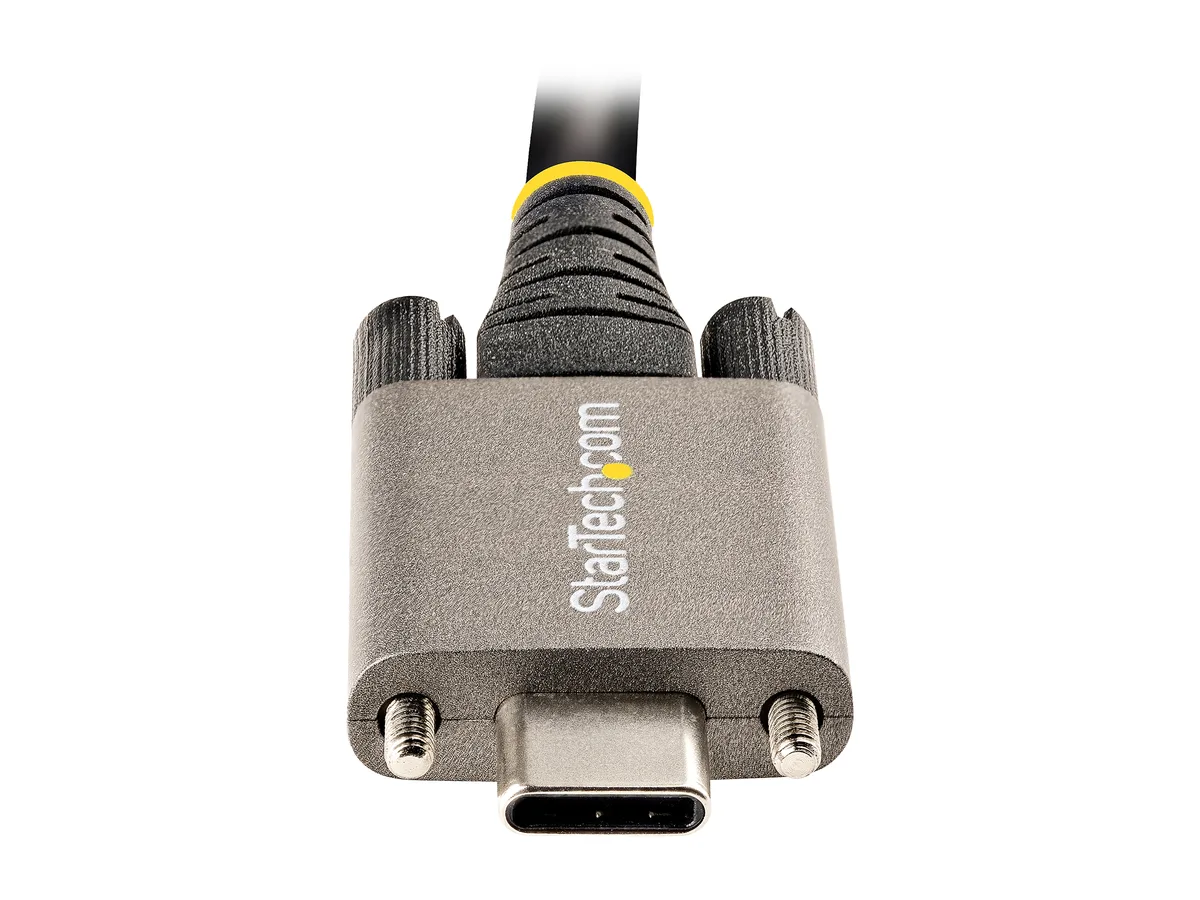

Dual M2 screws measuring 1.2 in provide mechanical retention on compatible side-locking ports such as the StarTech.com DK31C3HDPD. The screws are removable for use with standard USB-C ports on external drive enclosures. DisplayPort 1.4 Alt Mode supports video output up to 8K at 30 Hz through the same cable.

Durable TPE jacket with foil and braid shield

The cable jacket uses thermoplastic elastomer rated for over 10000 insertions and 4000 bends. A 32 AWG conductor set is wrapped in aluminium-Mylar foil with an 85 percent braid shield to suppress EMI. Nickel-plated 24-pin connectors resist corrosion and maintain low contact resistance over repeated mating cycles.

Highlights

  • 10 Gbps data transfer with USB 3.2 Gen 2 speed
  • 100 W Power Delivery 3.0 charging for laptops
  • DisplayPort 1.4 Alt Mode supports 8K 30 Hz video
  • Side screw-lock connectors prevent accidental disconnection
  • Durable TPE jacket rated for 10000 insertions and 4000 bends

Specifications

BrandStarTech.com
ModelUSB31CCSLKV1M
TypeUSB
Connector TypeUSB C to USB C
ColorBlack & Grey
Cable Length3 ft.
Thunderbolt 3Yes
Connector Number2
Terminal GenderMale to Male
SpecificationsConnectors:
USB Type-C (24 pin) USB 3.1 (10Gbps)
USB Type-C (24 pin) USB 3.1 (10Gbps)
Connector Plating: Nickel
Cable Jacket Material: TPE - Thermoplastic Elastomers
Cable Shield Material: Aluminum-Mylar Foil with Braid
Video Revision: DisplayPort 1.4
Maximum Data Transfer Rate: 10Gbps
Maximum Cable Length: 3.3 ft (1 m)
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s
Shipping weight0.09 kg
Package size221 × 127 × 15 mm

Questions about this item

How many insertions and bends is the cable rated for before the connectors or jacket may wear out?

The cable is tested to withstand over 10000 insertions and more than 4000 bends, indicating a long service life under normal connect and disconnect cycles.

At 10Gbps over a 1m length, what is the first signal integrity limit reached during sustained maximum throughput?

The 10Gbps USB 3.1 Gen 2 rating is specified for the full 1m length with aluminum Mylar foil and 85 percent braid shielding, so the cable meets the standard signal integrity requirements at its rated speed and distance.

Does the cable generate noticeable heat or require extra cooling when delivering 100W continuously all day?

The 32 AWG conductors and 5A current rating are designed for up to 100W Power Delivery 3.0; the TPE jacket dissipates heat normally and no active cooling is needed for continuous operation at the rated load.
