White USB 3.0 Gigabit Ethernet adapter with RJ45 and USB pass-through port

STARTECH

STARTECH USB31000SPTW USB 3.0 Gigabit Ethernet Adapter network card with USB pass-through White

SKU CH-PR0W-WR01V MPN USB31000SPTW

Adds a Gigabit Ethernet port plus a USB 3.0 pass-through port through a single USB 3.0 connection

  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab
  • Speed10/100/1000Mbps
  • Connectors1 x RJ45
  • InterfaceUSB 3.0
  • FeaturesChipset ID: ASIX - AX88179 VIA - VL811 USB Pass-Through: Yes
  • DimensionsHeight: 0.7" Width: 1.4" Depth: 3.2"

Option White

  • Adds Gigabit Ethernet through USB 3.0 connection
  • Keeps a USB 3.0 port free with integrated pass-through
  • Supports 10/100/1000 Mbps network speeds
  • Auto MDIX corrects cable crossover automatically

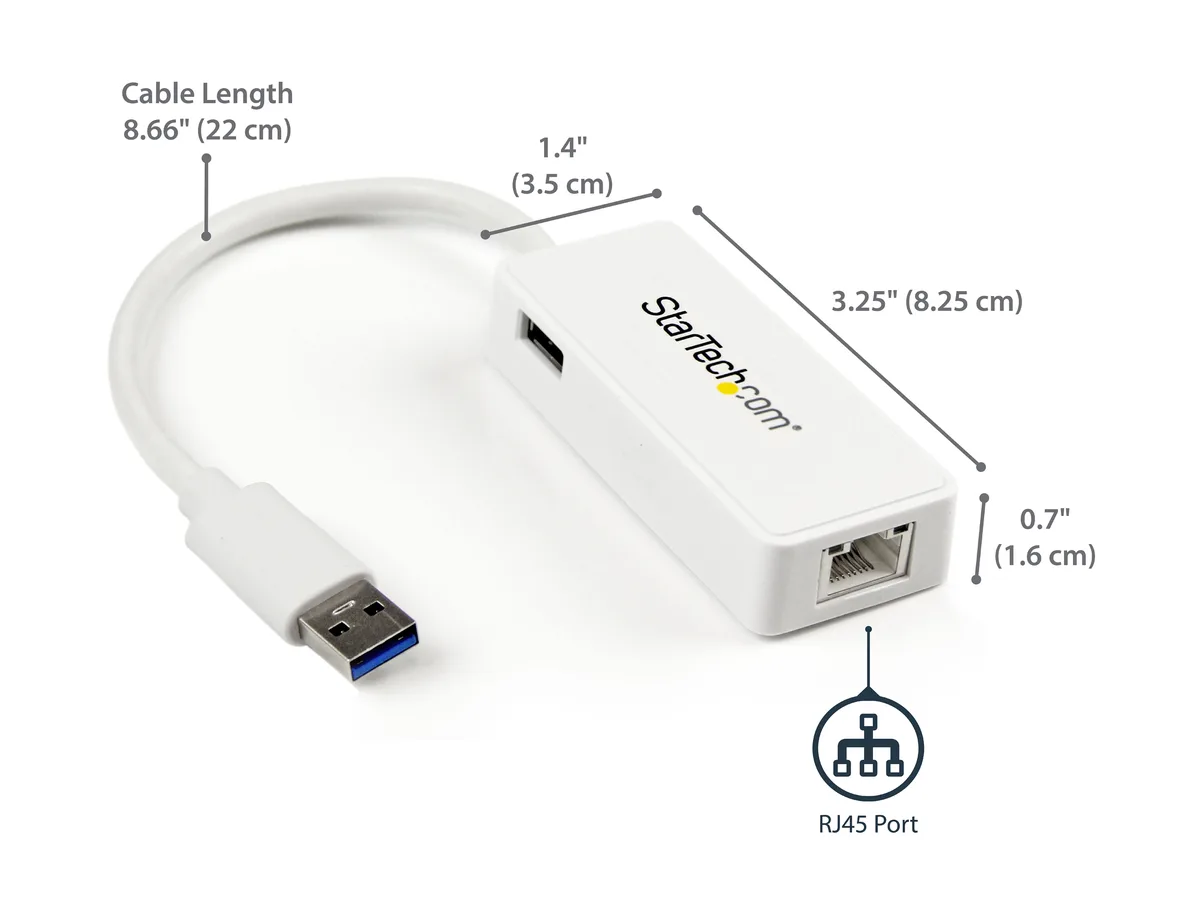

  • Compact design measures .7 x 1.4 x 3.2 inches

Gigabit Ethernet via USB 3.0

This compact adapter adds a Gigabit Ethernet port to any computer through a single USB 3.0 connection. It operates at 10, 100 or 1000 Mbps and supports full duplex communication. An integrated USB 3.0 pass-through port keeps the host port available for other peripherals. The white enclosure measures .7 by 1.4 by 3.2 inches and weighs 1.80 oz.

Mobile users needing wired networking

Suits laptop or tablet owners who require a reliable wired link without sacrificing their only USB 3.0 socket. The pass-through port allows a flash drive, mouse or charging cable to stay connected. Not intended for desktop builders who need a dedicated PCI Express network card or for users whose devices lack a USB 3.0 or 2.0 port entirely.

AX88179 and VL811 chipset combination

The ASIX AX88179 controller handles the Gigabit Ethernet function while the VIA VL811 hub manages the USB 3.0 pass-through. Together they deliver 1000 Mbps throughput with checksum offload, large send offload, 4K jumbo frames and IEEE 802.1Q VLAN tagging. Auto MDIX corrects cable polarity automatically. A driver CD and manual are included.

Highlights

  • Adds Gigabit Ethernet through USB 3.0 connection
  • Keeps a USB 3.0 port free with integrated pass-through
  • Supports 10/100/1000 Mbps network speeds
  • Auto MDIX corrects cable crossover automatically
  • Compact design measures .7 x 1.4 x 3.2 inches

Specifications

BrandStarTech.com
ModelUSB31000SPTW
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab
Speed10/100/1000Mbps
Connectors1 x RJ45
InterfaceUSB 3.0
FeaturesChipset ID:
ASIX - AX88179
VIA - VL811
USB Pass-Through: Yes
Connector Type(s):
1 - RJ-45 Female
1 - USB 3.0 A (9 pin; SuperSpeed) Female
1 - USB 3.0 A (9 pin; SuperSpeed) Male
Full Duplex Support: Yes
Max Distance: 100 m / 330 ft
Maximum Data Transfer Rate:
5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
OS Compatibility:
Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server 2008 R2, 2003(32/64)
Mac OS 10.6 - 10.8
Linux Kernel 2.6.14 - 3.5.0
Cable Length: 6.1 in [155 mm]
Color: White
Enclosure Type: Plastic
Power Adapter Included: USB-Powered
Crossover Detection &
DimensionsHeight:
0.7"
Width:
1.4"
Depth:
3.2"
WeightWeight (Approximate):
1.80 oz

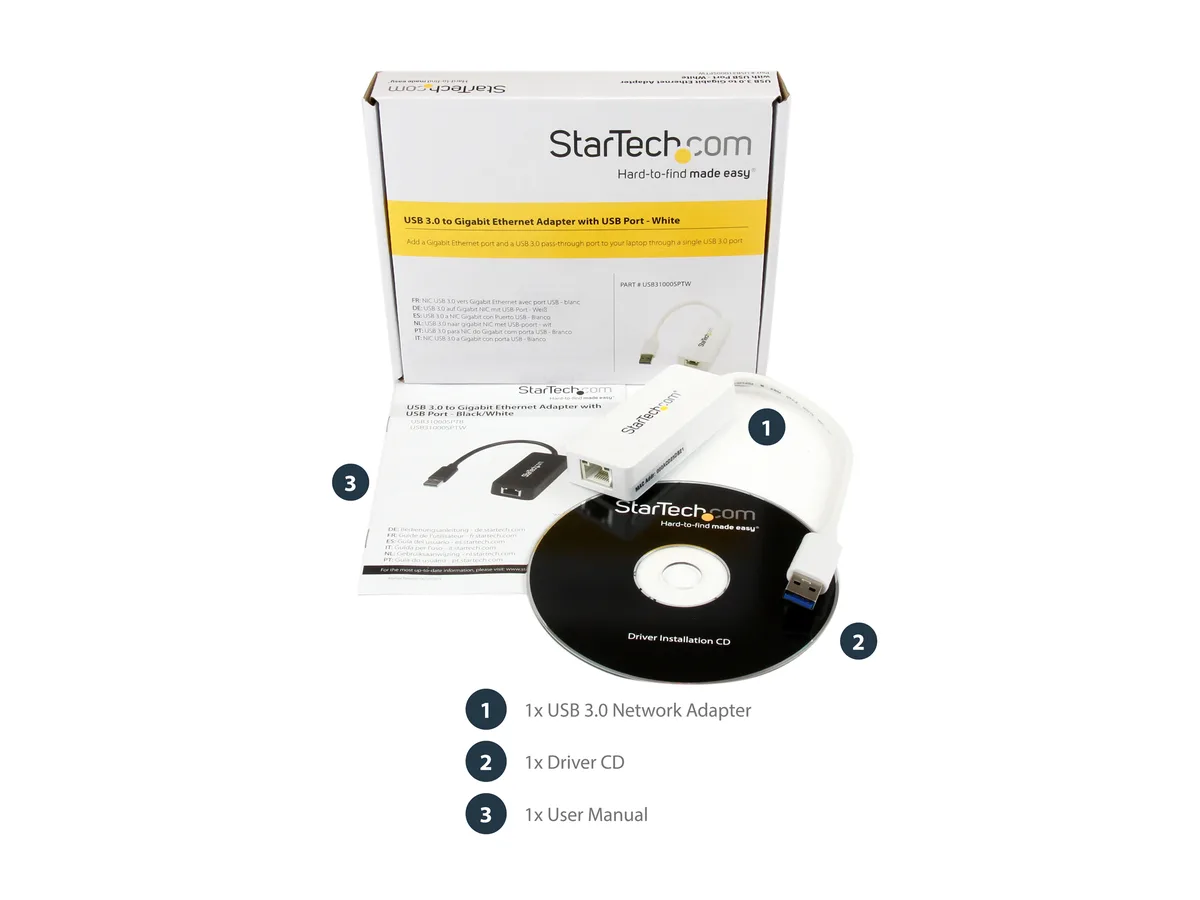

Package ContentsUSB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - White
1 x Driver CD
1 x Instruction Manual
Shipping weight0.13 kg
Package size170 × 140 × 30 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What Ethernet speeds does the USB 3.0 interface support in practice?

The adapter negotiates 10, 100 or 1000 Mbps over the RJ45 port; the USB 3.0 link provides enough bandwidth for full gigabit throughput.

What physical space and connectors are required to fit the adapter?

It measures .7 by 1.4 by 3.2 inches and weighs 1.80 oz; you need a free USB 3.0 Type-A socket and room for the RJ45 jack and the pass-through USB 3.0 Type-A port.

How is the adapter installed and what step do users often miss?

Plug the male USB 3.0 connector into the host, connect the network cable to the RJ45 port, then run the driver installer from the included CD or download the latest driver before expecting the gigabit link to appear.
