STARTECH
STARTECH SV565FXHD4KU 4K 60Hz HDMI USB KVM Switch 300m fiber
Extends 4K 60 Hz HDMI and USB HID control over multimode fiber up to 300 m with included SFP+ modules
- TypeHDMI, USB
- Video Resolution3840 x 2160
- Temperature0ºC to 50ºC(32ºF to 122ºF)
- Humidity0% to 80%,Non-Condensing
- Audio FeaturesHDMI - 7.1 Channel Audio
- Power FeaturesPower Source: AC Adapter Included Input Voltage: 100 - 240 A
- 4K 60 Hz video up to 3840 x 2160 over fiber for sharp detail at distance
- Extends HDMI and USB control up to 300 m on multimode fiber for remote access
- HDMI 2.0 with 7.1 channel audio delivers full surround sound alongside video
- Plug-and-play transmitter and receiver kit with pre-installed 10G SFP+ modules requires no software setup
- Compact 1.10 x 3.90 x 3.00 inch units operate from 0 °C to 50 °C for reliable deployment
Product Identity

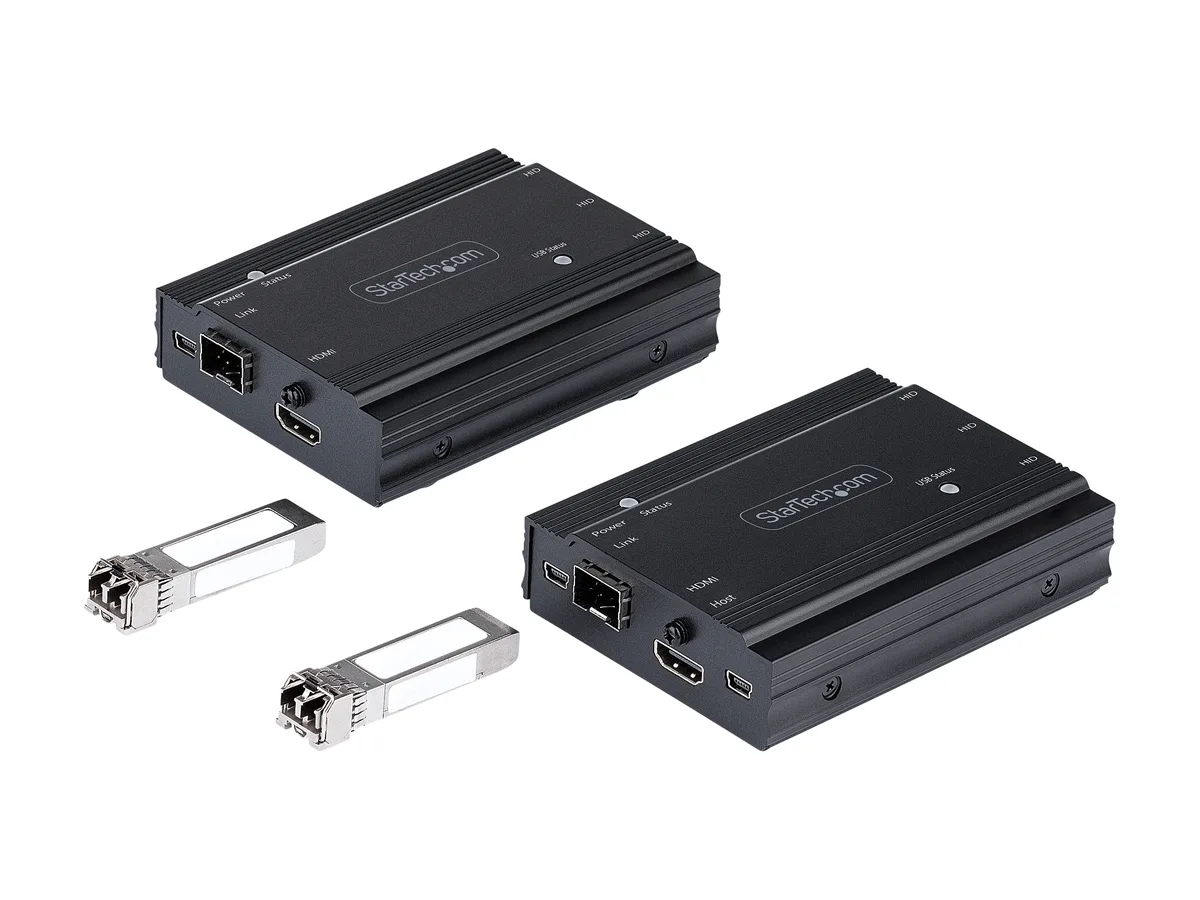

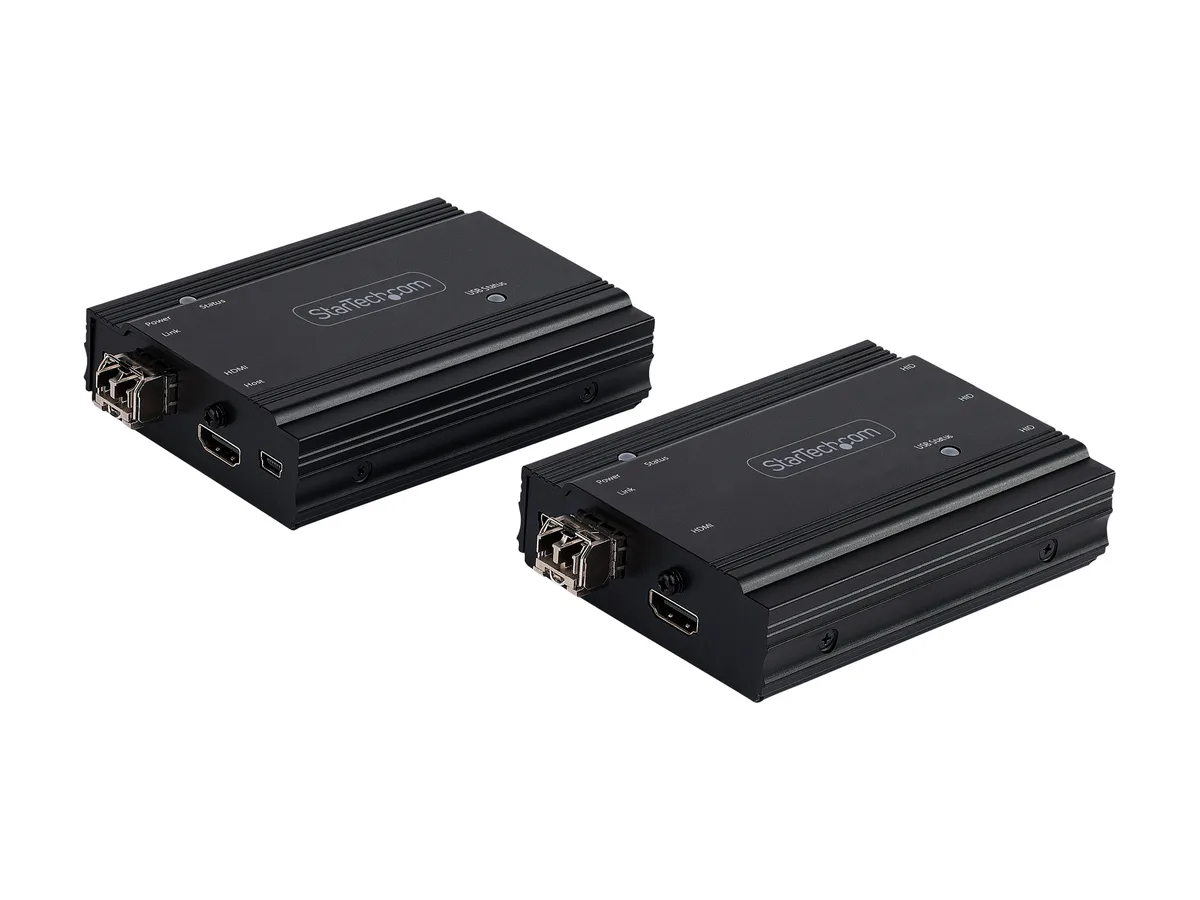

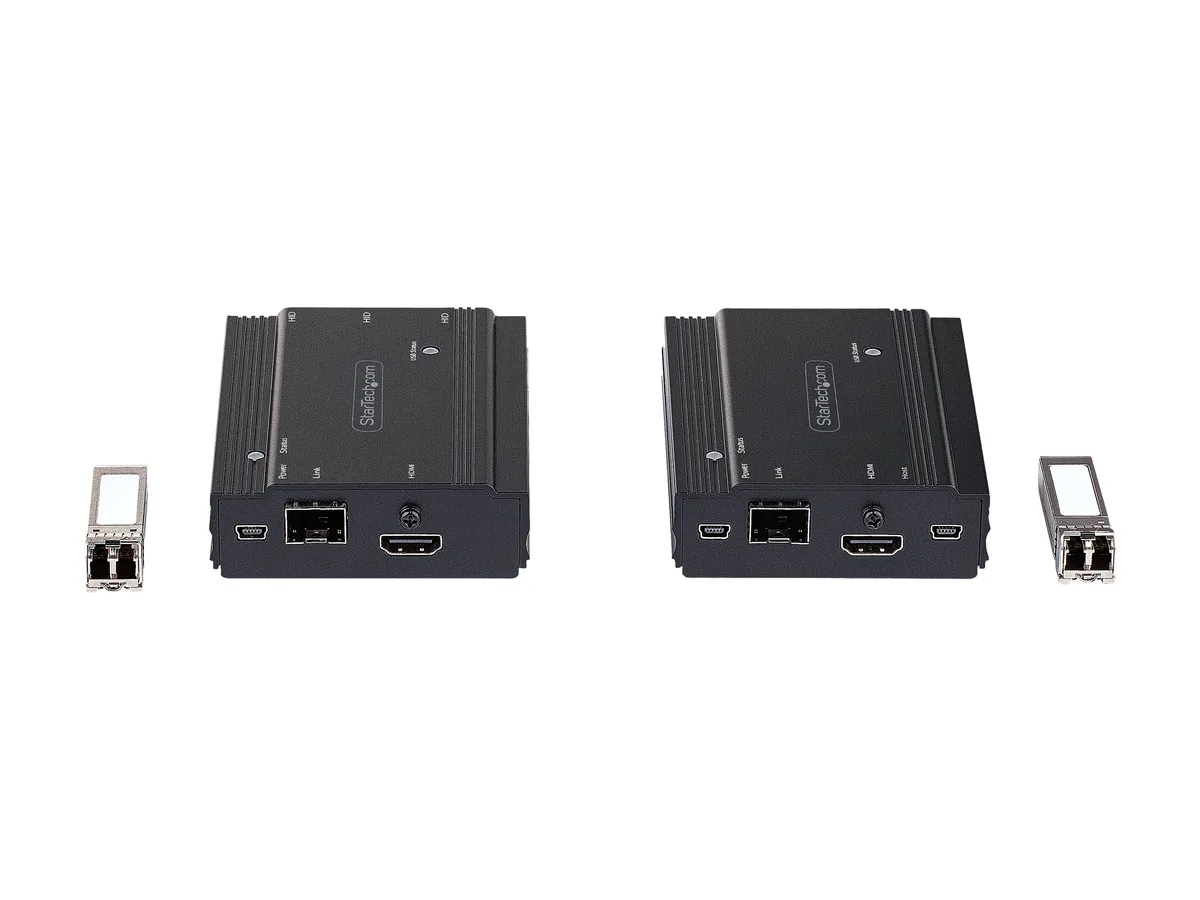

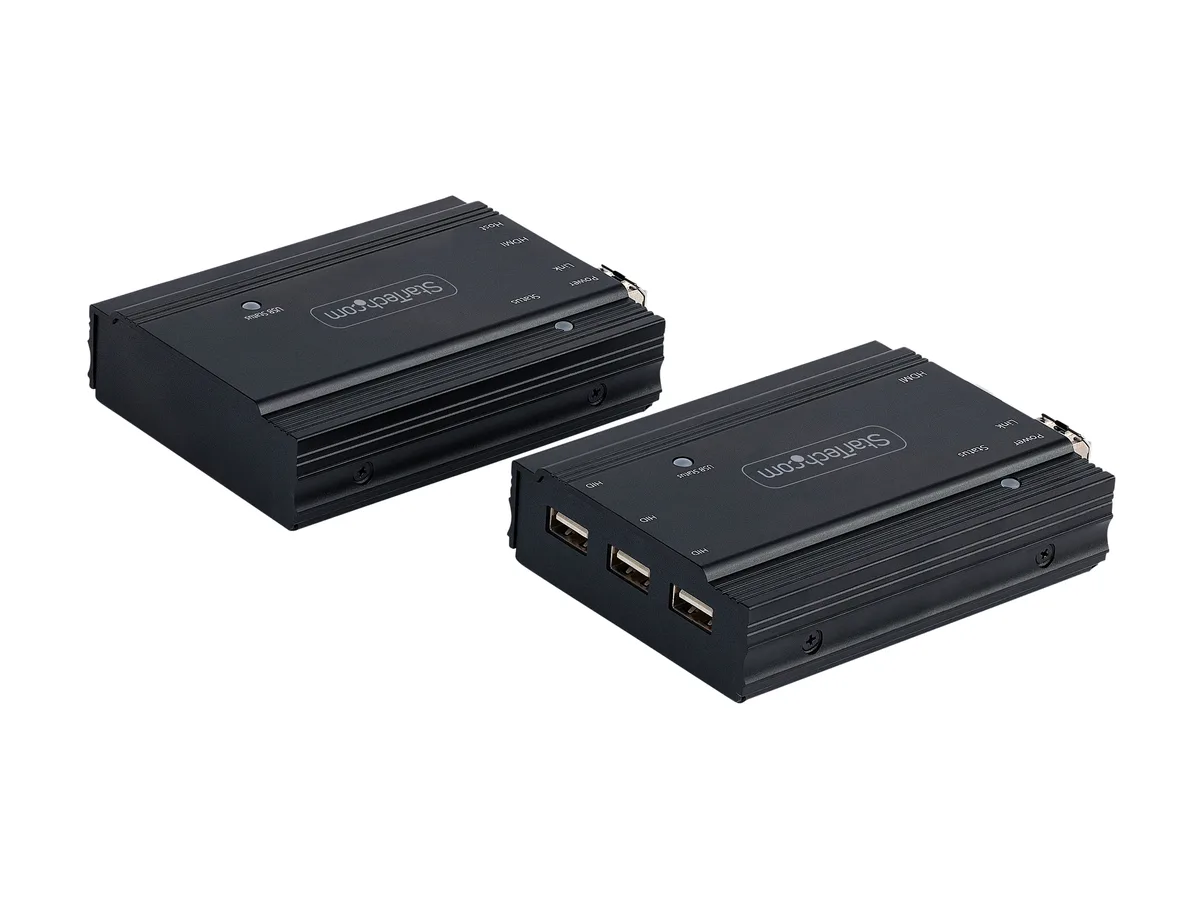

The STARTECH SV565FXHD4KU is a KVM extender kit that transmits HDMI video and USB HID signals over LC duplex fiber. It includes a transmitter for the host computer and a receiver for the remote console, plus two pre-installed 10G multimode SFP+ modules. The system operates without proprietary software or network configuration and supports HDCP 2.2 with EDID passthrough.
Distance & Resolution
The kit extends 4K 60Hz 4:4:4 video up to 300 metres over OM3 multimode fiber and up to 1640 feet over single-mode fiber. Supported resolutions include 3840 x 2160 at 60Hz and 30Hz as well as 1080p. Digital 7.1 channel audio is carried over the HDMI link and the SFP+ cages accept any MSA-compliant 10G module for flexible media selection.
Ideal & Unsuitable Users
This extender suits integrators who need to place a console up to 300 metres from a server or workstation using standard fiber cabling. It is not for users who require KVM switching between multiple computers, on-screen display menus, hot-key port selection, or USB 2.0 high-speed peripheral support beyond HID devices.
Highlights
- 4K 60 Hz video up to 3840 x 2160 over fiber for sharp detail at distance
- Extends HDMI and USB control up to 300 m on multimode fiber for remote access
- HDMI 2.0 with 7.1 channel audio delivers full surround sound alongside video
- Plug-and-play transmitter and receiver kit with pre-installed 10G SFP+ modules requires no software setup
- Compact 1.10 x 3.90 x 3.00 inch units operate from 0 °C to 50 °C for reliable deployment
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SV565FXHD4KU |
| Type | HDMI, USB |
| Video Resolution | 3840 x 2160 |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Audio Features | HDMI - 7.1 Channel Audio |
| Power Features | Power Source: AC Adapter Included Input Voltage: 100 - 240 AC Input Current: 0.3A Output Voltage: 5 DC Output Current: 2A Power Consumption (In Watts): 10W |
| USB Features | 3 - Console Interface(s): USB Type-A (4 pin; HID Port) USB 1.1 |
| Features | Video Revision: HDMI 2.0 On-Screen Display: No Hot-Key Selection: No Max Transfer Distance: 300 m (Multi-Mode OM3 Fiber) Supported Resolutions: 4K @ 60Hz 4:4:4 4K @ 30Hz 4:4:4 1080p Wide Screen Supported: Yes Audio Specifications: HDMI - 7.1 Channel Audio MTBF: 1,000,000 Hours |
| Dimensions | 1.10" x 3.90" x 3.00" |
| Weight | 0.99 lb. |
| Package Contents | 1 - Included in Package: Transmitter for Host Computer Receiver for Remote Console Quick-Start Guide 2 - Included in Package: 10G Multimode 10G SFP+ Module (Pre-Installed) Universal Power Adapter 3 - Included in Package: USB-A to Mini USB-B Cables |
| Shipping weight | 0.14 kg |
| Package size | 305 × 175 × 74 mm |
Questions about this item
What does 4K 60 Hz 4:4:4 look like on my monitor?
The extender passes a 3840 x 2160 signal at 60 Hz with full 4:4:4 chroma so text and fine graphics stay sharp without colour compression.
What does the HDMI 2.0 interface limit in practice?
HDMI 2.0 carries 4K at 60 Hz 4:4:4 and 7.1 audio but does not support higher refresh rates or 8K resolutions.
How much space do the transmitter and receiver need on a desk or rack?

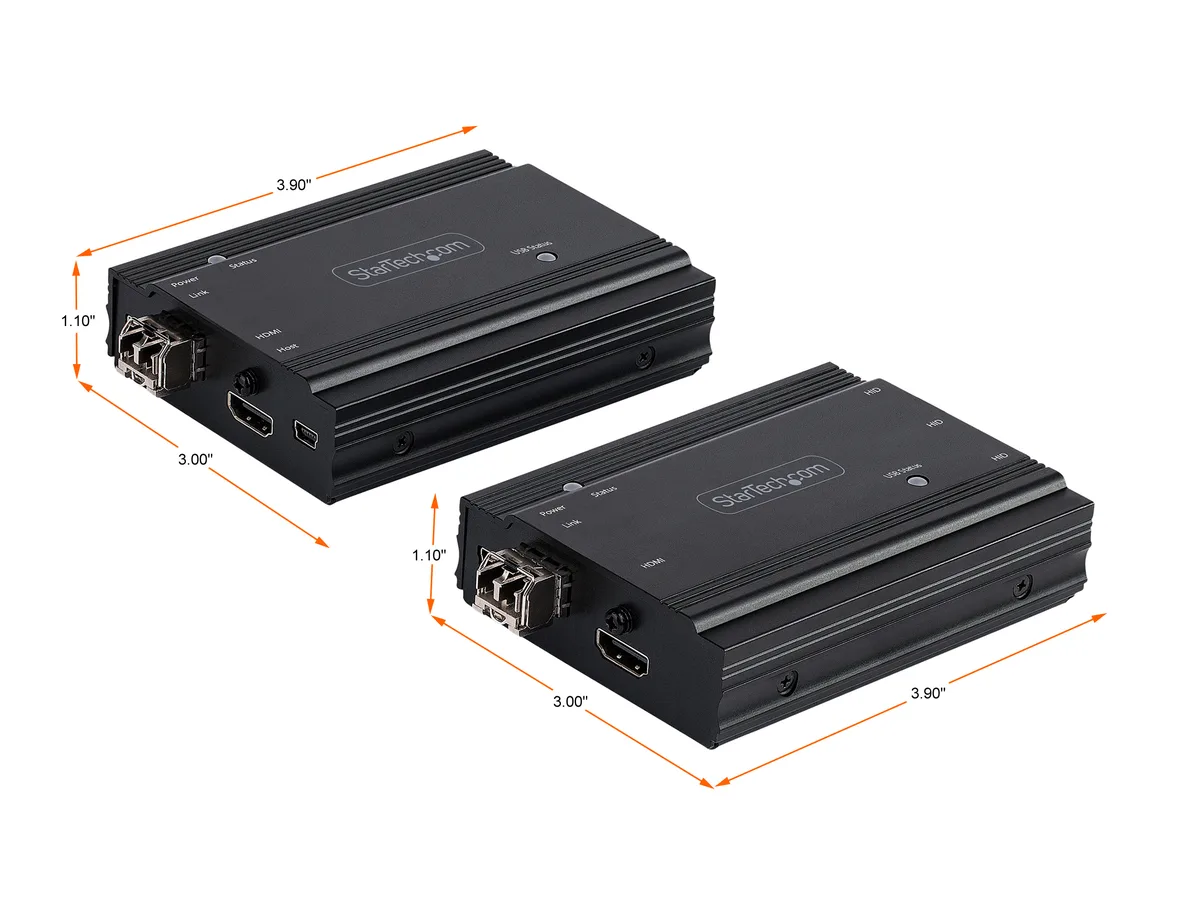

Each unit measures 1.10 x 3.90 x 3.00 inches and weighs 0.99 lb so they fit on a shelf or in a shallow rack tray.
