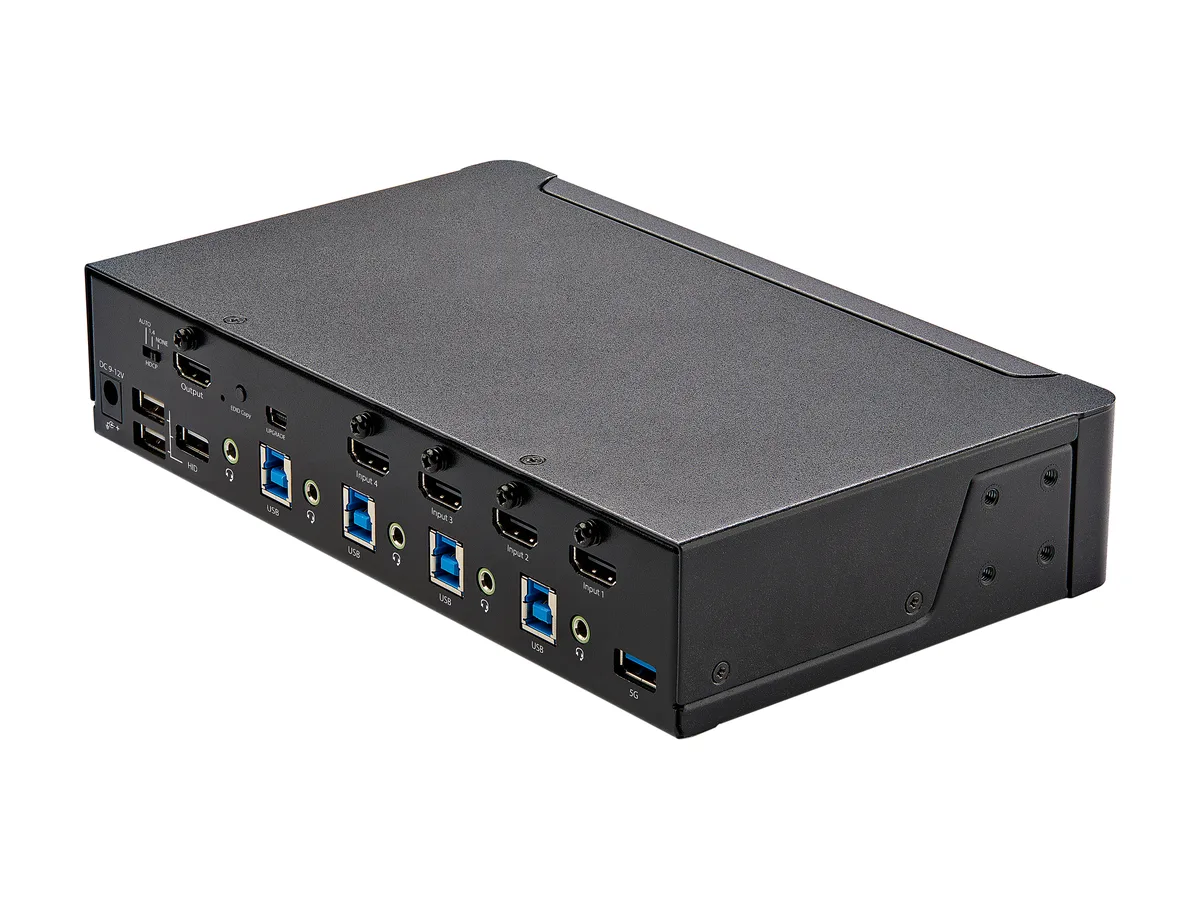

Compact black metal box with four HDMI ports and multiple USB connections on front and back

STARTECH

STARTECH SV431HU34K6 4-port HDMI KVM switch 4K 60Hz

SKU CH-K3CP-KPTC3 MPN SV431HU34K6

Controls four computers from one 4K 60 Hz monitor with USB 3.0 hub and audio

  • TypeHDMI, USB
  • Monitor Connections1 Port
  • Video Resolution3840 x 2160
  • PC SelectionPush Buttons/Hot Keys
  • AutoScan Interval3, 8, 15 & 30 seconds
  • Temperature0ºC to 50ºC(32ºF to 122ºF)
  • Control four computers from one console using hotkeys or push buttons
  • Drive a single monitor at 3840 x 2160 60 Hz with HDR10 via HDMI 2.0
  • Connect high-speed peripherals through two USB 3.1 Gen 1 ports at 5 Gbps
  • Use dedicated USB 1.1 HID ports for keyboard and mouse on each system
  • Operate reliably with 143 000 hrs MTBF in a steel housing

What this KVM switch does

The StarTech SV431HU34K6 lets you control four HDMI computers from one keyboard, mouse and 4K 60 Hz display. It adds a two-port USB 3.1 Gen 1 hub and four dedicated USB 1.1 HID ports so peripherals stay connected while you switch systems with front-panel buttons or programmable hotkeys.

Who it suits and who it does not

It suits administrators, developers or home-office users who need to share one monitor and USB devices across four PCs or servers. It does not suit anyone needing multi-monitor output, on-screen display menus, IP-based remote management or switching for more than four sources.

Capacity and headroom

The switch passes 3840 x 2160 at 60 Hz with HDR10 and HDCP 2.2, plus 7.1-channel or stereo audio over HDMI. USB 3.1 Gen 1 ports deliver 5 Gbps for storage or docks, while HID ports handle keyboards and mice. Auto-scan intervals of 3, 8, 15 and 30 seconds automate rotation, and the unit is rated for 143 000 hours MTBF at up to 50 °C.

Highlights

  • Control four computers from one console using hotkeys or push buttons
  • Drive a single monitor at 3840 x 2160 60 Hz with HDR10 via HDMI 2.0
  • Connect high-speed peripherals through two USB 3.1 Gen 1 ports at 5 Gbps
  • Use dedicated USB 1.1 HID ports for keyboard and mouse on each system
  • Operate reliably with 143 000 hrs MTBF in a steel housing

Specifications

BrandStarTech.com
ModelSV431HU34K6
TypeHDMI, USB
Monitor Connections1 Port
Video Resolution3840 x 2160
PC SelectionPush Buttons/Hot Keys
AutoScan Interval3, 8, 15 & 30 seconds
Temperature0ºC to 50ºC(32ºF to 122ºF)
Humidity0% to 80%,Non-Condensing
Audio FeaturesHDMI - 7.1 Channel Audio
HDMI - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Power FeaturesPower Source: AC Adapter Included
Input Voltage: 100 - 240 AC
Input Current: 1.0A
Output Voltage: 12V DC
Output Current: 3A
Center Tip Polarity: Positive
Plug Type: M
Power Consumption (In Watts): 36W
USB Features2 - Console Interface(s): USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
4 - Console Interface(s): USB Type-A (4 pin; HID Port) USB 1.1
4 - Host Connectors: 9 pin USB 3.0 B Female
1 - Other Interface(s): USB Mini-B (5 pin)
FeaturesMTBF: 143 000 hrs
Port Selection Support: Push Button and Hotkeys
On-Screen Display: No
Video Revision: HDMI 2.0
IP Control: No
Hot-Key Selection: Yes
Supported Resolutions: 3840 x 2160 @60Hz
Wide Screen Supported: Yes
Maximum Number of Users: 1

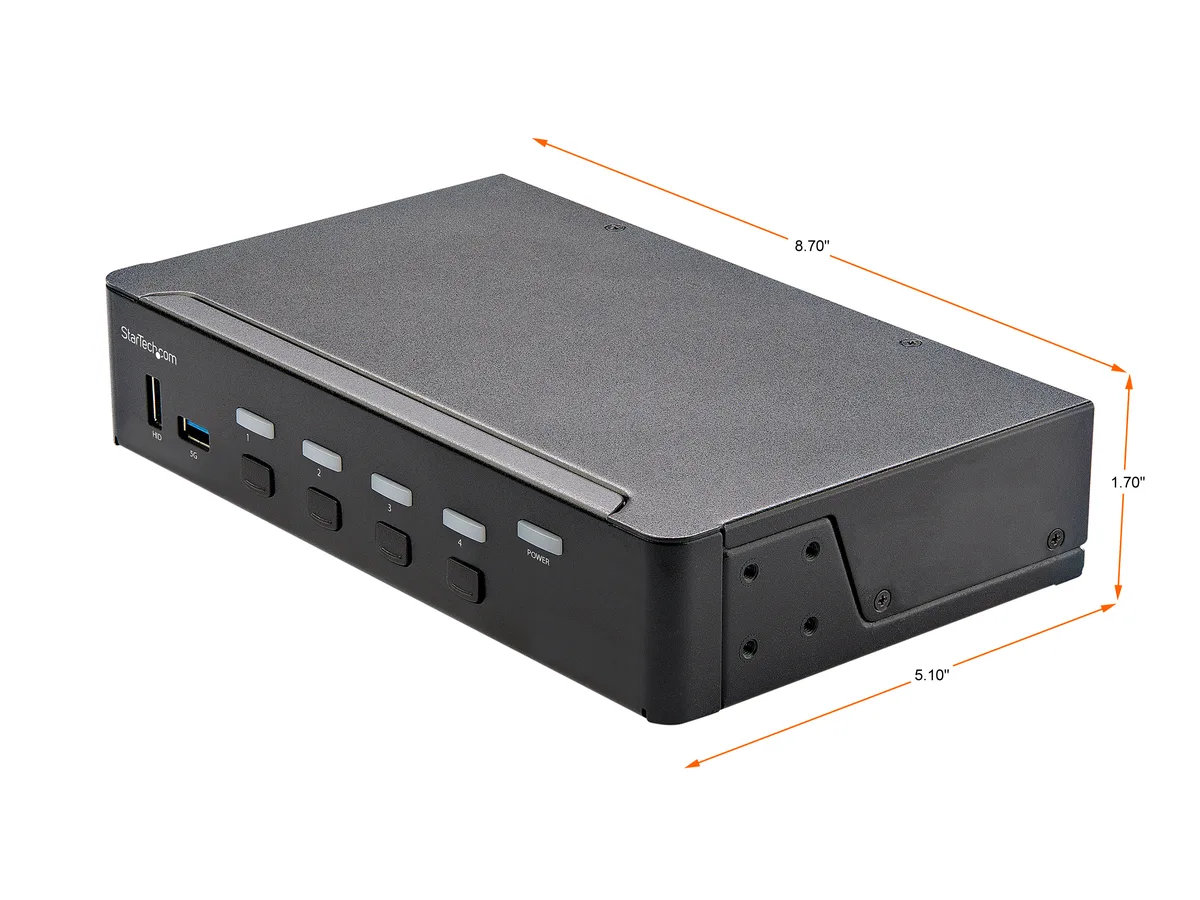

Dimensions1.70" x 8.70" x 5.10"
Weight2.40 lbs.
Package Contents1 - Included in Package:
KVM Switch
Universal Power Adapter (NA/JP, EU, UK, NZ)
Quick-Start Guide
4 - Included in Package:
Rubber Feet
Shipping weight0.19 kg
Package size409 × 211 × 86 mm

Questions about this item

Which cables do I need to connect my four computers to the SV431HU34K6?

Each computer requires an HDMI 2.0 cable for video and a USB 3.0 Type-B cable for keyboard, mouse and hub data; four of each are needed for four systems.

Will my older 1080p monitors and USB 2.0 keyboards work with this KVM?

Yes — the HDMI 2.0 port scales down to 1080p and the USB 1.1 HID ports accept legacy keyboards and mice without extra adapters.

How can I confirm the switch is delivering 4K 60 Hz HDR to my display?

The front-panel LED shows the active port; verify 3840 x 2160 @60 Hz and HDR10 in your monitor’s on-screen information menu after switching.
