STARTECH SV431DVIUA 4-Port DVI USB KVM Switch with Audio
Control four DVI computers with one keyboard, mouse, monitor, speakers and USB 2.0 devices at up to 2560 x 1600 resolution
- TypeDVI, USB
- PC Connectors4 x DVI-I Single Link 4 x 3.5mm mic in jack 4 x 3.5mm audio
- Console Connectors1 x DVI-I Single Link 1 x 3.5mm mic out jack 1 x 3.5mm audio
- Monitor Connections1 Port
- Video Resolution1920 x 1200 @ 60/70Hz Digital 2560 x 1600 @ 60 Hz Analog
- Audio Featureswith Audio
- Control four DVI computers from one console
- Share speakers and microphone across all four systems
- Built-in USB 2.0 hub adds four extra device ports
- Supports 1920 x 1200 digital at 60 or 70Hz
- 1U rack-mount design fits standard server cabinets
4-Port DVI USB KVM with Audio

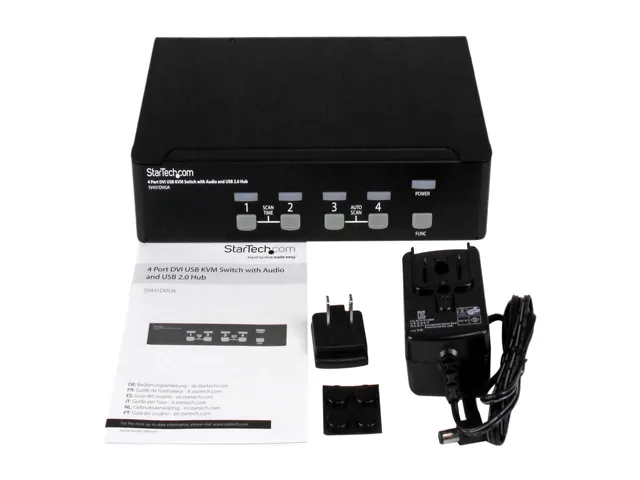

This StarTech.com SV431DVIUA switch lets one USB keyboard, mouse and DVI monitor control four multimedia computers. Built-in 3.5 mm audio and microphone switching routes speakers and headsets with the video. A four-port USB 2.0 hub shares printers, drives or other peripherals across every connected system.
Suited for single-monitor workstations
The unit supports one console display at up to 2560 x 1600 analog or 1920 x 1200 digital resolution. Users who need dual-head output, DisplayPort or HDMI native inputs, or switching for more than four computers should consider a different KVM solution.
DVI-I Single Link video interface

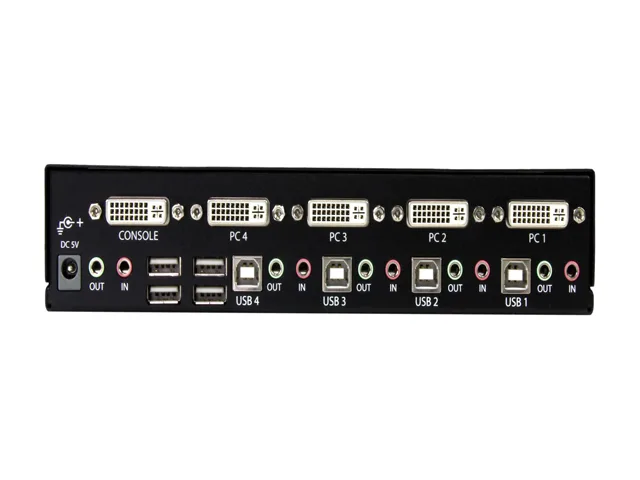

Each of the four computer ports and the console port use DVI-I Single Link connectors carrying both digital and analog signals. Verify that every source and the display have matching DVI-I ports before purchase.
Highlights
- Control four DVI computers from one console
- Share speakers and microphone across all four systems
- Built-in USB 2.0 hub adds four extra device ports
- Supports 1920 x 1200 digital at 60 or 70Hz
- 1U rack-mount design fits standard server cabinets
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SV431DVIUA |
| Type | DVI, USB |
| PC Connectors | 4 x DVI-I Single Link 4 x 3.5mm mic in jack 4 x 3.5mm audio in jack 4 x USB 2.0 Type B 4 x USB 2.0 Type A device hub port |
| Console Connectors | 1 x DVI-I Single Link 1 x 3.5mm mic out jack 1 x 3.5mm audio out jack |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1200 @ 60/70Hz Digital 2560 x 1600 @ 60 Hz Analog |
| Audio Features | with Audio |
| USB Features | with USB support |
| Features | Applications Ideal for using desktops, workstations and servers with Flat Panel LCD monitor Sharing computers and USB devices in the home/SOHO/multimedia environment Switches instantly between PCs Switching USB peripherials between PC's 4-port DVI USB KVM switch with audio and microphone switching and 2 x USB 2.0 hub ports Channel selection/Hub port control by front-panel push buttons DVI interface technology supports digital video signal transmission HDCP Compliant Independent/simultaneous USB hub port, audio & mic channels and PC port selection USB keyboard and mouse support |
| Dimensions | 9.96" x 4.53" x 1.77" |
| Weight | 3.45 lbs. |
| Shipping weight | 2.27 kg |
| Package size | 409 × 208 × 91 mm |
Questions about this item
Which version of this KVM switch should I choose for four DVI computers with audio and USB sharing?
The SV431DVIUA is a single model that supports four DVI-I Single Link computers with 3.5 mm microphone and audio switching plus a built-in four-port USB 2.0 hub.
What resolution will I actually see on my monitor when using this switch?
It passes up to 1920 x 1200 at 60 or 70 Hz in digital mode and up to 2560 x 1600 at 60 Hz in analog mode through the single DVI-I console port.
Does the USB 2.0 hub limit the speed of my keyboard, mouse or other peripherals?
The integrated hub runs at USB 2.0 speeds so keyboards, mice and typical USB 2.0 devices operate normally while higher-speed USB 3.0 devices will fall back to 2.0 rates.
