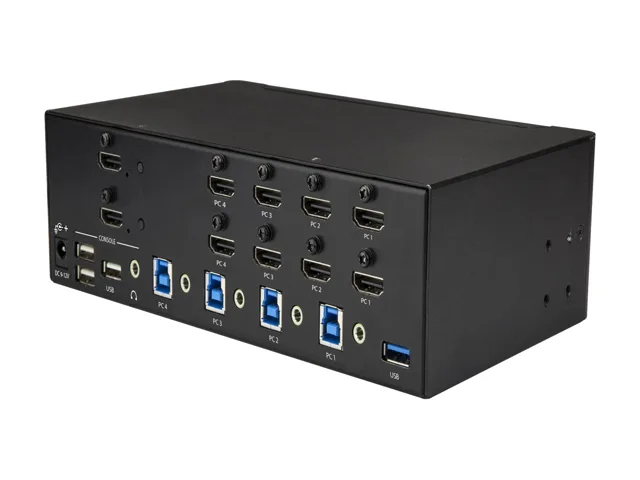

Black rectangular metal box with front push buttons and rear HDMI, USB, audio ports

STARTECH

STARTECH SV431DHD4KU 4 Port HDMI KVM Switch 4K 30Hz Dual Display

SKU CH-W49B-MXK5P MPN SV431DHD4KU

Controls four HDMI computers from one keyboard, mouse and dual 4K 30 Hz monitors with built-in USB 3.0 ports and driver-free switching

  • TypeHDMI
  • PC ConnectorsHost Connectors: 8 x HDMI 4 x USB 3.1 USB Type-B (9 pin, Gen
  • Console Connectors2 x HDMI 4 x USB Type-A (4 pin; HID Port) USB 1.1 2 x USB 3.
  • Computer Connections4 Ports
  • Video Resolution3840 x2160 @ 30Hz
  • PC SelectionPush Buttons/Hot Keys

Computer Connections 4 Ports

Style Dual Monitor - USB 3.0 4K30Hz

  • Control four computers from one dual-monitor desk
  • Dual 4K 30 Hz video on two HDMI displays
  • Two USB 3.1 Gen 1 ports plus dedicated HID ports
  • Front-panel buttons and hot-key switching
  • Universal 100-240 V AC adapter included

4-Port HDMI KVM with Dual 4K 30Hz

This new StarTech.com SV431DHD4KU switch lets one operator command four HDMI computers from a single keyboard, mouse and two monitors. Each console screen can show 3840 x 2160 at 30 Hz. The box includes a universal AC adapter and rubber feet for desktop placement. No drivers or software are needed on any host.

Suits admins running four workstations

Not for users who need higher than 30 Hz refresh at 4K, nor for setups that require more than four computer ports. Builders without dual-display consoles will leave one HDMI output unused. Environments above 40 °C or below 0 °C fall outside the rated operating range.

Dual 4K 30Hz over two HDMI console ports

The defining spec is the pair of HDMI console outputs that each support 3840 x 2160 at 30 Hz, letting two monitors run at that resolution simultaneously from any of the four connected computers.

Highlights

  • Control four computers from one dual-monitor desk
  • Dual 4K 30 Hz video on two HDMI displays
  • Two USB 3.1 Gen 1 ports plus dedicated HID ports
  • Front-panel buttons and hot-key switching
  • Universal 100-240 V AC adapter included

Specifications

BrandStarTech.com
ModelSV431DHD4KU
TypeHDMI
PC ConnectorsHost Connectors:
8 x HDMI
4 x USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps)
4 x 3.5mm Stereo Female 3 pos
Console Connectors2 x HDMI
4 x USB Type-A (4 pin; HID Port) USB 1.1
2 x USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
1 x 3.5mm Stereo Female 3 pos
Computer Connections4 Ports
Video Resolution3840 x2160 @ 30Hz
PC SelectionPush Buttons/Hot Keys
AutoScan Interval3, 8, 15 & 30 seconds
Temperature0 - 40 C
Humidity0% to 80%,Non-Condensing
Audio FeaturesSupport
Power FeaturesCenter Tip Polarity: Positive
Input Current : 0.6 A
Input Voltage : 100 ~ 240 AC
Output Current: 1.5 A
Output Voltage: 12 DC
Plug Type: M
Power Consumption (In Watts): 18W
Power Source: AC Adapter Included
FeaturesHigh-definition video quality with support for dual 4K at 30Hz displays
Two built-in USB 3.0 ports and independent HID keyboard/mouse ports
No software or drivers required
Separate 3.5 mm auxiliary support
Supports push-button and hotkey switching
Dimensions8.70" x 5.10" x 2.50"
Weight2.70 lbs.
Package Contents1 x KVM Switch
1 x quick-start guide
4 x rubber feet
1 x universal power adapter (NA/JP, UK, EU, ANZ)
Shipping weight1.81 kg
Package size775 × 297 × 104 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect both monitors and all four computers to the SV431DHD4KU, and which step is most often missed?

Connect each computer using two HDMI cables and one USB 3.1 Type-B cable, then link the console HDMI outputs to your monitors; the step most often missed is plugging in the separate USB 3.1 Type-B cable for each host so the keyboard, mouse and USB 3.0 peripherals actually switch.

What maintenance or replacement will the SV431DHD4KU need over time?

The unit has no user-serviceable parts; keep the ventilation slots clear and operate within the 0 to 40 °C and 0 to 80 % humidity range, and replace only the external 12 V DC power adapter if it ever fails.

What limit appears first when the SV431DHD4KU runs continuously at full load?

The 18 W power budget and 1.5 A DC output cap are reached before thermal limits, so sustained use with all four hosts and both USB 3.0 ports active will hit the adapter’s current ceiling first.
