STARTECH
STARTECH SV231DVIUA 2-Port DVI USB KVM Switch Audio USB 2.0 Hub
Share a DVI monitor, USB keyboard, mouse, stereo audio and a USB 2.0 hub between two computers with push-button or hot-key switching up to 1920 x 1200 resolution
- TypeDVI, USB
- PC Connectors2 - DVI-I (29 pin) Female 2 - USB B (4 pin) Female 4 - 3.5 m
- Console Connectors1 - DVI-I (29 pin) Female 2 - 3.5 mm Mini-Jack (3 Position)
- Monitor Connections1 Port
- Video Resolution1920 x 1200
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard, mouse and DVI monitor
- Built-in USB 2.0 hub adds four extra ports for peripherals
- Stereo audio switching lets you share speakers and microphone
- Push-button or hot-key switching requires no software or drivers
- Supports resolutions up to 1920 x 1200 for sharp video
Two-computer DVI KVM for multimedia workstations
The SV231DVIUA lets a single DVI monitor, USB keyboard, mouse, and stereo speakers control two computers. It targets users who need to switch between dual systems without duplicating desk peripherals.
Dual DVI-I ports with 1920 x 1200 maximum resolution

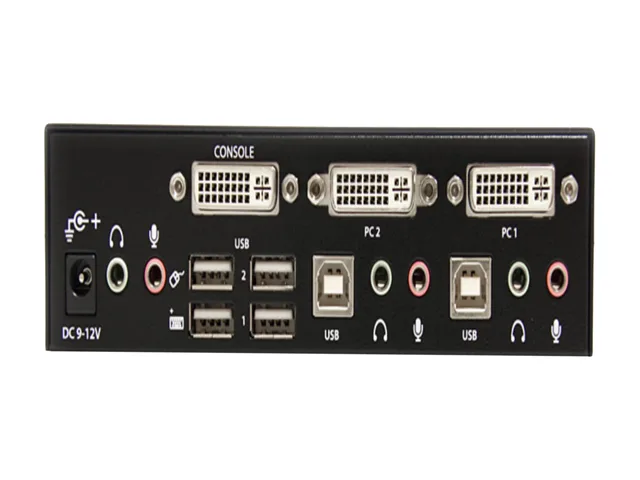

Each computer connects through a 29-pin DVI-I female connector and a USB-B link, while the console uses one DVI-I female port. Video supports up to 1920 x 1200, so the switch fits displays at that resolution or lower.
Built-in USB 2.0 hub adds four Type-A ports
The integrated hub means flash drives, printers, or other USB 2.0 peripherals stay plugged into the switch and follow the active computer. Front push-buttons and hot-key commands change the active system without software installation.
Highlights
- Control two computers with one keyboard, mouse and DVI monitor
- Built-in USB 2.0 hub adds four extra ports for peripherals
- Stereo audio switching lets you share speakers and microphone
- Push-button or hot-key switching requires no software or drivers
- Supports resolutions up to 1920 x 1200 for sharp video
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SV231DVIUA |
| Type | DVI, USB |
| PC Connectors | 2 - DVI-I (29 pin) Female 2 - USB B (4 pin) Female 4 - 3.5 mm Mini-Jack (3 Position) Female |
| Console Connectors | 1 - DVI-I (29 pin) Female 2 - 3.5 mm Mini-Jack (3 Position) Female 4 - USB A (4 pin) Female |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1200 |
| PC Selection | Push Buttons/Hot Keys |
| Features | Built-in USB 2.0 hub Hot-key and front-panel push buttons for easy computer selection USB keyboard and mouse console connections Supports resolutions up to 1920x1200 No software or drivers required Stereo audio and microphone support Independent/simultaneous USB hub port, audio channel, and PC port selection HDCP Compliant OS independent |
| Dimensions | 3.94" x 6.30" x 1.57" |
| Weight | 2.65 lbs |
| Shipping weight | 1.07 kg |
| Package size | 267 × 185 × 89 mm |
Questions about this item
What resolution will I actually see on the monitor connected through the DVI-I console port?
The switch supports up to 1920 x 1200 on the single DVI-I console output, so your monitor will display at its native resolution up to that limit.
What does the USB 2.0 hub designation mean for the four console USB-A ports?
The built-in hub shares the same USB connection used for keyboard and mouse, providing standard USB 2.0 data transfer for peripherals like printers or flash drives.
How much desk space does the unit need for the push-button panel and cable connections?
The chassis measures 3.94" x 6.30" x 1.57" and weighs 2.65 lbs, so allow roughly a 4-by-6.3-inch footprint plus cable clearance at the rear.
