STARTECH
STARTECH SV211HDUC 2 Port USB-C KVM Switch 4K 60Hz HDMI
Connect two USB-C or Thunderbolt laptops to one HDMI monitor, keyboard and mouse with push-button switching at 4K 60 Hz, bus-powered and cables included
- TypeUSB-C

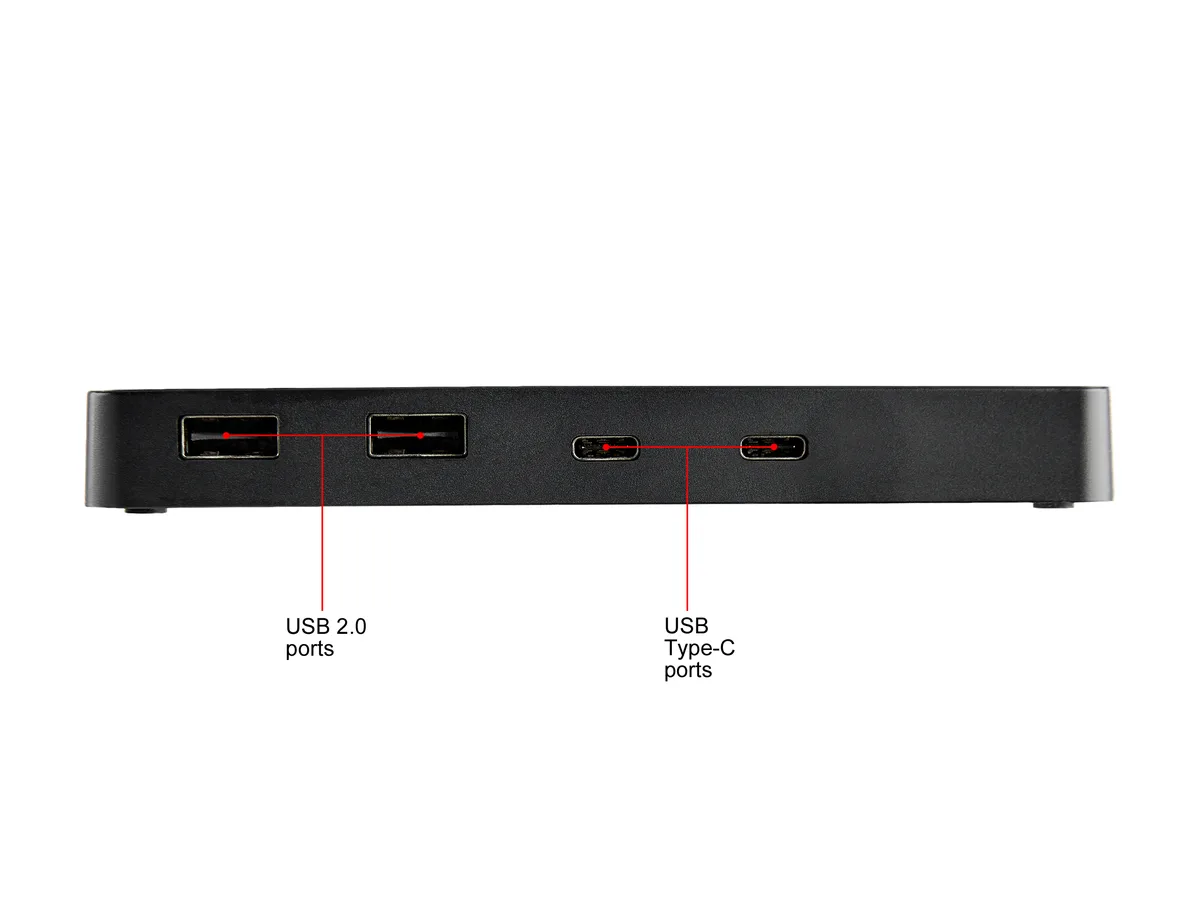

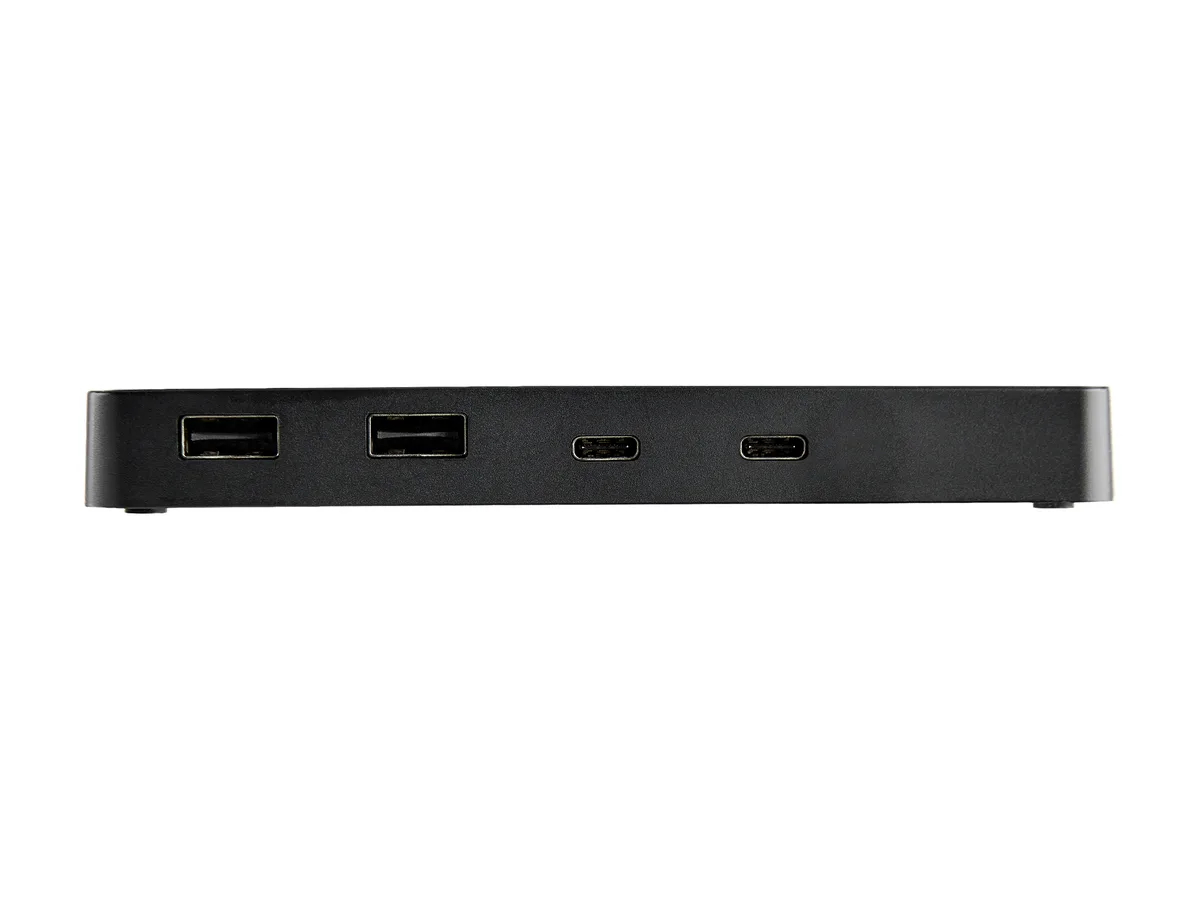

- PC Connectors2 - USB Type-C (24-pin) USB 2.0 (480Mbps)

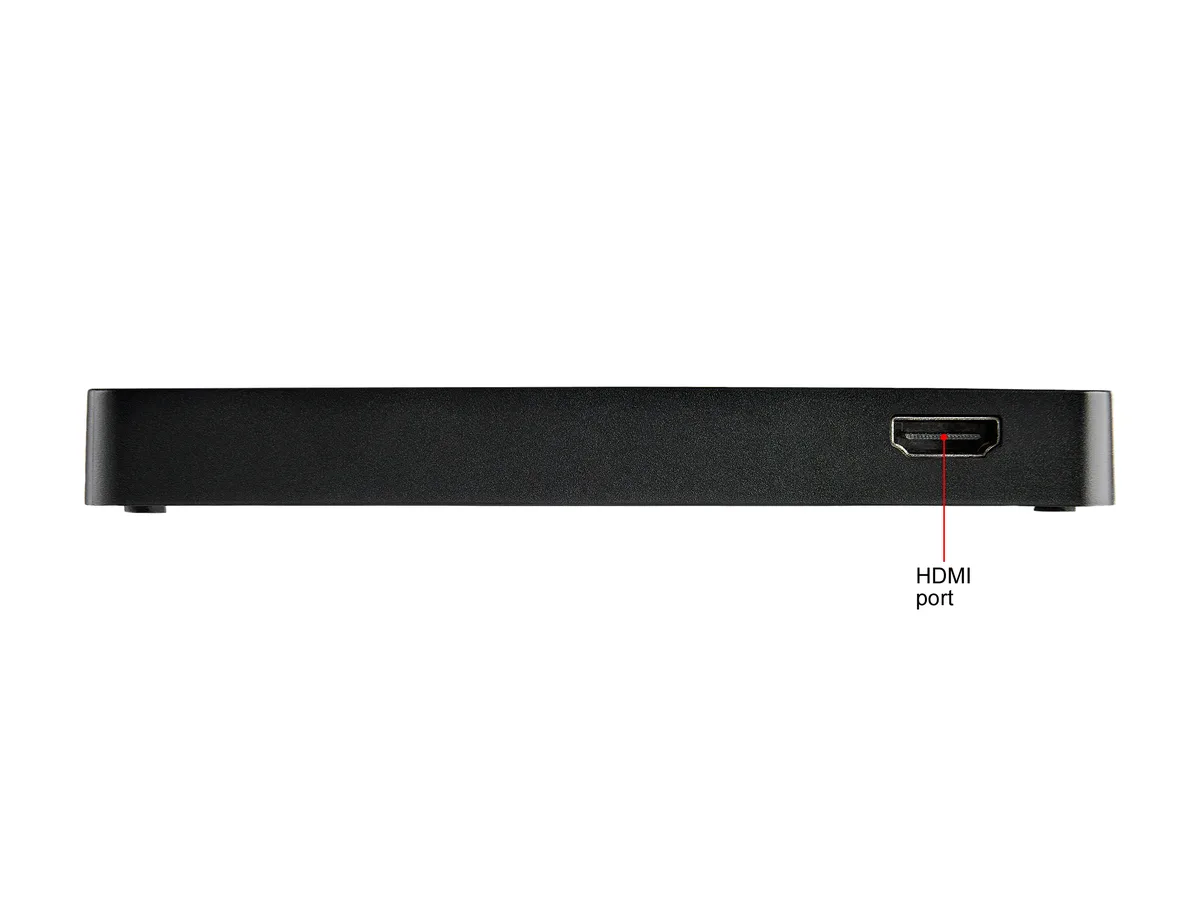

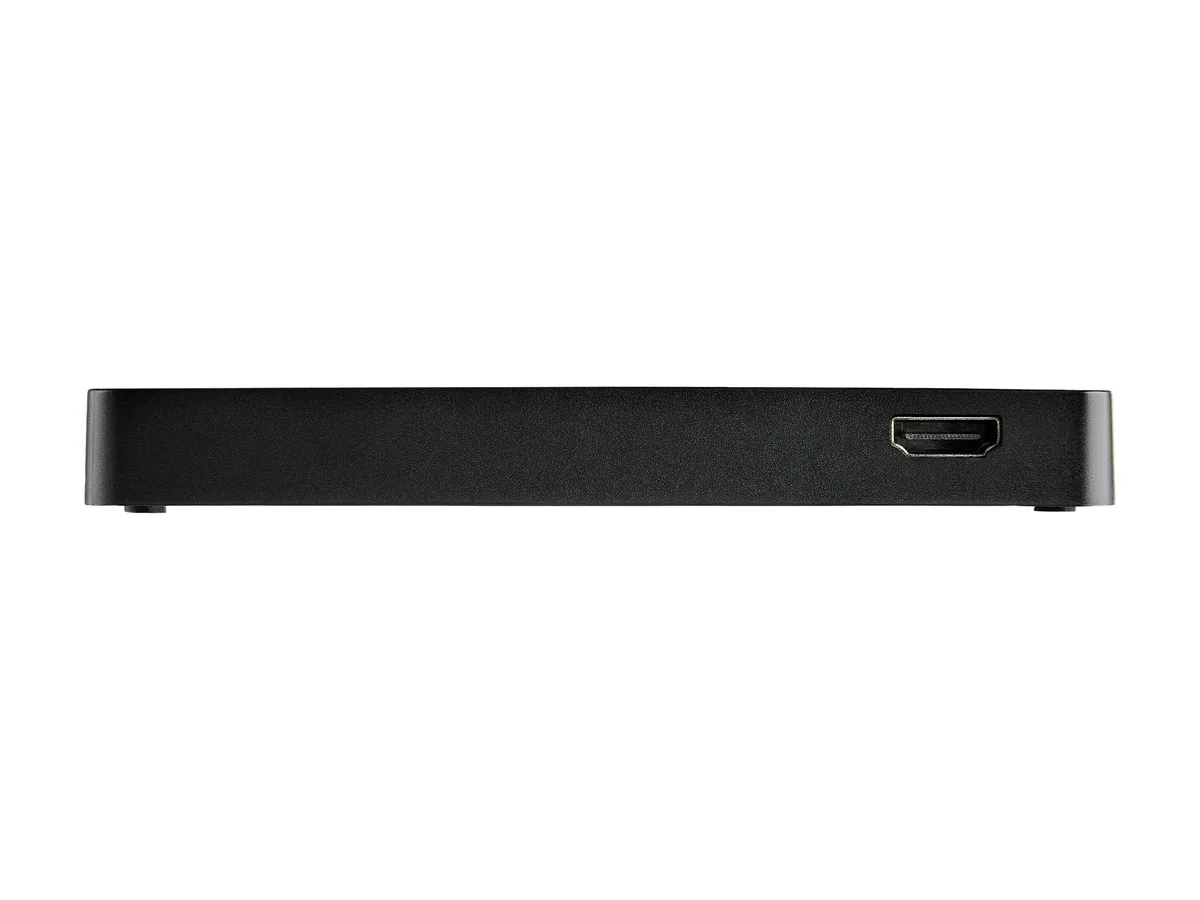

- Console Connectors1 - HDMI (19 pin) 2 - USB Type-A (4 pin) USB 2.0
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution3840 x 2160
- Switch between two USB-C or Thunderbolt laptops from one HDMI monitor
- Supports 3840 x 2160 at 60Hz over HDMI 2.0
- Bus-powered design removes the need for an external power adapter

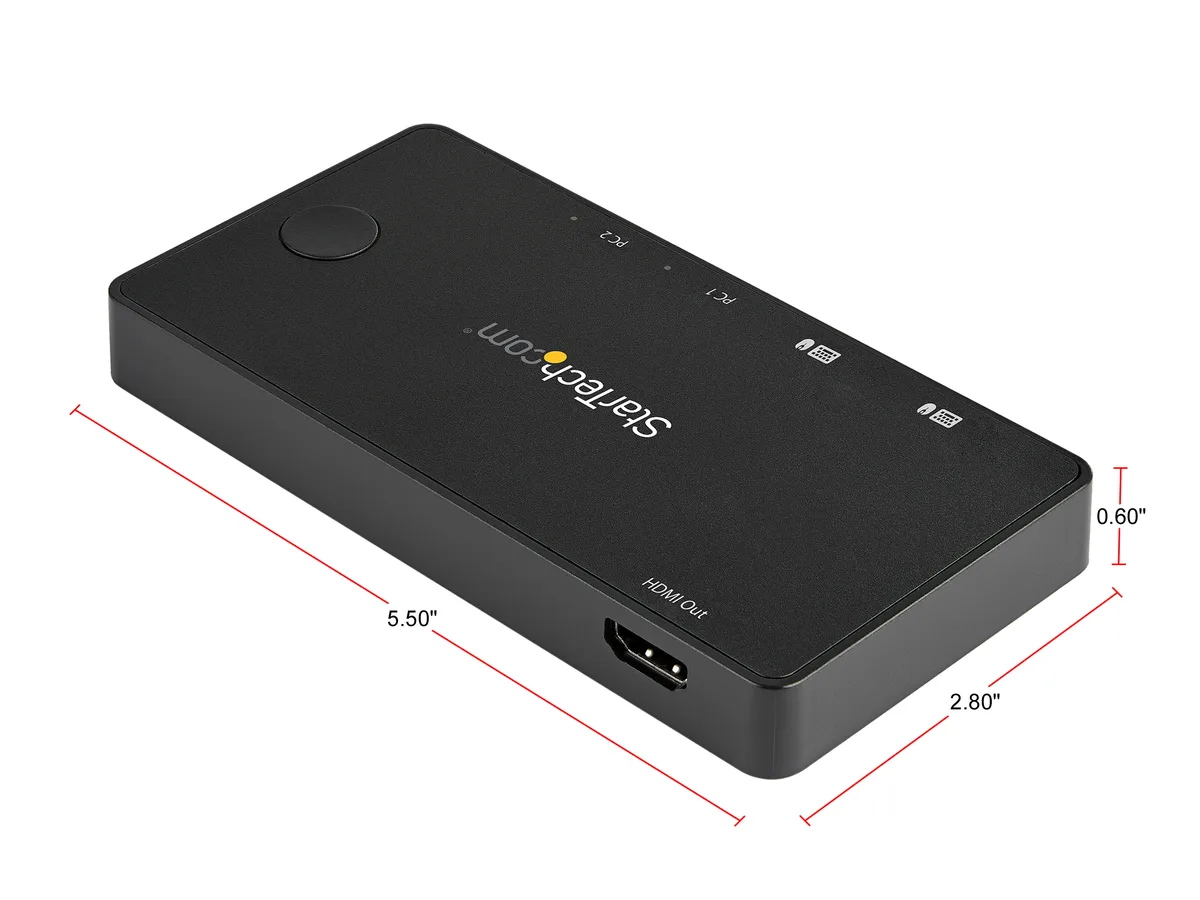

- Compact size of .60 x 5.50 x 2.80 inches and 9.3 oz weight suits mobile desks
- Includes two 3.3 ft USB-C cables for immediate setup
Two-Port USB-C KVM Switch for Single-Monitor Setups
The STARTECH SV211HDUC connects two USB-C or Thunderbolt 3 computers to one HDMI monitor, keyboard and mouse. It supports 3840 x 2160 resolution at 60 Hz over HDMI 2.0. Bus power drawn from the host ports means no external adapter is required. The unit measures .60 x 5.50 x 2.80 inches and weighs 9.3 oz.
Replaces Separate Docking Stations
Two 3.3 ft USB-C cables are included so each host gets video, USB 2.0 data at 480 Mbps and power through a single 24-pin connection. Push-button switching on the 19-pin HDMI console port changes the active computer instantly. The jump is worth it when you move between two laptops or a laptop and a desktop daily and want one 4K 60Hz display without unplugging cables.
Check Host Ports and Peripheral Needs Before
Each computer must provide a USB-C or Thunderbolt 3 port that carries DisplayPort Alt Mode video and USB 2.0 data. The console side offers one HDMI output and two USB-A ports for keyboard and mouse only. Buyers who need more than two USB-A devices, additional video outputs, USB 3.x speeds, or dedicated charging power for the laptops should look elsewhere.
Highlights
- Switch between two USB-C or Thunderbolt laptops from one HDMI monitor
- Supports 3840 x 2160 at 60Hz over HDMI 2.0
- Bus-powered design removes the need for an external power adapter
- Compact size of .60 x 5.50 x 2.80 inches and 9.3 oz weight suits mobile desks
- Includes two 3.3 ft USB-C cables for immediate setup
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SV211HDUC |
| Type | USB-C |
| PC Connectors | 2 - USB Type-C (24-pin) USB 2.0 (480Mbps) |
| Console Connectors | 1 - HDMI (19 pin) 2 - USB Type-A (4 pin) USB 2.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons |
| Power Features | Bus Powered |
| Features | SPACE-SAVING: Compact USB C KVM switch enables easy switching between 2 USB Type C or Thunderbolt 3 desktops/laptops using 1 keyboard, monitor & mouse; OS independent and works with the Apple iPad Pro 2 PORT USB-C KVM: 4K 60Hz UHD | 3840x2160 | HDMI 2.0 Out | Push-Button Switching | Bus Powered | OS Independent | Works with Thunderbolt 3 ports | Cables included PORTABLE: USB powered feature reduces clutter by avoiding the need for power adapter while the lightweight small form factor makes the mini KVM Switch easy to carry for the mobile/ hot desk workforce READY TO USE: USB-C cables |
| Dimensions | 0.60" x 5.50" x 2.80" |
| Weight | 9.3 oz. |
| Package Contents | 1 x KVM Switch 2 x 3.3 ft. [1 m] USB-C Cables 1 x Quick-Start Guide |
| Shipping weight | 0.43 kg |
| Package size | 178 × 121 × 86 mm |
Questions about this item
How much desk space does the 0.60" x 5.50" x 2.80" KVM occupy?
The unit measures 0.60 inches high, 5.50 inches wide and 2.80 inches deep, so it fits in a shallow drawer or behind a monitor stand.
Which cables do I plug into the 24-pin USB-C ports versus the 19-pin HDMI and 4-pin USB-A ports?
Connect each host to a 24-pin USB-C port using the included 3.3 ft cables; plug the 19-pin HDMI into your monitor and the two 4-pin USB-A ports into keyboard and mouse.
When should I replace the two 3.3 ft USB-C cables that come in the box?
Swap them if the connectors loosen, the sheath frays or 480Mbps data drops out — otherwise the bus-powered switch itself needs no scheduled maintenance.
