STARTECH
STARTECH SV211DPUA4K 2-Port DisplayPort KVM Switch 4K 60Hz
Controls two computers from one DisplayPort monitor, keyboard and mouse at 4K 60 Hz with bus power and remote switching
- TypeDisplayPort, USB
- PC Connectors2 x USB Type-A (4 pin) USB 2.0 Plug Output 2 x DisplayPort (
- Console Connectors2 x USB Type-A (4 pin) USB 2.0 Receptacle Input 1 x DisplayP
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution3840 x 2160 (Ultra HD 4K) @ 60hz
- Control two computers from one DisplayPort monitor at 3840 x 2160 @ 60hz

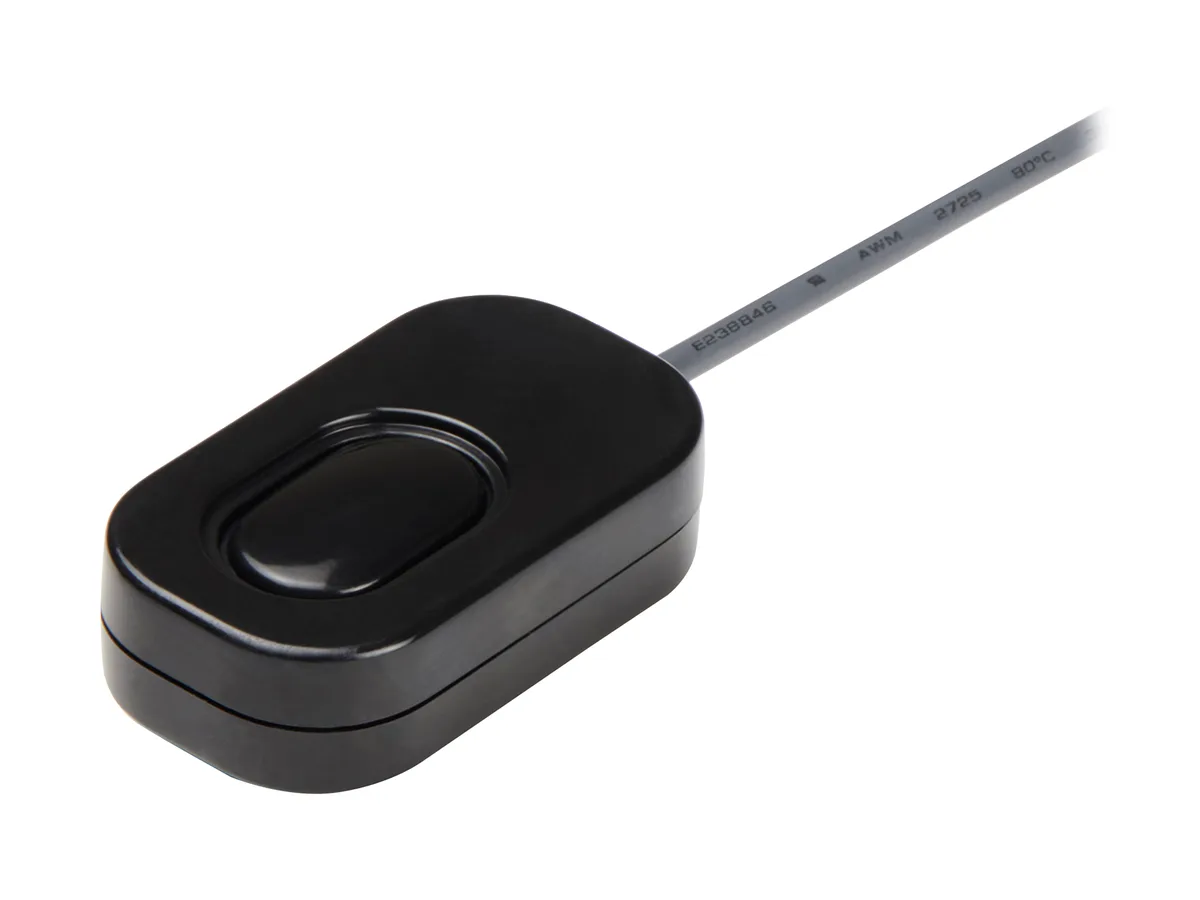

- Switch instantly via push button, hotkeys, or software without extra drivers

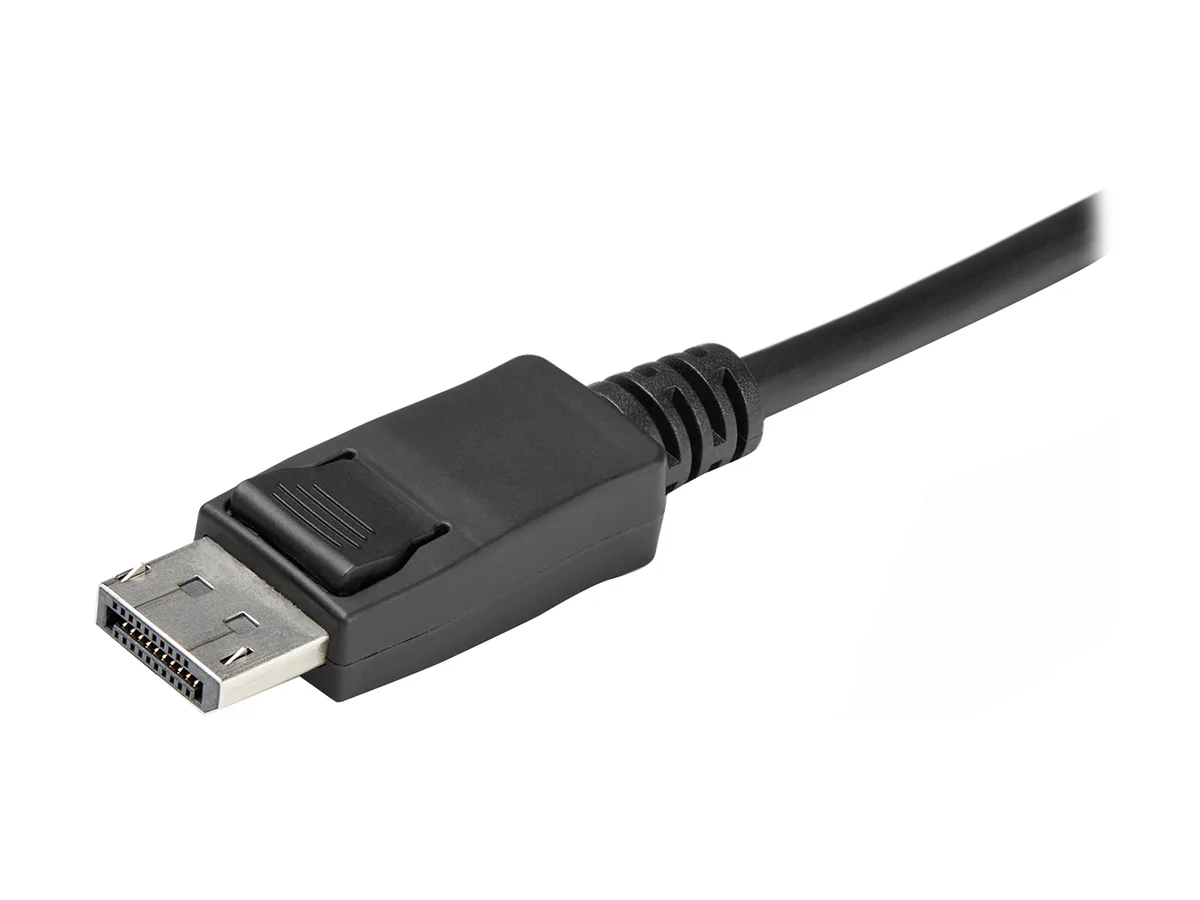

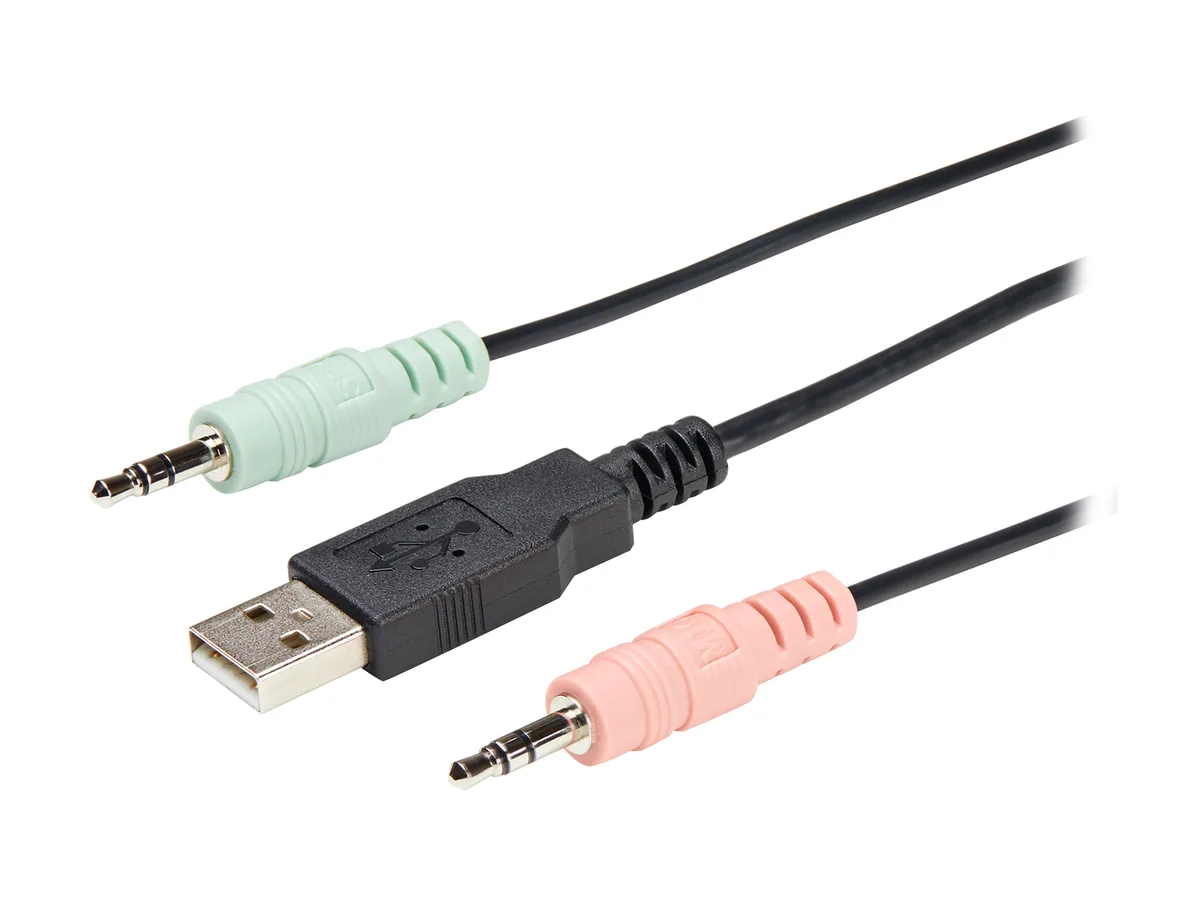

- Built-in 4 ft cables and bus power keep the desktop tidy
- Audio passes through 3.5 mm jacks for speakers and microphone
- Compact 0.40 x 3.20 x 3.80 in design fits tight spaces
Dual-Port DisplayPort KVM for Two Computers

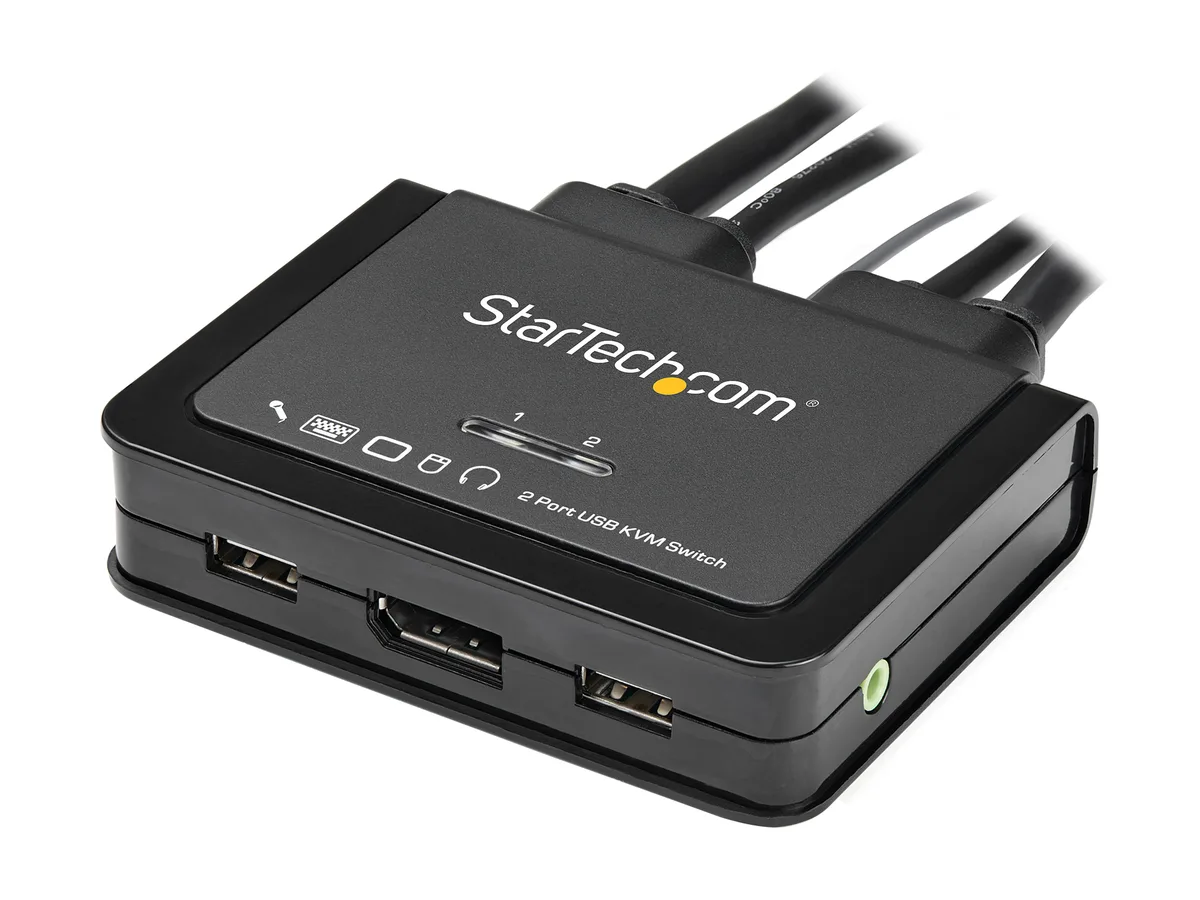

The StarTech SV211DPUA4K lets a single DisplayPort monitor, USB keyboard, mouse and stereo audio serve two host computers. It supports 3840 x 2160 resolution at 60 Hz and draws power from the USB bus so no external adapter is required. The compact unit includes integrated 4 ft cables for a tidy desktop.
Bus-Powered Setup with Three Switching Methods
Connect the built-in cables to each computer and the console peripherals to the front panel; the switch is ready to use without drivers. Switching is done by the push button on the unit, configurable hotkeys or the supplied software, though hotkeys and software need a supported operating system. Auto-scan intervals of 10, 20, 30, 40, 50 or 60 seconds are available.
Check Ports, Resolution and OS Before Buying
Each host must provide a DisplayPort output and a USB Type-A port for the integrated cables. The shared monitor must accept 3840 x 2160 at 60 Hz over DisplayPort. Hotkey and software switching work on Windows 2000 through 10, Windows Server 2003 through 2019 and Mac OS 10.6 to 10.9; push-button switching works regardless of OS. Buyers needing more than two computer ports or higher refresh rates should consider other models.
Highlights
- Control two computers from one DisplayPort monitor at 3840 x 2160 @ 60hz
- Switch instantly via push button, hotkeys, or software without extra drivers
- Built-in 4 ft cables and bus power keep the desktop tidy
- Audio passes through 3.5 mm jacks for speakers and microphone
- Compact 0.40 x 3.20 x 3.80 in design fits tight spaces
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SV211DPUA4K |
| Type | DisplayPort, USB |
| PC Connectors | 2 x USB Type-A (4 pin) USB 2.0 Plug Output 2 x DisplayPort (20 pin) Plug Output 4 x 3.5 mm Mini-Jack (3 Position) Female Plug Output |
| Console Connectors | 2 x USB Type-A (4 pin) USB 2.0 Receptacle Input 1 x DisplayPort (20 pin) Receptacle Input 2 x 3.5 mm Mini-Jack (3 Position) Female Receptacle Input |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 3840 x 2160 (Ultra HD 4K) @ 60hz |
| PC Selection | Push Button, Hotkeys, and Software Note: In order to access the software and hotkeys of the KVMs, a compatible OS must be installed on the connected host, however the KVM and push button switching functions are OS independent. |
| AutoScan Interval | 10, 20, 30, 40, 50, and 60 seconds |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0 ~ 90% RH, Non-Condensing |
| Power Features | Bus Powered |
| Application | OS Compatibility: Windows 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2016, 2019 Mac OS 10.6 to 10.9 |
| Features | SPACE-SAVING DESIGN: Compact 2 Port DisplayPort KVM Switch w/ built-in cables & remote switching provides USB powered control of two computers from one keyboard, monitor, and mouse 4K VIDEO QUALITY: DP UHD KVM switch supports resolutions up to 4K at 60Hz on a single DisplayPort monitor for maximized viewing space TECH SPECS: Dual Port KVM | DisplayPort 1.2 | 4K 60Hz 3840x2160 | Hotkey, Integrated Remote Push Button, Software | OS Independent | Bus Powered | Analog Audio Switching | DisplayPort/USB Console COMPACT & USER FRIENDLY: 3 ways to switch between PCs (Dell, HP, Apple & Lenovo |
| Dimensions | 0.40" x 3.20" x 3.80" |
| Weight | 12.4 oz. |

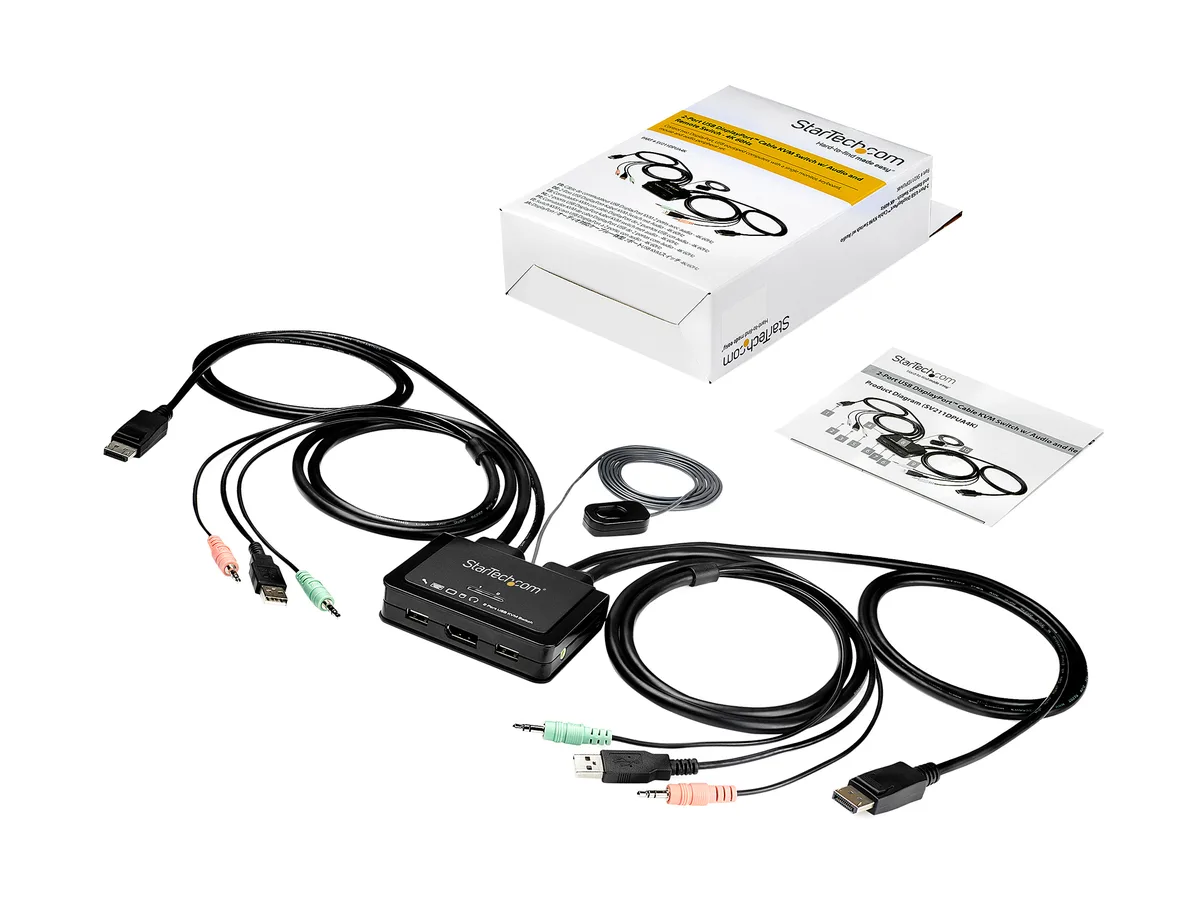

| Package Contents | 1 x KVM Switch 1 x Quick-Start Guide |
| Shipping weight | 0.10 kg |
| Package size | 210 × 160 × 60 mm |
Questions about this item
How do I confirm the SV211DPUA4K is switching correctly at 3840 x 2160 60 Hz after connecting both computers?
Press the push button or use the configured hotkeys to change ports; the monitor should display the other computer's desktop at the native 3840 x 2160 60 Hz resolution without flicker.
What cables and accessories are included with the SV211DPUA4K, and what must I provide separately?
The box contains the KVM switch with integrated 4 ft DisplayPort and USB cables, a quick-start guide, and audio jacks; you supply the DisplayPort monitor cable, keyboard, mouse, and any additional USB peripherals.
The SV211DPUA4K lists only one model — how do I choose the right version for my two-computer, single-monitor setup?
This single SKU supports two DisplayPort computers sharing one 4K 60 Hz monitor with USB 2.0 keyboard and mouse; no other capacity or port-count variants exist for this model.
