STARTECH
STARTECH ST12MHDLNHR HDMI over IP Receiver 1080p 50 ft
Receives HDMI over IP up to 50 ft at 1920x1200 60 Hz with 2-channel audio and IR control
- Extender & Repeater TypeReceiver
- HousingAluminum
- Distance50 ft.
- Resolution Support1920x1200 60 Hz
- Audio2-channel
- HDMI1 x HDMI (19-pin) Female Output
- Extends 1080p video up to 50 ft over Cat5e cabling
- Adds displays using existing network infrastructure without new wiring
- Daisy-chains multiple receivers for scalable digital-signage deployments
- Rack-mountable aluminium housing fits standard enclosures for tidy installs
- Includes universal power adapter and mounting bracket for immediate setup
Purpose-built Receiver
This HDMI over IP receiver expands a StarTech ST12MHDLNHK extender system to an additional remote display. Installers and integrators use it to route 1080p video and stereo audio over existing network cabling to digital-signage screens or meeting-room displays.
Deciding Specification
The unit requires the matching ST12MHDLNHK transmitter and a Cat 5e UTP or better link limited to 50 ft. Without that specific transmitter the receiver cannot decode the stream, so buyers who need a stand-alone extender or longer cable runs cannot use this model.
Capacity and Headroom
At the rated distance it delivers 1920x1200 at 60 Hz with 2-channel audio and supports IR pass-through for source control. Daisy-chaining allows further receivers, but resolution and distance remain fixed at 1080p and 50 ft, so applications demanding 4K or extended reach will exceed its limits.
Highlights
- Extends 1080p video up to 50 ft over Cat5e cabling
- Adds displays using existing network infrastructure without new wiring
- Daisy-chains multiple receivers for scalable digital-signage deployments
- Rack-mountable aluminium housing fits standard enclosures for tidy installs
- Includes universal power adapter and mounting bracket for immediate setup
Specifications
| Brand | StarTech.com |
|---|---|
| Model | ST12MHDLNHR |
| Extender & Repeater Type | Receiver |
| Housing | Aluminum |
| Distance | 50 ft. |
| Resolution Support | 1920x1200 60 Hz |
| Audio | 2-channel |
| HDMI | 1 x HDMI (19-pin) Female Output |

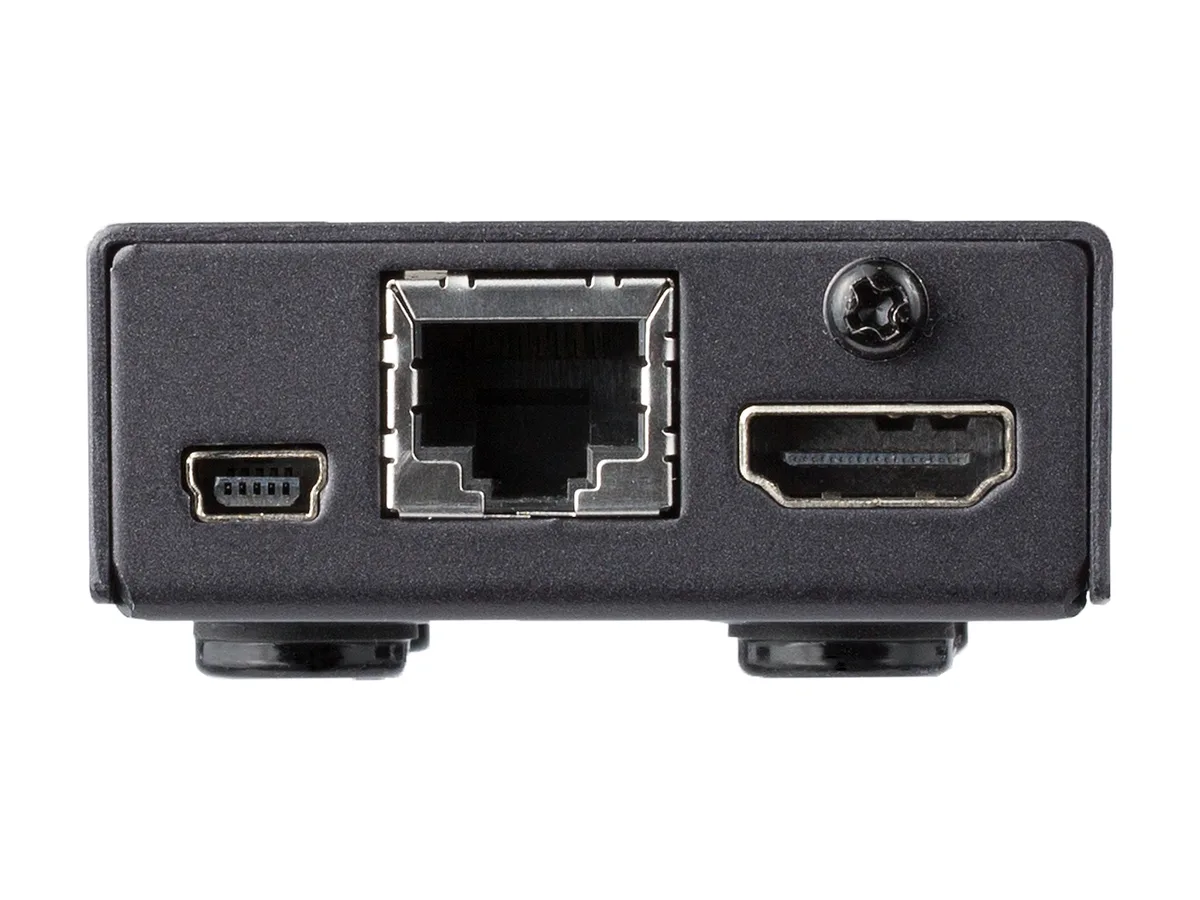

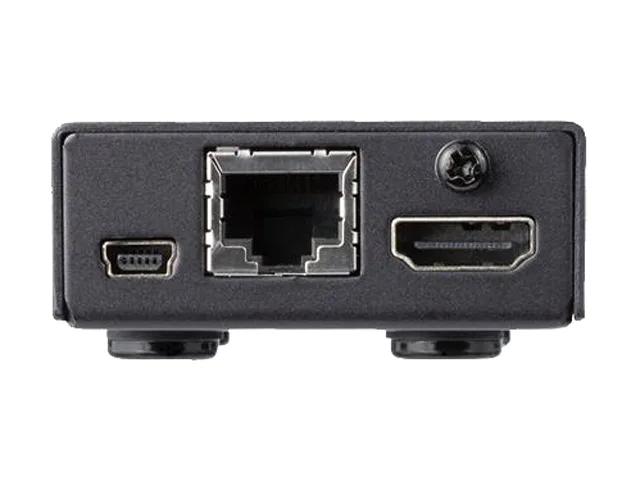

| Network Interface | 1 x RJ-45 Female Input |
| Other Connector | 1 x 2.5mm Mini-Jack (3 Position) Female 1 x Infrared Female |
| LED Indicator | 1 x status LED |
| Power Supply | Input Current: 0.3A Input Voltage: 100 ~ 240 AC Output Current: 1A Output Voltage: 5 DC Plug Type: USB Mini-B (5-pin) Power Source: AC Adapter Included |
| Specification | Hardware: Audio: Yes Cabling: Cat 5e UTP or better Daisy-Chain: Yes Ports: 1 Rack-Mountable: Yes Performance: Maximum Cable Length: 50 ft. Maximum Digital Resolutions: 1920x1200 (1080p) 60 Hz Wide Screen Supported: Yes Environmental Humidity: 0% - 80% Operating Temperature: 0 to 40 celsius degree Storage Temperature: -10 to 60 celsius degree Physical Characteristics Color: Black |
| Feature | The HDMI over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations. Customize your video distribution with a scalable solution With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-mu |
| Dimensions | 1.10" x 3.80" x 5.10" |
| Weight | 0.99 lb. |
| Package Content | 1 x HDMI over IP receiver 1 x universal power adapter (NA, EU, UK, ANZ) 1 x mounting bracket 1 x CAT5 cables 1 x plastic screwdriver 1 x IR remote control 1 x USB-A to Mini USB-B cable 1 x DB9 to 2.5mm serial adapter cable 1 x IR receiver 4 x rubber feet 1 x instruction manual |
| Shipping weight | 0.06 kg |
| Package size | 168 × 143 × 63 mm |
Questions about this item
How far can the 1080p signal travel over Cat 5e cabling?
The receiver extends 1920x1200 at 60 Hz up to 50 ft using Cat 5e UTP or better cable.
What network port does the receiver use and what bandwidth does it require?
It connects through a single RJ-45 female input and works over standard Gigabit Ethernet infrastructure.
What mounting options are included for rack or surface installation?
A mounting bracket is supplied and the aluminum housing is rack-mountable for 1U environments.
