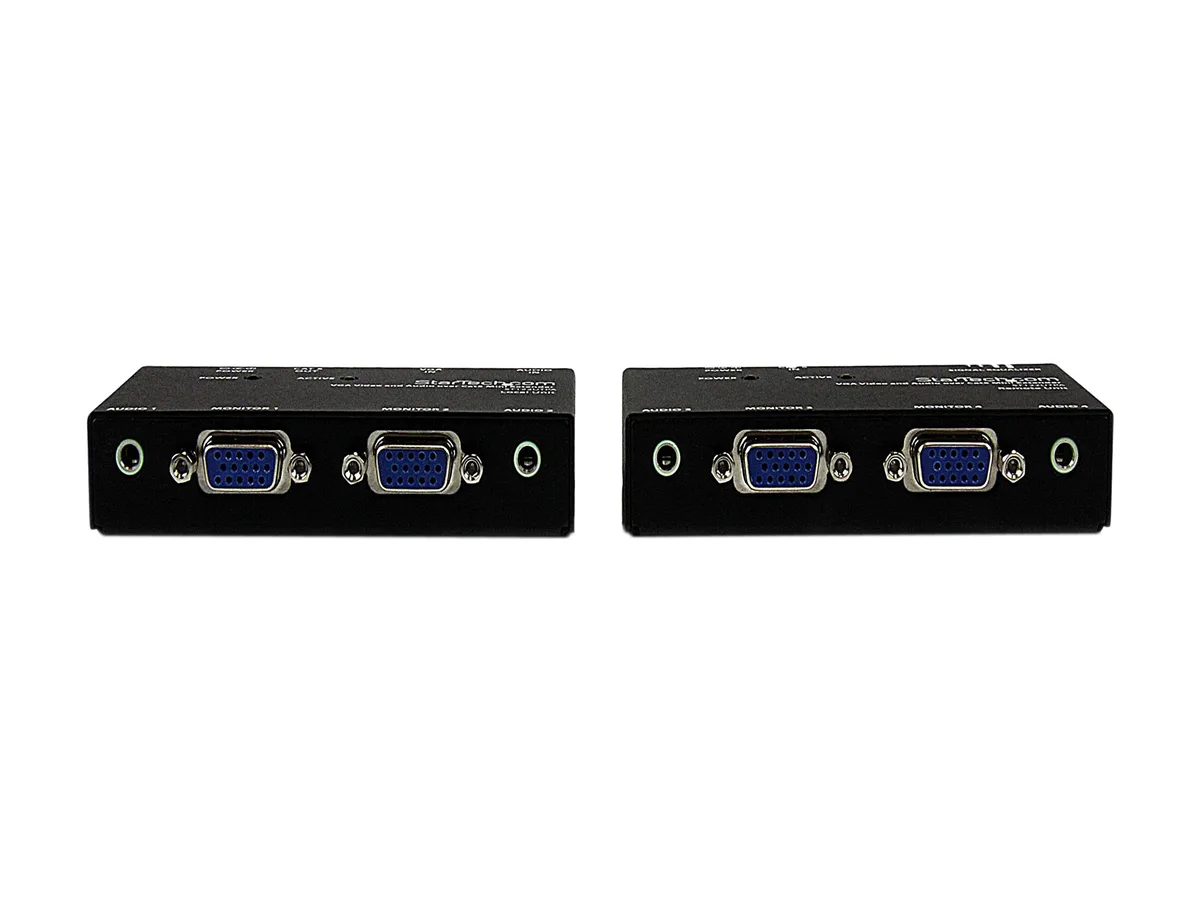

Two small black boxes with VGA ports and Cat5 jacks, plus power adapters and mounting bracket

STARTECH

STARTECH ST122UTPA VGA extender 150m 1440x900 audio Cat5

SKU CH-7WXM-YKK4Q MPN ST122UTPA

Extends VGA video with audio up to 150 m over Cat5 cable at 1024 × 768 resolution

  • Extender & Repeater TypeNon Wall Plate Extender
  • Distance150 m / 500 ft.
  • Resolution Support1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 5
  • Power SupplyPower Adapter Included: Yes Output Voltage: 9 DC Output Curr
  • SpecificationCabling: Cat 5e UTP or better Daisy-Chain: No Local Unit Con
  • FeatureExtend and distribute a VGA signal and the accompanying audi
  • Extends VGA video and audio up to 150 m over Cat5 cable
  • Delivers 1440 x 900 resolution at 50 m distance
  • Supports 1280 x 1024 at 100 m and 1024 x 768 at full 150 m
  • Includes local and remote units with mounting bracket and power adapters
  • Compact 3.3 x 2.4 x 0.8 in design weighs only 181 g

VGA extender 150 m Cat5

This StarTech ST122UTPA extender sends a VGA video signal with stereo audio over a single Cat5e UTP cable up to 150 metres. It suits installers who need to place a projector or display far from a PC or media player without running bulky VGA cables. The kit includes local and remote units, two power adapters and mounting hardware for quick deployment.

Resolution headroom and distance

At the full 150 metre reach the extender supports 1024 x 768, while 1280 x 1024 is available up to 100 metres and 1440 x 900 up to 50 metres. Higher resolutions or longer runs than those listed are not supported, so users needing 1080p or 4K at distance must choose a different technology. The fixed resolution steps mean you select cable length first, then pick the highest matching resolution.

Thermals noise and power

Each unit draws 9 V DC at 0.6 A from its included adapter, so total system power is modest and runs cool in typical office or classroom environments. The compact enclosures have no moving parts, making operation completely silent. No additional cooling or ventilation space is required beyond the small 3.3 by 2.4 inch footprint of each box.

Highlights

  • Extends VGA video and audio up to 150 m over Cat5 cable
  • Delivers 1440 x 900 resolution at 50 m distance
  • Supports 1280 x 1024 at 100 m and 1024 x 768 at full 150 m
  • Includes local and remote units with mounting bracket and power adapters
  • Compact 3.3 x 2.4 x 0.8 in design weighs only 181 g

Specifications

BrandStarTech.com
ModelST122UTPA
Extender & Repeater TypeNon Wall Plate Extender
Distance150 m / 500 ft.
Resolution Support1440x900 @ 150ft / 50m
1280x1024 @ 300ft / 100m
1024x768 @ 500ft / 150m
Power SupplyPower Adapter Included: Yes
Output Voltage: 9 DC
Output Current: 0.6A
Center Tip Polarity: Positive
SpecificationCabling: Cat 5e UTP or better
Daisy-Chain: No

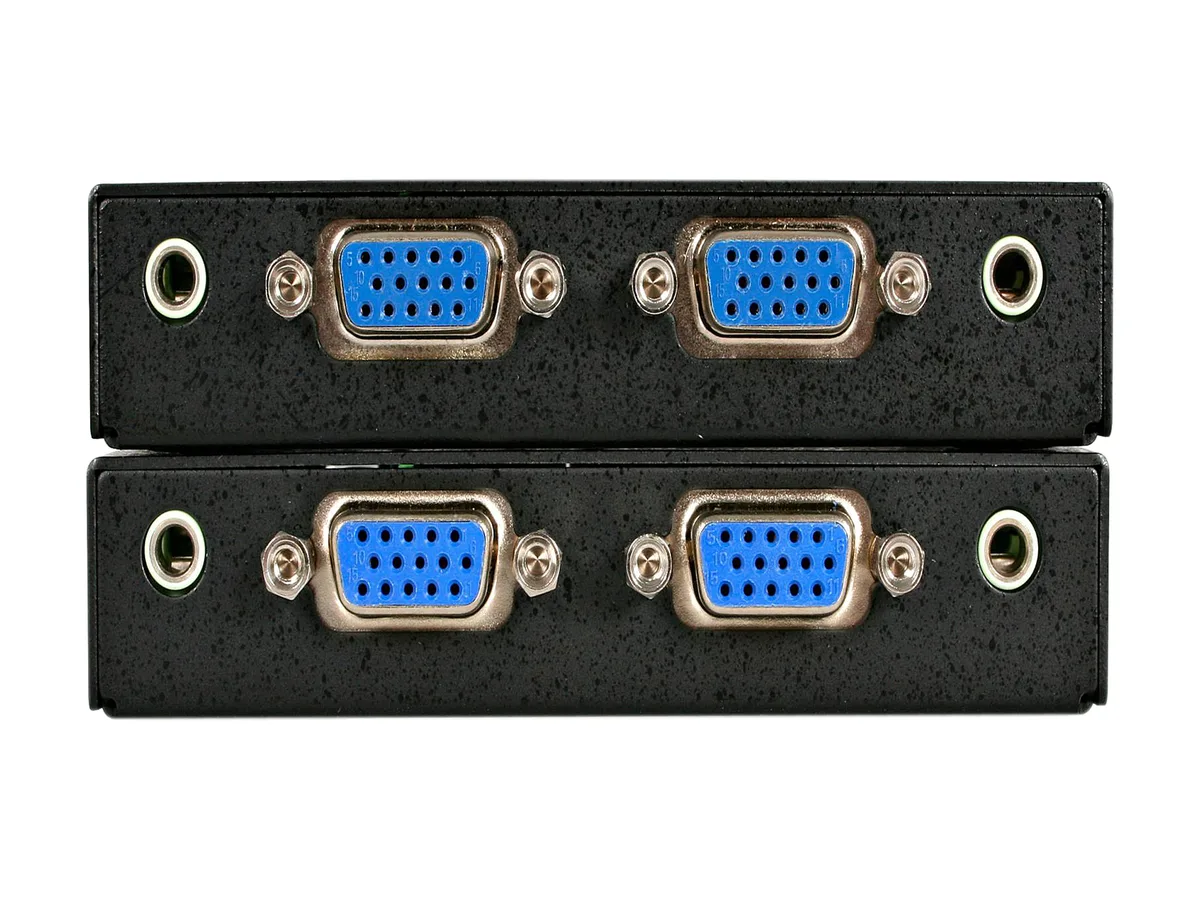

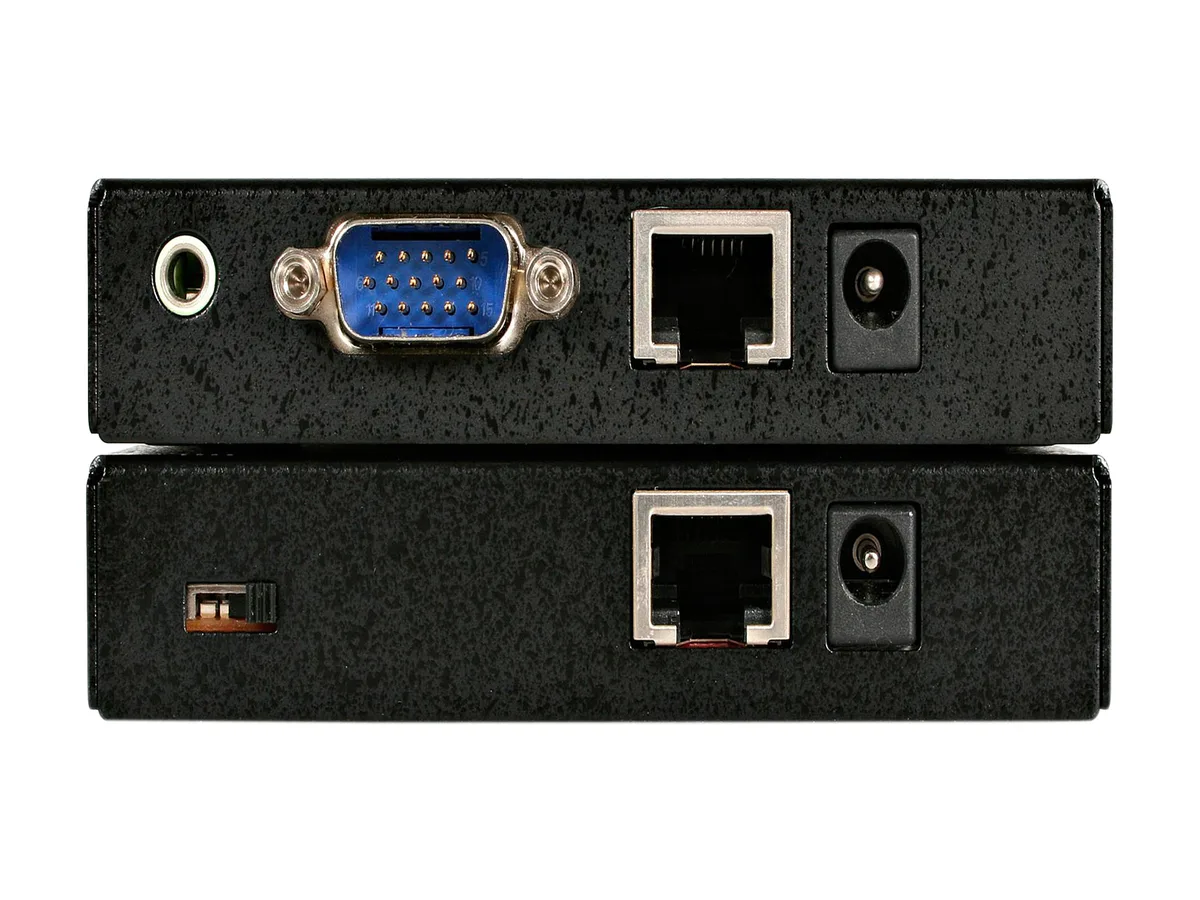

Local Unit Connectors
1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Male
2 - 3.5 mm Mini-Jack (3 Position) Female
2 - VGA (15 pin; High Density D-Sub) Female
Remote Unit Connectors
1 - RJ-45 Female
2 - 3.5 mm Mini-Jack (3 Position) Female
2 - VGA (15 pin; High Density D-Sub) Female
Maximum Cable Length: 500 ft [152.4 m]
Color: Black
Enclosure Type: Aluminum
FeatureExtend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable - vga extender - vga video extender over cat5 - vga monitor extender - vga over cat5 - vga over utp
Allows users to make use of existing Ethernet infrastructure to extend VGA displays and audio
Includes mounting brackets for versatile mounting options such as a wall, desk or cabinet, for a clean and manageable solution
Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
Consists of 1 Base unit for the loca
Dimensions3.3"W x 2.4"L x 0.8"H
Weight181g
Package Content1 - Local VGA Extender Unit
1 - Remote VGA Extender Unit
1 - Mounting Bracket for Receiver (w/ screws)
2 - Sets Rubber Feet
2 - Power Adapter
1 - Instruction Manual
Shipping weight0.87 kg
Package size239 × 185 × 95 mm

Questions about this item

Will the ST122UTPA work with my existing Cat 5e UTP cable runs?

Yes, the extender specifies Cat 5e UTP or better cabling, so your existing Cat 5e runs are compatible for distances up to 150 m.

How can I verify the ST122UTPA is delivering the expected 1440x900 resolution at 50 m?

Connect a display to the remote unit, set the source to 1440x900, and confirm a stable image with audio; the LEDs on both units indicate link status and power.

Does the ST122UTPA package include both power adapters and the Cat 5 cable?

The box contains two power adapters (9 V DC, 0.6 A, centre-positive), local and remote units, mounting bracket, rubber feet and manual; Cat 5e cable is not included.
