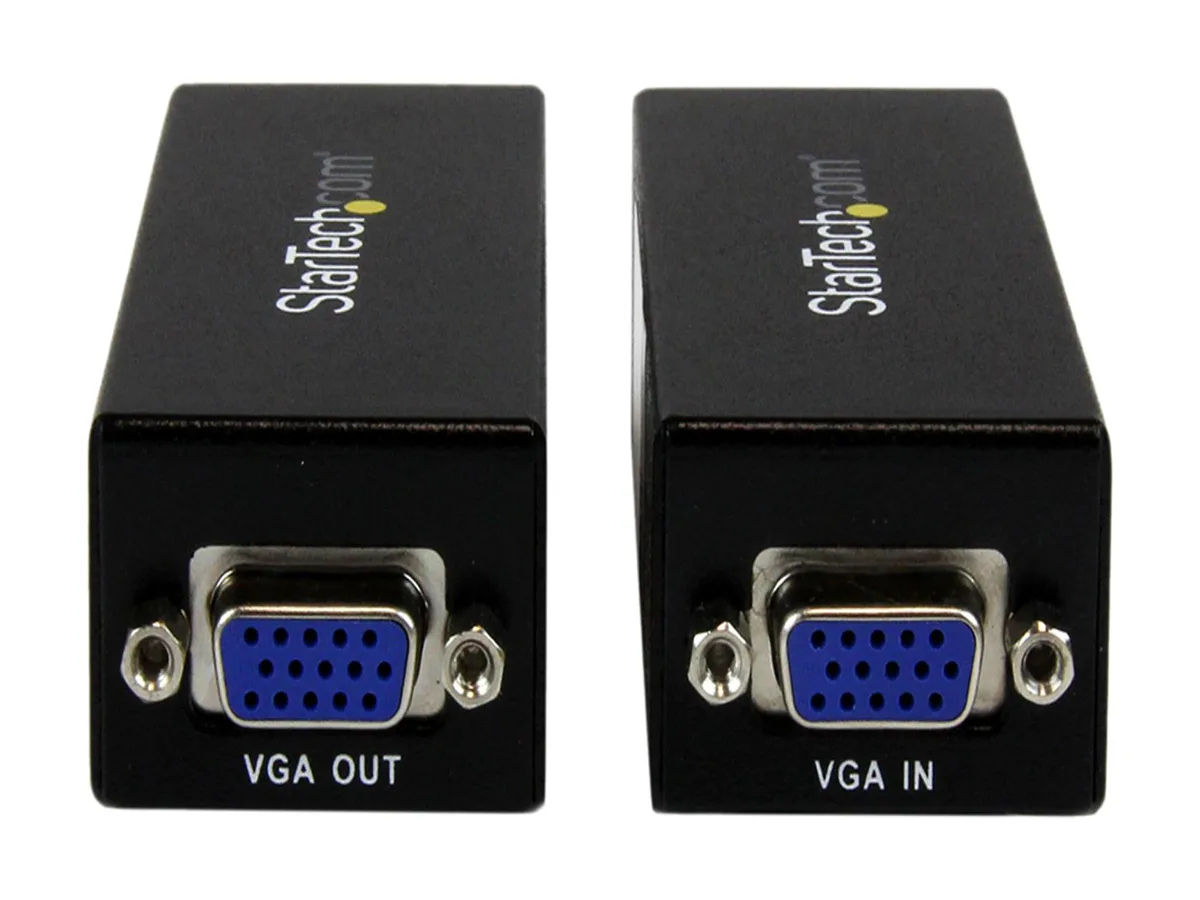

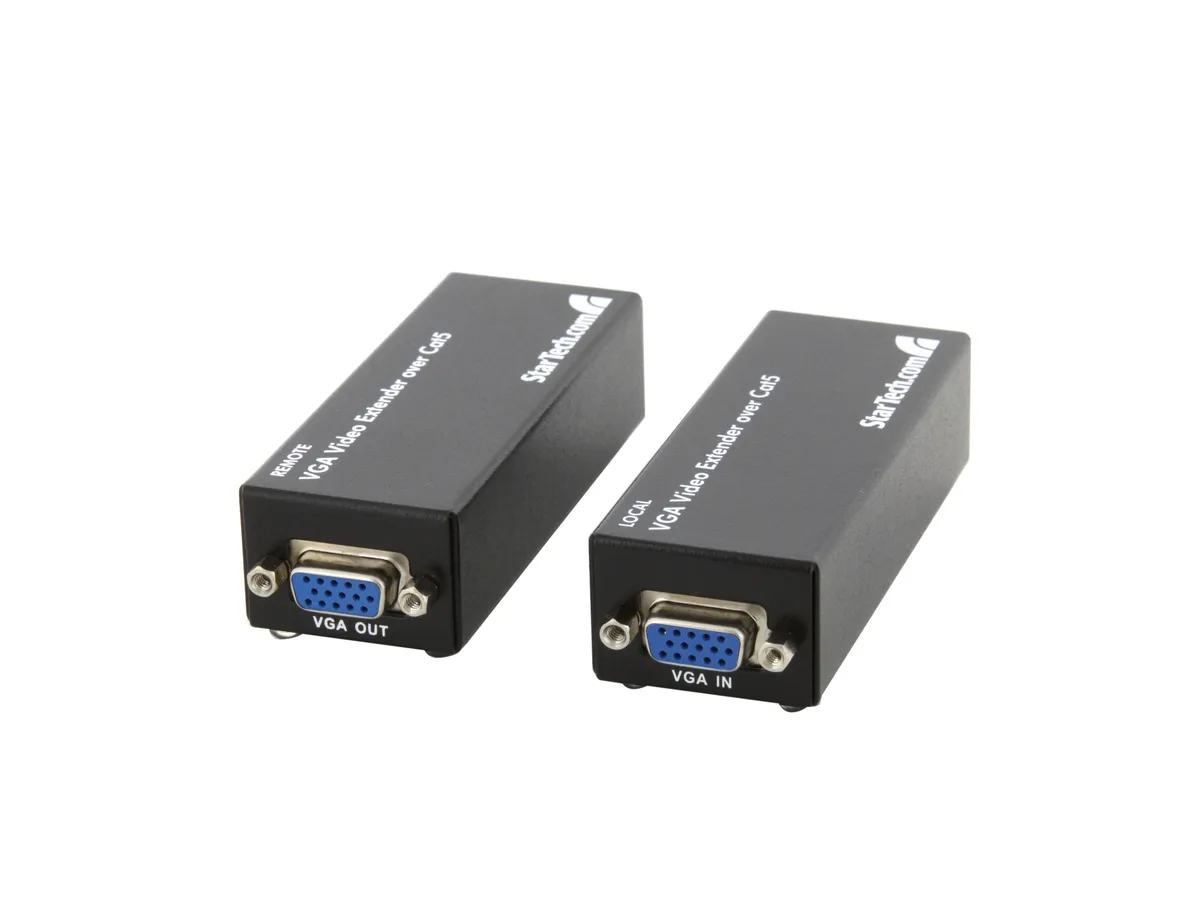

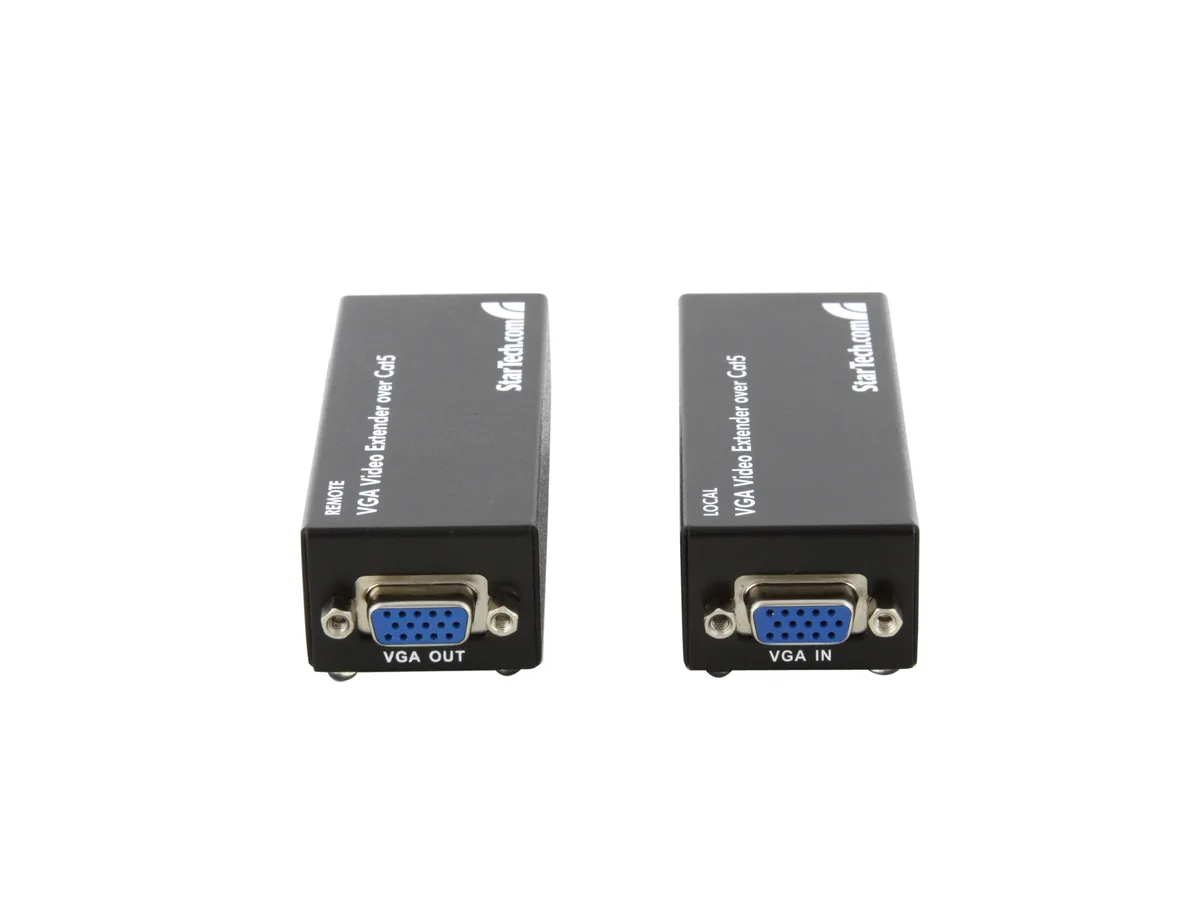

Two small black aluminium boxes with VGA and RJ45 ports, mounting bracket, VGA cable and universal power adapter

STARTECH

STARTECH ST121UTPEP VGA over Cat5 extender kit 80m 250ft

SKU CH-YPGZ-RJ6CA MPN ST121UTPEP

Extends a VGA signal up to 80 m over Cat5 cable with 1920 x 1200 resolution at 50 m and includes mounting brackets plus a universal power adapter

  • Extender & Repeater TypeNon Wall Plate Extender
  • DistanceMax Distance: 80 m / 260 ft
  • Resolution Support1920x1200 @ 50m(164ft) 1280x1024 @ 80m(260ft)
  • System RequirementsResolution may vary at distances depending on cable quality.
  • Power SupplyPower Adapter Included: Yes Output Voltage: 12 DC Output Cur
  • SpecificationCabling: Cat 5 UTP Audio: No Daisy-Chain: No Color: Black En
  • Extend VGA signals up to 250 ft (80 m) using Cat5 cabling
  • Achieve 1920x1200 resolution at 150 ft (50 m) over standard UTP cable
  • Maintain 1280x1024 clarity at full 250 ft (80 m) extension distance
  • Mount transmitter and receiver securely with included aluminium brackets
  • Power both units from a single 12 V 0.6 A universal adapter

VGA signal extension over Cat5 cabling

The StarTech.com ST121UTPEP kit transmits a VGA signal from a single source to one remote display using Cat5 UTP cable. It includes a local transmitter, a remote receiver, a mounting bracket, a VGA cable and a universal 12 V DC power adapter. The aluminium enclosures measure 5.4 by 3.9 by 1 inches and weigh 36 g each. This point-to-point extender is designed for digital signage, classrooms or meeting rooms where the display sits far from the computer.

Installers needing up to 80 metres reach

The system supports 1920 x 1200 or 1600 x 1200 at 50 metres and 1280 x 1024 or 1024 x 768 at the full 80 metres. Cat5e UTP cabling is recommended for best results. It does not carry audio, cannot be daisy-chained and provides only a single local and single remote connection. Buyers who need audio transmission, multiple remote displays or longer distances should consider a different solution.

Maximum resolution at your cable length

Resolution drops as the Cat5 run increases, so the distance between source and display is the specification that decides suitability. At 50 metres you can use 1920 x 1200; at 80 metres you are limited to 1280 x 1024. Cable quality directly affects the achievable resolution, so verify the run length before purchase.

Highlights

  • Extend VGA signals up to 250 ft (80 m) using Cat5 cabling
  • Achieve 1920x1200 resolution at 150 ft (50 m) over standard UTP cable
  • Maintain 1280x1024 clarity at full 250 ft (80 m) extension distance
  • Mount transmitter and receiver securely with included aluminium brackets
  • Power both units from a single 12 V 0.6 A universal adapter

Specifications

BrandStarTech.com
ModelST121UTPEP
Extender & Repeater TypeNon Wall Plate Extender
DistanceMax Distance: 80 m / 260 ft
Resolution Support1920x1200 @ 50m(164ft)
1280x1024 @ 80m(260ft)
System RequirementsResolution may vary at distances depending on cable quality. Cat 5e UTP cables are recommended.
Power SupplyPower Adapter Included: Yes
Output Voltage: 12 DC
Output Current: 0.6A
Center Tip Polarity: Positive
SpecificationCabling: Cat 5 UTP
Audio: No
Daisy-Chain: No
Color: Black
Enclosure Type: Aluminum
Local Unit Connectors
1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Female
Remote Unit Connectors
1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Female
FeatureExtends video signal by up to 250 ft. (80m)
Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
Mounting bracket included
Single power adapter can be connected at local or remote end of the extension
Uses standard Cat 5 or better cabling
Kit consists of 1 Base unit and 1 Remote unit
Pure hardware design - no software or drivers required
Dimensions5.4"W x 3.9"L x 1"H
Weight36g
Package Content1 - VGA over Cat5 Transmitter
1 - VGA over Cat5 Receiver
1 - Installation Bracket (w/ screws)
1 - VGA Cable
1 - Universal Power Adapter (NA/UK/EU/AUS)
1 - Instruction Manual
Shipping weight1.13 kg
Package size318 × 140 × 64 mm

Questions about this item

Will the Cat5 cables or power adapter need periodic replacement during long-term use?

The kit includes a 12 V 0.6 A universal power adapter and uses standard Cat 5 UTP cabling; solid-core Cat 5e is recommended for best signal integrity over the full 80 m run.

At the full 80 m distance, which resolution limit appears first?

At 80 m (250 ft) the maximum supported resolution is 1280 x 1024; higher resolutions such as 1920 x 1200 are only guaranteed up to 50 m (164 ft).

How much heat or fan noise does the transmitter and receiver produce when running continuously?

Both units are passively cooled in aluminium enclosures measuring 5.4" x 3.9" x 1" and weighing 36 g, so they generate no fan noise and minimal heat during all-day operation.
