Two compact metal boxes with VGA and RJ45 ports, power adapters and mounting bracket

STARTECH

STARTECH ST121UTP VGA extender 500ft 150m 2 local 2 remote

SKU CH-2ZH9-T33MG MPN ST121UTP

Extends and distributes a VGA signal to two local and two remote displays over Cat5 cabling up to 150 metres

  • Extender & Repeater TypeNon Wall Plate Extender
  • Distance150 m / 500 ft.
  • Resolution Support1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 5
  • Power SupplyPower Adapter Included: Yes Output Voltage: 9 DC Output Curr
  • SpecificationCabling: Cat 5e UTP or better Audio: No Daisy-Chain: No Loca
  • FeatureConsists of 1 Base unit for the local display, and 1 Remote
  • Extends VGA to two local and two remote screens over Cat5 cabling
  • 1440×900 resolution at 150 ft, 1280×1024 at 300 ft, 1024×768 at 500 ft
  • Power adapters included for both local and remote units
  • Compact 3.3×2.4×0.8 in design with mounting bracket and rubber feet
  • Weighs 181 g for easy rack or desktop placement

VGA extender for four displays

The StarTech ST121UTP extends a single VGA source to two local and two remote monitors over Cat5e or better cabling. It reaches up to 150 metres with a 1024x768 image and shorter runs support 1280x1024 or 1440x900. The kit includes both extender units, two power adapters, a mounting bracket and rubber feet.

Cabling and resolution planning

Verify that your cable run uses solid-conductor Cat5e UTP or higher and does not exceed 150 metres. At the full distance the maximum supported resolution drops to 1024x768; 1280x1024 is available at 100 metres and 1440x900 at 50 metres. Each display requires a standard VGA connection.

Passive cooling and low power draw

The compact units measure 3.3 by 2.4 by 0.8 inches and weigh 181 grams with no moving parts, so they operate silently. Each side draws 0.6 amps at 9 volts DC from the supplied adapters, keeping heat output minimal in typical installations.

Highlights

  • Extends VGA to two local and two remote screens over Cat5 cabling
  • 1440×900 resolution at 150 ft, 1280×1024 at 300 ft, 1024×768 at 500 ft
  • Power adapters included for both local and remote units
  • Compact 3.3×2.4×0.8 in design with mounting bracket and rubber feet
  • Weighs 181 g for easy rack or desktop placement

Specifications

BrandStarTech.com
ModelST121UTP
Extender & Repeater TypeNon Wall Plate Extender
Distance150 m / 500 ft.
Resolution Support1440x900 @ 150ft / 50m
1280x1024 @ 300ft / 100m
1024x768 @ 500ft / 150m
Power SupplyPower Adapter Included: Yes
Output Voltage: 9 DC
Output Current: 0.6A
Center Tip Polarity: Positive
SpecificationCabling: Cat 5e UTP or better
Audio: No
Daisy-Chain: No

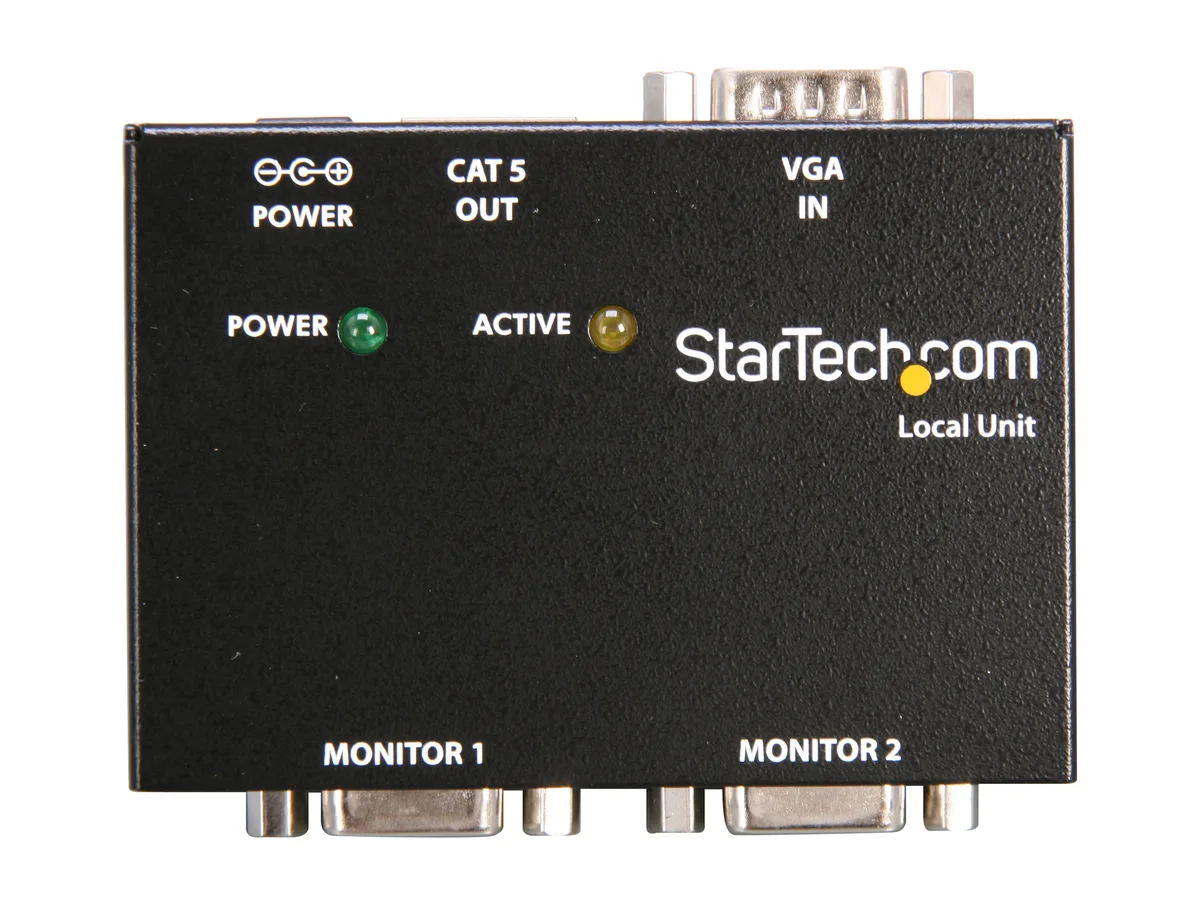

Local Unit Connectors
1 - RJ-45 Female
1 - VGA (15 pin; High Density D-Sub) Male

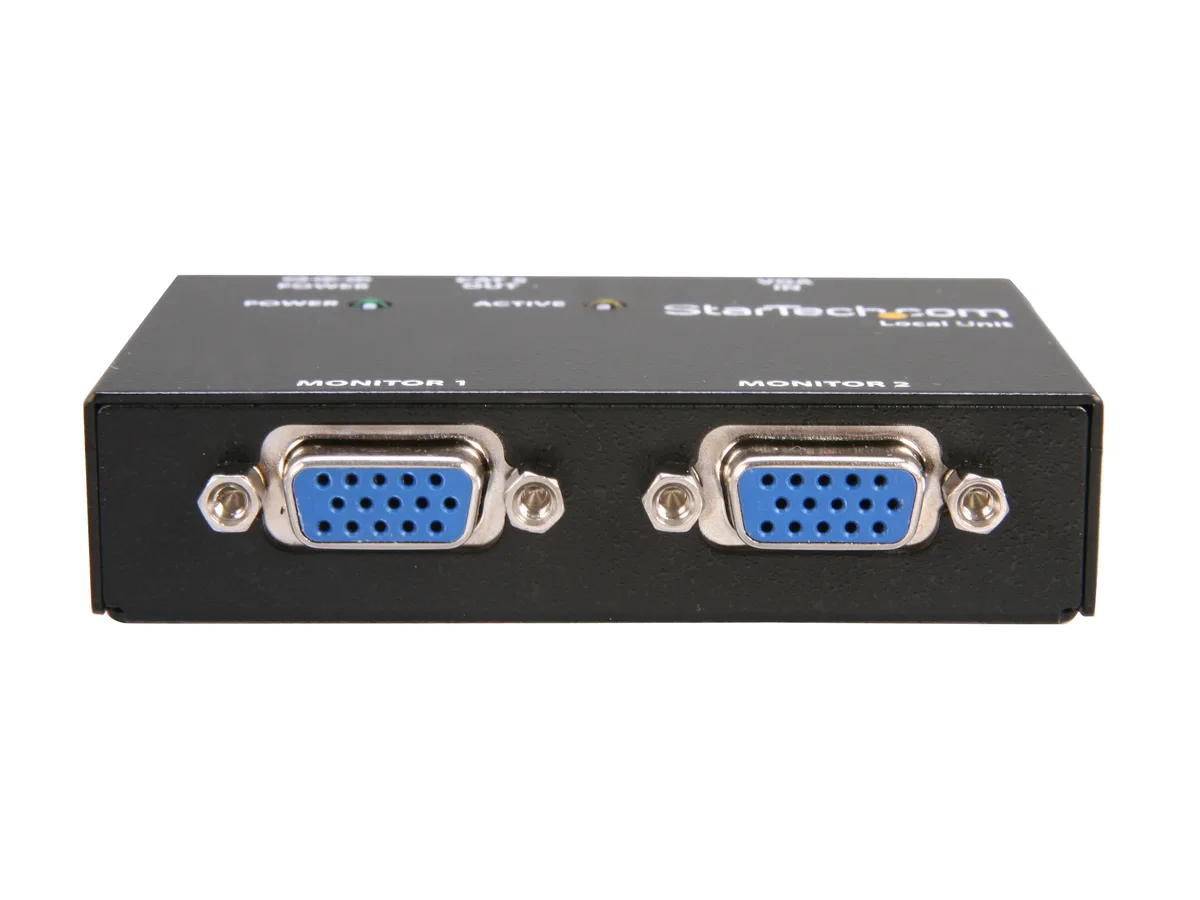

2 - VGA (15 pin; High Density D-Sub) Female

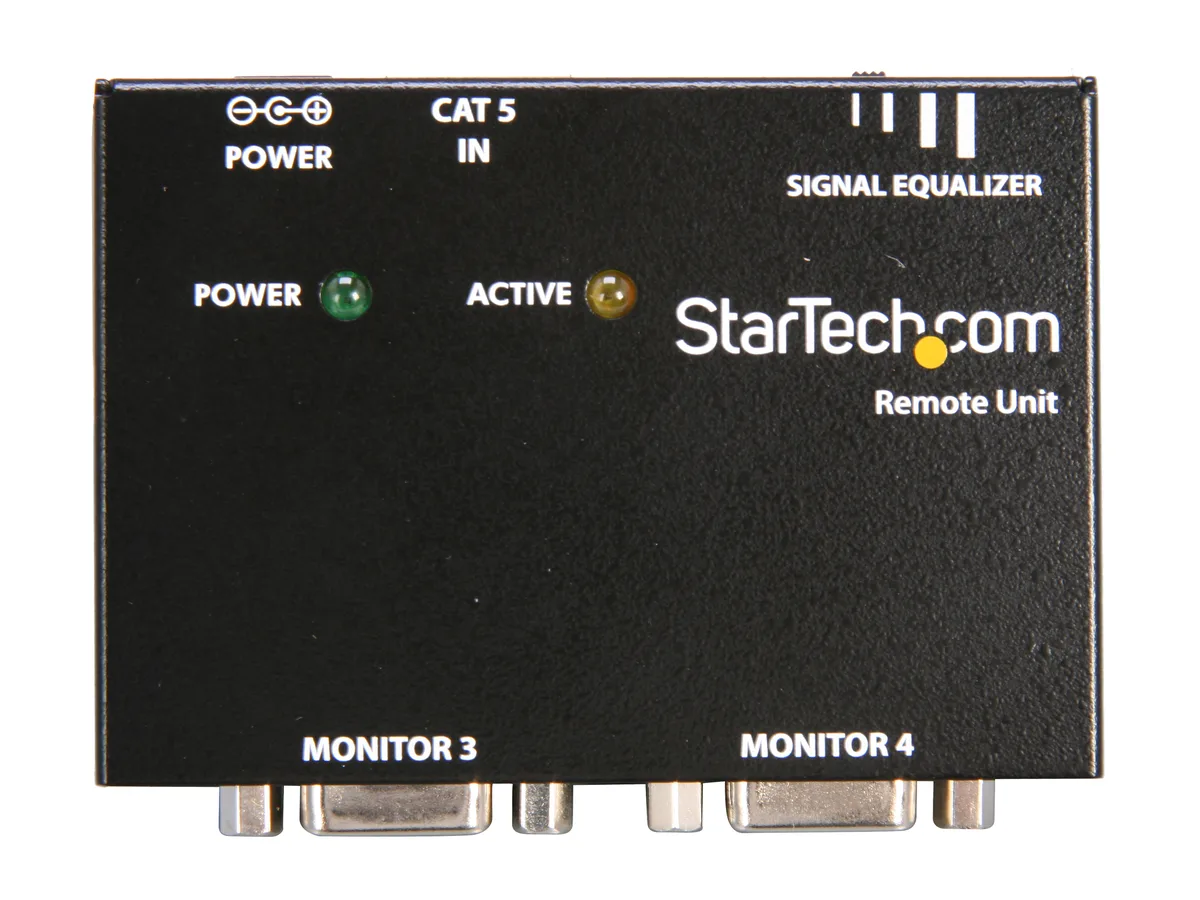

Remote Unit Connectors
1 - RJ-45 Female
2 - VGA (15 pin; High Density D-Sub) Female
Color: Black
Enclosure Type: Aluminum
FeatureConsists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
Extends video cables by up to 500 ft. (150m)
Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Included mounting brackets

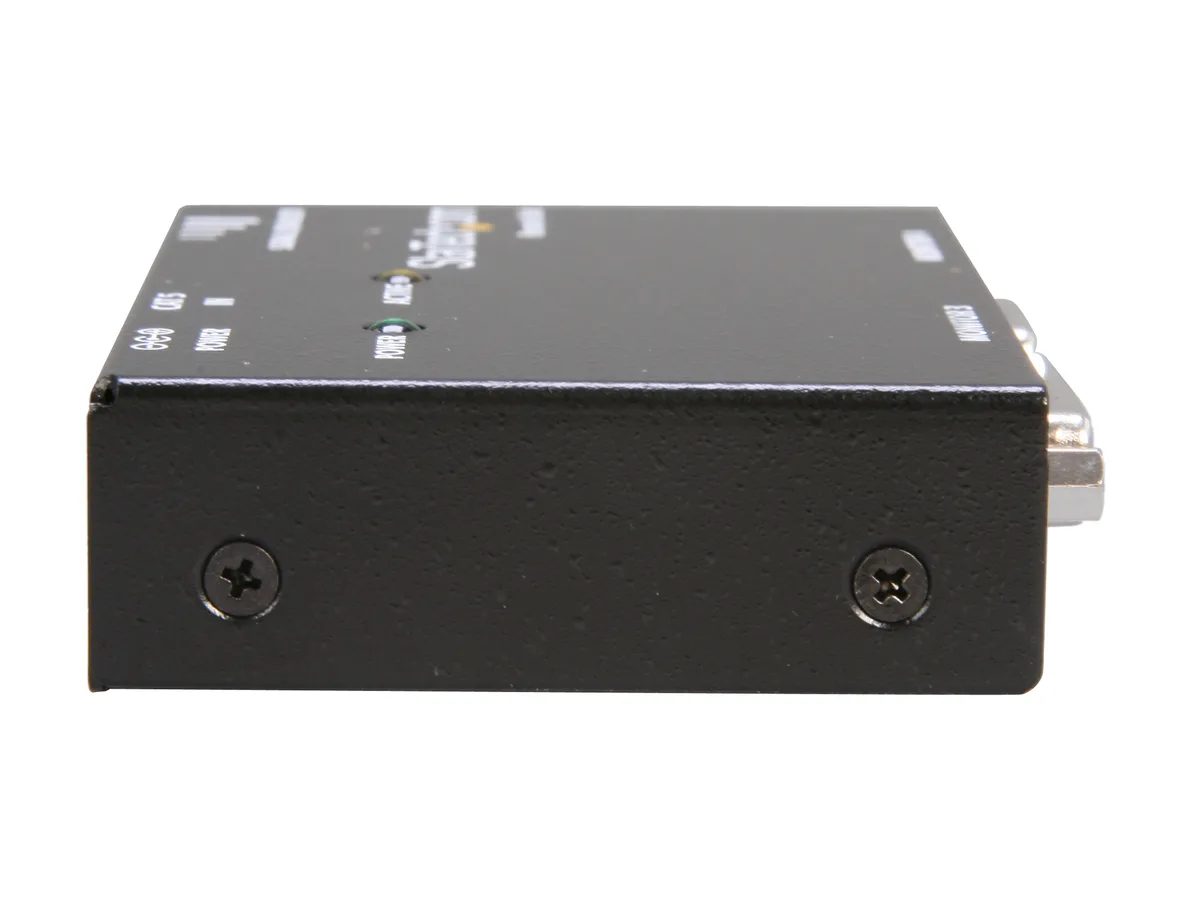

Dimensions3.3"W x 2.4"L x 0.8"H
Weight181g

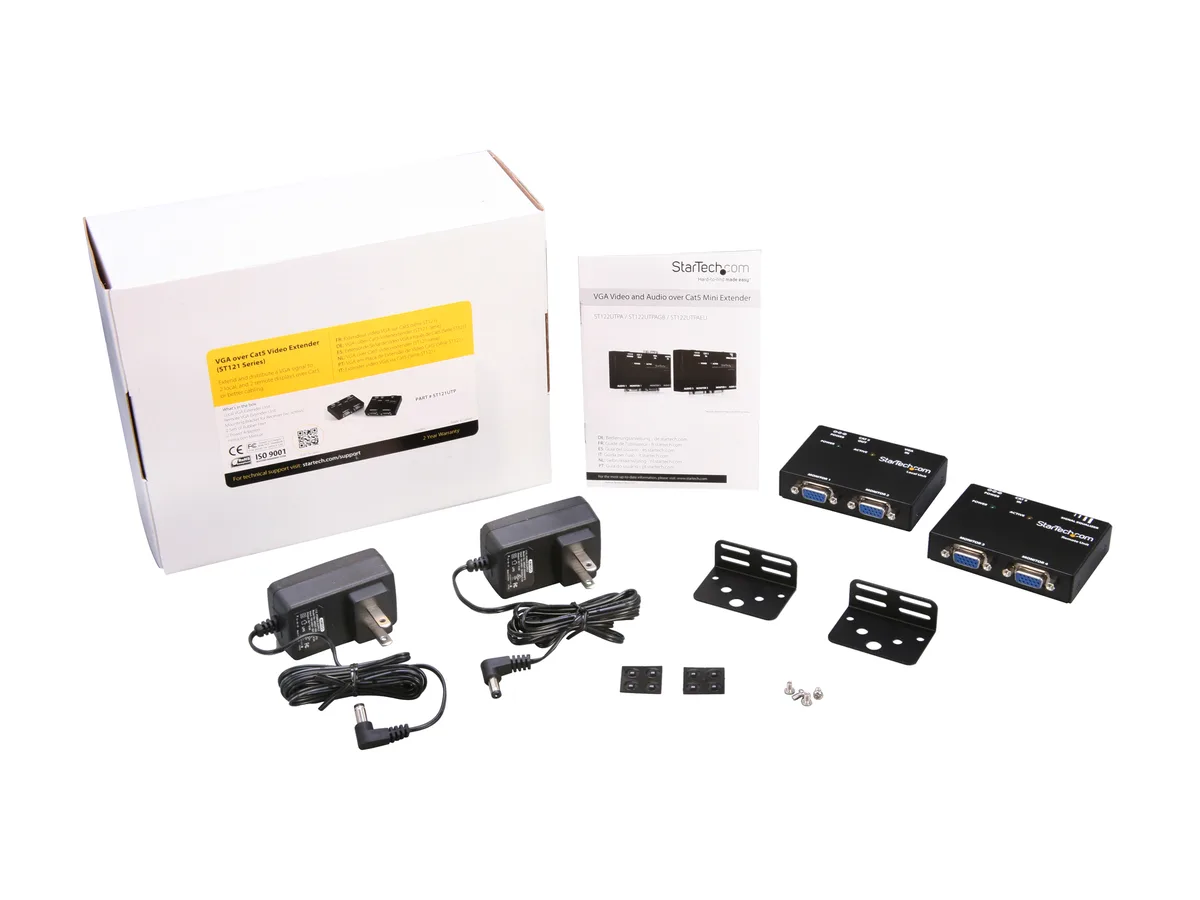

Package Content1 - Local VGA Extender Unit
1 - Remote VGA Extender Unit
1 - Mounting Bracket for Receiver (w/ screws)
2 - Sets Rubber Feet
2 - Power Adapter
1 - Instruction Manual
Shipping weight0.81 kg
Package size241 × 188 × 91 mm

Questions about this item

Does the ST121UTP package include the Cat5e cables needed to link the local and remote units?

No, the box supplies the local unit, remote unit, two power adapters, a mounting bracket with screws, rubber feet and a manual; Cat5e or better UTP cable must be purchased separately.

Which resolution should I expect at the full 500 ft distance versus a shorter 150 ft run?

At 500 ft (150 m) the extender supports 1024 x 768; at 150 ft (50 m) it supports 1440 x 900, with 1280 x 1024 available at the intermediate 300 ft (100 m) range.

How many monitors can I actually drive at each end once the extender is installed?

The local unit provides one VGA input and two VGA outputs, while the remote unit provides two VGA outputs, so up to two displays can be connected at the local side and two at the remote side simultaneously.
