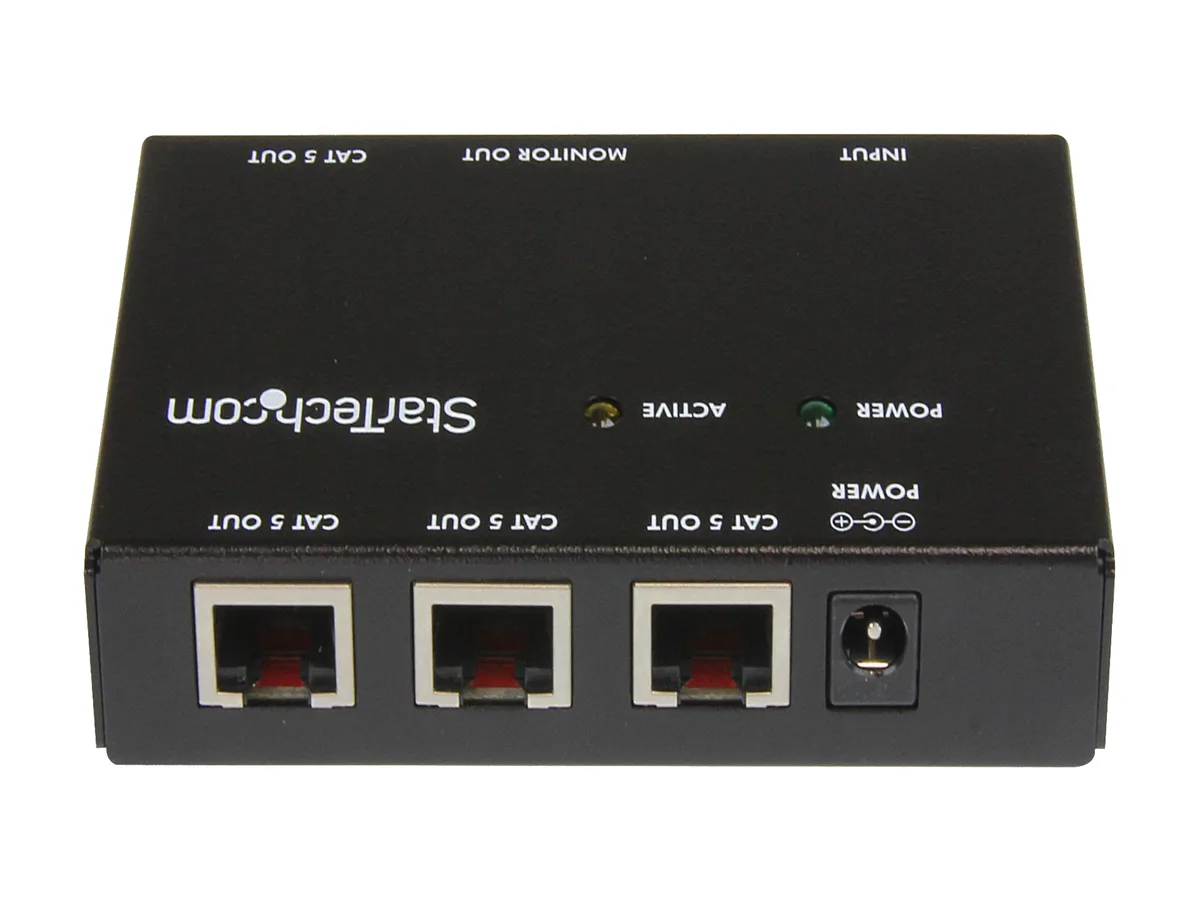

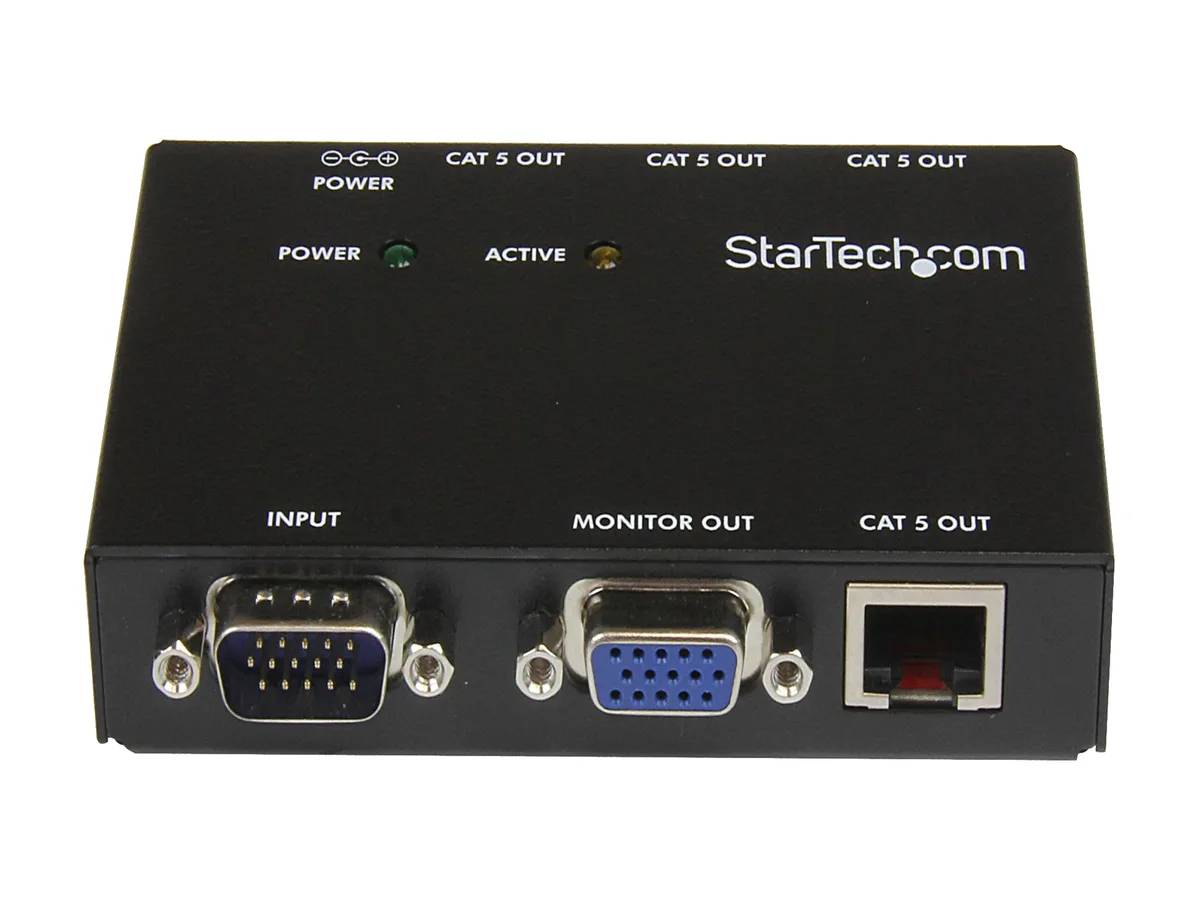

Black aluminium box with four RJ-45 ports and VGA connectors

STARTECH

STARTECH ST1214T 4-port VGA extender over Cat5 150m

SKU CH-ZNDY-9SDH8 MPN ST1214T

Distributes one VGA source to four displays up to 150 m over Cat5 cable, supporting 1024×768 at full distance with no drivers required

  • Extender & Repeater TypeNon Wall Plate Extender
  • Distance150 m / 500 ft.
  • Resolution Support1600x1200 @ 150ft(50m) 1280x1024 @ 300ft(100m) 1024x768 @ 50
  • VGA1 - VGA (15 pin; High Density D-Sub) Male 2 - VGA (15 pin; H
  • Other Connector4 - RJ-45 Female
  • System RequirementsOne ST121R receiver unit per remote display that you are con
  • Extends VGA to four displays over Cat5 cable
  • 150 m reach at 1024x768 resolution
  • 1600x1200 supported at shorter 50 m distance
  • Pure hardware operation with no drivers needed
  • Daisy-chain capable for flexible installation

Four-Port VGA Extender for Multi-Display

The ST1214T transmitter takes a single VGA source and sends it to four remote screens over Cat5 cabling up to 150 metres away. It is built for installers and AV technicians who need to mirror one computer or media player across multiple monitors, projectors or televisions in classrooms, signage networks or control rooms.

Verify Receiver Units and Cable Infrastructure

Each remote display requires a separate ST121R receiver unit, which is not included with this transmitter. Confirm you have four receivers on hand and that the site can run Category 5 UTP or better cable between the transmitter location and every display position before placing the order.

Power Supply and Daisy-Chain Flexibility Included

A 9 V DC 0.6 A centre-positive power adapter ships in the box so the transmitter is ready to operate immediately. The aluminium enclosure also supports daisy-chaining, allowing additional transmitters to be linked for larger distributions without extra software or driver installation.

Highlights

  • Extends VGA to four displays over Cat5 cable
  • 150 m reach at 1024x768 resolution
  • 1600x1200 supported at shorter 50 m distance
  • Pure hardware operation with no drivers needed
  • Daisy-chain capable for flexible installation

Specifications

BrandStarTech.com
ModelST1214T
Extender & Repeater TypeNon Wall Plate Extender
Distance150 m / 500 ft.
Resolution Support1600x1200 @ 150ft(50m)
1280x1024 @ 300ft(100m)
1024x768 @ 500ft(150m)
VGA1 - VGA (15 pin; High Density D-Sub) Male
2 - VGA (15 pin; High Density D-Sub) Female
Other Connector4 - RJ-45 Female
System RequirementsOne ST121R receiver unit per remote display that you are connecting
Power SupplyPower Adapter Included: Yes
Output Voltage: 9 DC
Output Current: 0.6A
Center Tip Polarity; Positive
SpecificationDaisy-Chain: Yes
Ports: 4
Cabling: Cat 5 UTP or better
Audio: No
Color: Black
Enclosure Type: Aluminum
FeatureExtends video cables by up to 500 ft. (150m)
Uses standard Category 5 or better cabling
Supports 1024x768 resolution at 500ft (150m)
Pure hardware design, no software or drivers required
Provides crystal clear picture quality
Dimensions4.1"L x 2.5"W x 0.8"H
Weight246g
Package Content1 - VGA Extender - Transmitter (Local)
1 - Set - Rubber Feet
1 - Power Adapter
1 - Instruction Manual
Shipping weight0.53 kg
Package size218 × 102 × 97 mm

Questions about this item

What comes in the box and do I need to buy anything else to connect four displays?

The package includes the transmitter, a power adapter, rubber feet and the manual. You must buy one ST121R receiver for each remote display and Cat5 or better cable for every run.

Which resolution should I expect at the full 150 m distance?

At 150 m the extender supports 1024x768; higher resolutions such as 1280x1024 are rated for 100 m and 1600x1200 for 50 m.

How does the 150 m headline distance affect the picture on a real monitor?

At the maximum 150 m you will get a 1024x768 image; shortening the cable to 100 m allows 1280x1024 and 50 m allows 1600x1200.
