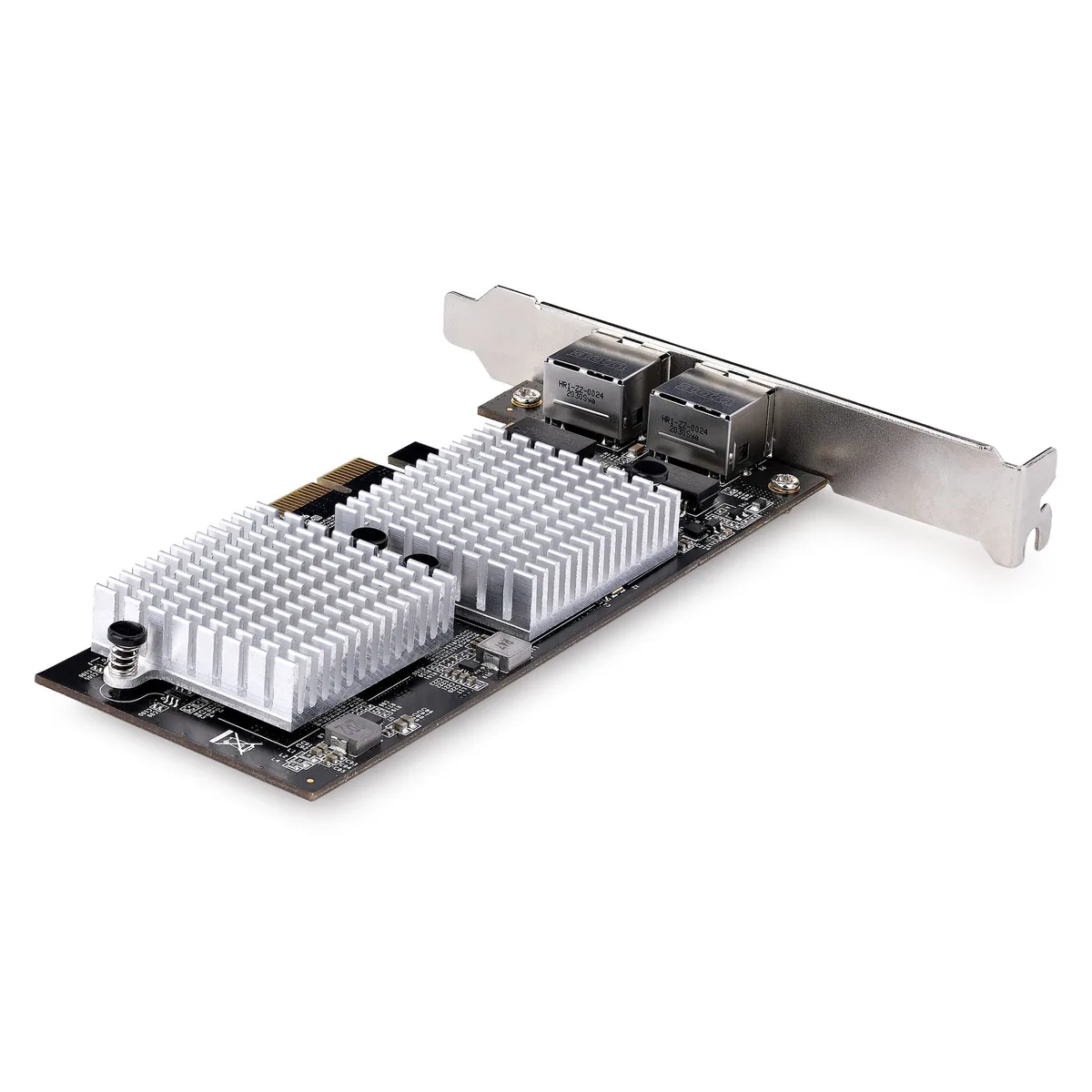

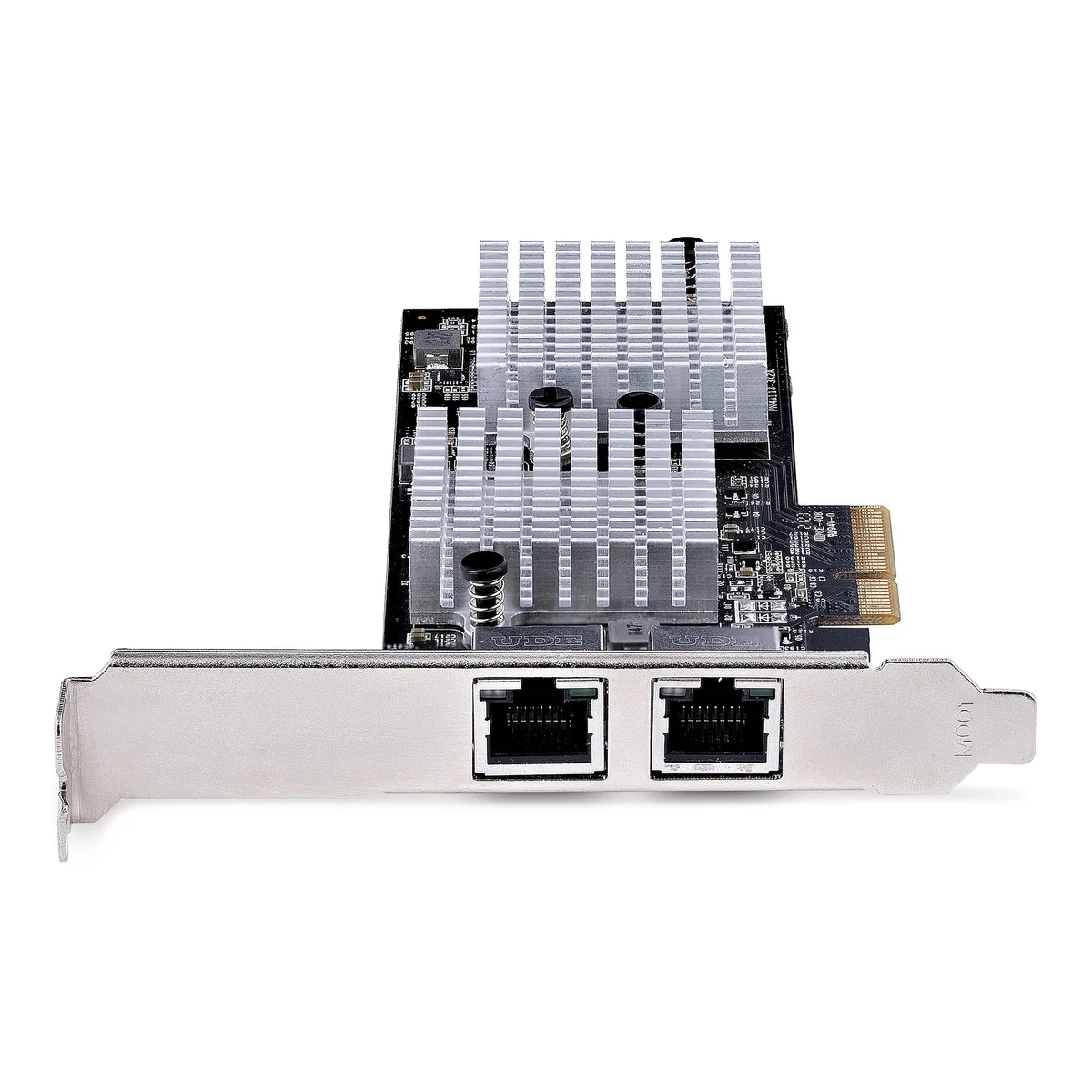

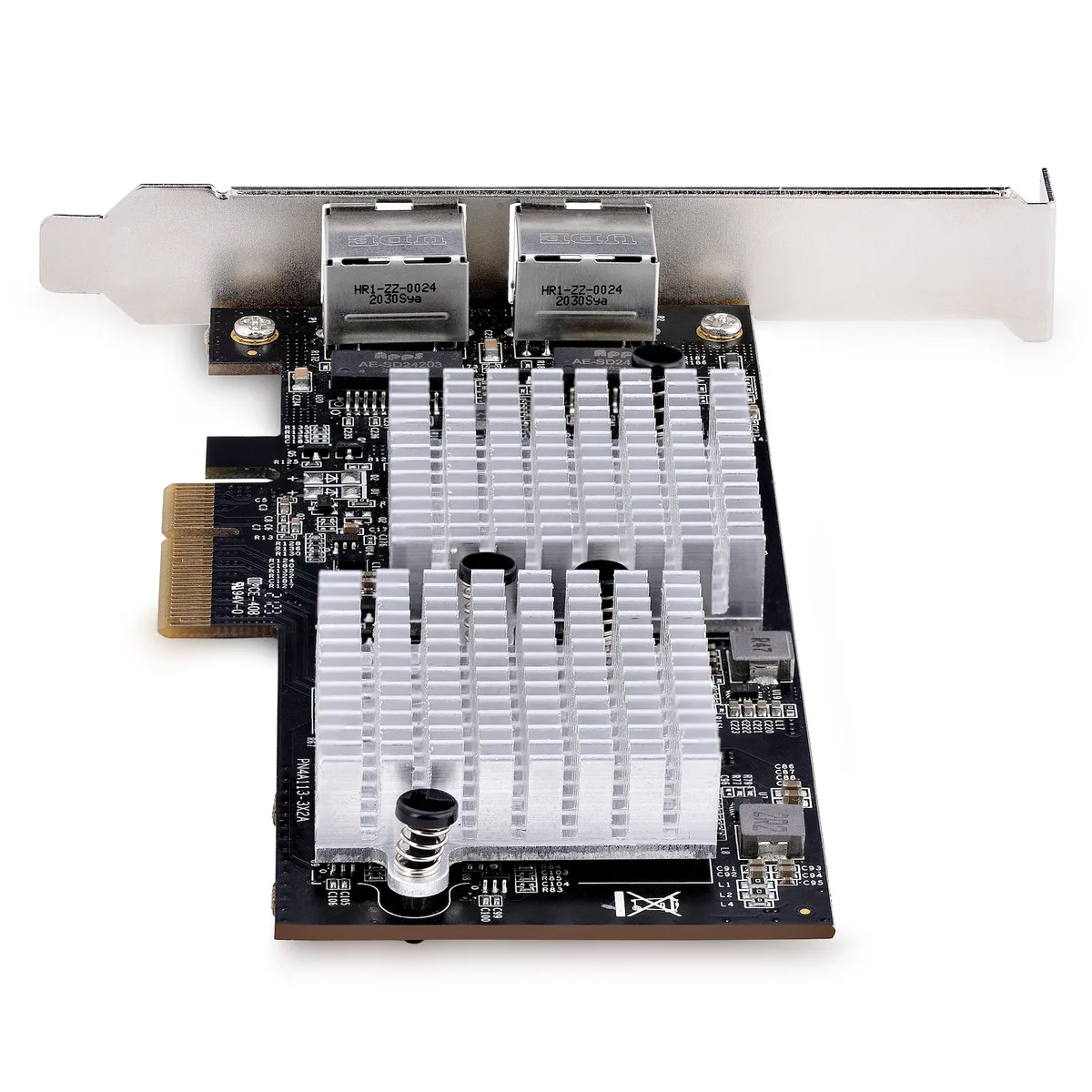

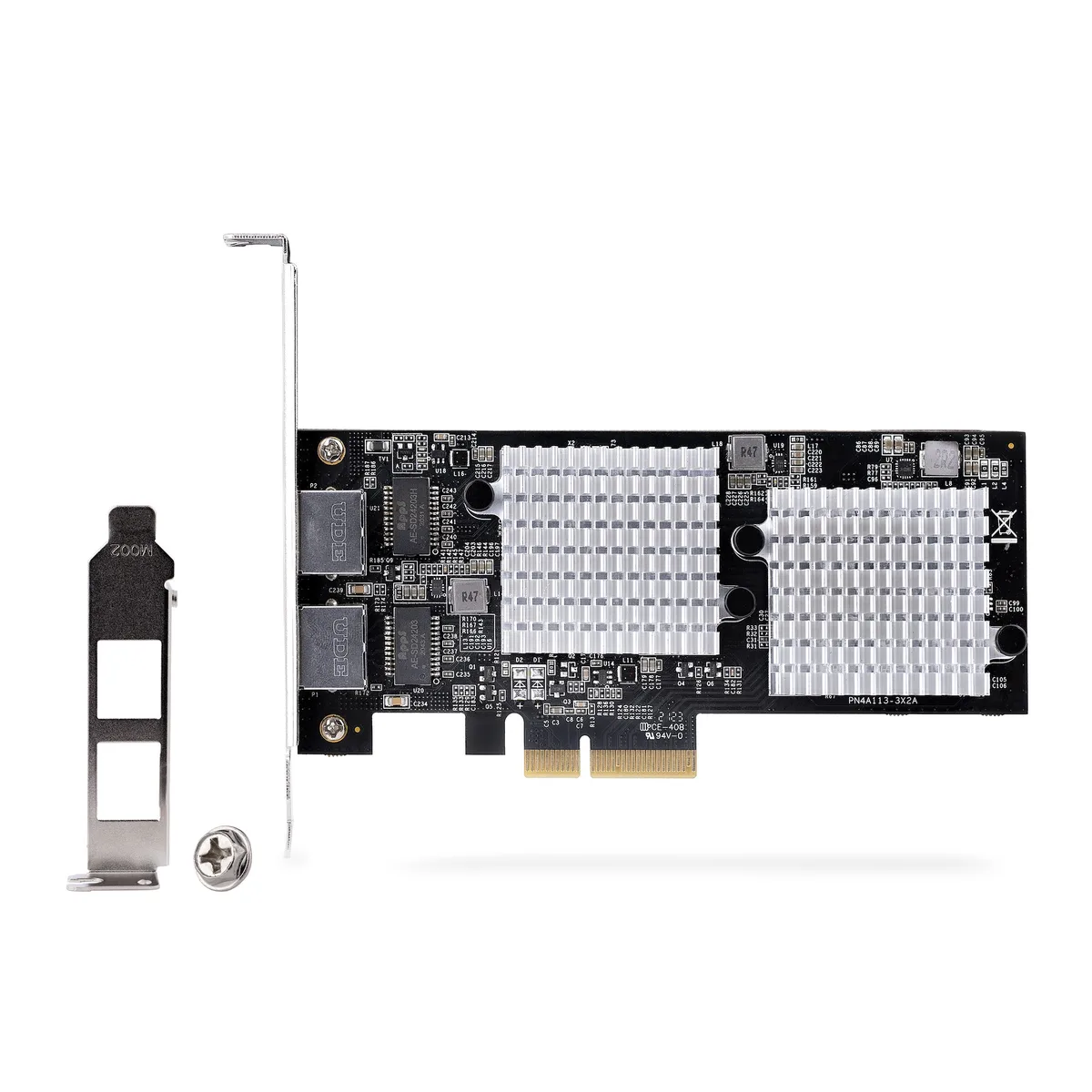

Green circuit board with two RJ45 ports and PCIe x4 edge connector

STARTECH

STARTECH ST10GSPEXNDP2 2-Port 10Gbps PCIe Network Card

SKU CH-W59P-FGXPF MPN ST10GSPEXNDP2

Adds two 10 Gbps RJ45 ports via PCIe 3.0 x4 for high-speed server connectivity

  • StandardsIEEE 802.3an (10GBASE-T) 802.3bz (5GBASE-T) 802.3bz (2.5GBAS
  • SpeedMaximum Data Transfer Rate 10 Gbps
  • Connectors2 x RJ45
  • InterfacePCI Express x4 Slot
  • Wake On LANYes

Ports 2 Port

  • Dual RJ45 ports deliver 10 Gbps throughput over twisted pair cable
  • PCIe 3.0 x4 interface provides enhanced bandwidth for fast data access
  • Supports 2.5GBASE-T and 5GBASE-T for flexible multi-speed deployment
  • Energy Efficient Ethernet reduces power consumption during low traffic periods
  • Wake-on-LAN and IEEE 1588 PTP enable remote management and precise timing

Dual-Port 10Gbps Server NIC

This StarTech.com adapter adds two RJ45 ports to a PC or server through a PCI Express 3.0 x4 slot. It supports speeds from 10BASE-T up to 10GBASE-T over twisted-pair copper cabling. The card targets workstations and servers that need high-throughput wired connectivity without fibre infrastructure.

PCIe 3.0 x4 lane requirement

The adapter operates in a PCI Express 3.0 x4 slot, which supplies the bandwidth needed for dual 10 Gbps links. Systems limited to x1 or x2 electrical lanes cannot deliver full line rate on both ports simultaneously. Verify the motherboard or riser provides an x4 link before purchase.

Jumbo frame and PTP offload

Hardware support for IEEE 1588 Precision Time Protocol and jumbo frames reduces CPU overhead in time-sensitive and high-volume workloads. Wake-on-LAN and Energy Efficient Ethernet are also implemented in hardware, so the host can enter low-power states without losing link.

Highlights

  • Dual RJ45 ports deliver 10 Gbps throughput over twisted pair cable
  • PCIe 3.0 x4 interface provides enhanced bandwidth for fast data access
  • Supports 2.5GBASE-T and 5GBASE-T for flexible multi-speed deployment
  • Energy Efficient Ethernet reduces power consumption during low traffic periods
  • Wake-on-LAN and IEEE 1588 PTP enable remote management and precise timing

Specifications

BrandStarTech.com
Part NumberST10GSPEXNDP2
StandardsIEEE 802.3an (10GBASE-T)
802.3bz (5GBASE-T)
802.3bz (2.5GBASE-T)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-T)
IEEE 802.3 (10BASE-T)
IEEE P802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 (PTP)
Wake-on-LAN (WOL)
PCI Express Version 3.0
SpeedMaximum Data Transfer Rate
10 Gbps
Connectors2 x RJ45
InterfacePCI Express x4 Slot
Wake On LANYes
Shipping weight0.23 kg
Package size229 × 152 × 51 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 10 Gbps speed apply to each of the two ports simultaneously?

Yes, each RJ45 port can negotiate up to 10 Gbps independently, and the PCI Express 3.0 x4 interface supplies enough host bandwidth to keep both ports running at that rate without bottlenecking.

What does the PCI Express 3.0 x4 interface cap in practice?

The x4 slot carries PCIe 3.0 signalling, so the card is limited to the throughput of a PCI Express 3.0 x4 link; it cannot use wider or newer slot generations for additional bandwidth.

What slot size and bracket height does the card need to fit?

The adapter requires a physical PCI Express x4 slot (or larger) and uses a standard-height bracket, so it fits typical server or workstation chassis without a low-profile bracket.
