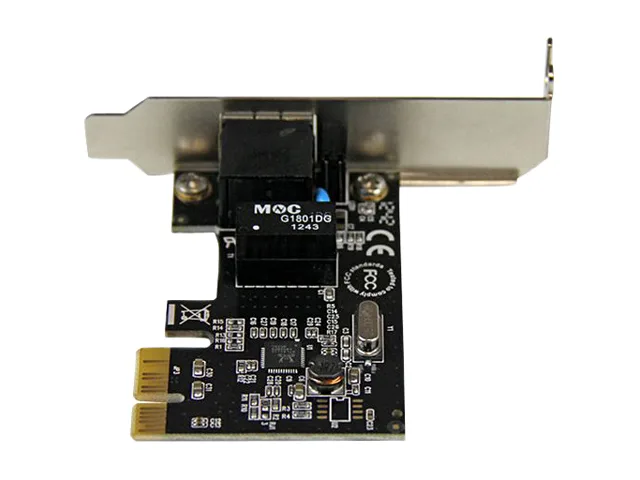

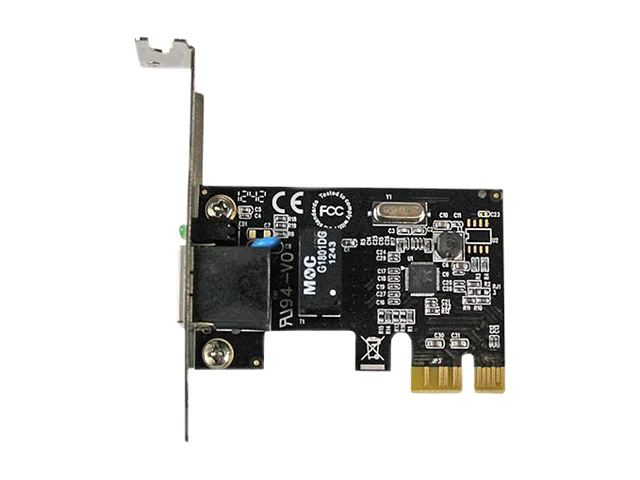

Green circuit board with silver RJ45 port and low-profile bracket

STARTECH

STARTECH ST1000SPEX2L PCI-Express x1 Gigabit network card Low Profile

SKU CH-5ZB9-X16GK MPN ST1000SPEX2L

Adds a 10/100/1000Mbps RJ45 port via PCI Express x1 with low-profile bracket and Realtek RTL8111H chipset

  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Speed10/100/1000Mbps
  • Connectors1 x RJ45
  • InterfacePCI-Express x1
  • LEDs1 x Gigabit Detect (Yellow) 1 x Link / Activity (Green)
  • Wake On LANYes

Option PCIe 1 Gbps - 1 Port RJ45 Low Profile

  • Gigabit Ethernet up to 1000 Mbps over twisted pair
  • PCI Express x1 interface delivers 250 MB/s bandwidth
  • Low-profile bracket included for slim chassis installs
  • Wake-on-LAN enables remote power-on capability
  • Auto-negotiation supports 10/100/1000 Mbps speeds

Low-Profile Gigabit NIC

This StarTech ST1000SPEX2L adds a single RJ45 port to any desktop or server with a free PCI Express x1 slot. The low-profile bracket is included for slim chassis, while a standard-height bracket is also supplied for full-size cases. It is aimed at IT staff replacing a failed onboard port or expanding a workstation with a second wired link.

Passive Cooling and Low Power

The card uses a Realtek RTL8111H controller that draws minimal power from the slot and has no fan, so it adds no audible noise to the system. Wake-on-LAN is supported for remote power management, and the two onboard LEDs show link status and gigabit detection at a glance.

Simple Drop-In Upgrade

Installation requires only an open PCI Express x1 lane and the included driver media; no auxiliary power cable or extra case clearance is needed. The half-height form factor frees full-size slots for larger expansion cards, while the 100-metre cable reach suits typical office or server-room runs.

Highlights

  • Gigabit Ethernet up to 1000 Mbps over twisted pair
  • PCI Express x1 interface delivers 250 MB/s bandwidth
  • Low-profile bracket included for slim chassis installs
  • Wake-on-LAN enables remote power-on capability
  • Auto-negotiation supports 10/100/1000 Mbps speeds

Specifications

BrandStarTech.com
ModelST1000SPEX2L
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Speed10/100/1000Mbps
Connectors1 x RJ45
InterfacePCI-Express x1
LEDs1 x Gigabit Detect (Yellow)
1 x Link / Activity (Green)
Wake On LANYes
FeaturesBus Type: PCI Express
Card Type: Low Profile (SP bracket incl.)
Chipset ID: Realtek - RTL8111H
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface: RJ45 (Gigabit Ethernet)
Ports: 1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.
Maximum Data Transfer Rate: 1000 Mbps
Supported Protocols: CSMA / CD
Connector Type (s): 1 x PCI Express x1
External Ports: 1 x RJ-45
OS Compatibility:
Windows 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X 10.6 to 10.9
Linux 2.4.
Dimensions1.90" x 0.70" x 2.80"
Weight0.06 lb.
Package Contents1 x Gigabit Ethernet PCI Express Card
1 x Standard Profile Bracket
1 x Driver CD
1 x Instruction Manual
Shipping weight0.13 kg
Package size173 × 142 × 30 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the PCI-Express x1 Gigabit network card and which bracket should I use for a low-profile case?

Insert the card into an available PCI-Express x1 slot, then secure the included low-profile bracket for slim chassis or swap to the standard-profile bracket for full-height cases.

What maintenance or replacement will the Realtek RTL8111H chipset network card need over time?

The card has no moving parts; keep the RJ45 port dust-free and update drivers from the manufacturer when updating the operating system.

At what throughput limit does the PCI-Express x1 interface saturate during sustained transfers?

The PCI-Express x1 link caps sustained throughput at 250 MB/s, which is the first bottleneck under continuous Gigabit Ethernet load.
