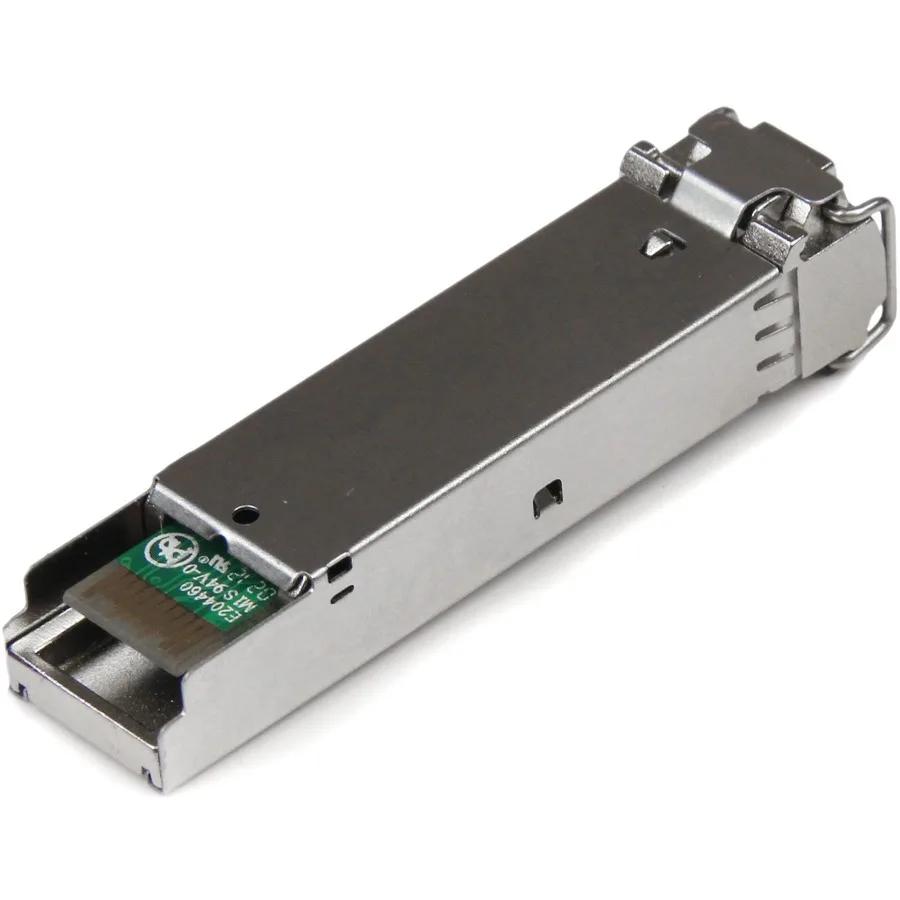

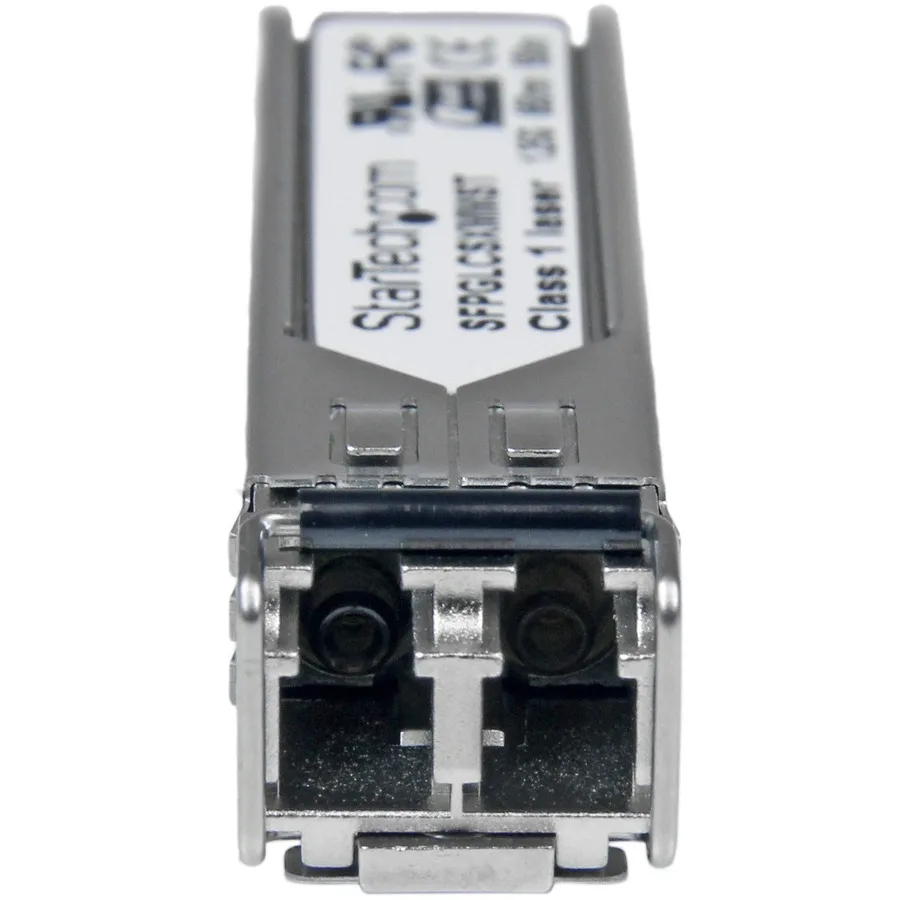

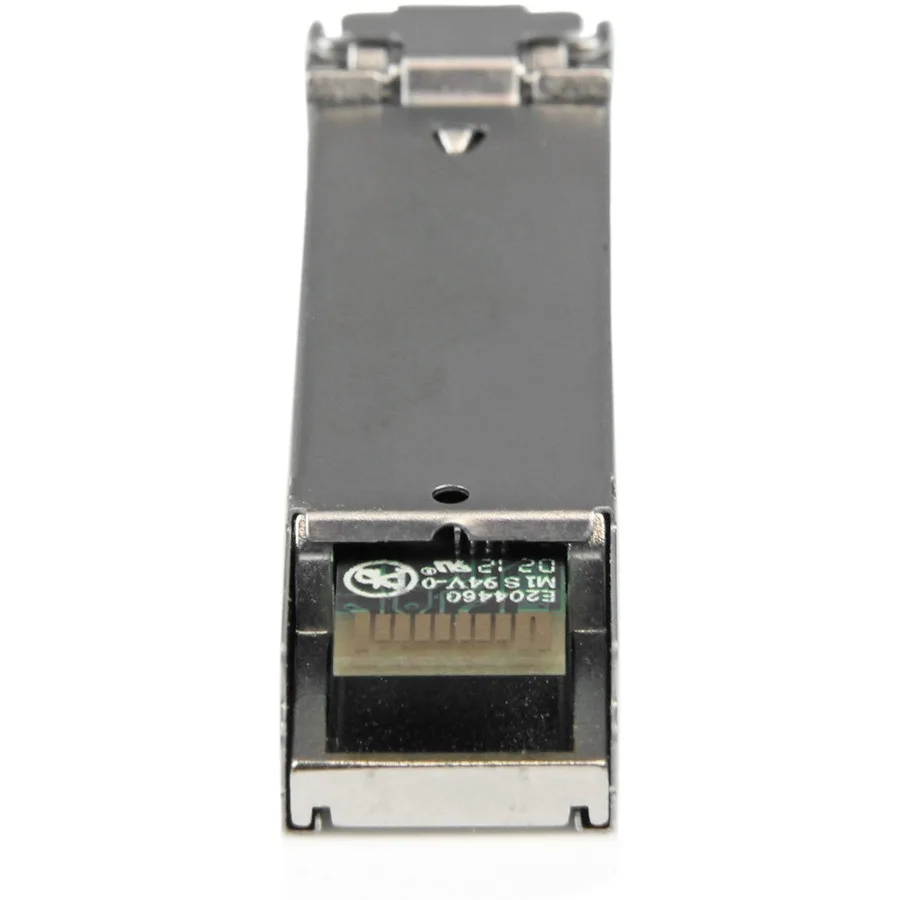

Small rectangular SFP transceiver module with silver metal housing, black LC fiber port and gold edge connector visible

STARTECH

STARTECH SFPGLCSXMMST SFP transceiver 1000BASE-SX 850nm 550m

SKU CH-YV9S-AJQTQ

A 1 Gbps multimode fibre transceiver with LC connector, 850 nm wavelength and 550 m reach for Cisco and MSA-compatible switches

  • StandardsIEEE 802.3z 1000BASE-SX
  • Wavelength850nm
  • Fiber CableMMF
  • ProtocolsTCP/IP
  • Ports1 - Fiber Optic LC
  • Max Distance550 m (1804 ft)

Type 1000Base-SX

  • 1 Gbps transfer rate for fast network links
  • 550 m reach on multimode fiber at 850 nm
  • Hot-pluggable SFP design enables live module swaps
  • 100 % Cisco GLC-SX-MM compatible with IE3400, IE3300, IE3200 and more
  • MSA compliant for use with Ubiquiti, D-Link, Netgear and other switches

Cisco GLC-SX-MM compatible SFP

This StarTech.com SFP module is a direct replacement for the Cisco GLC-SX-MM transceiver. It delivers 1 Gbps Gigabit Ethernet connectivity over multimode fibre for network administrators upgrading or repairing Cisco switches and routers.

Pre-installation checks

Verify that your switch or router accepts uncoded SFP modules and has an available LC duplex port. Confirm the link budget matches the 850 nm wavelength and that the multimode fibre run does not exceed 550 m.

Bundled value

The module ships with a lifetime warranty on the transceiver itself and access to StarTech.com technical advisors five days a week. Using this MSA-compliant optic does not void the original equipment manufacturer support agreement on your host device.

Highlights

  • 1 Gbps transfer rate for fast network links
  • 550 m reach on multimode fiber at 850 nm
  • Hot-pluggable SFP design enables live module swaps
  • 100 % Cisco GLC-SX-MM compatible with IE3400, IE3300, IE3200 and more
  • MSA compliant for use with Ubiquiti, D-Link, Netgear and other switches

Specifications

BrandStarTech.com
ModelSFPGLCSXMMST
StandardsIEEE 802.3z 1000BASE-SX
Wavelength850nm
Fiber CableMMF
ProtocolsTCP/IP
Ports1 - Fiber Optic LC
Max Distance550 m (1804 ft)
Transfer Rate1 Gbps
FeatureData rates up to 1.25 Gbps
Supports distances up to 550m (1804ft)
Complies with SFP Multi-Source Agreements standards (MSA)
Compatible with Cisco equipment
LC Fiber connector
Fully Hot Pluggable
Weight0.1
Shipping weight0.05 kg
Package size117 × 91 × 33 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the module ship with a duplex LC patch cable or must I buy one separately?

Only the transceiver is included; a duplex LC multimode patch cable is required to complete the link and must be purchased separately.

When should I choose this 850 nm SX module instead of a longer-reach option?

Choose this module for links up to 550 m over multimode fibre; longer distances need a different wavelength.

What does the 1.25 Gbps rate mean once the module is installed in a switch?

The module negotiates at 1 Gbps full-duplex per IEEE 802.3z and the 1.25 Gbps line rate covers 8b/10b encoding overhead.
