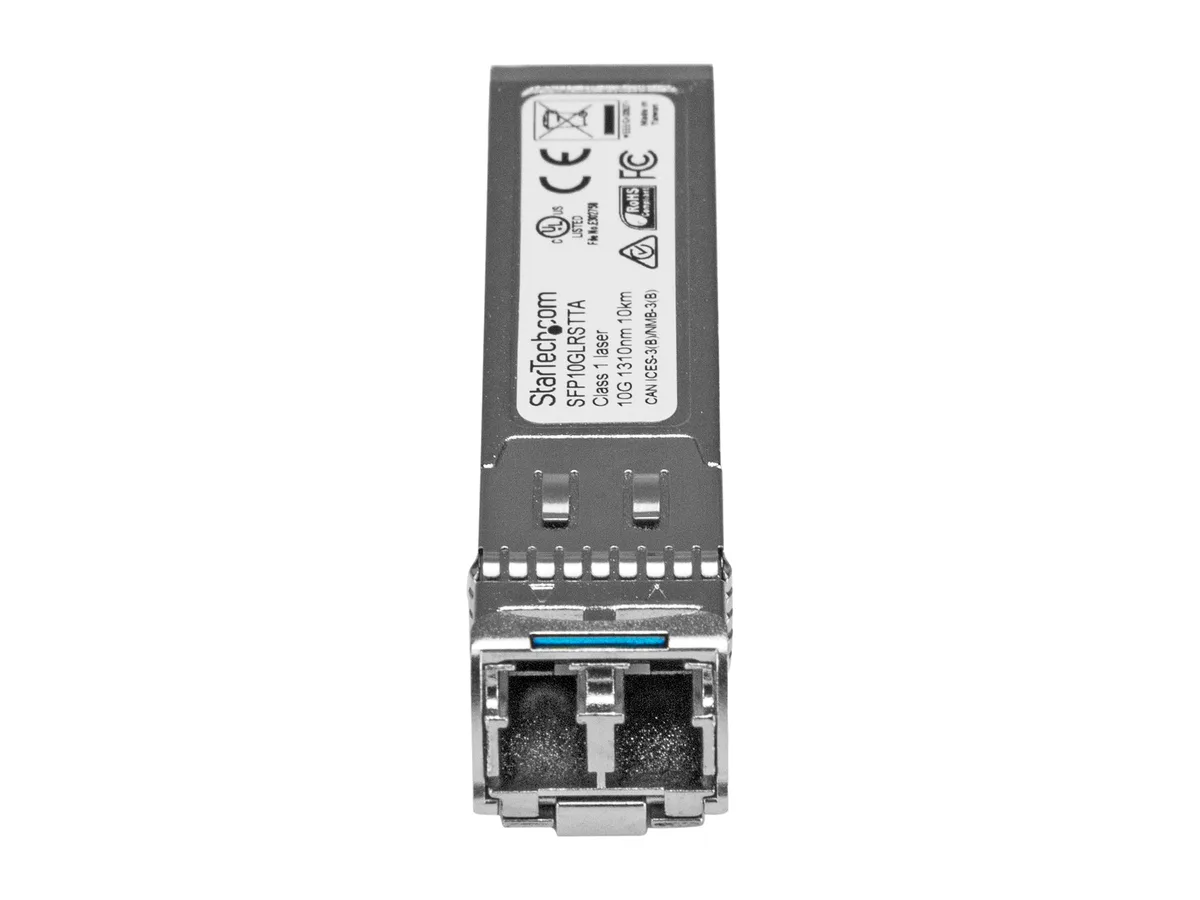

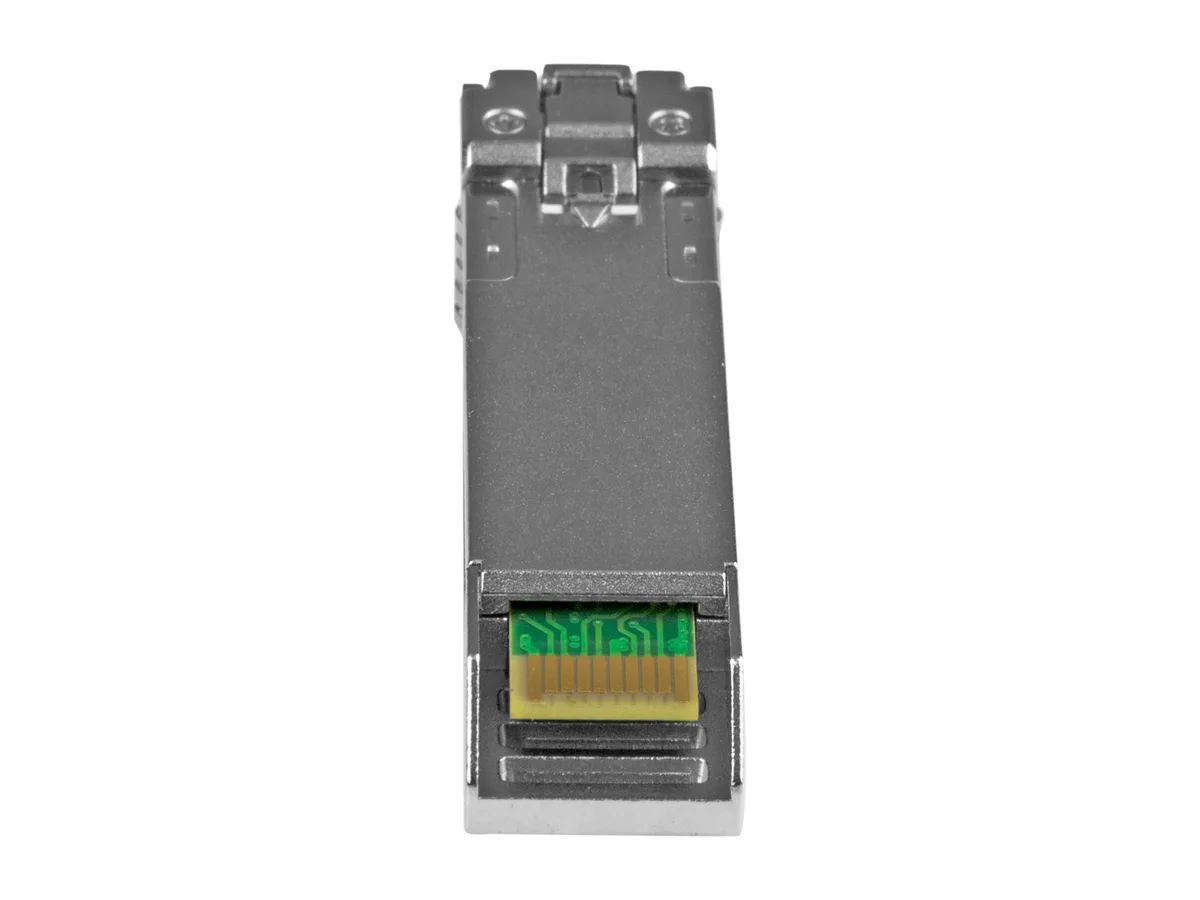

Small rectangular metal SFP+ transceiver module with LC connector and side label

STARTECH

STARTECH SFP10GLRSTTA SFP transceiver 10 Gbps 1310 nm 10 km

SKU CH-11RE-PRV9H MPN SFP10GLRSTTA

A hot-swappable SFP+ module delivers 10 Gbps over single-mode fibre at 1310 nm up to 10 km with DDM and TAA compliance

  • StandardsIEEE 802.3ae 10 Gbit/s
  • Wavelength1310nm
  • Max Distance10 km (6.2 mi)
  • Transfer Rate10 Gbps
  • TemperatureOperating Temperature: 0 degree C to 70 degree C (32 degree
  • Humidity5% ~ 90% RH
  • 10 Gbps throughput over 10 km single-mode fiber
  • 1310 nm wavelength matches 10GBase-LR standard
  • TAA compliant for government procurement needs
  • Hot-swappable with digital diagnostic monitoring support
  • Lifetime warranty with 24/5 multilingual technical assistance

Cisco-Compatible 10G SFP+ Module

This new StarTech SFP10GLRSTTA transceiver delivers 10 Gbps Ethernet over single-mode fibre for network engineers who need Cisco SFP-10G-LR-S compatibility. It operates at 1310 nm wavelength and supports Digital Diagnostic Monitoring for real-time status reporting. The module is TAA compliant and hot-swappable in Cisco Firepower, ASR9000, C9300, C3850 and C9500 switches. It also works with MSA-compliant switches from other vendors that accept uncoded modules.

10 km Single-Mode Reach

The single specification that decides fit is the 10 km maximum distance on single-mode fibre with LC connectors. This matches the 10GBase-LR standard and IEEE 802.3ae 10 Gbit/s requirement. If your link exceeds 10 km or uses multi-mode fibre, this module will not meet the need. Buyers who need longer reach or multi-mode compatibility should select a different transceiver.

0 to 70 °C Operating Range

The transceiver operates reliably from 0 to 70 °C with humidity tolerance of 5 to 90 percent RH. Storage temperature spans -40 to 85 °C. The compact form factor measures .40 x .50 x 2.20 inches and weighs .04 lb. As a passive optical module, it adds minimal power draw and produces no audible noise in normal use.

Highlights

  • 10 Gbps throughput over 10 km single-mode fiber
  • 1310 nm wavelength matches 10GBase-LR standard
  • TAA compliant for government procurement needs
  • Hot-swappable with digital diagnostic monitoring support
  • Lifetime warranty with 24/5 multilingual technical assistance

Specifications

BrandStarTech.com
ModelSFP10GLRSTTA
StandardsIEEE 802.3ae 10 Gbit/s
Wavelength1310nm
Max Distance10 km (6.2 mi)
Transfer Rate10 Gbps
TemperatureOperating Temperature: 0 degree C to 70 degree C (32 degree F to 158 degree F)
Storage Temperature: -40 degree C to 85 degree C (-40 degree F to 185 degree F)
Humidity5% ~ 90% RH
FeatureTAA compliant
Delivers reliable 10 Gigabit Ethernet connections for 10GBase-LR compliant networks
100% Cisco compatible SFP+, equivalent to SFP-10G-LR
Backed by lifetime warranty and free lifetime technical support
Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
Supports Digital Diagnostics Monitoring (DDM / DOM)
1310 nm optical wavelength
Single-mode with maximum distance of up to 10 km (6.2 mi.) and LC fiber connector
Maximum data rates up to 10Gbps
Hot-pluggable
Dimensions0.40" x 0.50" x 2.20"
Weight0.04 lb.

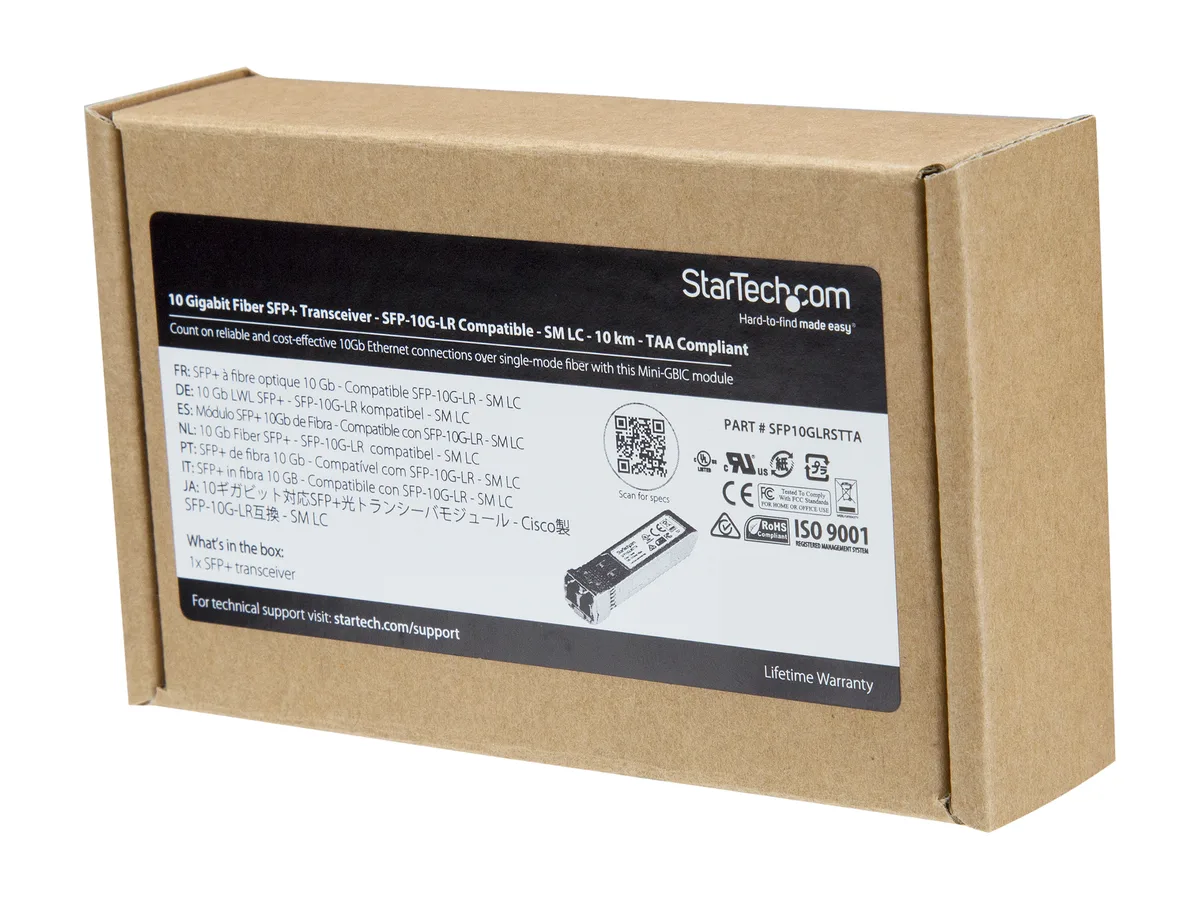

Package Contents1 - SFP+ transceiver
Shipping weight0.23 kg
Package size120 × 74 × 32 mm

Questions about this item

How far will a 10 Gbps link run over single-mode fibre with this module?

The module is rated for up to 10 km (6.2 mi) on 1310 nm single-mode fibre at 10 Gbps.

Which connector and monitoring features does the SFP+ use?

It uses an LC duplex connector and supports Digital Diagnostic Monitoring for status reporting via SNMP.

What are the physical dimensions and operating temperature range?

The transceiver measures 0.40" x 0.50" x 2.20" and operates from 0 °C to 70 °C (32 °F to 158 °F).
