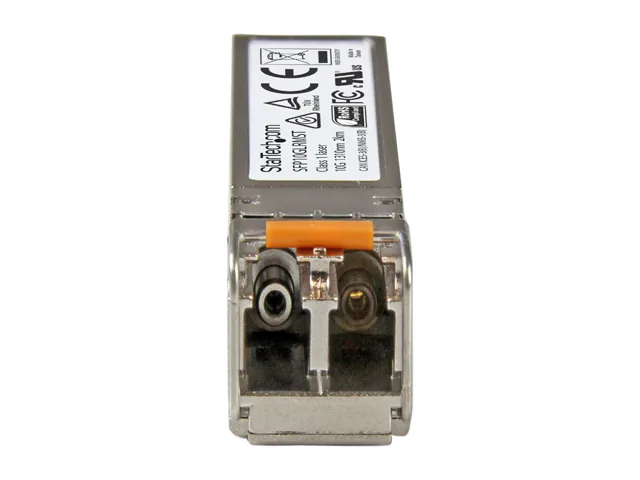

Compact SFP+ transceiver module with silver metal housing and LC duplex port visible

STARTECH

STARTECH SFP10GLRMST SFP transceiver 10GBASE-LRM 1310nm 200m

SKU CH-M8X7-QWHGW MPN SFP10GLRMST

A 10 Gbps SFP+ transceiver for multimode fibre at 1310 nm reaching 200 m

  • StandardsIEEE 802.3ae 10 Gbit/s
  • Wavelength1310nm
  • Fiber CableMulti Mode
  • ProtocolsTCP/IP
  • Max Distance200 m (656 ft)
  • Transfer Rate10 Gbps
  • 10 Gbps throughput over multimode fiber up to 200 m
  • IEEE 802.3ae compliant for standards-based 10 Gbit/s Ethernet
  • Cisco SFP-10G-LRM compatible for drop-in deployment
  • Hot-pluggable SFP+ module installs without powering down equipment
  • Operates reliably from 0 °C to 70 °C

Cisco-compatible SFP+ module

The STARTECH SFP10GLRMST is a 10GBASE-LRM transceiver built for 10 Gigabit Ethernet links over multimode fiber. It targets network engineers who need a hot-pluggable Mini-GBIC that matches the Cisco SFP-10G-LRM specification without paying original-equipment pricing.

Thermals and power profile

The module operates from 0 °C to 70 °C and survives storage between -40 °C and 85 °C, with a rated humidity range of 30 % to 75 % RH. Its low-power design draws only the current allowed by the SFP+ cage, so it adds negligible heat to a dense switch chassis.

Build integration

An LC duplex receptacle accepts standard multimode patch cords for runs up to 200 m at 1310 nm wavelength. The hot-pluggable form factor lets technicians insert or remove the transceiver without powering down the host switch, freeing maintenance windows and reducing downtime risk.

Highlights

  • 10 Gbps throughput over multimode fiber up to 200 m
  • IEEE 802.3ae compliant for standards-based 10 Gbit/s Ethernet
  • Cisco SFP-10G-LRM compatible for drop-in deployment
  • Hot-pluggable SFP+ module installs without powering down equipment
  • Operates reliably from 0 °C to 70 °C

Specifications

BrandStarTech.com
ModelSFP10GLRMST
StandardsIEEE 802.3ae 10 Gbit/s
Wavelength1310nm
Fiber CableMulti Mode
ProtocolsTCP/IP
Max Distance200 m (656 ft)
Transfer Rate10 Gbps
TemperatureOperating Temperature: 0 degree C to 70 degree C (32 degree F to 158 degree F)
Storage Temperature: -40 degree C to 85 degree C (-40 degree F to 185 degree F)
Humidity30% ~ 75% RH
FeatureCount on dependable, cost-efficient 10Gb Ethernet connections over multimode fiber with this Mini-GBIC module
10 Gigabit Fiber SFP+ Transceiver Module
Cisco SFP-10G-LRM Compatible
MM LC - 10G Cisco compatible SFP+ - maximum distance of 220 m (722 ft.)
10 Gb SFP+ supports Digitial Diagnostics Monitoring
10GBase-LRM
1310nm optical wavelength
Meets or exceeds OEM specifications and MSA industry standards
Lifetime warranty
Hot-pluggable
Weight0.1
Package Contents1 - SFP+ transceiver
Shipping weight0.03 kg
Package size113 × 89 × 31 mm

Questions about this item

How do I install the SFP10GLRMST module and what step is commonly missed?

Slide the transceiver into an SFP+ cage until it clicks, then insert the LC duplex cable; the step often missed is removing the dust caps from both the module and the cable ends before connecting.

What maintenance or replacement will the SFP10GLRMST need over time?

No scheduled maintenance is required; if link errors appear, clean the LC ferrules with a lint-free swab and isopropyl alcohol, and replace the module only if cleaning does not restore the 10 Gbps link.

What limit appears first when the SFP10GLRMST runs continuously at full load?

The 200 m reach on multimode fiber is the first constraint; beyond that distance the 10 Gbps signal degrades even though the module stays within its 0 °C to 70 °C operating range.
