1U rackmount KVM console with 19in LCD screen and integrated keyboard trackpad

STARTECH

STARTECH RKCONS1916K 1U 19in 16-port VGA KVM switch

SKU CH-C2N3-B39AF MPN RKCONS1916K

A 1U rackmount console with a 19in LCD and integrated 16-port VGA KVM switch controls sixteen computers from a single keyboard, monitor and mouse

  • TypeD-Sub
  • Console ConnectorsConsole Interface(s) 1 x VGA (15 pin, High Density D-Sub) Fe
  • Computer Connections16 Ports
  • Video Resolution1280 x 1024
  • Monitors SupportedDisplay Size: 19in Panel Type: Active Matrix TFT LCD Brightn
  • FeaturesThis 1U 16-port KVM console provides complete keyboard, moni
  • 1U rack-mount design saves server-room space with a 1.70in profile
  • 16-port VGA KVM controls up to sixteen computers from one console
  • 19in Active Matrix TFT LCD delivers 1280 x 1024 resolution at 250 cd/m²
  • 1000:1 contrast ratio and 16.7M colours provide clear on-screen detail
  • Integrated keyboard, monitor and mouse combine into a single 29.80 lb unit for centralised management

1U 19in 16-port VGA KVM Console

This 1U rackmount console integrates a 19in active matrix TFT LCD with a 16-port VGA KVM switch. It provides keyboard, monitor and mouse control for up to sixteen computers from a single rack unit. The unit fits standard 19in racks and is aimed at administrators managing multiple servers in space-constrained server rooms.

Sustained operation in a 1U rack

The console draws power from the rack and runs continuously without external cooling requirements beyond normal airflow. Its LCD panel maintains 250 cd/m² brightness and 1000:1 contrast during extended sessions. The integrated KVM switch handles constant switching between sixteen VGA sources at 1280 x 1024 resolution without latency spikes. The 1.70in chassis height preserves airflow for adjacent equipment.

Sixteen VGA ports at 1280 x 1024

The switch supports exactly sixteen computer connections via high-density D-Sub VGA inputs and one local console VGA output. Maximum analog resolution is 1280 x 1024 at 8-bit color depth for 16.7M colors. Buyers needing higher resolutions, digital video inputs or IP-based remote access should evaluate other solutions.

Highlights

  • 1U rack-mount design saves server-room space with a 1.70in profile
  • 16-port VGA KVM controls up to sixteen computers from one console
  • 19in Active Matrix TFT LCD delivers 1280 x 1024 resolution at 250 cd/m²
  • 1000:1 contrast ratio and 16.7M colours provide clear on-screen detail
  • Integrated keyboard, monitor and mouse combine into a single 29.80 lb unit for centralised management

Specifications

BrandStarTech.com
ModelRKCONS1916K
TypeD-Sub
Console ConnectorsConsole Interface(s)

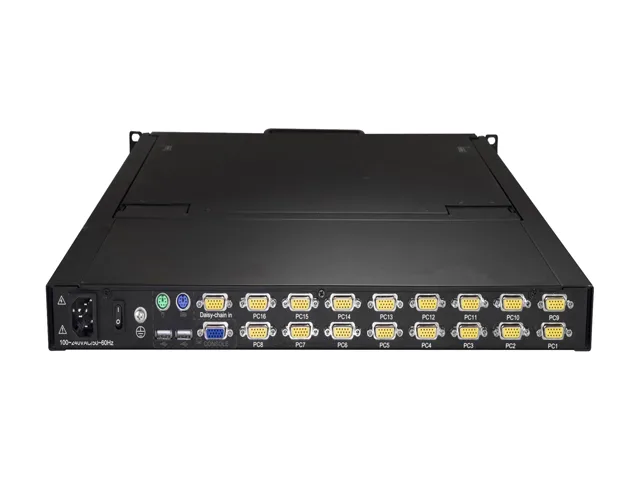

1 x VGA (15 pin, High Density D-Sub) Female Input
16 x VGA (15 pin, High Density D-Sub) Female Input
Host Connectors
1 x VGA (15 pin, High Density D-Sub) Female Output
Other Interface(s)
1 x VGA (15 pin, High Density D-Sub) Female Input
2 x USB Type-A (4 pin) USB 2.0 Female Input
2 x PS/2 (6 pin, Mini-DIN) Female Input
Computer Connections16 Ports
Video Resolution1280 x 1024
Monitors SupportedDisplay Size: 19in
Panel Type: Active Matrix TFT LCD
Brightness: 250 cd/m²
Color Depth: 8-bit, 16.7M colors
Contrast Ratio: 1000:1
IP Control: No
Maximum Analog Resolutions: 1280 x 1024
Maximum Number of Users : 1
MTBF: 50, 000 Hrs
Pixel Pitch Support: 0.264 x 0.264 mm
Supported Resolutions:
1024x768
1280x720 (High-definition 720p)
1280 x 1024
FeaturesThis 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19
Dimensions19.00" x 25.30" x 1.70"
Weight29.80 lbs.
Shipping weight21.95 kg
Package size770 × 620 × 188 mm
