STARTECH
STARTECH RKCONS17HD 1U 17.3in 1080p Single Port KVM Switch
A 1U rack-mount console with a 17.3in 1080p LCD, integrated keyboard and touchpad for direct single-server VGA control
- TypeD-Sub
- Console Connectors1 x HD15 (15 pin, High Density D-Sub) Female Input
- Computer Connections1 Display VGA
- Video Resolution1920 x 1080
- Monitors SupportedDisplay Size: 17.3" Panel Type: Active Matrix TFT LCD Aspect
- LED Indicators1 x Power / Status LED
- 3in 1080p display for clear server monitoring
- 1U rack-mount design saves valuable rack space
- Single-port VGA connection for direct server access
- LED back-lit panel reduces power consumption
- Integrated touchpad and front USB for peripheral flexibility
Rackmount LCD console for single-server access

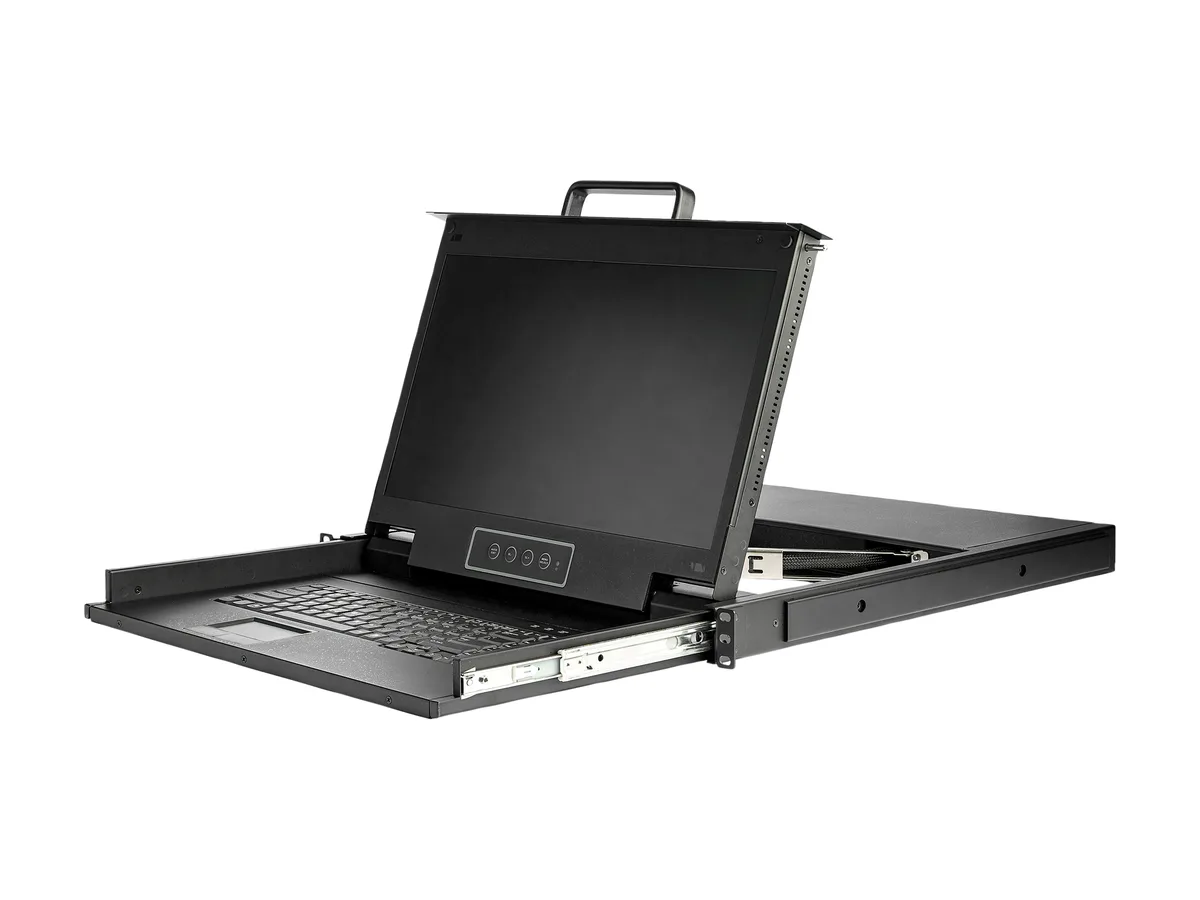

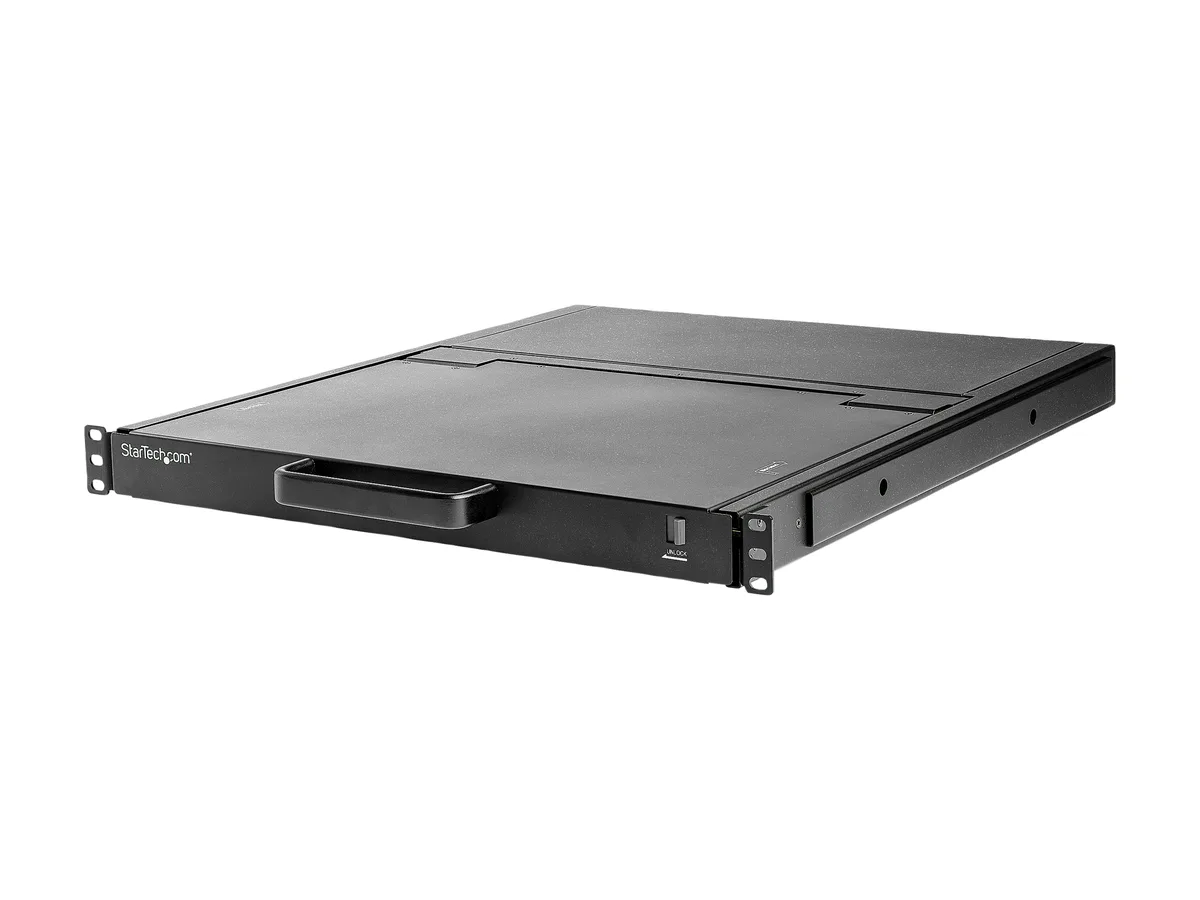

The StarTech RKCONS17HD is a 1U rackmount console with a 17.3in 1080p TFT LCD and integrated keyboard and touchpad. It connects to one server or KVM switch through a single VGA and USB cable set. The unit slides on dual rails and includes mounting hardware and five regional power cords for immediate deployment.
Replaces separate monitor keyboard and mouse trays
This console consolidates a display and input devices into one rack unit, removing the need for a standalone CRT or LCD plus external peripherals. The upgrade is worthwhile when rack space is limited and only one system requires direct local management. It does not serve environments that need multi-port switching or IP-based remote access.
Fits standard 19in racks
The console mounts in a 19in rack using the supplied M5 cage nuts and screws and draws power through an IEC 60320 C14 inlet. A front USB port allows a fingerprint scanner or other peripheral without consuming rear ports. Buyers needing dual-rail KVM switching, digital video inputs or multi-user remote control should look elsewhere.
Highlights
- 3in 1080p display for clear server monitoring
- 1U rack-mount design saves valuable rack space
- Single-port VGA connection for direct server access
- LED back-lit panel reduces power consumption
- Integrated touchpad and front USB for peripheral flexibility
Specifications
| Brand | StarTech.com |
|---|---|
| Model | RKCONS17HD |
| Type | D-Sub |
| Console Connectors | 1 x HD15 (15 pin, High Density D-Sub) Female Input |
| Computer Connections | 1 Display VGA |
| Video Resolution | 1920 x 1080 |
| Monitors Supported | Display Size: 17.3" Panel Type: Active Matrix TFT LCD Aspect Ratio: 16:9 Brightness: 300 cd/m2 Color Depth: 6-bit, 262144 colors Contrast Ratio: 800:1 IP Control: No Maximum Analog Resolutions: 1920x1080 Maximum Number of Users: 1 MTBF: 50000 Hours Pixel Pitch Support: 0.1989 x 0.1989 mm Supported Resolutions: Resolutions up to 1920x1080 @ 60Hz Viewing Angle: 170° (H), 170° (V) |
| LED Indicators | 1 x Power / Status LED |
| Power Features | 1 x IEC 60320 C14 Power Female Input |
| Features | Save money and reduce hassle with a cost-effective rack-mount LCD console Crystal-clear picture quality and maximum screen space with support for resolutions up to 1080p Reduce your server room clutter with a 1U rack-mount design Intuitive system integration with direct support for a single server or KVM switch Built-in touchpad and keyboard |

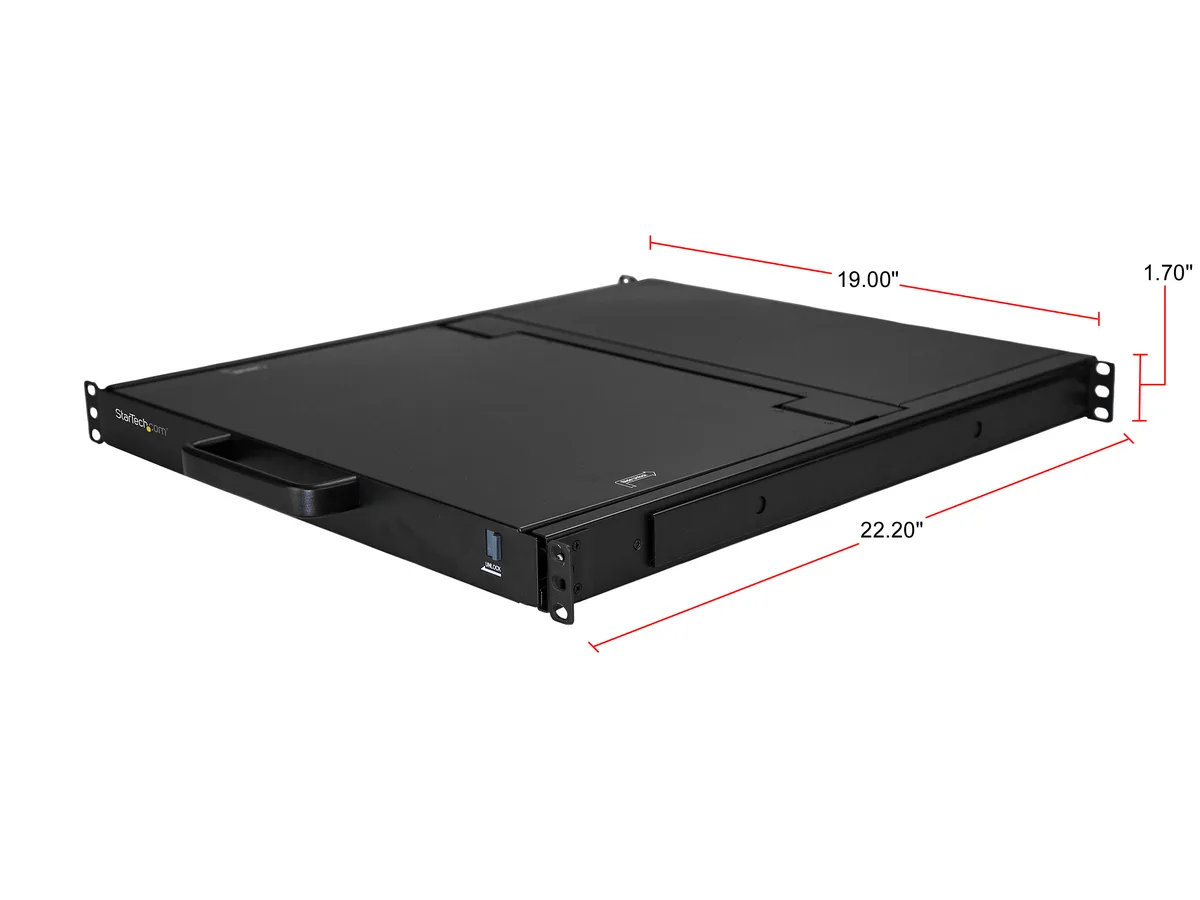

| Dimensions | 22.20" x 19.00" x 1.70" |
| Weight | 30.30 lbs. |

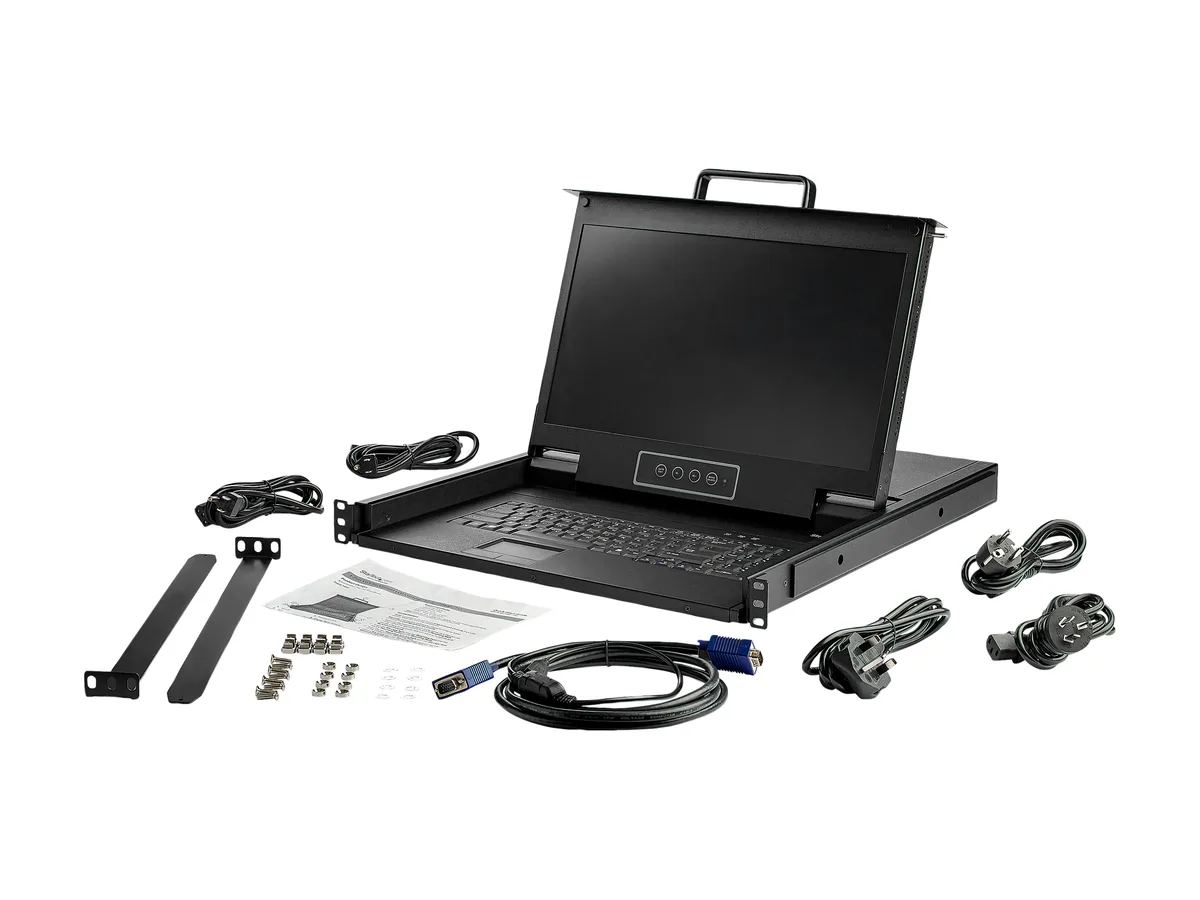

| Package Contents | 1 x KVM console 1 x KVM cable 8 x M5 cage nuts 8 x M5 screws 5 x regional power cords (NA, JP, UK, EU, ANZ) 1 x quick-start guide 2 x mounting rails |
| Shipping weight | 16.06 kg |
| Package size | 765 × 615 × 185 mm |
Questions about this item
How deep is the 1U rackmount console so I can confirm it fits my 19-inch rack?
The unit measures 22.20 inches deep and 19.00 inches wide, occupying a standard 1U height of 1.70 inches in a 19-inch rack.
Which cables and rails are included for the initial rack installation?
The package supplies two mounting rails, eight M5 cage nuts, eight M5 screws, one KVM cable, and five regional power cords for the IEC 60320 C14 inlet.
What is the rated backlight lifespan before the LCD panel may need replacement?
The manufacturer specifies a mean time between failures of 50000 hours for the LED-backlit TFT panel.
