STARTECH RKCONS1716K 16 Port 17 Inch VGA KVM Switch
Rackmount 1U console integrates 17-inch LCD, keyboard, and touchpad to control 16 VGA servers at 1280x1024 resolution
- TypeD-Sub
- PC Connectors16 x VGA (15 pin, High Density D-Sub) Female Input
- Console Connectors1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB T
- Computer Connections16 Ports
- Video Resolution1280 x 1024
- PC SelectionPush Buttons/Hot Keys/OSD
- Control 16 servers from a single 1U console
- 17 inch LCD displays 1280 x 1024 resolution
- Switch systems via push buttons, hotkeys or OSD
- Integrated keyboard and touchpad eliminate extra peripherals
- Includes 16 VGA cables, mounting rails and international power cords
16-port VGA KVM console

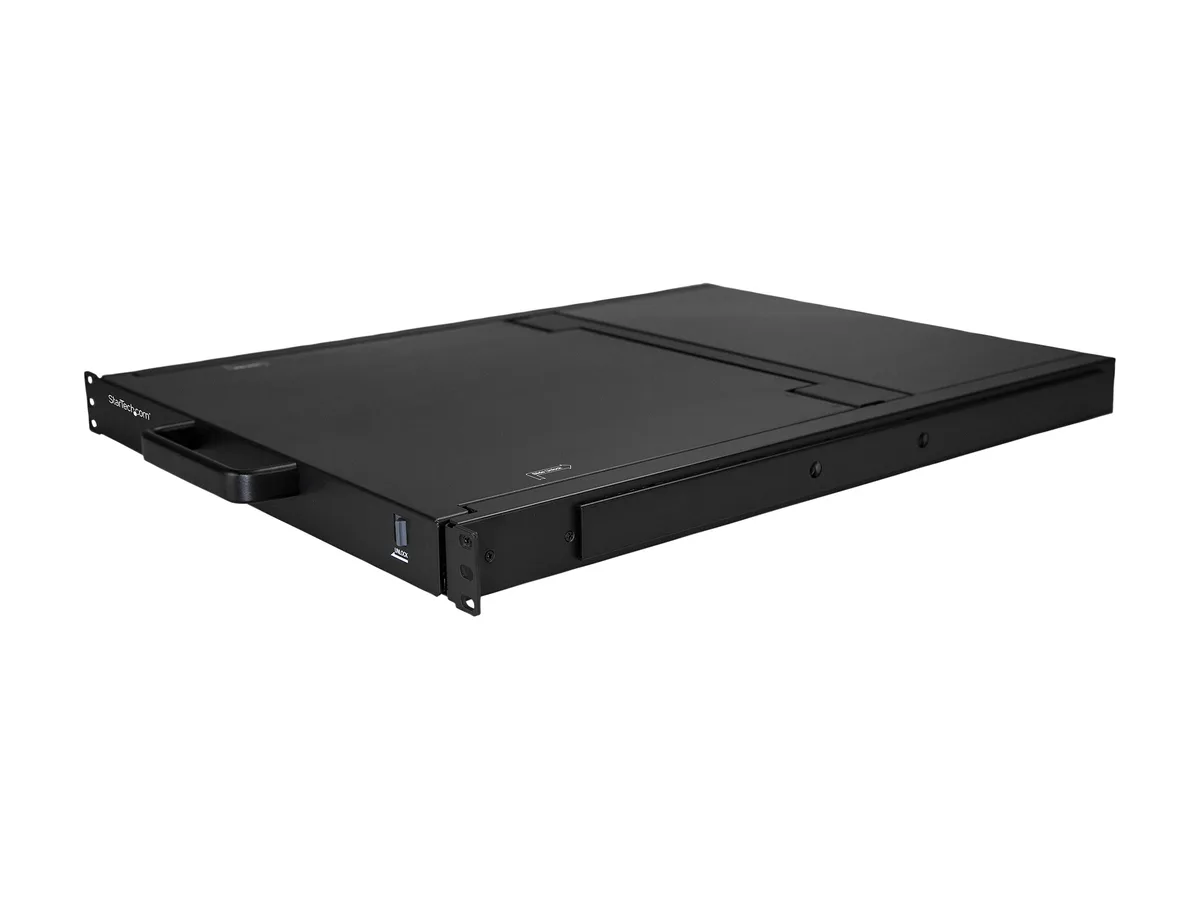

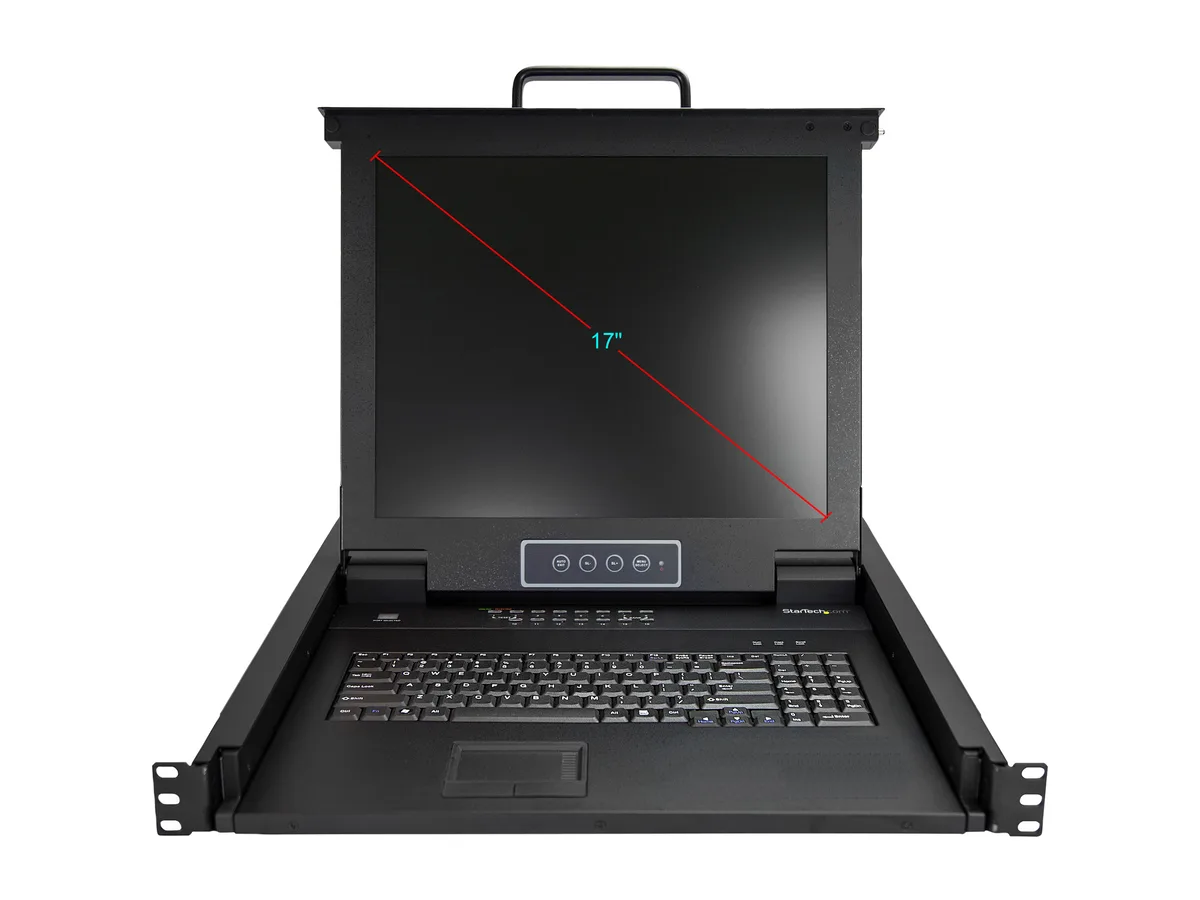

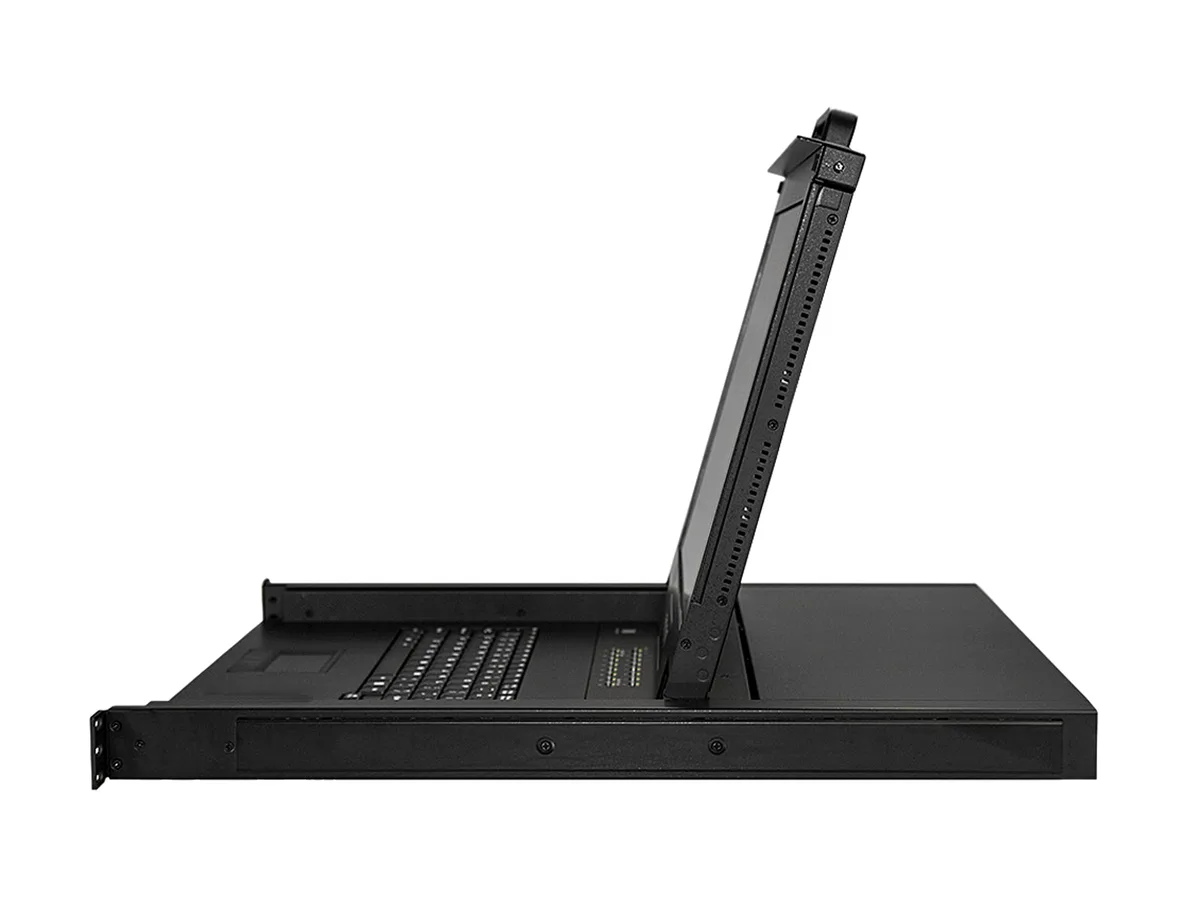

The StarTech RKCONS1716K integrates a 17-inch active-matrix TFT LCD, keyboard and touchpad into a 1U rackmount chassis. It provides local control for up to 16 servers or PCs through VGA and USB or PS/2 connections. The console supports video resolutions up to 1280 x 1024 at 60 Hz with a 5:4 aspect ratio. A single operator can manage the entire server room from this unit.
Rack integration and cabling

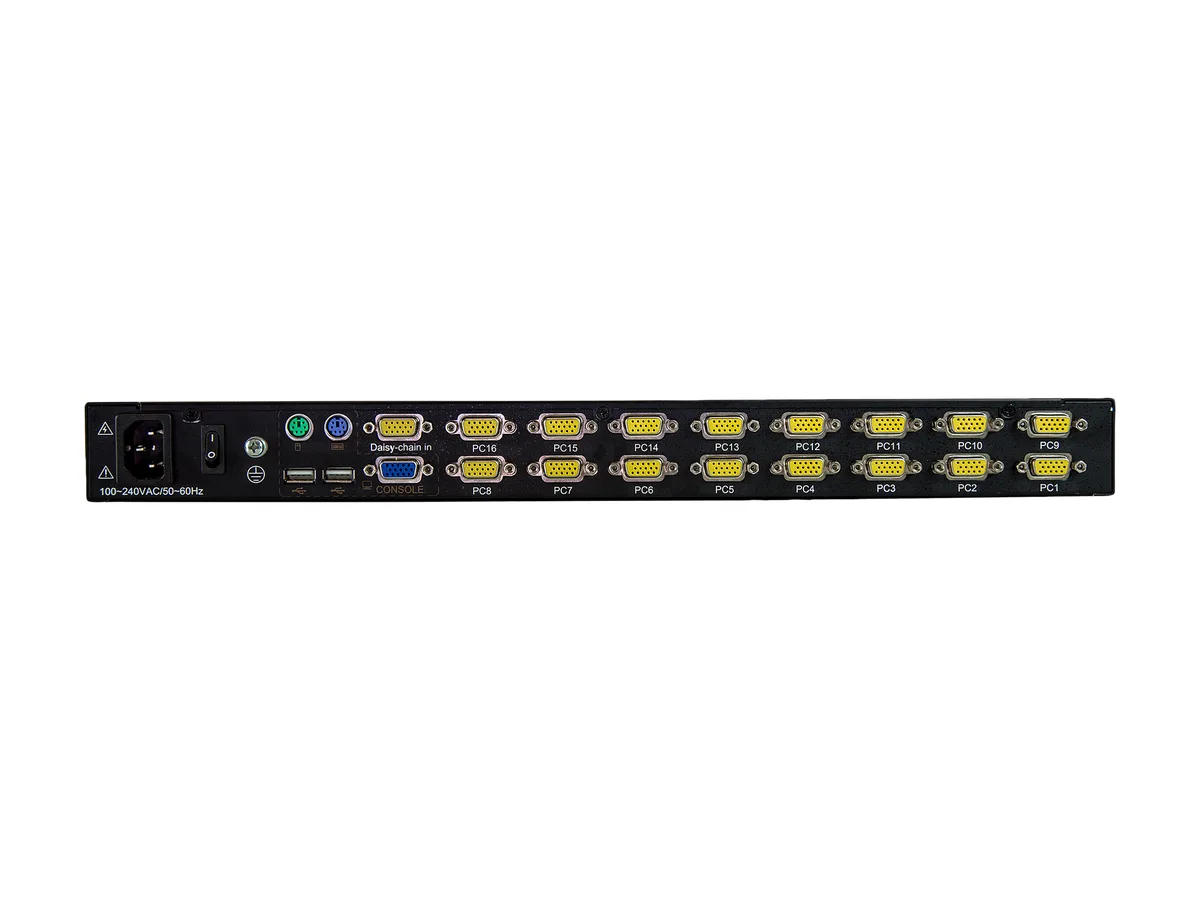

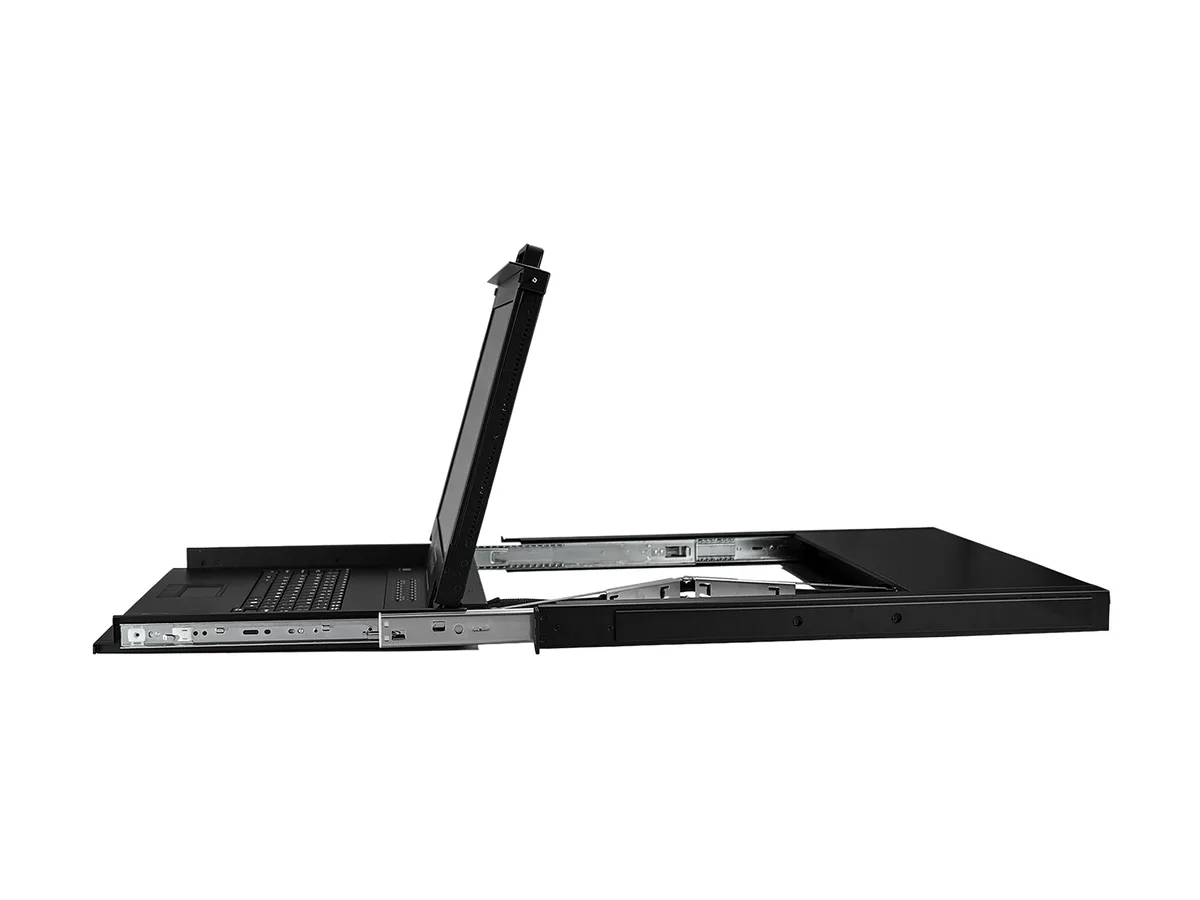

The console occupies 1.70 inches of vertical rack space and includes mounting rails, M5 cage nuts and screws for installation. Sixteen VGA KVM cables are supplied, each carrying video, USB and PS/2 signals to the connected computers. International power cords for five regions are provided, allowing the 100-240 V AC supply to be used worldwide. Two USB 2.0 and two PS/2 ports on the console accept local keyboard and mouse input.
Sustained operation
The LCD panel delivers 250 cd/m² brightness, 1000:1 contrast and 16.7 million colours with a 5 ms response time. Viewing angles reach 170° horizontal and 160° vertical for clear visibility in a rack aisle. The unit draws 23 W at 1.5 A input current and operates continuously between 0°C and 40°C at 10-80% relative humidity. An MTBF of 50,000 hours indicates long-term reliability under constant use.
Highlights
- Control 16 servers from a single 1U console
- 17 inch LCD displays 1280 x 1024 resolution
- Switch systems via push buttons, hotkeys or OSD
- Integrated keyboard and touchpad eliminate extra peripherals
- Includes 16 VGA cables, mounting rails and international power cords
Specifications
| Brand | StarTech.com |
|---|---|
| Model | RKCONS1716K |
| Type | D-Sub |
| PC Connectors | 16 x VGA (15 pin, High Density D-Sub) Female Input |
| Console Connectors | 1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB Type-A (4 pin) USB 2.0 Female Input 2 x PS/2 (6 pin, Mini-DIN) Female Input 1 x 15 Pin High Density D-Sub Female Input |
| Computer Connections | 16 Ports |
| Video Resolution | 1280 x 1024 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| Monitors Supported | Display Size: 17in KVM Ports: 16 Panel Type: Active Matrix TFT LCD PC Video Type: VGA Aspect Ratio: 5:4 Brightness: 250 cd/m2 Color Depth: 8-bit, 16.7M colors Contrast Ratio: 1000:1 IP Control: No Maximum Analog Resolutions: 1280 x 1024 Maximum Number of Users: 1 MTBF: 50, 000 Hrs On-Screen Display: Yes Pixel Pitch Support: 0.264 x 0.264 mm Port Selection Support: Push Button, Hotkeys, and OSD (On Screen Display) Response Time: 5ms Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz Viewing Angle: 170° (H), 160° (V) |
| LED Indicators | 16 x Green/Red - Online/Selected LED |
| Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 10 - 80% RH |
| Power Features | Input Current: 1.5A Input Voltage: 100 - 240 AC Power Consumption (In Watts): 23W Power Source: International Power Cords |
| Features | Maximize your server rack space with a 1U rackmount design Intuitive system integration with direct support for up to 16 servers Ready to use with built-in touchpad and keyboard Save money and rack space with a cost-effective 1U rackmount LCD console Set up easily?with all necessary mounting brackets,?cables and screws included |
| Dimensions | 1.70" x 17.60" x 22.90" |
| Weight | 30.30 lbs. |
| Package Contents | 1 x KVM console 16 x KVM cables 8 x M5 cage nuts 8 x M5 screws 5 x Power Cords (NA, JP, UK, EU, ANZ) 2 x Mounting Rails 1 x Quick-Start Guide |
| Shipping weight | 23.59 kg |
| Package size | 787 × 635 × 203 mm |
Questions about this item
Will the 17-inch TFT LCD panel overheat during continuous 24-hour operation?
The unit is rated for 0°C to 40°C ambient temperature and consumes 23W, so typical rack airflow keeps it within limits.
Does the console draw more than 1.5 A at 100 V AC when all 16 ports are active?
Maximum input current is specified as 1.5 A across the 100-240 V range, covering full 16-port use.
Must I supply my own VGA cables to connect the 16 servers, or are they included?
The package includes 16 KVM cables, so no additional VGA cables are required for the 16 connections.
