STARTECH
STARTECH RKCONS1708K 8-port 1U 17in VGA KVM switch
Integrated 17-inch LCD console controls up to eight VGA servers from 1U of rack space
- TypeD-Sub
- PC Connectors8 x VGA (15 pin, High Density D-Sub) Female Input
- Console Connectors1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB T
- Computer Connections8 Ports
- Video Resolution1280 x 1024
- PC SelectionPush Buttons/Hot Keys/OSD
- Control up to 8 servers from a single 1U console
- 17-inch TFT LCD fits in one rack unit
- Switch via push buttons, hotkeys or on-screen display
- 1280 x 1024 resolution with 250 cd/m² brightness
- Includes 8 VGA cables, rails and international power cords
Integrated Rack Console

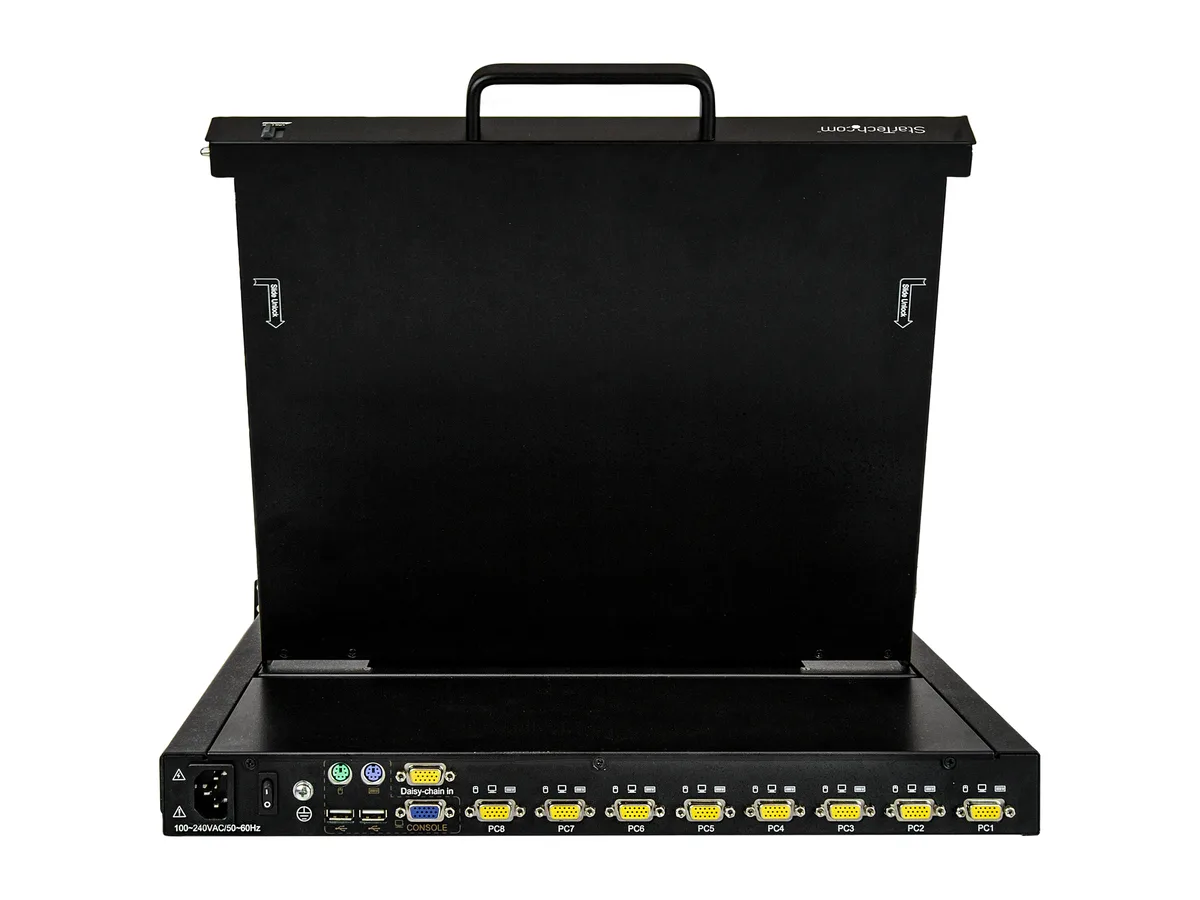

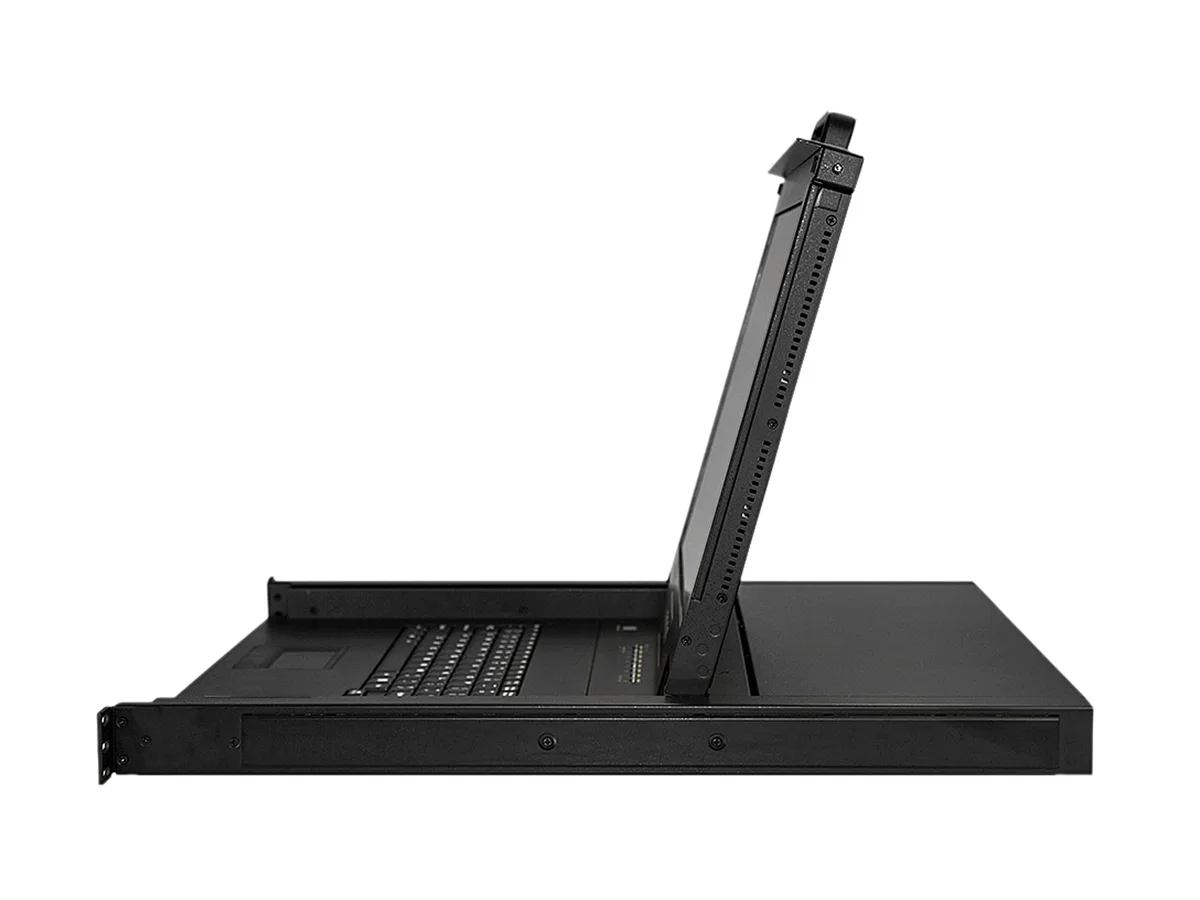

The StarTech.com RKCONS1708K is a 1U rackmount KVM console with a built-in 17-inch LCD, keyboard and touchpad. It provides local control for up to eight servers through a single VGA and USB or PS/2 connection per system. The unit ships with eight KVM cables, mounting rails and international power cords for immediate deployment.
Server Rooms Needing Local Access
This console suits administrators who want direct, at-the-rack management of eight VGA-connected servers without a separate monitor, keyboard or mouse. It does not serve buyers who require IP-based remote access, digital video inputs such as DVI or HDMI, or control of more than eight systems from one console.
1280 x 1024 VGA Resolution Limit

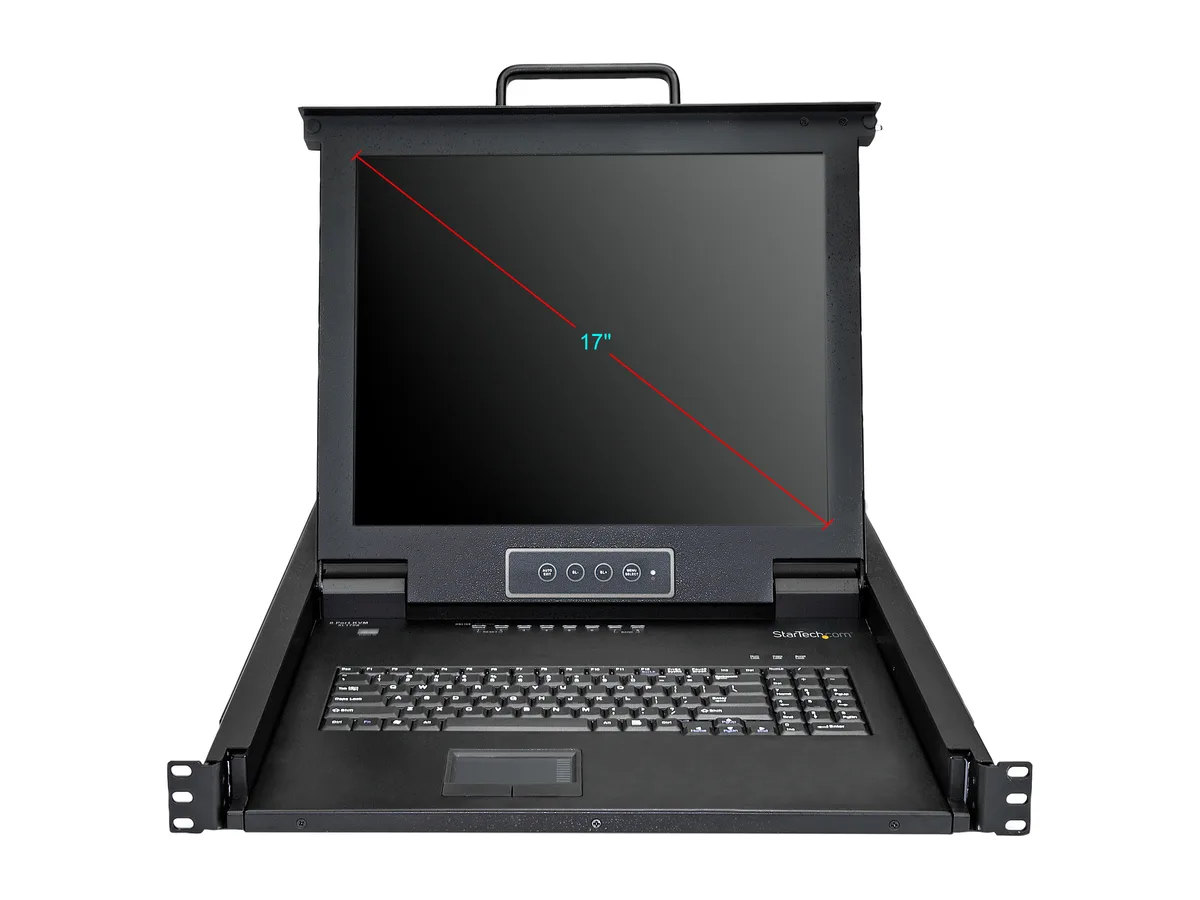

The integrated 17-inch TFT LCD panel supports a maximum analog resolution of 1280 x 1024 at 60 Hz with a 5:4 aspect ratio. Servers that output only higher resolutions or exclusively digital signals will not display correctly on this console.
Highlights
- Control up to 8 servers from a single 1U console
- 17-inch TFT LCD fits in one rack unit
- Switch via push buttons, hotkeys or on-screen display
- 1280 x 1024 resolution with 250 cd/m² brightness
- Includes 8 VGA cables, rails and international power cords
Specifications
| Brand | StarTech.com |
|---|---|
| Model | RKCONS1708K |
| Type | D-Sub |
| PC Connectors | 8 x VGA (15 pin, High Density D-Sub) Female Input |

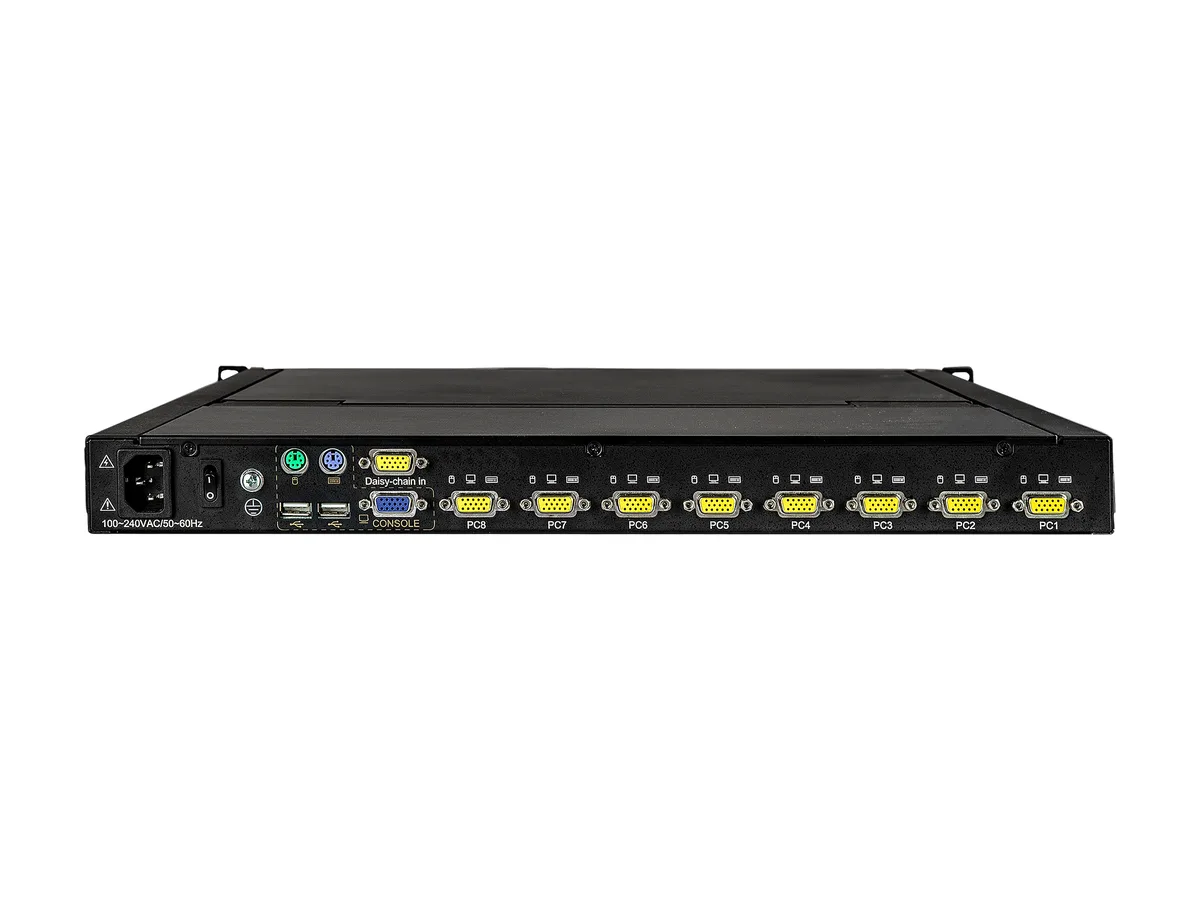

| Console Connectors | 1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB Type-A (4 pin) USB 2.0 Female Input 2 x PS/2 (6 pin, Mini-DIN) Female Input 1 x 15 Pin High Density D-Sub Female Input |
| Computer Connections | 8 Ports |
| Video Resolution | 1280 x 1024 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| Monitors Supported | Display Size: 17in KVM Ports: 8 Panel Type: Active Matrix TFT LCD PC Video Type: VGA Aspect Ratio: 5:4 Brightness: 250 cd/m² Color Depth: 8-bit, 16.7M colors Contrast Ratio: 1000:1 IP Control: No Maximum Analog Resolutions: 1280 x 1024 Maximum Number of Users: 1 MTBF: 50, 000 Hrs On-Screen Display: Yes Pixel Pitch Support: 0.264 x 0.264 mm Port Selection Support: Push Button, Hotkeys, and OSD (On Screen Display) Response Time: 5ms Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz Viewing Angle: 170° (H), 160° (V) |
| LED Indicators | 8 x Green/Red - Online/Selected LED |
| Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 10 - 80% RH |
| Power Features | Input Current: 1.5A Input Voltage: 100 ~ 240 AC Power Consumption (In Watts): 13W Power Source: International Power Cords |
| Features | Maximize your server rack space with a 1U rackmount design Intuitive system integration with direct support for up to 8 servers Ready to use with built-in touchpad and keyboard Built in touchpad and keyboard Save money and reduce hassle with a cost-effective rackmount LCD console Set up easily?with all necessary mounting brackets,?cables and screws included |
| Dimensions | 1.70" x 17.60" x 20.70" |
| Weight | 29.40 lbs. |
| Package Contents | 1 x KVM console 8 x KVM cables 8 x M5 cage nuts 8 x M5 screws 5 x Power Cords (NA, JP, UK, EU, ANZ) 2 x Mounting Rails 1 x Quick-Start Guide |
| Shipping weight | 19.96 kg |
| Package size | 787 × 610 × 203 mm |
Questions about this item
How does the 1280 x 1024 resolution look on the 17-inch panel in a rack?
The 17-inch active-matrix TFT LCD has a 5:4 aspect ratio, 250 cd/m² brightness, 1000:1 contrast, 16.7M colours and a 5 ms response time, so text and console windows stay sharp at the native 1280 x 1024 @ 60 Hz resolution.
What does the VGA-only console port limit in practice?
The single VGA console output and eight VGA computer inputs mean every connected server must supply an analogue VGA signal; digital sources such as HDMI or DisplayPort require an active converter before they can be switched.

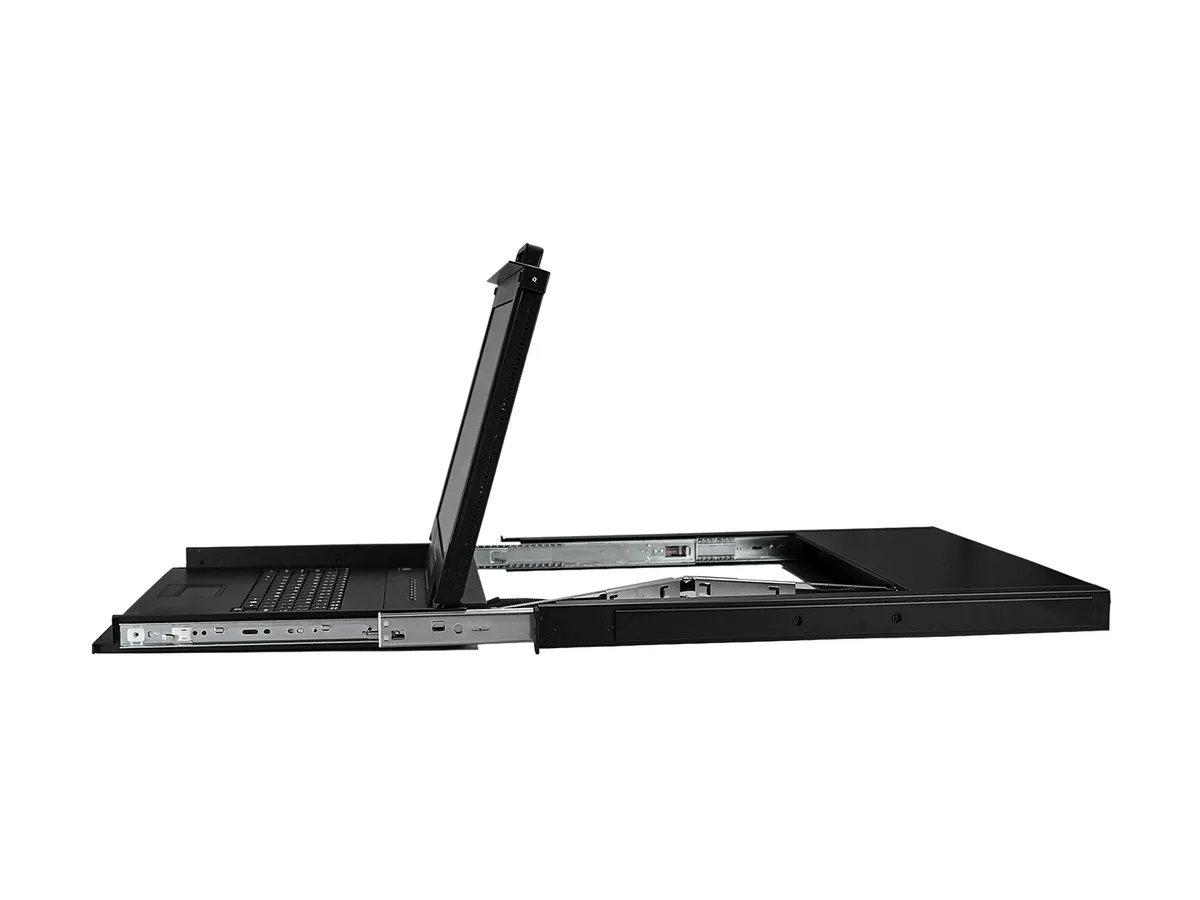

How deep is the unit and what mounting hardware is supplied?
The console measures 1.70 in high, 17.60 in wide and 20.70 in deep, and the box includes two mounting rails, eight M5 cage nuts and eight M5 screws for standard rack installation.
