STARTECH
STARTECH RKCONS1701 17in 1U Rackmount KVM Console
A 1U rackmount console combines a 17-inch 1280x1024 LCD, keyboard and touchpad for direct server control
- TypeD-Sub
- PC Connectors1 x VGA (15 pin, High Density D-Sub) Female Input
- Monitor Connections1 Port
- Video Resolution1280 x 1024
- Monitors SupportedDisplay Size: 17in Panel Type: Active Matrix TFT LCD Aspect
- LED Indicators1 - Power / Status LED
- 1U rackmount design saves server-room space with 1.70in height
- 17in LCD panel displays 1280 x 1024 resolution at 250 cd/m² brightness
- Built-in keyboard and touchpad give immediate local control without extra peripherals
- Single VGA port connects directly to one PC or server for straightforward KVM access
- International power cords and 100-240V input support worldwide deployment with 13W consumption
Single-port rackmount KVM console

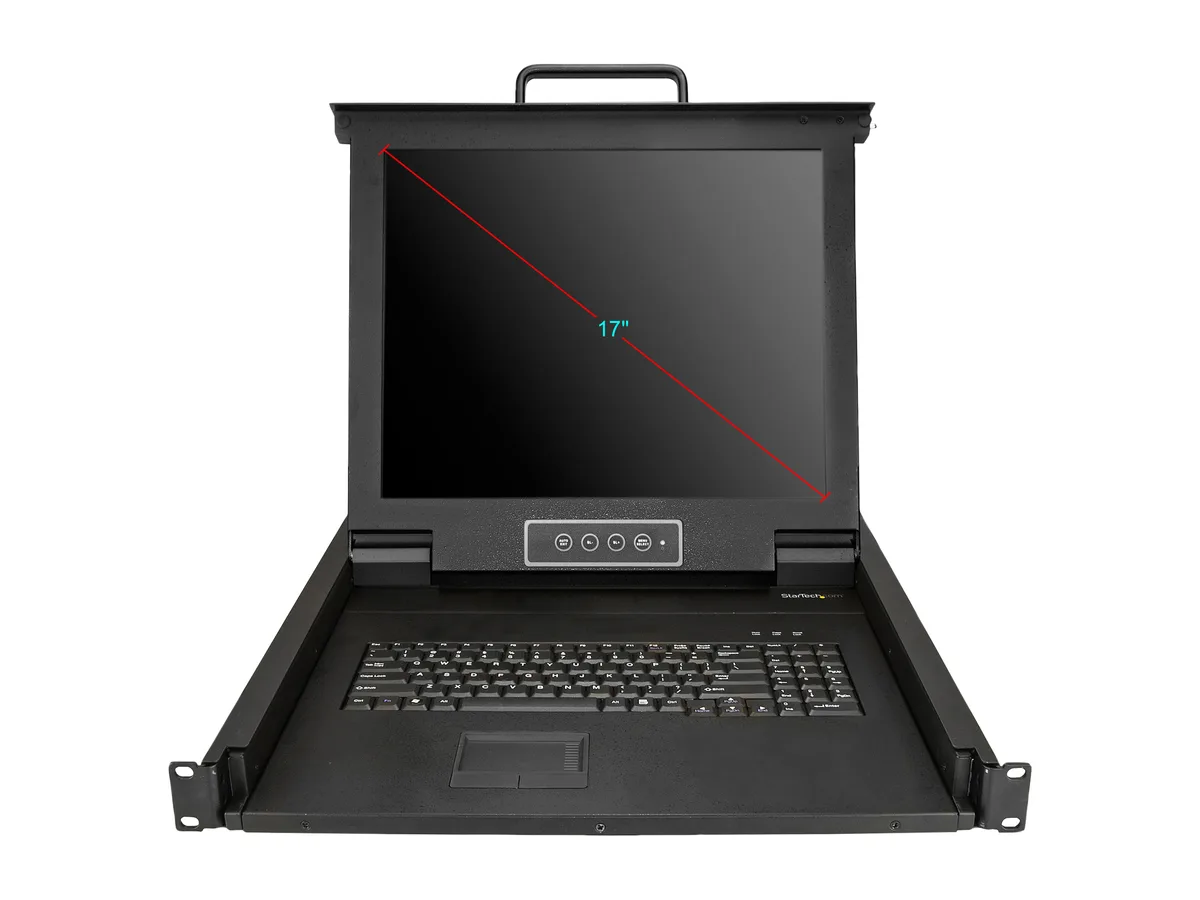

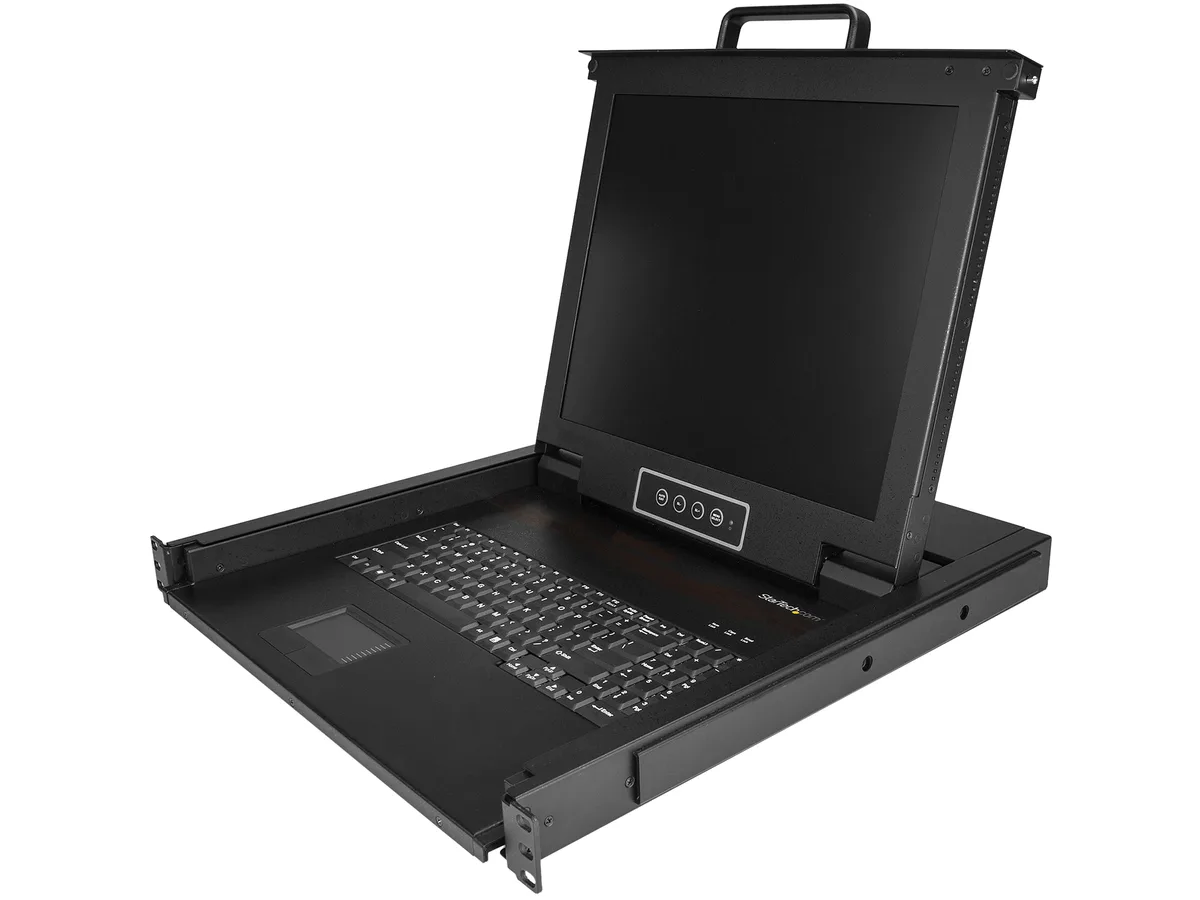

The STARTECH RKCONS1701 integrates a 17-inch Active Matrix TFT LCD, keyboard and touchpad into a 1U rackmount chassis. It provides direct VGA access to a single PC or server at up to 1280 x 1024 resolution. The unit ships with mounting rails, cage nuts, screws and five regional power cords for immediate deployment.
Suited for single-server management
This console targets administrators who need local, at-the-rack control of one system without a separate monitor, keyboard or mouse. It is not intended for operators who must switch between multiple servers, nor for environments that require digital video inputs such as HDMI or DisplayPort.
Fits standard 1U rack space

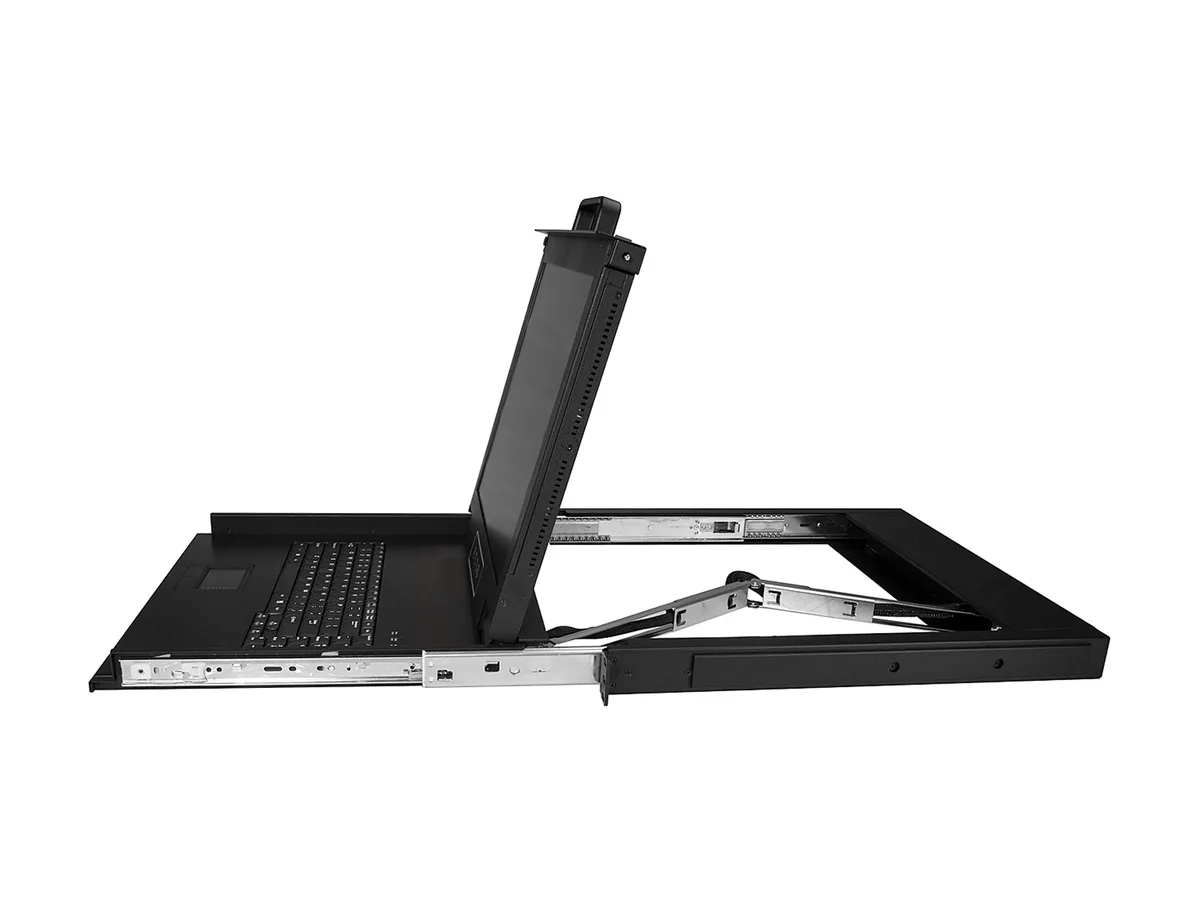

The 1U form factor occupies minimal vertical room while the included rails and hardware secure the unit in a standard rack. An internal 100 to 240 V AC supply drawing 13 W eliminates the need for an external power brick. A single VGA cable links the console directly to the target system, freeing desk space and reducing cable clutter.
Highlights
- 1U rackmount design saves server-room space with 1.70in height
- 17in LCD panel displays 1280 x 1024 resolution at 250 cd/m² brightness
- Built-in keyboard and touchpad give immediate local control without extra peripherals
- Single VGA port connects directly to one PC or server for straightforward KVM access
- International power cords and 100-240V input support worldwide deployment with 13W consumption
Specifications
| Brand | StarTech.com |
|---|---|
| Model | RKCONS1701 |
| Type | D-Sub |
| PC Connectors | 1 x VGA (15 pin, High Density D-Sub) Female Input |
| Monitor Connections | 1 Port |
| Video Resolution | 1280 x 1024 |
| Monitors Supported | Display Size: 17in Panel Type: Active Matrix TFT LCD Aspect Ratio: 5:4 Brightness: 250 cd/m² Color Depth: 8-bit, 16.7M colors Contrast Ratio: 1000:1 IP Control: No Maximum Analog Resolutions: 1280 x 1024 Pixel Pitch Support: 0.264 x 0.264 mm Response Time: 5ms Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz Viewing Angle: 170° (H), 160° (V) |
| LED Indicators | 1 - Power / Status LED |
| Temperature | 0°C to 40°C |
| Humidity | 10 - 80% RH (non-condensing) |
| Power Features | Input Current: 1.5A Input Voltage: 100 ~ 240 AC Power Consumption (In Watts): 13W Power Source: International Power Cords |
| Features | Reduce your server room clutter with a 1U rackmount design Intuitive system integration with direct support for your PC or server Ready to use with built-in touchpad and keyboard Save money and reduce hassle with a cost-effective rackmount LCD console Set up easily?with?all necessary?mounting?brackets,?cables and screws?included |
| Dimensions | 1.70" x 17.60" x 18.50" |
| Weight | 25.90 lbs. |
| Package Contents | 1 x KVM console 1 x KVM cable 8 x M5 cage nuts 8 x M5 screws 5 x regional power cords (NA, JP, UK, EU, ANZ) 2 x mounting rails 1 x quick-start guide |
| Shipping weight | 17.69 kg |
| Package size | 775 × 622 × 191 mm |
Questions about this item
Do I need a VGA cable to connect my server to the RKCONS1701?
A 15-pin VGA KVM cable is included in the box, so no separate cable is required for the initial connection.
Can I keep using my existing PS/2 keyboard and mouse with this console?
The unit has a built-in keyboard and touchpad; external PS/2 peripherals are not supported on this model.
How can I confirm the RKCONS1701 is operating correctly after racking it?
The front power/status LED lights when the console receives 100-240 V AC and the 17-inch LCD displays a 1280 x 1024 signal from the connected server.
