STARTECH

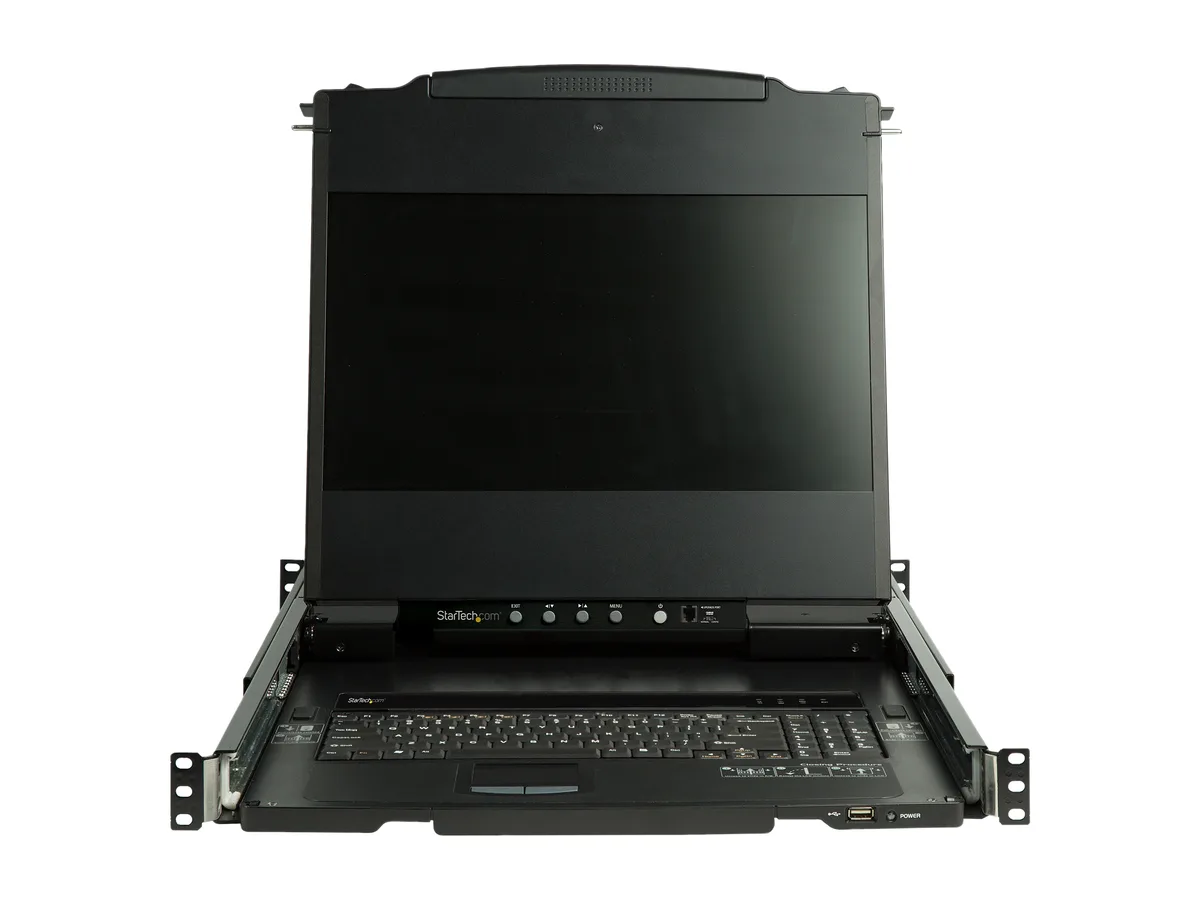

STARTECH RKCOND17HD 17.3" 1920x1080 Dual-Rail KVM Switch
Rackmount 17.3-inch 1920x1080 LCD console with dual-rail slide, single-port KVM, VGA and DVI inputs, USB keyboard and mouse, and included cables
- TypeD-Sub, DVI
- PC Connectors1 x VGA (15 pin, High Density D-Sub) Male Input 1 x DVI-D (2
- Console Connectors1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB T
- Computer Connections1 Port
- Video Resolution1920 x 1080
- Monitors SupportedDisplay Size: 17.3in KVM Ports: 1 Panel Type: Active Matrix
- Independent monitor and keyboard movement with dual-rail design
- 1920x1080 resolution on 17.3in active matrix TFT LCD panel
- Digital DVI and analog VGA video inputs supported
- LED-backlit display at 250 cd/m² brightness with 650:1 contrast
- Includes KVM cables, audio cable, brackets, cage nuts, screws and five power cords

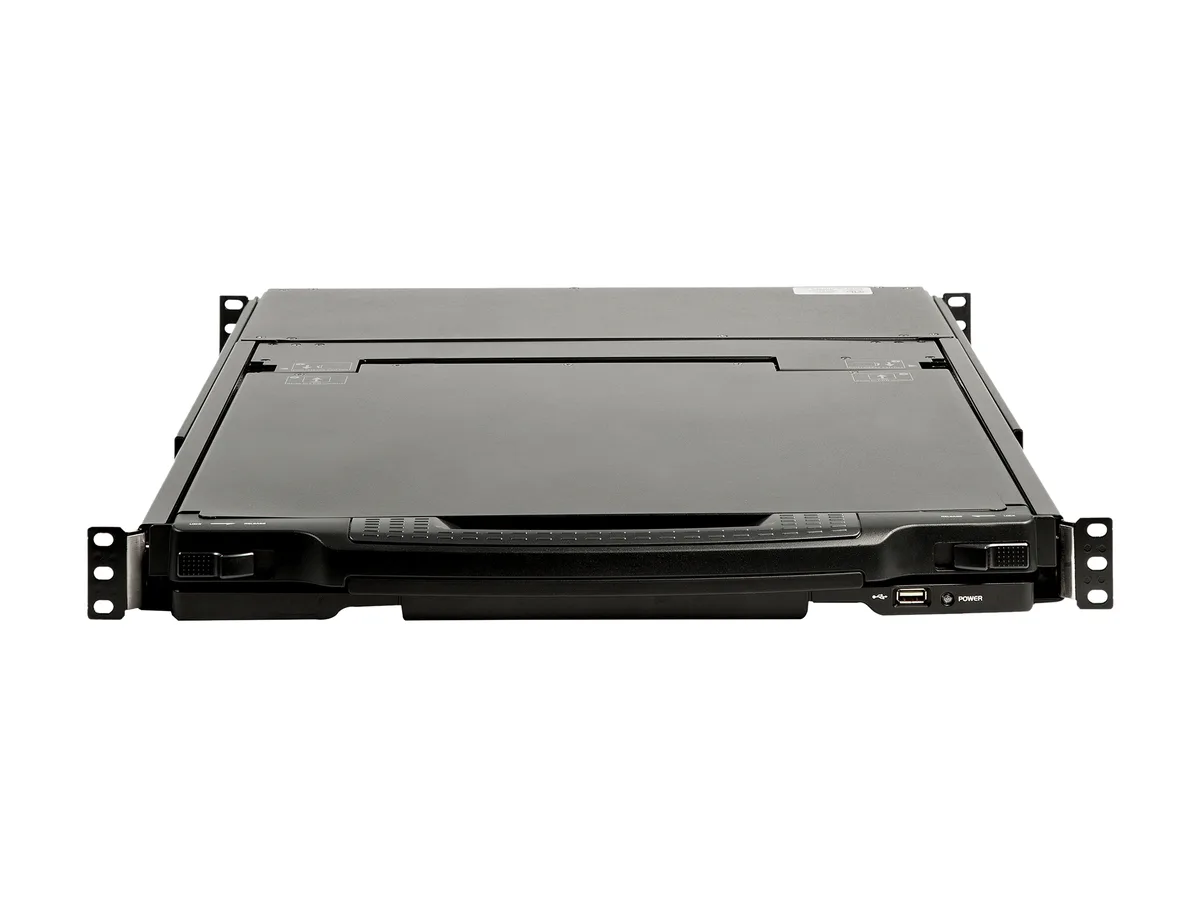

Dual-Rail Rackmount Console
The StarTech RKCOND17HD is a 1U rackmount KVM console with a 17.3in 1920x1080 TFT LCD panel. It mounts in a standard 19in rack using the included brackets and cage nuts. The dual-rail mechanism lets the display and keyboard tray slide independently for flexible positioning. A single KVM port manages one server through VGA or DVI video plus USB 2.0 keyboard and mouse connections.
Server Rack Administrators
This console suits administrators who need local, at-the-rack access to a single server running analog VGA or digital DVI output at 1080p resolution. It is not for operators who must switch between multiple servers from one console or who require on-screen display menus for configuration. Buyers needing multi-port KVM switching or remote IP access should look at a different product category.
Single-Port KVM Architecture

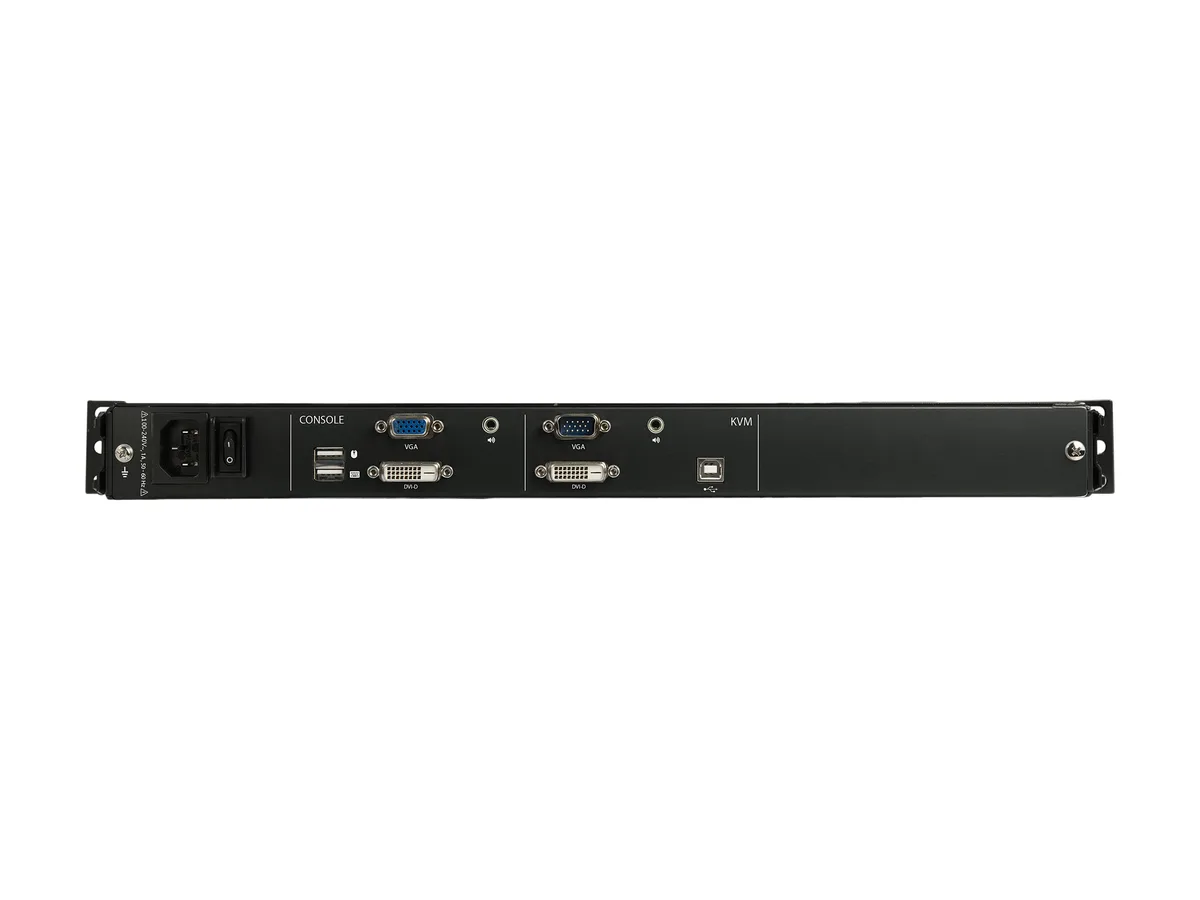

The unit provides exactly one KVM port with VGA, DVI-D, USB Type-B and 3.5mm audio inputs for the target computer. Console-side connectors include VGA, DVI-D, two USB Type-A ports and audio output for the integrated monitor, keyboard and mouse. This single-port design determines whether the console matches a one-to-one server deployment or falls short for multi-system management.
Highlights
- Independent monitor and keyboard movement with dual-rail design
- 1920x1080 resolution on 17.3in active matrix TFT LCD panel
- Digital DVI and analog VGA video inputs supported
- LED-backlit display at 250 cd/m² brightness with 650:1 contrast
- Includes KVM cables, audio cable, brackets, cage nuts, screws and five power cords
Specifications
| Brand | StarTech.com |
|---|---|
| Model | RKCOND17HD |
| Type | D-Sub, DVI |
| PC Connectors | 1 x VGA (15 pin, High Density D-Sub) Male Input 1 x DVI-D (25 pin) Female Input 1 x USB Type-B (4 pin) USB 2.0 Female 1 x 3.5 mm Stereo Audio Female Input |
| Console Connectors | 1 x VGA (15 pin, High Density D-Sub) Female Output 2 x USB Type-A (4 pin) USB 2.0 Female 1 x DVI-D (25 pin) Female Output 1 x 3.5 mm Stereo Audio Female Output |
| Computer Connections | 1 Port |
| Video Resolution | 1920 x 1080 |
| Monitors Supported | Display Size: 17.3in KVM Ports: 1 Panel Type: Active Matrix TFT LCD PC Video Type: VGA+DVI Aspect Ratio: 16:9 Brightness: 250 cd/m2 Color Depth: 8-bit, 262,144 colors Contrast Ratio: 650:1 Hot-Key Selection: Yes Maximum Analog Resolutions: 1920 x 1080 @ 60Hz Maximum Digital Resolutions: 1920 x 1080 @ 60Hz MTBF: Approx. 44230 hrs. On-Screen Display: No Pixel Pitch Support: 0.199 x 0.199 mm Response Time: 8ms Supported Resolutions: 1024x576 1152x648 1280x720 1366x768 1600x900 1920x1080 Viewing Angle: 140° (H), 120° (V) Wide Screen Supported: Yes |
| LED Indicators | 1 x Power 1 x Num Lock 1 x Caps Lock 1 x Scroll Lock |
| Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0 - 80% RH Non-condensing |
| Power Features | Input Current: 1A Input Voltage: 100 - 240 AC Power Consumption (In Watts): 19.4W Power Source: International Power Cords |
| Features | Slide the rackmount monitor and keyboard/mouse independently with dual-rail KVM console design 1080p KVM console supports high-definition resolutions up to 1920x1080 Supports both digital and analog connections with DVI and VGA ports Set up easily with included brackets, cables and screws Connect a fingerprint scanner or other peripheral to the USB port on front of KVM console |
| Dimensions | 1.70" x 18.90" x 28.60" |
| Weight | 26.50 lbs. |
| Package Contents | 1 x LCD Console 2 x Rear Mounting Brackets 1 x Set of KVM Cables (USB/VGA) 1 x Audio Cable 1 x Firmware Update Cable 8 x M5 Cage Nuts 8 x M5 Screws 5 x Power Cords (NA, JP, UK, EU, ANZ) 1 x Quick-Start Guide |
| Shipping weight | 1.40 kg |
| Package size | 831 × 673 × 130 mm |
Questions about this item
How do I install the StarTech RKCOND17HD in a rack, and which step is often missed?
Mount the two rear brackets and included M5 cage nuts into a standard 1U rack space, then slide the 1.70" high unit in; the step often missed is connecting both the VGA and DVI-D cables plus the USB 2.0 Type-B link so the single-port KVM actually switches video and input together.
What maintenance will the RKCOND17HD need over its 44230-hour MTBF rating?
Clean the 17.3" TFT LCD panel and the dual-rail slide rails periodically; the LED backlight is not user-replaceable, so if brightness drops below the rated 250 cd/m² after extended use the entire console module must be swapped.
What limit appears first when the console runs continuously at full 1920x1080 60 Hz brightness?
The 40 °C (104 °F) operating-temperature ceiling is reached before any electrical limit, so sustained full-load use in a poorly ventilated rack will trigger thermal protection and dim or shut down the display.
