Small black PoE splitter with two RJ45 ports and a four-pin terminal block

STARTECH

STARTECH POESLT1G48V 90W 48V Gigabit PoE Splitter

SKU CH-R987-542TW MPN POESLT1G48V

Splits a 90 W PoE connection into Gigabit data and 12 V, 16 V, 24 V or 48 V DC power via terminal block

  • TypePoE Splitter
  • ColorBlack
  • Specifications1 - Connector Type(s): - RJ-45 (PoE+) - RJ-45 - Terminal Blo
  • FeaturesHIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using
  • Powers non-PoE devices from network cable
  • Splits 90W PoE into data and DC output
  • Selectable 12/16/24/48V at 1.5A via DIP switch
  • Gigabit throughput with 10/100/1000 auto-negotiation
  • Industrial rated from -40°C to 75°C

Industrial Gigabit PoE Splitter

The STARTECH POESLT1G48V separates a Power over Ethernet feed into a Gigabit data stream and adjustable DC power for non-PoE equipment. It accepts IEEE 802.3af, at and bt input up to 90W and delivers 12V, 16V, 24V or 48V at 1.5A through a four-wire terminal block. The unit is built for industrial environments with an operating range of -40°C to 75°C.

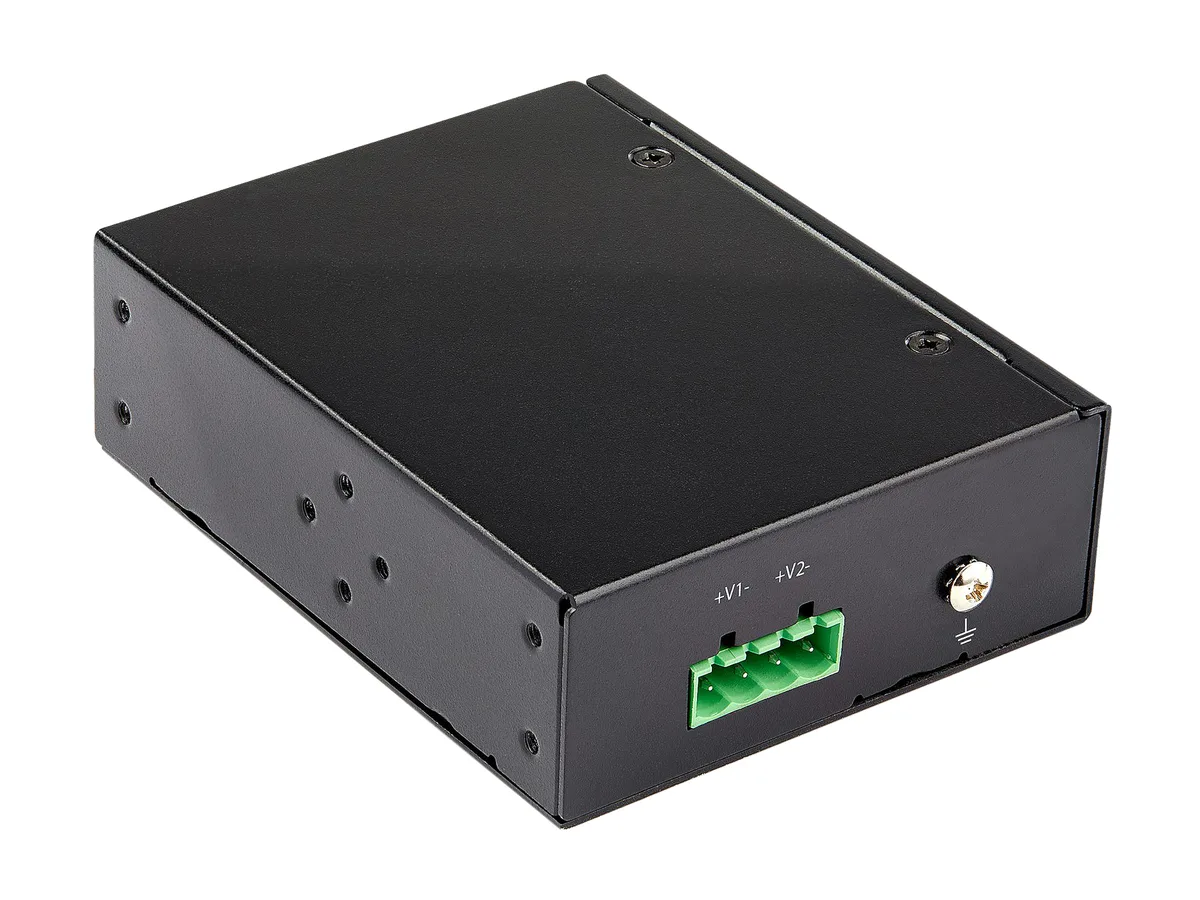

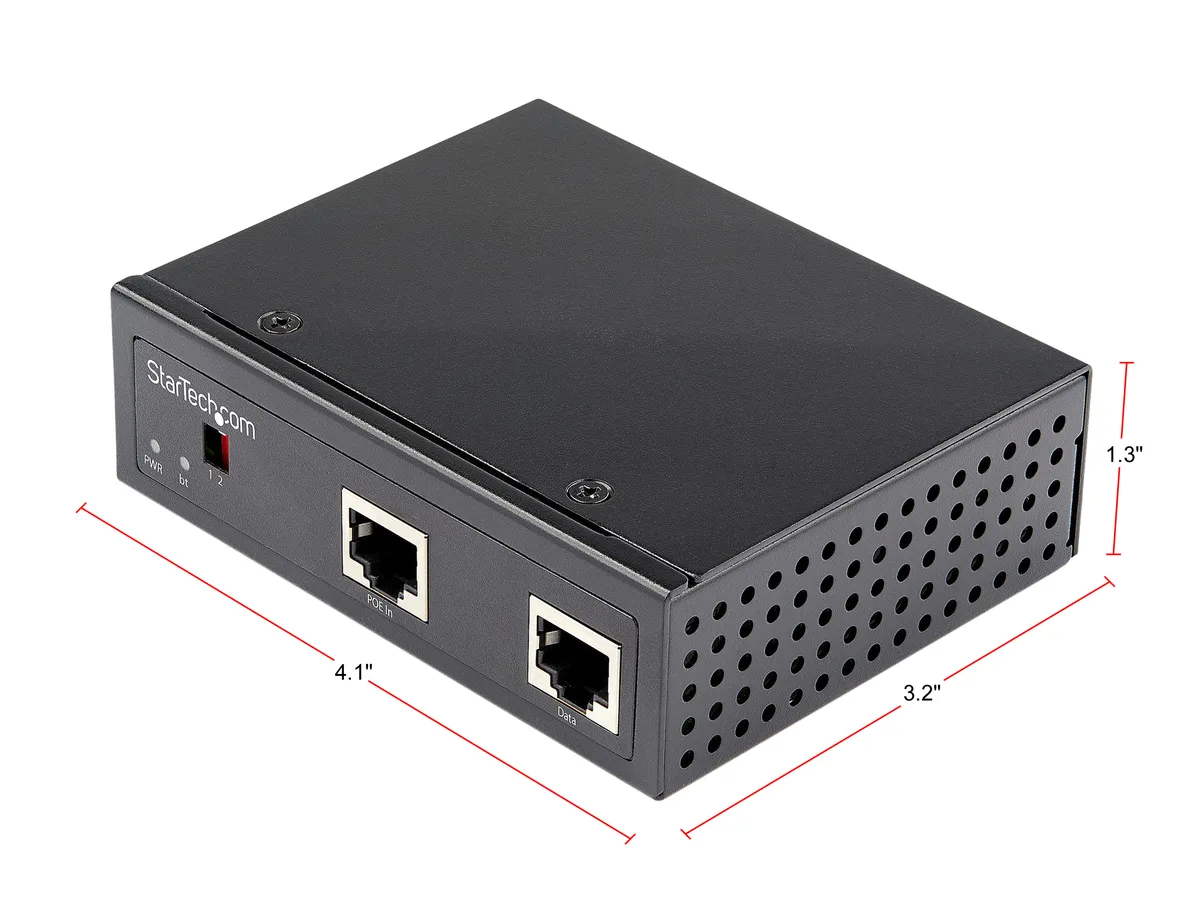

Black metal housing with DIN and wall mounting

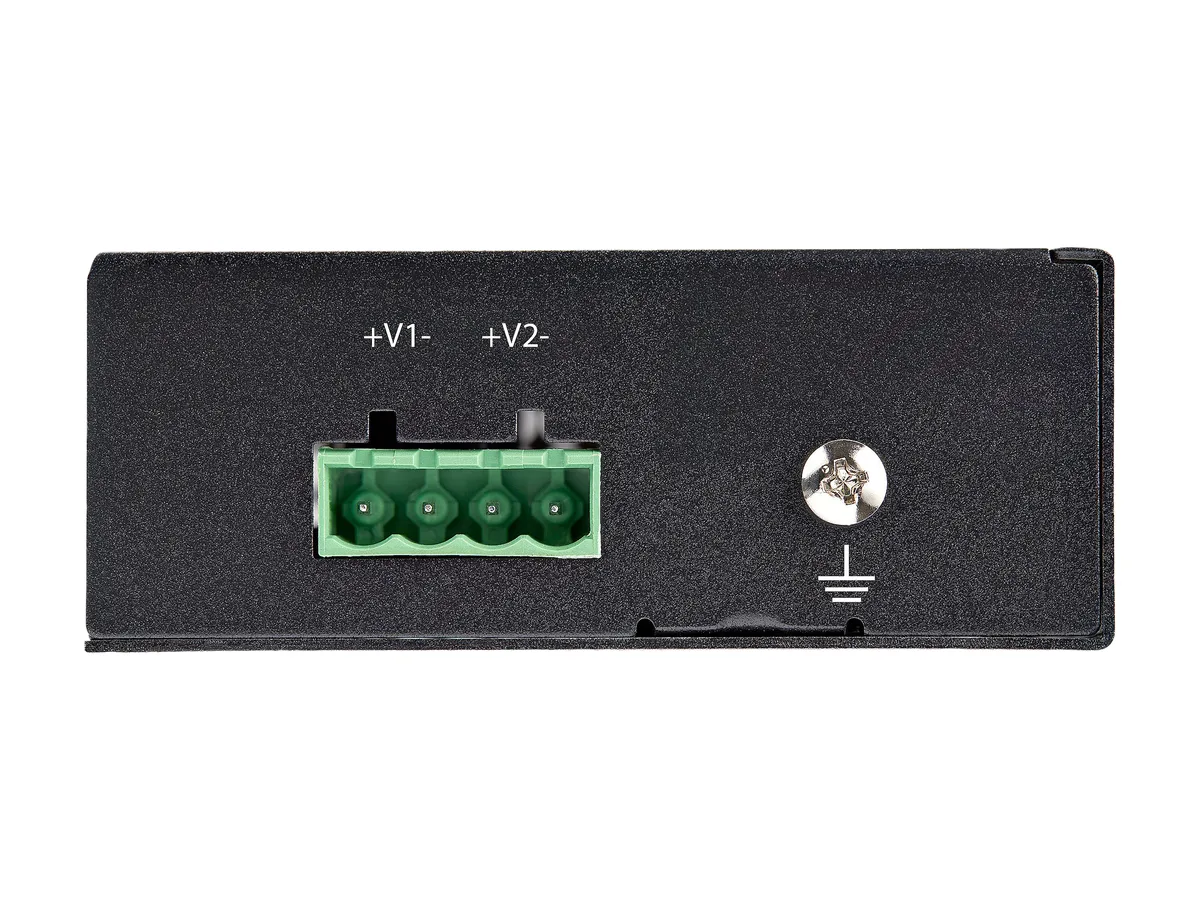

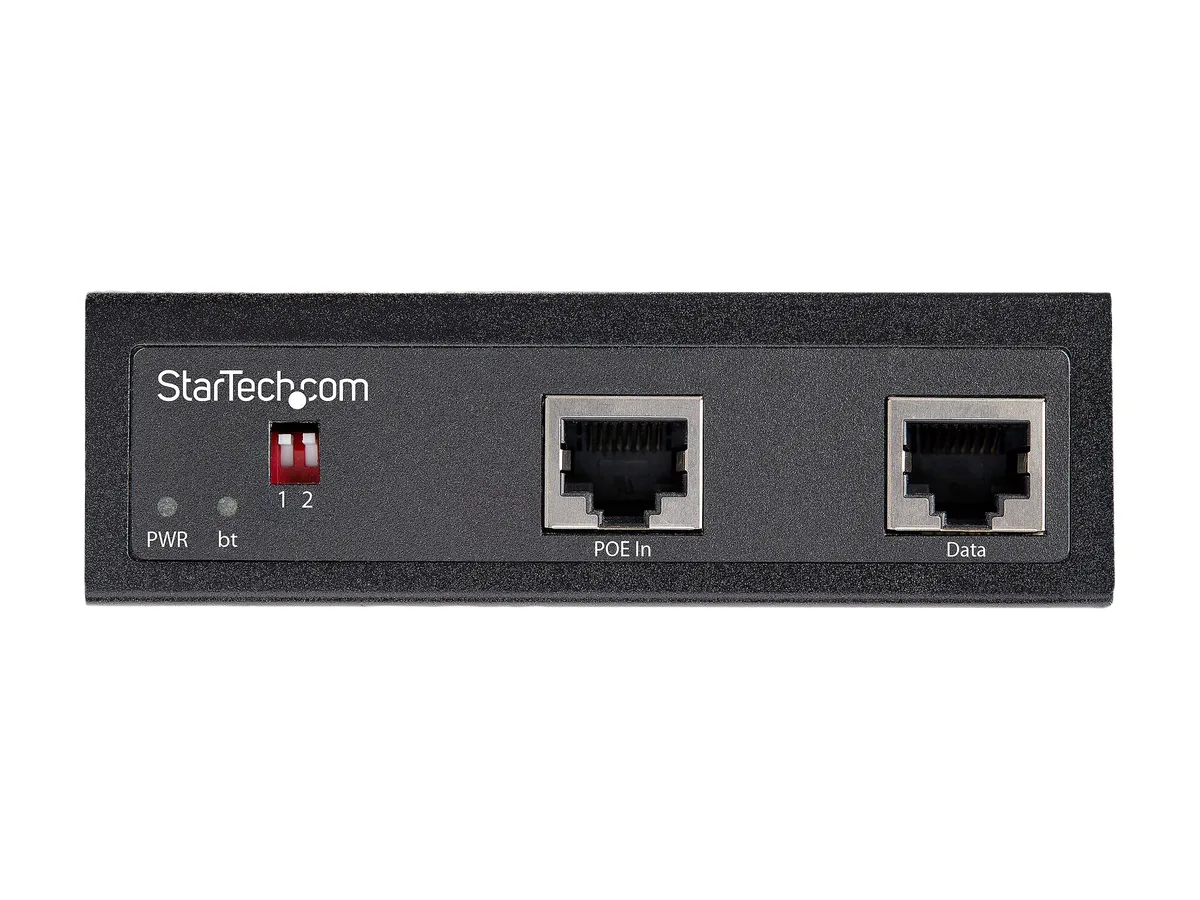

A rugged black enclosure protects the circuitry while integrated DIN-rail and wall-mount tabs secure the splitter inside cabinets or on panels. One RJ-45 port handles the PoE+ input, a second RJ-45 passes 10/100/1000 Mbps data onward, and the terminal block provides screw-down power connections that resist vibration. DIP switches on the side select the output voltage without opening the case.

Check your PoE source

The injector or switch must supply IEEE 802.3bt Type 3 power to reach the 90W maximum; lower-class sources will limit available output. Verify that the powered device operates on one of the four selectable voltages and draws no more than 1.5A. Ensure the installation site stays within the -40°C to 75°C operating window and that cabling supports Gigabit speeds.

Highlights

  • Powers non-PoE devices from network cable
  • Splits 90W PoE into data and DC output
  • Selectable 12/16/24/48V at 1.5A via DIP switch
  • Gigabit throughput with 10/100/1000 auto-negotiation
  • Industrial rated from -40°C to 75°C

Specifications

BrandStarTech.com
ModelPOESLT1G48V
TypePoE Splitter
ColorBlack
Specifications1 - Connector Type(s):
- RJ-45 (PoE+)
- RJ-45
- Terminal Block (4 Wire)
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity: 5 to 95% (non-condensing)
Industry Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3at PoE+
- IEEE 802.3af PoE
FeaturesHIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available | Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
TECH SPECS: High Speed 1 Gbps | 1 x RJ45 PoE In | 1 x RJ45 Data Out | 12V-48VDC 1.5A power output | 4 pin Terminal Block Power Out | 10/100/1000 Mbps Auto Negotiation | DIN or Wall Mountable
ROBUST DE
Shipping weight0.39 kg
Package size211 × 162 × 64 mm

Questions about this item

What PoE standard does the POESLT1G48V support and what is the maximum power it can split?

The splitter supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W, splitting the PoE connection into RJ45 data and DC power on the terminal block.

What mounting options are available for this industrial PoE splitter?

The unit is DIN-rail or wall mountable, allowing installation inside cabinets or on flat surfaces without additional brackets.

How do you set the output voltage on the POESLT1G48V and what mistake should be avoided?

Use the DIP switch to select 12V, 16V, 24V or 48V DC at 1.5A before powering the device; the common error is changing the switch while the splitter is live.
